Boats similar to Roberts Spray 38 Classic

Boat not available.

Roberts Spray 38 Classic for sale in Portishead United Kingdom

LOCATION

Portishead United Kingdom

YEAR

2001

LENGTH

43.96 ft.

DETAILS

Condition

Used

Name

Ruffles Spray

Year

2001

Make & Model

Roberts Spray 38 Classic

Boat type

Sail

Length

43.96 ft.

Fuel Type

Diesel

Location

Portishead United Kingdom

MEASUREMENTS

Beam

14.11 ft.

Berths

3

Draft Max

5.25 ft.

LWL

33.01 ft.

DESCRIPTION

The Roberts Spray has appealed to many serious cruising sailors, and is a timeless example of a well found cruising yacht.
This boat is for the cruising couple who want to spend extended periods at sea and undergo long passages. Spacious and comfortable with a large saloon and galley with plentiful storage, a large comfortable double bed, and a weather protected wheelhouse, this boat includes everything necessary for long term liveaboard cruising. Fully insulated and heated. Ready to sail - Just add provisions!

Mechanical

MECHANICAL
ENGINE- 2000 Model Ford FSD,
Power Maximum HP61,
PM Maximum 3000,
Torque Maximum Nm 170,
Cubic capacity 2.5 liters,
Bore 93.7 mm X Stroke 90.5 mm,
Aspiration Natural.

Fuel Consumption at 2000rpm six liters(6) per
Cruising speed under engine 6 knots,
Hull speed eight (8) knots.

TRANSMISSION:
PRM 150 - Full hydraulic operation,
lightweight, compact & rugged.
The hydraulic operating system functions on normal multigrade engine oil, avoiding the need to use automatic transmission fluid, and ensures rapid response to movements of the operating lever for good boat handling.

ENGINE INSTRUMENT PANEL:
Vetus deluxe
oil pressure,
water temperature,
Engine
hour meter,
alarms,
Vetus engine control levers
Morse control cables
PROPELLER SHAFT: 1 ¾” (44.45 mm) diameter stainless steel
Standard S.A.E. double taper
Cutlass bearing x 2
PROPELLER:
3-bladed bronze,
23" diameter
STERN TUBE:
Steel
SHAFT SEAL:
Manecraft Type EM Deep Sea Seal.
Self Adjusting - These seals automatically compensate for face wear, and unlike gland packing, do not require any adjustment.
No Shaft Wear - The Manecraft seal rotates with the propeller shaft, and therefore cannot cause wear of the shaft surface.
Maintenance Free - Once fitted, the seal does not require any maintenance.
Emergency Safety Seal - Should for any reason the seal fail it can be quickly resolved by tightening the emergency clamp
WET EXHAUST
ENGINE COOLING SYSTEM: Filled with suitable mixture of coolant/antifreeze to insure coolant does not freeze for winter
BOW THRUSTER:
Maxpower 80CT SIDE BOW THRUSTER

STEERING SYSTEM
HYDRAFLEX HD 63 Hydraulic Steering consisting of the following components:
Hydra pump - HD63
I-B378 Cylinder
Double non return valve
HYDRAULIC LINES: 8.00mm ID diameter hose
STEERING WHEEL: 18" (45.72 cm) x 1
EMERGENCY TILLER: Attached to top of rudder in aft cabin
RUDDERS: One Steel
Rudder stock: 2" (51 mm) Stainless Steel

ELECTRICAL SYSTEM

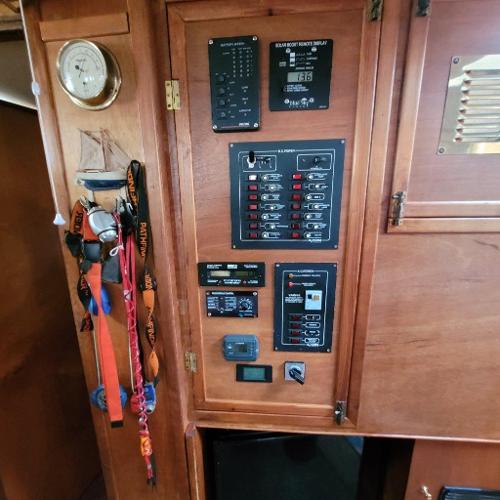

ELECTRICAL PANEL set consisting of the following:
Axon 12volt Distribution panel
Axon 230 Volt Panel
Power Selector Switch
Blue Sky Solar Boost Remote Display Panel
PEP DC Meter
AC Volts and Current Meter
Victron Energy Phoenix Multi Remote Control Panel
Vetus Battery Watch
Charger Inverter Combi
Victron Multiplus 230V -2500 Watt - 120 Amp - 12 v Combi Inverter/Charger
Isolation Transformer – 3600, 230 Volt
The Victron isolation transformer is essential for preventing electrolytic corrosion and to guarantee a safe electrical system on board boats. It eliminates electrical continuity between AC shore power and the boat and eliminates the need for galvanic isolators and polarity alarms.
When using shore power, if the ground wire from the shore supply is connected to a metal part of the boat, galvanic corrosion will occur. This can attack important areas such as the propeller and shaft, as well as quickly dissolving anodes that are there to protect them.

CHARGING SYSTEM
Phaesun Monocrystalline 90 Wh Solar Modules x 4
Blue Sky Blue Sky Energy Solar Boost 50
Patented MPPT technology increases charge current up to 30% or more! *50A/24V or 30A/48V ratings support large solar module arrays.
Three stage PWM charge control optimizes charge parameters to battery size & type
Alternator Charging:
Balmar Alternator, 60 Series, 120A, 12V, Saddle Mount (Dual Foot), 3.15in

BATTERY AND DC SYSTEM 12V
House Batteries: FourAH Trojan T105 Batteries for house applications (450
Battery select switch (OFF, 1, 2, ALL)
Starter Battery: .110 AH Dedicated Starter battery for engine starting.
Bow Thruster Battery
OPTIMA RED TOP BATTERY – Dedicated Bow Thruster battery

Rig

Rig: - Schooner Junk
Mainmast – Unstayed Douglas Fir, by Noble Masts, Bristol
Foremast - Unstayed Douglas Fir, by Noble Masts, Bristol
Running Rigging – All running rigging and blocks new 2020
Halyards – main mast halyard and blocks 4:1 purchase
foremast halyard and blocks 3:1 purchase
Winch – one double speed winch, not needed to make or reef sail however, available if required

Sails:
Foresail - 300 Square Feet
Mainsail - 450 Square
Sails – Foresail and mainsail made by Chris Scanes, Sails and Canvas Ltd of Topsham
Running Rigging – All running rigging and blocks new 2020
Halyards – main mast halyard and blocks 4:1 purchase
foremast halyard and blocks 3:1 purchase
Winch – one double speed winch, not needed to make or reef sail however, available if required

Equipment

NAVIGATIONAL EQUIPMENT:
7” B & G Vulcan 7R Chartplotter
The Vulcan can be connected to a tablet computer (such as iPad) and used as a remote control/larger screen.
Gamemax Computer with Windows 10 installed
OpenCPN Charting Software
Connected to NMEA 2000 system to overlay:
GPS Data
AIS Data
Weather Data

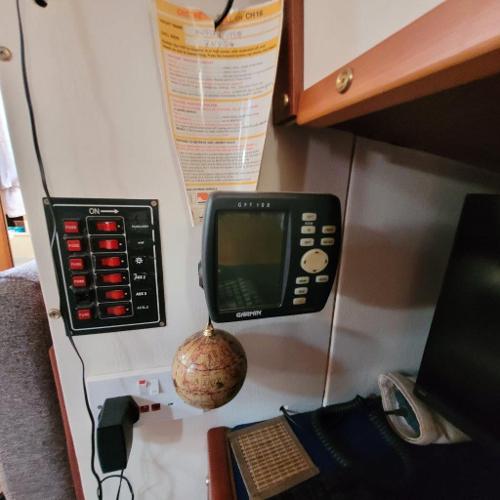

In addition the computer is also able to take GPS data from second Garmin 128 GPS should the charplotter fail
Hand held Garmin GPS 48 can also be connected if Plotter and Garmin 128 fail

Yeoman Plotter Pro
A further navigation backup is available through the Yeoman Plotter
Connected to the Garmin 128 GPS
Charts are clipped to the Yoeman Plotter and navigation can be carried on
If all fails navigation can be carried out with traditional navigation methodology
Hand held compass and plotting tools are all available

Autopilot C-Tronix AP9000
Including KVH Azimuth 1000 Fluxgate Compass
Course Computer
Controller
Rudder referencing unit
PR20 Reversing Hydraulic Pump Drive Unit

Marine Radio VHF - Lowrance Link-8 Fixed Mount DSC VHF Radio with AIS Receiver -

EXTERIOR, DECK HARDWARE AND EQUIPMENT
HORIZONTAL SURFACES on deck are painted with Interdeck Anti slip Deck paint.
Cockpit sole has Interdeck Anti Slip Paint
Cleats for mooring lines:
Transom sides: stainless steel cleats x 2
Amidships: stainless steel
Bow: stainless steel Cleats x 2
Further 2 cleats affixed forward of the mast on bowsprit
BOW ROLLER: Galvanised steel double bow roller designed to accommodate two anchors
Rocna Anchor Galvanized 33kg – Main anchor
25lb CQR - Kedge
STAINLESS STEEL STANCHIONS/RAILINGS - 25mm diameter - spanning the complete side decks, push and pulpit at a height of 800mm
WINDLASS: Windlass: Vetus Alexander III 1000 watt, 12vdc Windlass, chain gypsy for 10mm chain.
DINGHY DAVIT: Fabricated 50mm diameter stainless steel gantry incorporating dingy Davit with Blocks and tackle
Dinghy – Gala 2.70 meters aluminum floor PVC Dinghy new April 2016
Outboards:Yamaha F8 CMHS, 8hp four stroke outboard
Mariner 2.5 hp two stroke outboard
SWIM LADDER mounted on bathing platform

SAFETY
Fire Extinguishers: ANAF Automatic Fire Extinguishers mounted in engine room
Two ABC Powder Extinguishers in Saloon
Fire blanket mounted near cooker

Life raft: Ocean Safety 4 person life raft stored on deck, serviced 2016

CALORIFIER:
CWM29-V3 - 29 litre Vertical Water Storage
Capacity: - 29 litres (6.5 gallons)
Connections: - Heating Coil ¾", Cold in & Hot out ½"

THRU HULLS: Marelon Seacocks
Reinforced Marelon is a formulation of glass reinforced dupont zytel. These Marelon valves are a complete unit consisting of a thru-hull fitting, valve body and hose tail barb. The thru-hull fitting uses a buttress style thread for exceptional strength and each valve is factory assembled and pressure tested.

FRESH WATER PUMP: Jabsco Ultra Max Pre-Assembled Pressure System 12 volt
14 liters per minute (3 gallons - minute)
This fully assembled water pressure set includes a Jabsco Par-Max 3 pump, a pressure switch, a 1 litre pre-pressurised accumulator tank, an inlet strainer all set on a plastic mounting panel. It is an efficient, high flow, self-priming pump serving up to 4 outlets and has quick-connect electrical connections.

WATER MAKER
Schenker Smart 30 Watermaker (Desalinator),
30 Litres per hour,
Litres per day: 720, 30S12:
9 Amp at 12 volt / 110 Watt for 30 liters of water.

BILGE PUMPS:
Electric: Rule 3700 GPH Heavy-Duty Bilge Pump (X 2) in engine room and Deep Sea Seal bilge sections
Manual: Whale Gusher 30 operable from main salon drains main bilge sump under main mast step

Accommodation

ACCOMODATION
GALLEY
Refrigerator - Vitrifrigo Refrigerator Seaclassic c115i Black
THETFORD SPINFLO CAPRICE MK3 COOKER
The Thetford Spinflo Caprice offers a generous size oven and four burners, then when not in use the glass lid maximises your usable interior space. builds
Toshiba 800w 20L Microwave Oven

MAIN SALON
Floors: Carpeted throughout
Two with Troyes Leather Look High-Back 360 Swivel Chair on port side
Starboard side has settee that converts into occasional single bunk
Dedicated chart table with seat
Lockers forward to port and starboard
AFT MASTER CABIN
Floors: Carpet throughout
Double bed with full size Doze Luca Lite Mattress (4’6” by 6’3”)
Headboard
Double full height hanging wardrobe
Port side fitted with lockers

HEAD
Lavac Toilette to port
Full size house washbasin with underneath storage
Shower under liftable shower boards with curtain surround
Storage locker
Access to chain locker

FOREPEAK LOCKER
Storage locker
Foremast

Under Cabin coaming

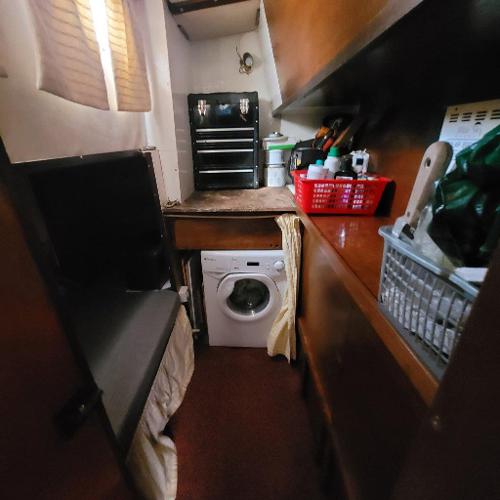

Candy AQUA100F/1-80 Aquamatic Compact 3.5kg Load 1000rpm Freestanding Washing Machine
Workshop counter above washing machine
To starboard single berth
Access to engine room

COCKPIT / WHEELHOUSE
Helm position in center forward location on bulkhead

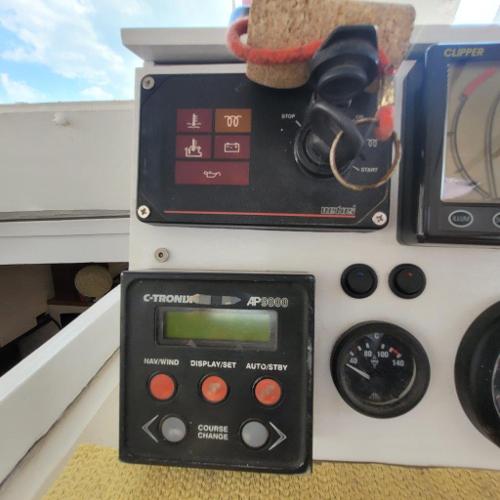

Instrument Panel incorporating
Engine panel
Windspeed and Direction
Second GPS Repeater
Anchor Winch remote
Bow Thruster Panel
Depth Sounder
Rev Counter with Hour Meter
Engine temperature
Autopilot Remote panel
Manual winch for sail hoisting dual speed
All sail running rigging controlled from cockpit
Waterproof Speakers

HEATING
Taylors D79 Drip Feed Diesel Heater

ENTERTAINMENT SYSTEM
Douk Audio G5 HiFi Bluetooth 5.0 Digital Power Amplifier Receiver
LED TV in saloon and aft cabin

Construction

ROBERTS SPRAY
Bruce Roberts Spray 38 Classic SSR Number 97659
Designer : Bruce Roberts
GENERAL DIMENSIONS*
LOA: 44’.00” - 13.40 m
LWL: 33'-0" - 10.06 m
BEAM: 14'- 3” 4.30 m
DRAFT: 5’ 4" 1.60 m
DISPLACEMENT: 39,683LBS - 18 METRIC TONS
WATER CAPACITY: 132 GALLONS - 600 LITERS
FUEL CAPACITY: 154 GALLONS - 700 LITERS
HOLDING TANK CAPACITY: 45 GALLONS (200 LITERS)
GRAY WATER CAPACITY: 45 GALLONS (200 LITERS)

CONSTRUCTION
HULL
Keel – 12mm Steel
Keel sides and Bottom Plating – 6mm steel.
Topsides and transom – 5mm steel
Deck and Superstructure
Deck, Superstructure including doghouse – 4mm steel.
Keel Type
Long Keel

BALLAST: Internal weight 4960 lbs (2225 kg) - epoxied in place and capped (welded)

HULL COLOR
Deck – Colour Sand International Deck paint #009
Walkways – Colour White International Deck paint #001
Topsides – Hempel Polygloss Two Pack Colour Off White #10381
BOTTOM PAINT
Gael Force Antifouling – Red, BM030010

WATER TANKS:
Two (2) TekTanks totaling 600 liters.
Plastic HDPE construction
Inspection hatches appropriately positioned for interior access with internal baffles.

FUEL TANK:
Three (3) tank totaling 700 liters
Plastic HDPE Construction
Inspection hatches appropriately positioned for interior access with internal baffles.

TOILET AND HOLDING TANK:
Marine Toilette
Blakes Lavac Taylors Popular Toilet
Jabsco Manual Toilet Twist ‘n’ Lock – Stored under double bed in aft cabin as spare
Holding Tank – TekTanks
Plastic 200 liters
Whale Gulper Toilette Tank Pump
Holding tank fitted with a deck pump out fitting
Whale Diverter Valves - for tank or overboard discharge

GRAY WATER TANK: 200 liters
Head sink and shower drains to sump, sump can either be diverted to 200 liter gray tank or direct
Galley Sink drains into dedicated 35 liter grey water tank which can be pumped either overboard or into main holding tank.
The galley sink also drains direct overboard via diverter valve as well.
The gray tank uses the Whale Gulper Toilette Pump to empty the grey water tank via a Whale diverter.

PROPULSION

Engine Count

1

Engine Horse Power

46.0

Engine Location

Center

Propeller Type

3 Blade, Bronze, Folding

ADDITIONAL INFORMATION

HULL

Ballast

2225

Hull Material

Steel

OTHER

Double Berths

1

Single Berths

2

Displacement(kgs)

18000 kilograms

Drive Transmission Description

Direct

Drive Up

1.6 meters

Engine Type

Inboard

Fuel Tanks Capacity

700 liters

No of Heads

1

Holding Tanks Capacity

200 liters

Keel Type

Full Keel

Water Tanks Capacity

600 liters

ABOUT ROBERTS SPRAY 38 CLASSIC

The Roberts Spray 38 Classic is a 44 feet long that boasts a 14 feet beam. and a draft of 1.6 meters.This 2001 diesel Roberts Spray 38 Classic is powered by a Ford FSD, with 46.0 horsepower. The Roberts Spray 38 Classic is made of steel.

SIMILAR LOCATIONS
