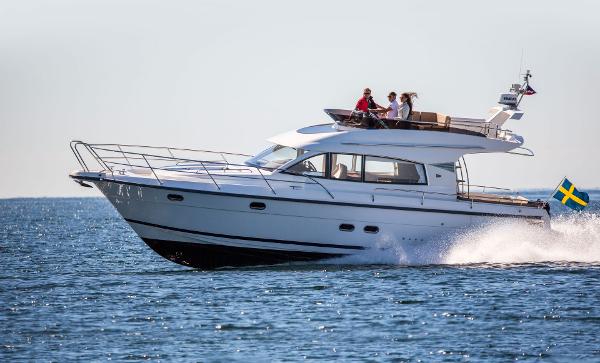

NIMBUS 405 FLYBRIDGE (2023)
STANDARD EQUIPMENT
2 x Volvo Penta D4-320 Shaft (640 hp)
12 V electric outlet
Anchorbox with drainage
Bathing platform with anchor box
Bathing ladder
Bowsprit
Table on aft deck
Fire extinguisher
Boat hook
Aft shower
Shower in toilet room / Shower cabin
Cushions in cockpit
Cushions in cabin
Electrical panel with fuses
Electrical engine controls
Sea chart compartment
Fender holders or fenderbox
Flagpole
First-aid-kit
Cushions in cabin
Glass/bottle holder in dashboard
Grab rail mahogany / stainless steel
R design instrument panel
Compass
Fridge/Cooler box
Log and sounder
Manual and electric bilge pump
Marine varnished mahogany interior
Carpeting in sleeping cabins
Black-out curtains
Nimbus toolkit
Nimbus cutlery and crockery
Galley with sink
Plotter / GPS Simrad NSE12
Pillows (Nimbus design)
Pulpits and bollards in stainless steel
Stainless steel fuel tank
Stainless steel navigation lights
Holdingtank with deck outlet
Signal horn
Cushion, aft deck
Self-bailing aft deck
Leather steering wheel
Sandwich laminate
Skylight on deck with curtain
Step-light aft deck
Toilet room and WC
Ceramic gas hob
Windshield washer
Cover, aft deck coushins
Volvo Penta Trip computer
ENGINE OPTIONS
Volvo Penta 2 x DkW (550 ps) Missing data
Volvo Penta 2 x DkW (600 ps) V-Max 28 kn
Volvo Penta 2 x DkW (740 ps) V-Max 32 kn
ADDITIONAL OPTIONS
Choice of painted hull colour
Internal teak koto flooring or dark oak in cabins and hallway
Range of HiFi, TV and DVD entertainment packages
Nimbus portable loudspeaker
Fusion DAB+ module for flybridge
Range of Simrad plotter packages
Simrad VHF with AIS
Simrad NAIS
Simrad echo-sounder
Power steering including autopilot function
Wireless autopilot control
Rearview camera
Battery management system
Galvanic Isolator
Diesel generator
Shorepower inlet in bow
Air conditioning
Fitted microwave
Electric cooking hob
Nespresso coffee machine
Range of equipment for flybridge including grill, refrigerator, autopilot, teak deck and bimini
Freezer
Kitchen fan
Central vacuum cleaner
Stern windlass with remote control
Stern Thruster Quick BTQ185-105
Remote control for windlass and bow and/or stern thrusters
Mobile application for heater
Sunpad on fore deck in beige, blue or grey
Sunshade on foredeck
Canopy for windscreen
Canopy for aft deck
Extra mattress topper for front cabin
Extra mattress toppers for guest cabin
Upgraded mattress for guest cabin
Search light on stainless steel mast with joystick
Blinds in deck saloon side windows
Electric aft deck table convertible to sunbed
Teak on port side deck
Eco-teak on flybridge
Extra cleats on bathing platform
Mooring package
Electric gangway on aft deck
Bow lights
Bow ladder
Greywater tank 140L
Underwater lighting in white or blue
Additional 230V outlet
Range of transport cradles, covers and shrink wrapping protection
Anchorwinch el bow
Shore power and battery charger Mastervolt 50A
Bow thruster SE 80
Depth / Log in Volvo instrument
Electric toilet x 2
Electric pump-out of septic tank
Heater system Ebersprächer D5
Defroster
Intervall viper
Hot water system 40 liter
Radio Fusion 205 USB/ 3,5mm aux.
Sunblind, internal Coupé roof
Teak, complete boat
Trimtabs, Volvo Penta BTS
Volvo Penta Trip computer
24″ TV/DVD with electrical lifting bracket
TECHNICAL SPECIFICATIONS
Lmax, Overall lenght 13,33 m / 43,8 ft
Lh, Length of hull 13,16 m / 43,2 ft
Bmax, Overall beam 3,86 m / 12,7 ft
Bh, Beam of hull 3,75 m / 12,3 ft
Ha, Air draught 4,82 m / 15,8 ft
Air draught, folded mast 3,50 m / 11,5 ft
Th, Transport height 4,35 m / 14,3 ft
Thc, Transport height in cradle 4,55 m / 14,9 ft
Tmax, Draught 1,1 m / 3,6 ft
CoG, Centre of gravity 3,87 m / 12,7 ft
MLDC, max weight allowed (2 x D4/2 x Dkg / 12840 kgibs / 28307 lbs
MLCC, weight 9655 kg / 9905 kgibs / 21837 lbs
MMTL, Max total load 2935 kg / 6471 Ibs
Max people 12 Pers
CE Category B8/C12
Cabins 3
Berths 6
Fuel Capacity 2 x 500 l / 2 x 132 US gal
Water Capacity 2 x 200 l / 2 x 52,8 US gal
Hot Water Capacity 40 l / 10,57 US gal
Waste Capacity 135 l / 35,7 US gal
Start Battery 1 x 12V x 77 Ah
Service battery 7 x 12V x 80 Ah
Service battery Heavy Duty 3 x 12V x 77 Ah
Frequency 50 Hz
Shore power 230V AC
Battery charger 12V 50 A
DELIVERY
- DELIVERY TO GREENOCK, SCOTLAND + ON WATER SET-UP + FULL HANDOVER
WARRANTY
-
The 405 Flybridge is a Nimbus Coupé model built for knowledgeable boaters who enjoy social activities, comfortable living quarters, ease-of-handling and excellent long-distance cruising properties.
The flybridge has been constructed to harmonize fully with the design of the new coupé series. The roof has light, sweeping lines and incorporates a folding mast. A large, fixed skylight makes the salon very light and airy despite the superstructure.
The flybridge features several cleverly functional and social spaces.
‘We have put an extraordinary amount of work into layout and design in order to ensure an optimal flybridge. Not only to create a beautiful boat, but also to provide multifunctional social spaces with the right ambience,’ said Joacim Gustafsson, head designer at Nimbus.
The flybridge includes a wet bar, with sink, grill and fridge, sun bed, large sofa and a twin helm seat. The twin seat can be turned 180 degrees and thus form a roomy social seating area in combination with the sofa. If desired, the sofa can be easily converted into an additional sun bed.
All functions on the flybridge have been designed to allow the boat to pass beneath bridges after a few simple adjustments. Thanks to the “sidewalk” deck layout, walking space is maximized on the starboard side, making it very easy to get on and off the boat and to spend time on deck, while allowing generous space in the cockpit and cabin.
The Nimbus Coupé series has been built since 1969 and more than four thousand of these boats have been sold worldwide. The 405 Flybridge is built in Mariestad, Sweden at the Nimbus boatyard.
“Sidewalk” is an asymmetrical deck layout where the side deck along the starboard side is extra wide and provides generous freedom of movement. It becomes convenient and enjoyable to move about on-board from bow to stern, and easy to get on and off the boat along the entire starboard side.
Maximum use is made of the interior volume, allowing the cockpit, salon, lower deck and cabin to be larger than would otherwise be the case in a boat of this size. An important feature of the Nimbus sidewalk concept is the large flush fitted sliding door to starboard.
The sliding door provides quick access when laying alongside and enables maneuvering the boat from a standing position on the side deck. The sidewalk concept also allows the use of the aft deck for various activities. And on the foredeck the extra space is used to integrate a large sun deck as a natural feature of the boat’s design.
Polyurethane glued windows in the superstructure and a large wrap around windscreen provide a very contemporary look, exceptional stability and a quiet salon. Visibility is exemplary thanks to uncluttered surfaces (nothing gets in the way), matte finish anti-reflecting materials and integrated folding wipers. A large flush-fitted sliding door at the helm and large sliding glass roof with integrated sun blinds also maximize visibility.
There is seating for four to five facing forward, consisting of two seats at the helm and two-three seats at the reversible passenger sofa (the reversible passenger sofa was developed in the seventies for the Nimbus 26 and has been constantly developed and refined ever since).
The salon has an open Scandinavian layout with large flat surfaces and is light and airy, roomy and modern, but made cosy at the same time by special lighting, wood fittings and attractive seating and cushion covers. The beautifully finished joinery in the salon and cockpit exudes a wonderful feeling of hand craft and quality. The large U-sofa seats 6-8. The dining table folds down into a cocktail table with glass holders, making the salon a prime place for socializing.
The modular designed galley (60CC) allows customized installations such as microwave, electric hob, dishwasher, and choice of ovens (electric or LPG). The galley is fitted with a fan that can be installed in the upper kitchen cupboard above the hob.
