Walk Through
Boarding MAGNIFICENT DOLLS from a floating dock is via the swim platform and up four steps to the Aft Deck or from the port and starboard gates on the Aft Deck from the Marquipt Tide Ride ladder.
The Aft Deck is spacious with a large starboard side settee with a teak table and a smaller port side table and seating. With the two Rattan chairs, the aft deck alfresco dining can accommodate eight people easily.
Forward to port is a fiberglass bar with a sink and a drink refrigerator. To starboard is a ladder to the Boat Deck and between is the entrance to the Salon.
The Salon has a large L-shaped upholstered sofa to port with the entertainment center aft to starboard followed by a three cushion love seat that matches the sofa. Forward, a starboard side bar offers storage below.
Further forward to port is an oval dining table with six chairs and a banquet cabinet with mirrored panels and top lit glass storage above on the forward bulkhead. To starboard are stairs down to the main accommodations followed forward by a Day Head and steps up to the Sky Lounge. To port is a large Galley with full size appliances and ample storage as well as a large dinette in a country kitchen fashion.
Further forward is access to the Crew Cabin with a laundry and a captain’s desk at the bottom of the stairs. To starboard is an over/under cabin with a private head and stall shower. Forward is a double berth cabin also with its own dedicated head and stall shower.
The main accommodations are accessed from the forward part of the Salon. The Master is aft with a king size berth, walk in closet and a large head with a tub/shower.
Forward are two cabins each with identical queen size berths, hanging lockers and heads with stall showers.
The Sky Lounge has the helm forward, two helm chairs, a leather settee that converts to sleep two, built-in cabinets with a drink fridge and a very unique TV mount.
Aft is the Boat Deck with L-shaped seating with table, twin hidden davits and chocks for the tender storage.
Salon Entered via a stainless steel sliding entry door to starboard is the open and spacious Salon. Immediately upon entering to port is a large L-shaped upholstered settee to seat up to five. Lying in front is a custom marble topped four drawer coffee table. Next forward is a built in end table with two curved lacquered doors and a granite top with a large table lamp above.
To starboard starting aft is the Salon entertainment center consisting of a Samsung 32” LED TV behind magic glass and below behind burlwood cabinet doors a ONKYO A/V receiver, a YAMAHA Blue Ray player, a Direct TV receiver and an ONKYO 5 disc CD changer. Below behind two smaller burlwood doors is additional storage for A/V accessories.
Next forward is a 3 cushion love seat with storage below. The upholstery is light tan ultra-leather to match the adjacent sofa.
Next forward is a curved granite top bar with four cabinet doors below. All are dedicated bar storage including a wine cooler.
Next forward are the circular stairs to the Accommodations Deck below.
Opposite to port is an oval high gloss wood dining table with a leaf that can be added and six wood and upholstered dining chairs.
Forward is a granite topped four door lacquered cabinet perfect for storing dinnerware. Above the banquet are three beveled edge mirrors, down lights and the A/C delivery soffit above. Below the A/C vent are four glass door stemware storage cabinets lit from above. The granite top of the banquet is the perfect place to display your prized sculptures.
Six large side windows with pleated shades offer a large amount of ambient lighting into the boat. Above are fourteen halogen lights, one dedicated art niche light and a four bulb halogen fixture over the dining table.
Also in the Salon is a carpeted sole, soffit with rope lights above the windows, digital A/C controls and built in stereo speakers.
Galley/Country Kitchen/Day Head Separated from the salon aft, the Galley area is forward. A burlwood door offers a separation of the space when needed.
Immediately upon entering the Galley area is a Day Head to starboard. The Day Head has a china Microphor toilet, free standing vanity sink and two mirrors, the outboard one concealing a medicine cabinet.
Next forward are eight easy steps to the Sky Lounge. All the way forward is a raised upholstered L shaped settee to seat four to five people. The Corian table is on twin stainless steel pedestals. The sole of this area is an attractive planked vinyl flooring.
Next inboard are the steps to the Crew Area forward and the electrical distribution panels. AC behind one door, DC behind another.
The Galley proper is to port, is U-shaped and contains the following features and equipment:
- Headroom 6’ 5”
- Corian countertops
- Whirlpool double door stainless steel refrigerator/freezer with ice through the door (new 2022)
- Kitchen Aid 4 burner Ceran top cook top
- Adjacent down draft galley extractor
- Kitchen Aid built in wall oven
- Kitchen Aid microwave/convection/broiler with work light & exhaust fan
- GE profile stainless steel trash compactor
- GE profile stainless steel dishwasher (apartment size)
- (2) Basin stainless steel Franke sink
- Removable spray faucet
- Full Corian backsplash
- (3) Under counter lights
- Portside window with pleated shades
- (22) Lacquered cabinet doors
- (11) Lacquered drawers
- (6) Overhead halogen lights
- Central Vac outlet
- Sliding doors to port & starboard forward deck area with step lights
- (3) Panel windshield forward with sliding pleated shades
- Removable side window shades
- (4) Pullout drawers behind cabinet under stairs behind a hinged door
- Digital A/C controls
- (3) Halogen lights over dinette
- Rope accent lights at raised seating area
Lower Accommodation Deck Foyer Descending down eight curved open tread steps from the Salon forward starboard corner is the Lower Accommodation Foyer.
To port a Spacemaker stacked GE washer/dryer is behind a door. An art niche lit from above with storage below is next aft.
Forward to starboard is a large locker perfect for guests who show up with hard suitcases. Further forward are the matching VIP Staterooms suitable for two couples with no one having to choose the “better” cabin. Above are two LED lights.
Aft is the private full beam Master Suite.
Starboard Crew/Guest Cabin Twin over/under bunks are on the outboard bulkhead with two stainless steel opening portholes above behind shades. Each berth has a reading light. Inboard is a two door curved nightstand with a JVC TV above. Forward is a full size, auto-lit cedar hanging locker with a mirror on the exterior of the door. Also in the cabin are two halogen overhead lights and digital A/C controls. Forward is access to the ensuite head.
Master Cabin Amidships and entered from the forward end is the Master Cabin with an off centerline king size berth on the aft bulkhead.. There are five drawers below the berth and to port and starboard twin two drawer nightstands either side of the berth. Above the berth is a three panel lacquered soffit with nine halogen lights. Behind the berth is a full beveled edge mirror with two swing arm reading lights set upon burlwood panels above the nightstand. Between, the head board for the master berth is upholstered. Outboard to port is a large upholstered settee with a table lamp and sculpture in the corner above the settee.
Next forward on the port side is a two door lacquered cabinet with three drawers and two shelves within. To starboard is a vanity with a large drawer and stool followed by a two door lacquered cabinet with three drawers and two shelves within matching that to port.
Furthest forward to starboard is a large walk in hanging locker with two levels of hanging space and five open shelves. A full size dressing mirror is on the inside of the closet door.
Inboard is the cabin’s entrance and the cabin’s entertainment area with a 22” Samsung LED TV behind a magic mirror panel, an ONKYO A/V receiver, Panasonic DVD player, and an ONKYO CD changer plus a Direct TV box. Below is a storage drawer. Above are two burlwood CD storage cabinets. Next outboard is the entrance to the large ensuite head. Each side of the cabin has three opening stainless steel portholes with pleated shades and decorative drapes. Also in this cabin are nine additional overhead halogen lights, a carpeted sole and a digital A/C controls.
Master Head Forward to port is the huge Master Head with a granite topped vanity with six drawers and four cabinets below. Above are under mount china sinks, gold tone faucets and with the two mirrored panels with medicine cabinet storage behind. Centered between the medicine cabinets is an opening stainless steel porthole.
The Jacuzzi tub/shower has a clear glass hinged door with glass side lights and both a fixed and separate handheld and wall mountable fixtures plus a light and an exhaust fan.
The toilet is a Microphor china toilet and is in a completely private area behind a burlwood door. The sole is granite tiles with diamond insets to match the countertops. Overhead are seven halogen lights.
Starboard Guest Cabin Entered from the aft end a double berth is outboard. There are two storage drawers below the berth and twin reading lights in the beveled mirror panel above and an upholstered headboard below. Three halogen soffit lights are above. Outboard of the berth are two mirrored open display areas, two stereo speakers and above, two opening stainless steel portholes with shades. Furthest forward is a cedar lined auto-lit hanging locker with a mirrored door.
Inboard is the burlwood door to the ensuite head followed by a lower curved two door cabinet with a JVC TV and light above.
Also in the cabin are two additional halogen lights overhead and digital A/C controls.
Starboard Guest Head Forward is an ensuite Head with a granite topped vanity with an under mount sink, a Microphor toilet, two storage cabinets and a stall shower with a semi-clear glass door, a light, a hand held or wall mounted fixture and a shelf. There are three halogen lights above and a ceramic tile sole below.
Port Guest Cabin Entered from the aft end a double berth is outboard. There are two storage drawers below the berth and twin reading lights in the mirrored panel above. The upholstered headboard is below as well as three halogen soffit lights above. Outboard of the berth are two mirrored display areas, two stereo speakers and above, two opening stainless steel portholes with shades. Furthest forward is a cedar lined auto-lit hanging locker with a mirrored door. Inboard is the burlwood door to the ensuite head followed by a lower curved two door cabinet with a JVC TV and light above. Also in the cabin are two additional overhead lights and digital A/C controls.
Port Guest Head Forward is an ensuite head with a pink granite topped vanity with an under mount sink, a Microphor toilet, two storage cabinets and a stall shower with a semi clear glass door, a light, a handheld or wall mounted fixture and a shelf. There are three halogen lights above and a ceramic tile sole below.
Crew Area (Forward of the Galley) The forward area of MAGNIFICENT DOLLS is down seven open tread stairs and offers a laundry area with a separate GE Spacemaker washer and dryer and a very useful L-shaped desk/office area with a four storage drawers. A bookshelf above is perfect for manuals and cruising guides.
Many owners dedicate one cabin to crew and one cabin to guests The common area at the base of the stairs has a carpeted sole, two opening portholes at the laundry area and two storage cabinets.
Starboard Crew/Guest Head Just forward but within the cabin is a head with a Corian topped vanity, an under mount sink and a mirrored medicine cabinet above. The toilet is a china Microphor model. The stall shower has a clear glass bi-fold door, a seat, a light and a hand held or wall mounted fixture. Also in the head is an exhaust fan and two overhead halogen light fixtures. The sole is ceramic tiles.
Captain’s Head Just aft but within the cabin is a head with a Corian topped vanity, an under mount sink and a mirrored medicine cabinet above. The toilet is a china Microphor model. The stall shower has a clear glass bi fold door and side light, a seat, a light and a handheld or wall mounted fixture. Also in the head is an exhaust fan and two overhead LED light fixtures. The sole is ceramic tiles.
Captain’s Cabin All the way forward is the Captain’s Cabin with a double berth to starboard with two drawers and a cabinet door below. Above the berth are five storage cabinets and a built in stereo wall speaker. At the foot of the berth is access to the chain locker.
To port starting aft is the entrance to the ensuite head, a small one person settee with a mirrored door hanging locker with cedar lining and auto light above.
Next forward are two cabinet doors. Above is a JVC TV and four cabinet doors.
Also in the cabin are digital A/C controls, two overhead halogen lights, a reading light and a round Bomar deck hatch for ventilation or emergency escape. Aft in the cabin is the ensuite head.
Sky Lounge/Helm Area Up seven steps from the country kitchen is the fully enclosed Sky Lounge. The helm is front and center. The sole of the helm area is light vinyl planking to match the galley.
Helm Area Equipment includes:
- Black ultra-leather helm trim
- Dedicated 18” Cocar touch screen LED screen for ISIS 7000 data
- 18” Cocar monitor for computer based navigation
- Wesmar electric thruster controls with proportional controls
- Metalstyle helm wheel & helm pump
- Mathers electronic clutch/throttle controls
- ISIS mouse touch pad
- Black leather crown helm chair with electrical adjustments
- Black leather matching double helm chair to port
- Hidden start/stop switches
- Hidden emergency stop switches
- Hidden engine driven emergency bilge pump switch
- Hidden Fireboy system controls
- Hidden engine synchronizer control
- Hidden intake/exhaust turbine controls
- Hidden watermaker controls
- (1) Hidden searchlight control
- Hidden trim tab controls
- Corded Mathews remote engine controls
- SEA Seahail hailer system – starboard cabinet
- Shipmate VHF handset – starboard cabinet
- Standard HORIZON remote VHF speaker
- Standard HORIZON VHF with RAM mic
- (16) DC electronics breaks to port
- (8) AC electronics breaks to port
- Wipers/Nav lights/bilge pump, etc. switches to port
- (2) Overhead night navigation lights
- (2) Overhead halogen lights
- Low level accent lighting
- Stabilizer controls, Gyro Gale
- Furuno FCV582 color sonar
- Simrad color 72 mile radar
- Robertson AP 300X autopilot
- Datamarine Link multi for depth/speed
- Raymarine E-80 MFD display with A/B switch to 18” Cocar Nav screen
- Furuno GP37 GPS for navigation computer
- Camera switch box with tilt & pan
- Computer tower for PC based navigation system located in area under helm
Skylounge Area The Skylounge area is nicely appointed. To starboard are two occasional chairs flanking a custom entertainment center with a U-Line drink fridge, four drawers behind a burlwood cabinet door, a Magnavox DVD player and an LG Blue-Ray player. The top of the cabinet is burlwood. Above, in place of one of the windows, is a 42” TCL TV perfectly aimed at the L-shaped settee.

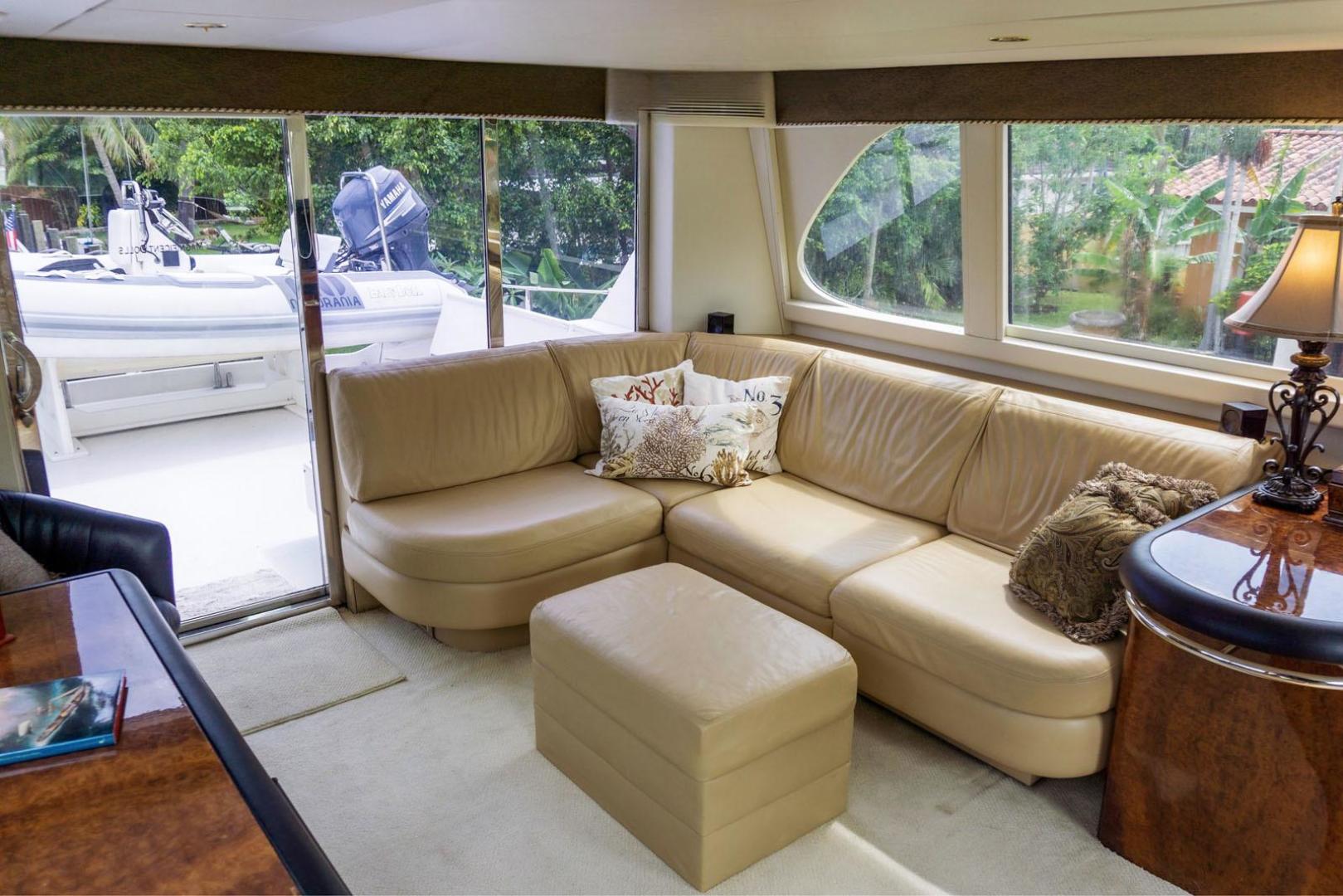

To port is a large light tan ultra-leather L-shaped settee that electrically converts to sleep two. Large fixed windows all with pleated shades offer great ambient lighting. Above are six halogen lights and four stereo speakers.
The sole of this aft area is carpeted. Access to the boat deck is aft via a stainless steel sliding door to starboard.
Boat Deck Area The Boat Deck area is also an outside entertainment area with a L-shaped settee with storage below. The newer Sunbrella cushions are stored inside when not in use.
Other features include:
- Fiberglass nonskid decks, recently painted
- lb. Nautical Structures davits with hydraulic boom & power rotation hidden in the bridge cowling
- Bar sink in fiberglass storage cabinet
- EPIRB
- Chrome bell
- (2) LED floodlights
- (2) Halogen overhead lights
- (2) Stereo speakers
- Freshwater wash down spigot
- Bomar deck hatch to aft deck
- Lazzara tender chocks
- Tender chocks
- Pull down ladder to access Coach Roof
- Low level accent lights
- Stern ensign
- Port & starboard fore & aft deck drains
- KVH M7 SAT dome – (not subscribed to service)
Tender
- 15’ Novurania RIB
- 60hp Yamaha 4 stroke outboard
- 3 rows of seating
- Side console steering
- Battery with shutoff switch
- Navigation lights
- VHF
- Stereo
- Anchor
- Bow step pad
- Helm cover
- Cup holder at helm
Foredeck
- Fiberglass nonskid deck, recently painted
- Raised bulwarks 21" with stainless steel safety rail
- (16) Courtesy deck lighting in bulwarks
- 42" Custom designed modern burgee flag staff
- Port & starboard 17" mooring cleats with recessed chocks
- Freshwater dock side inlet
- Windlass Maxwell 3500 with chain wildcat 24V & up/down foot switches
- 200' x 3/8" chain with Rocna plow anchor
- Stainless steel anchor chute with roller
- Freshwater wash down
- (4) Port & starboard wing storage lockers
- Recessed sunpad with cushions, cover & storage below
- Ventilation/escape hatch 24" Bomar with skylight from captain’s cabin
- Port & starboard midship boarding gates with boarding lights
- Portside freshwater deck fill
- Port & starboard stainless steel cleats with hawse pipes
- Starboard waste pump deck fitting
Side Decks
- Full beam grand main salon
- Catwalk 9" with combination rain gutter/grab rail above
- Port & starboard midship 12" mooring cleats
- Catwalk fiberglass nonskid
- 11" High stainless steel safety/fender placement rail
- (8) Cabin side overhang courtesy lights
Aft Deck
- Headroom 6' 9"
- 9' Length
- Teak over fiberglass decking
- (3) Overhead courtesy lights with dimmer switch
- Emergency escape hatch from engine room
- (2) Overhead Poly-Planer stereo speakers 7" with volume control
- Deck hatch to boat deck 28" long x 24" wide
- Six step fixed stainless ladder with teak treads to boat deck
- Overhang recessed stern LED floodlights
- Aft main salon floor to ceiling glass bulkhead - tinted
- Sliding glass door with polished stainless steel frame
- Port & starboard boarding gates with boarding lights
- Wet bar built in with upgraded Corian top
- Under mount sink with cold water spigot
- 110V Outlet with GFI & cover
- Norcold drink refrigerator
- Port & starboard upholstered settee with cushions, cover, storage plus stern cleat below
- Hinged access gate to cockpit/engine room access
- (2) rear facing cameras
Cockpit
- (4) Floating steps from aft deck or cockpit
- Double door storage cabinets to port
- Port side cabinet has 7 step Marquipt boarding ladder storage area
- (2) Starboard side storage cabinets, outboard with sink and brush/mop holder
- Walk through transom door with gate
- Cockpit coaming bolsters
- Gas grill mounts in rod holder
- (4) Flush mount rod holders
- Centerline rudder access hatch
- (2) Lift out below deck storage wells with macerator
- Hidden 1000 lb. davit under stern coaming
- Removable jet ski chocks
- FRP swim platform with three fold-up cleats
- Swim ladder mounted under platform
- Hinged engine room access door, centerline
- Stern cleats, mounted under coaming
- Fresh water washdown
Engine Room
- 1200 GPD Sea Recovery watermaker
- Dual Racor 1000 fuel filters with vacuum gauges and Algae-X fuel conditioners
- Manual Engine Room gauges
- LED 110V lighting system
- Incandescent DC lighting system
- Glendinning “port or starboard” cord reel 220 volt 100 amp
- Lockable parts storage
- (2) Work benches over generators
- Hynautic hydraulic steering system
- (2) 500 Series Racor generator fuel filters with Algae-X fuel conditioners
- Fireboy fire system suppression system
- CCTV camera
- 110 Volt water pump
- 24 Volt backup water pump
- 30 Gallon hot water heater 220V
- ZF BW 165A 2.51 to 1 reduction gears
- 2 ½” Aquamet 22 prop shafts
- Lazzara LSR drive system protects shaft
- 4 Blade Nibral props
- Power steering assist pump off port main engine
- Acoustical & thermal insulation
- Freshwater spigot
- 110V Outlet with GFCI
- Port & starboard Engine Room intake fans
- Single 1750 gallon fiberglass fuel tank with access plate
- Tank can be filled from port or starboard side decks
- (4) 24 Volt auto/manual bilge pumps
- (3) High water bilge alarms
- (8) Cruisair compressor with digital thermostats
- Holding tank Y-valve with macerator pump
- ISIS vessel monitoring system
- Rebuilt MTU heat exchangers, port & starboard (2019)
- Engine start buttons
- Fuel transfer system
- (2) Five drawer craftsman tool boxes
- Coltri Americas dive compressor for filling scuba tanks
- Porter/Cable pancake compressor
Electrical
- 110/220 60 HZ AC volt electrical system
- 12/24 volt DC electrical system
- (2) 20 KW Onan generators in sound shield with full gauge package Port:149 hrs SMOH Stbd: 10,783 11/10/22
- Single 100 amp Glendinning shore cord
- Series Charles C Chargers 24V 40 amp (house & engines)
- (1) Xantrex 24V 60 amp (generator)
- (2) Generator 12 volt start batteries
- (8) 12 Volt 8D batteries
- Main DC panel with digital amp & voltage meters
- Main DC panel with (60) breaker protected circuits
- (3) Battery shutoff switches
- Main AC panel - (2) digital volt meters
- Main AC panel - (2) digital HZ meters
- Main AC panel - (4) digital amp meters
- Main AC panelvolt breaker protected circuits
- Main AC panelvolt breaker protected circuits
- Main AC panel - shore/gen 1/gen 2 select breakers
- Electrical bonding system
- Wesmar electric 220 volt/20 HP bow thruster with 12” tube & counter rotating propellers deliver 600 lbs. of thrust
- (2) Onan coolant recovery bottles
Remarks The Grand Salon Skylounge (GSSL) model of the Lazzara series proved to be the most popular and today the most sought after. MAGNIFICENT DOLLS is a special GSSL due to her cockpit option which makes watersports and Bahamas cruising a breeze.
Priced attractively and seriously for sale!
Exclusions While every effort was made to list all pertinent included equipment aboard MAGNIFICENT DOLLS, there are some personal belongings aboard. Prospective purchasers should assume any item not specifically mentioned herein will not convey at closing.
Disclaimer The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
