ACCOMMODATION 4 cabins and 4 head compartments.
Teak veneers on the panels covering the yacht's carbon bulkheads. Teak veneers are, in X-Yachts' experience, the best option available since they contain oil and become a little lighter and more beautiful as they age.
Climma air-conditioning in all cabins, 65.000 BTU in total
Forced ventilation in all cabins and toilets
Galley with solid Corian work top, luxurious faucets, 4-burner gas stove and oven, micro wave oven, a built-in 225 litre top opening freezer, a built-in 120 litre front opening Firigonautica fridge, extractor fan, etc.
Tecma silence toilets in head compartments
The 2 guest cabin have single berths with en-suite head and shower
Crew cabin in the bow
The very spacious owners cabin aft has a central large king-size bed, a beauty table, plenty of natural and artificial light, ample wardrobes, drawers and en-suite head with shower
Ocean Air blinds are integrated in the de deck head sealing panels
Pop up TV in saloon
NAVIGATION & COMMUNICATION EQUIPMENT B&G Hercules full system
Furuno GPS
Simrad radar display at each steering position and navstation
Simrad VHF-DSC Class D
GSM/ GPRS
Sailor Iridium Sat phone
Computer with 17" Mermaid monitor plus a printer (built-in)
LED navigation lights
The navigation station is located at starboard of the companion way
ENTERTAINMENT EQUIPMENT Pop up TV in saloon
HULL & DECK Carbon hull and deck construction with carbon composite bulkheads and keel floor structures
The hull and deck were built in a female mould to ensure the highest quality finish.
Teak laid deck
Teak laid cockpit
Fold down bathing platform

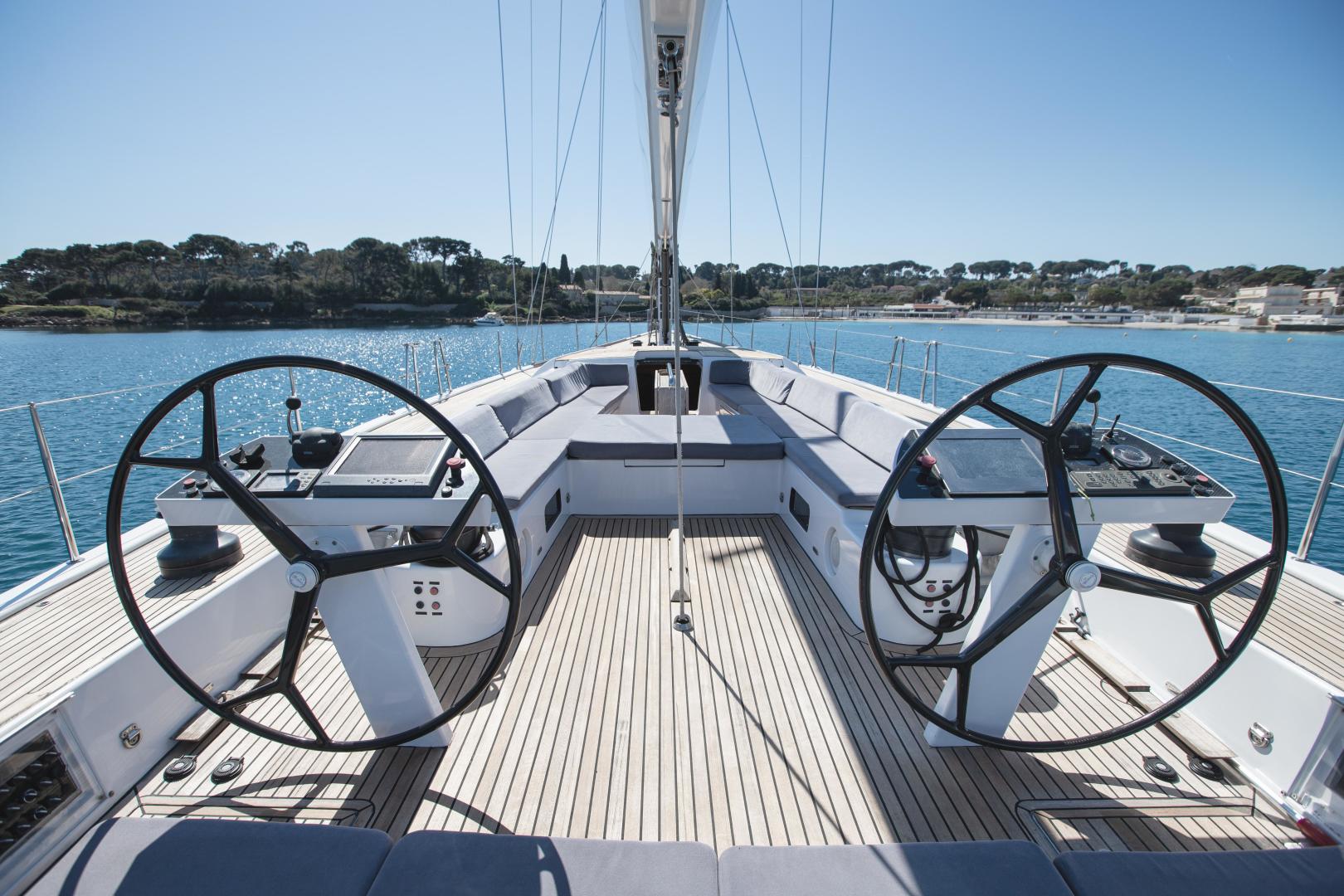

Timeless, elegant, clean and uncluttered deck with every feasible sailing control within reach of the helmsman.
Anchor launch system that makes it easier to anchor. The yacht's anchor is held in a deck recessed arm made of carbon. The arm is hinged and is brought forward by a hydraulic engine built into the bow.
Deck recessed spray hood dodger resting underneath teak decked carbon lids.
Recessed cockpit speakers and port lights
Deck recessed mooring winch with foot controls
Transom garage to accommodate a dinghy and other equipment
Carbon chain plates
Laminated and tinted hard glass port lights
Carbon flush deck hatches with stainless steel gas struts and locking devices
Cockpit cushions
Foldable cockpit table
Bathing ladder
ENGINE & SYSTEMS MAIN ENGINE
Yanmar 4LHA-HTP, 160HP at 3300 rpm (new in 2017)
Cruising speed approx. 8 to 9 knots
Maximum speed approx. 10 to 11 knots at 3300rpm without the over speed (limited at 2000rpm)
Hurth HSW 450 A2 gearbox with Aquadrive coupling
Gori folding 3-blade propeller
Electronic gear shift and throttle control at each steering position
Max Power Retract R315 bow thruster
Engine control panel recesses into the cockpit coaming
The engine compartment below the cockpit is fully sound-insulated using various materials and is accessible via the starboard aisle just after the electrical switchboard.
TANKAGE
Fuel tank approx. 700 litre (+ day tank)
Water tank approx. 900 litre
Black water central tank
Hot Water 2 x 40l boiler plus a Quooker for boiling water in the galley
Water maker Spectra Newport 700, 24V with UV sterilizer
SAILS & RIGGING Hall Spars carbon mast
Carbon fibre furling boom
In boom furling main sail, 148 m2
110% Furling jib, 124 m2
Gennaker, 350 m2
Code One, furling, 190 m2
I 28,65 m
J 7,9 m
P 28,10 m
E 9,2 m
Genoa sheets run below deck
Winches serviced every year, vang cylinder refitted in 2015, backstay cylinder refitted in 2016
COMMENTS This impressive and powerful IMX-70 is a semi-custom high performance cruising yacht that represents the best in modern yacht design and technology.
Only the very best suppliers, technicians and builders have made this project possible: the composite yard, Green Marine in the UK, delivered the high tech built hull, superstructure and deck, SP systems carried out the engineering and the boat builders and engineers of X-Yachts completed the production of this one-off.
She has a carbon hull and deck construction with carbon composite bulkheads and keel floor structures.
This IMX70 is fitted with a carbon fibre furling boom, a carbon fibre mast, hydraulic systems and fingertip steering, with all necessary controls and
switches within the helmsman reach.

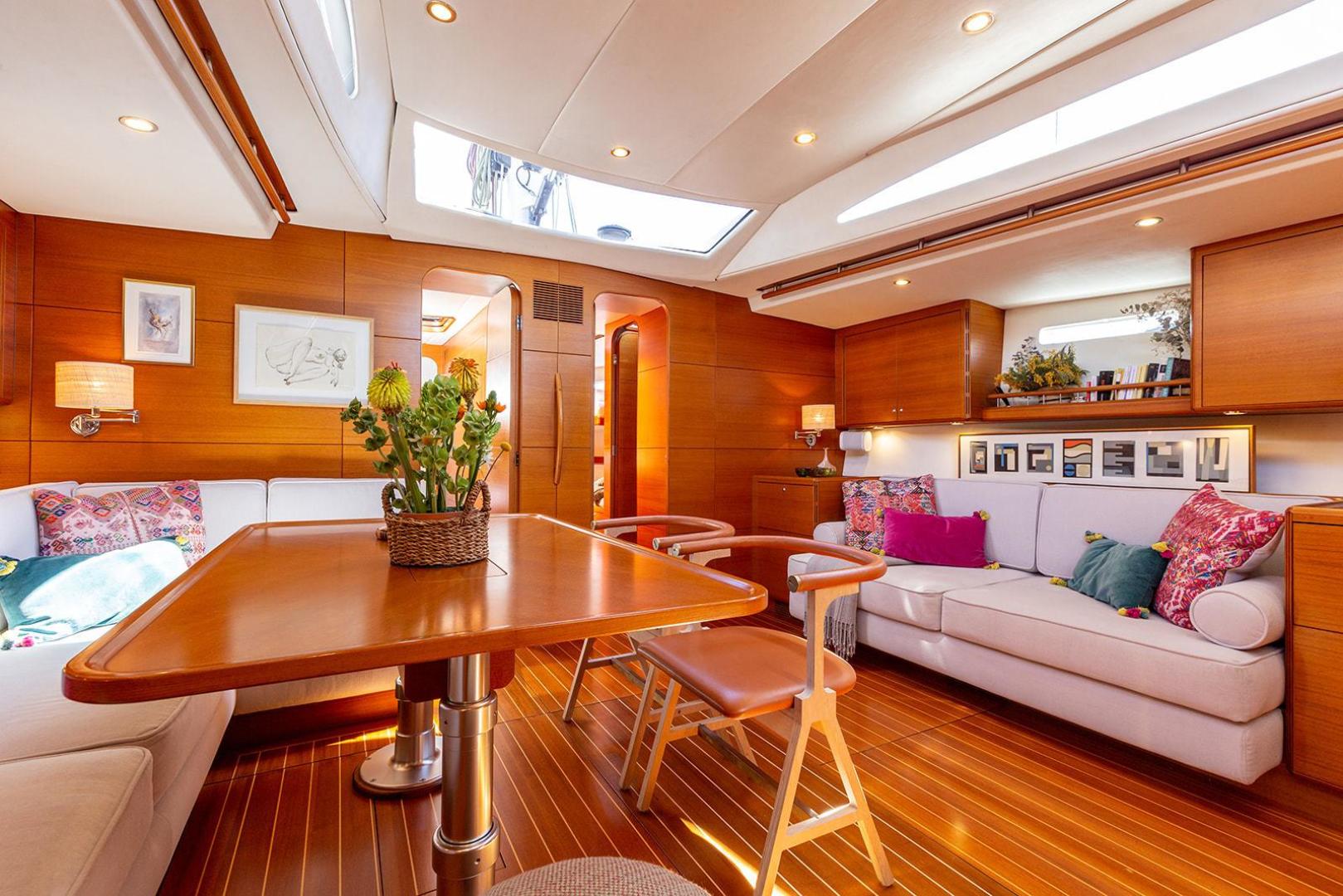

The interior of the IMX70 is as elegant and beautiful as the exterior; the finest teak veneers on the panels covering the carbon bulkheads, Corian worktops, spacious accommodations, the plenitude of natural light and all the comforts and luxuries of home will make the voyage on board even more comfortable and relaxing.
This yacht is a class of her own.
