1983 Elliott Custom

Accommodations / Walkthrough

3D Tour Available.

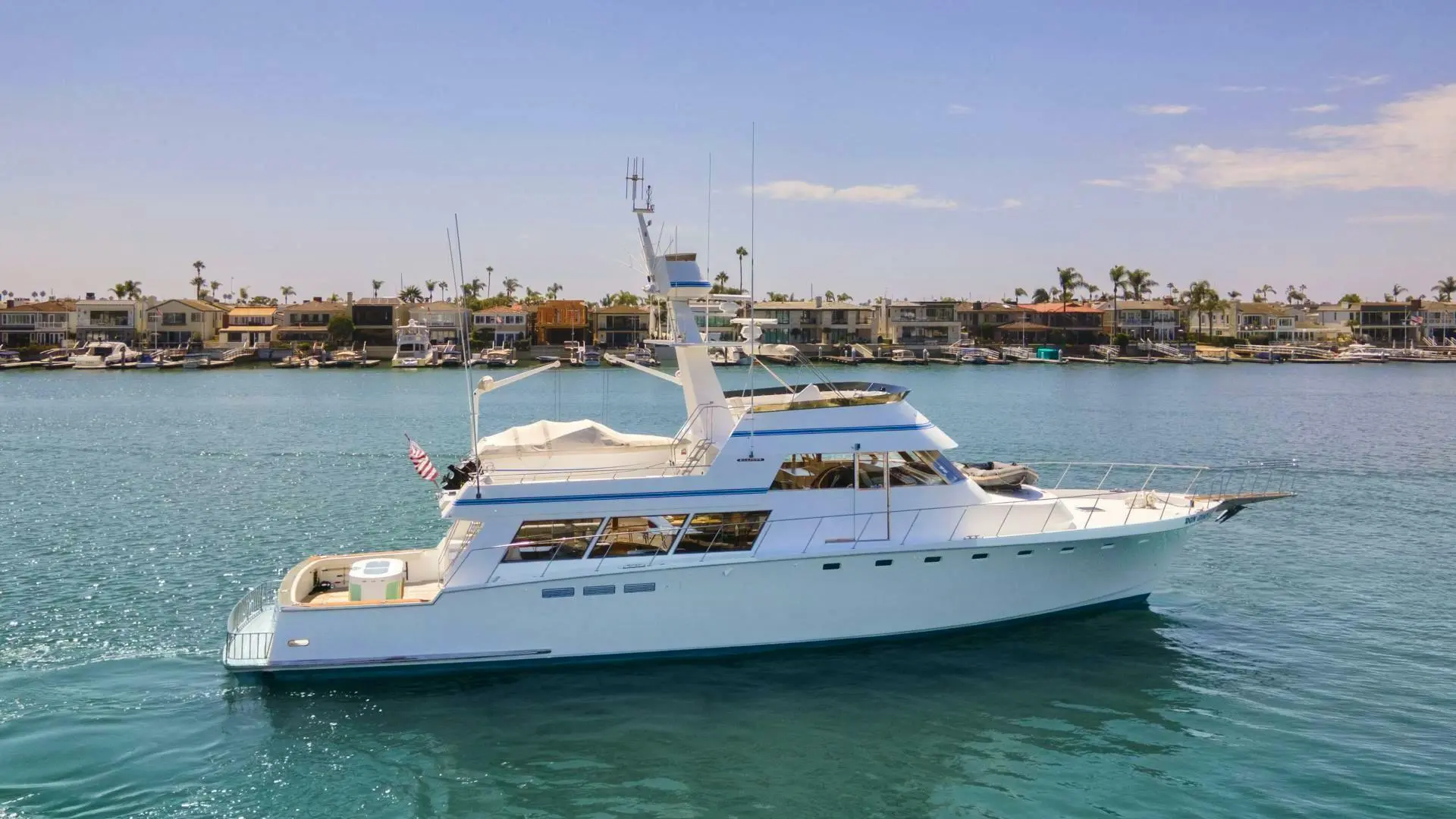

DON JUAN is an exceptional platform built on a Buck Smith hull, completed by Elliott Boats in 1983 as the last Elliott ever constructed. She features a spacious fishing cockpit equipped with three bait tanks, a full beam refrigerated fish hold, and a tackle center.

Upon entering the salon through a teak door, the large windows offer excellent visibility and natural light. To port, there is a sizable couch and dining table with seating for 10 adults. A small sofa and table on the starboard side can convert into an additional bunk when necessary. Forward, a sunk-in bar includes an icemaker, refrigerator, and soda gun. Opposite the bar is the galley, featuring a large Sub-Zero refrigerator and elegantly appointed countertops with bar stools. The galley is fully equipped with appliances that any chef would envy.

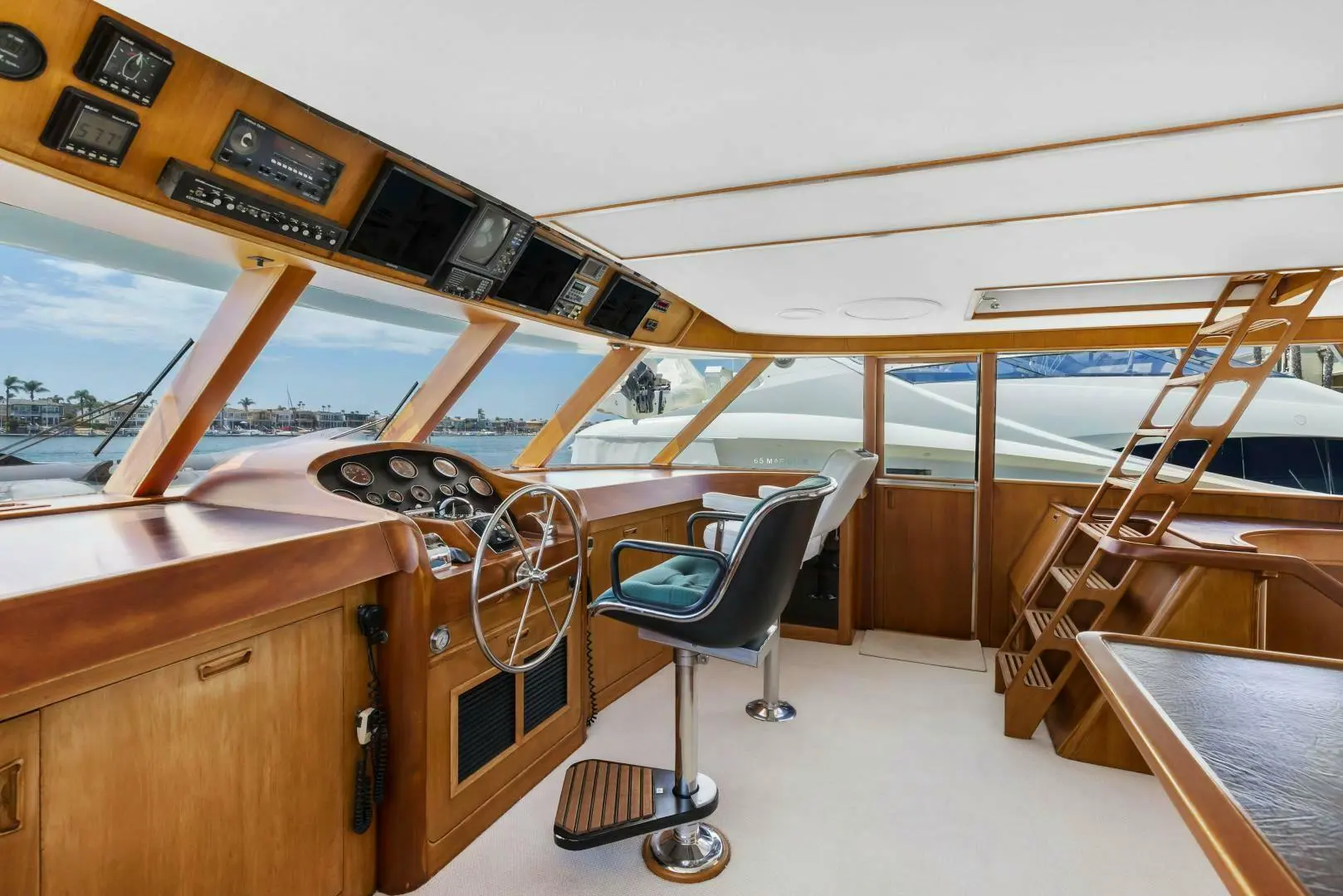

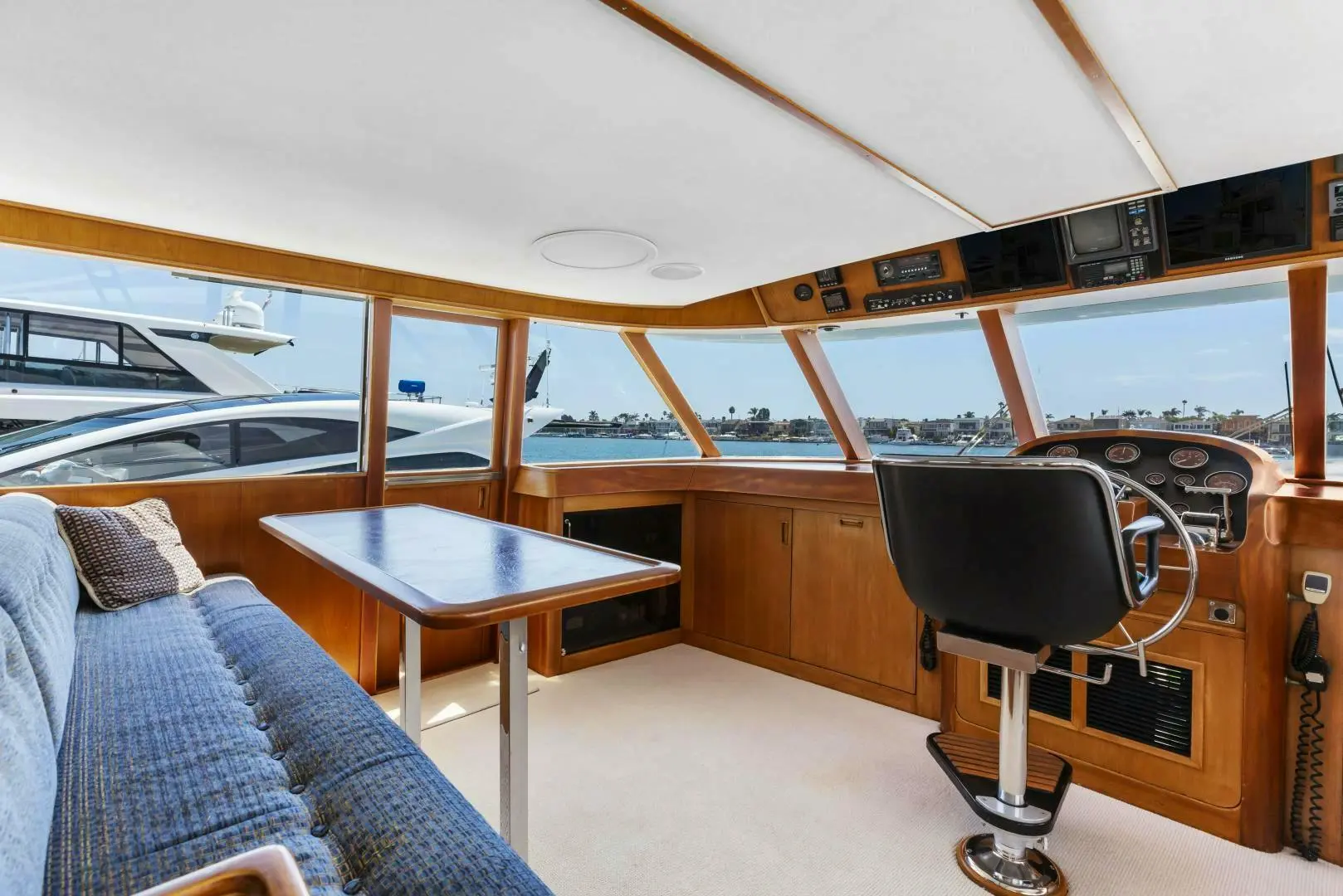

Access to the expansive pilothouse is gained via a teak stairwell. The beautifully crafted teak helm console houses all engine gauges, controls, and electronics. Moving aft, there is a large settee with a teak table and a spacious double bunk behind it. Side doors on either side of the pilothouse provide access to the bow. Ascending from the pilothouse leads to the flybridge, which includes a helm, multiple sunbeds, access to the tower, and a large boat deck with a 16' Runabout tender.

The main accommodation area is located forward of the galley, featuring a large master stateroom to port. The master stateroom includes a walkaround double bed and an ensuite head and shower. Across from the master is a guest stateroom with a double bunk and an adjacent single bunk. This stateroom also has an ensuite head and shower with beautiful tile countertops. Moving forward to port is another guest stateroom with a large double bed and a shared head and shower. To starboard is the crew stateroom, which features upper and lower single bunks and access to the shared head and shower. A large utility room is located aft, equipped with a custom freezer, laundry equipment, and electrical panels. Access to the engine room is through a watertight door at the back of the utility room.

Salon

• Large opening windows throughout the salon
• Large teak dining table with seating for 10 adults
• Small couch to port that converts to a bunk
• Step down wet bar with stainless sink, soda gun, refrigerator, and icemaker
• Entertainment center with stereo, TV, and surround sound
• Beautiful teak cabinetry throughout
• Stairwell down to accommodation area
• Stairwell up to the pilothouse

Galley

• Fasar 4-burner range
• Viking oven
• Whirlpool trash compactor
• Oster Microwave (utility room)
• Sub-Zero 201R refrigeration
• (2) Scotsman Icemakers
• Scotsman mini fridge
• KitchenAid dishwasher
• Teak cabinetry throughout
• Opening windows
• Insta Hot water
• Dish Master
• Nutone built-in blender

Master Stateroom

• Queen sized island bed
• Ensuite head and shower
• Port lights for great visibility and natural light
• Navigation center with Furuno VX2 and Standard VHF radio
• Alarm Clock
• DigiCourse Compass repeater
• Reading lights with Dolphin art
• Electric head
• Intercom system
• Large hanging closets
• 20" Zenith TV with DVD player
• Climate controls
• Teak joinery
• Stall shower
• Tile countertops
• Vanity sink

VIP Stateroom

• Queen sized bed
• Sharp flat screen TV 13"
• Port lights
• Climate controls
• Intercom system
• Stereo speakers
• Hanging locker
• Shared head and shower
• Teak joinery
• Vanity sink
• Tile countertops
• Stall shower

Guest Stateroom

• Double wide bunk
• Single bed
• Climate controls
• Reading lights
• Sharp Flat screen TV 13"
• Port lights
• Hanging locker
• Stereo speakers
• Teak Joinery
• Nightstand
• Shared ensuite head and shower

Crew Quarters

• Sharp flat screen TV 13"
• Climate controls
• Stereo speakers
• Port lights
• Upper and lower bunks
• Reading lights
• Hanging locker
• Shared head and shower
• Tile countertops
• Custom wall coverings
• Vanity sink

Laundry Equipment

• Frigidaire Washer
• Frigidaire Dryer

Dimensions

General:

• Length Overall: 80'
• Beam: 20' 6"
• Draft: 6'
• Gross Tonnage: 109 tons

Capacities:

• Fuel Capacity: 3860 gallons
• Tender Fuel Capacity: 75 gallon gasoline tank
• Water Capacity: 400 gallons
• Black Water: 100 gallons
• Lube Oil: 40 gallons
• Waste Oil: 40 gallons

Machinery

Main Engines:

• Engines: MAN D2866LE
• Engine Hours: 7798/8107
• Drive: Direct Drive

Generators and Electricity:

• Output: 120/240 VAC 60 Hertz
• Generators: (2) Northern Lights 32kW / 30kW
• Generator Hours: 12,516/ 5,271
• Shore Power: (2) 50 Amp 125/250 VAC inlet
• Batteries: (3) Group 27; (2) 8D

Air Conditioning:

• Type: CruiseAir Reverse Cycle (6)

Other Machinery:

• Watermaker: (2) FCI 1200 gpd
• Stabilizers: Naiad 252
• Steering System: Wagner/Hough Hydraulic
• Filtration: Dual Racor 1000 series
• Sewage System: Oberdorfer Black water pump
• Fresh Water System: (2) Sears water pressure pumps
• Helm Control: 5 Stations: Pilothouse, Flybridge, Bucket, Cockpit, Boat deck
• Pneumatic shifters
• Air compressor with large accumulator tank
• Drink Box Compressor
• Freezer compressor
• Fish Hold compressor
• Emergency bilge pumps off main engines

Navigation

• Furuno 72 mile radar
• Furuno Navnet 48 mile radar
• Robertson Autopilot AP 300x, Wagner 550
• Furuno GP-70 GPS
• Furuno Navnet GPS
• Nobeltec plotter software
• Furuno FA50 AIS
• Furuno Impulse 960 Color Depth Sounder
• Furuno CH 250 Sonar
• (2) Danforth Magnetic compass
• B&G Network wind indicator
• B&G Network speed indicator
• (3) Samsung monitors
• Furuno Weather Fax

Entertainment System

• Philips 28" TV
• Pioneer Surround sound
• Pioneer DVD
• Pioneer stereo

Communications Systems

• Global Star, Iridium, Wave Talk SatCom
• (3) Icom VHF Fixed: M127, M604, M412
• Simrad Taiyo TD-L5120 Direction Finder
• Panasonic 616 Intercom System
• Raymarine Loud Hailer

Engine and Mechanical Equipment

• MAN 2866LE engines rated at 500hp
• (2) Air compressors with accumulator tank
• (2) FCI 1200 gpd watermakers
• Naiad Stabilizers 252
• Glacier Compressor for utility room freezer
• Glacier Compressor for fish hold
• Glacier Compressor for cockpit drink box
• Mach 5 water pressure pump / Craftsman backup
• (2) Craftsman bait pumps
• (7) Bilge pumps
• Oberdorfer oil change pump
• Northern Lights 32kW (engine room)
• Northern Lights generator 30kW (cockpit sole)
• Dual Racor fuel filters
• Engine room fans
• Stereo with speakers
• (2) Water heaters 20 gallons each
• (6) CruiseAir reverse cycle
• Fuel transfer pump

Electrical Equipment

• Advanced Power Products 12VDC battery charger
• Acme shore power isolation transformer
• Lewco 1280 24VDC battery charger
• Northern Lights generator
• 50 amp 125/250VAC port and starboard shore power
• Advanced Power 12 VDC battery charger
• (3) Group 27 batteries
• (2) 8-D batteries

Deck and Hull

• Plath #9 anchor windlass system
• (4) #90 Danforth spare anchors
• 3/8" Chain 390' Anchor Chain & Rode
• (2) Aluminum Davits with Electric Winches

Pilothouse

• Robertson 300X autopilot
• Engine controls
• Stainless steering wheel
• Engine gauges
• Dytek water temperature gauge
• B&G wind speed and direction
• B&G Network speed gauge
• Simrad Taiyo radio directional finder
• Icom ICM604 VHF radio
• Furuno RD 30 Network gauge
• Raymarine
• Loud hailer
• (3) Samsung monitors
• Furuno VX chart plotter/radar/fishfinder
• Nobel Tec Navigational software
• Furuno 72 mile radar
• Furuno FA 50 AIS
• Danforth compass
• HP printer
• CPU
• Intercom system
• Generator gauges

Flybridge

• Plexiglass venturi
• Bimini top
• Helm chair
• (2) settees
• Fish rod storage
• Ladder to the bucket
• Icom M127 VHF radio
• Intercom system
• Water temp gauge
• Robertson AP300x autopilot
• Engine controls
• Garmin 2006C chart Plotter
• Massive storage under dash
• Venturi
• Stereo speakers
• Air pressure gauge
• Trolling valve switches

Boat Deck

• 16' Wellcraft tender with 75-gallon gas tank
• Top load freezer
• (2) Davits
• Flood lights
• 24' outriggers
• Dive compressor
• Fighting chair

Cockpit

• Custom bait tanks
• Teak cockpit and covering boards
• Drink refrigerator
• Refrigerator/freezer fish hold
• Transom door
• Cockpit controls with autopilot control head
• Salt/Fresh water washdowns
• Tackle center
• Tuna rail around swim step
• Stainless steel rod holders
• Cockpit flood lights
• Stereo speakers
• Cockpit bolsters
• Rudder angle indicator
• Trolling valve switches
• Air pressure gauge
• A/C and D/C receptacles
• Large stainless steel cleats

Tower

• Robertson autopilot
• Engine controls
• Icom M412 VHF radio
• Venturi

Security Equipment

• Cameras (engine room and lazarette)

Fire Fighting Equipment

• Kiddie Fixed FM 200 System (engine room)
• Fireboy Fixed FM 200 System (lazarette)
• (12) Fire Extinguishers

Additional Equipment

• Avon 10-person life raft with hard case
• 24" throwable life ring
• McCurdo Smart find 406 EPRIB
• ACR Satellite 406 EPRIB
• (2) Olin flare kits

Tenders

• 16' Wellcraft (1982), 200hp two-stroke Mercruiser Alpha 1 Drive inboard engine (1982)
• 10' Avon with two-stroke Yamaha outboard engine (1989)

Remarks

3D Tour Available.

DON JUAN was built to travel the farthest reaches of the world in comfort and style. Her enormous cockpit is perfect for the avid fisherman or diver. The massive amounts of storage and refrigeration allow the owners to be fully sustainable onboard for weeks at a time. Custom built by Elliott Boats and still owned by the original owner; this is truly a legendary yacht.

Exclusions

Potential purchasers should assume that items on the vessel at the time of viewing, but not specifically listed on this sheet, are not included with the sale of the yacht. These specifications are believed to be true and correct but cannot be guaranteed.

• The name DON JUAN is reserved
• All fishing tackle and personal property are excluded from the sale

Mechanical Disclaimer

Engine and generator hours are as of the date of the original listing and are a representation of what the listing broker is told by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser and/or his agent to verify engine hours, warranties implied or otherwise, and major overhauls as well as all other representations noted on the listing brochure.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
