Boat Overview

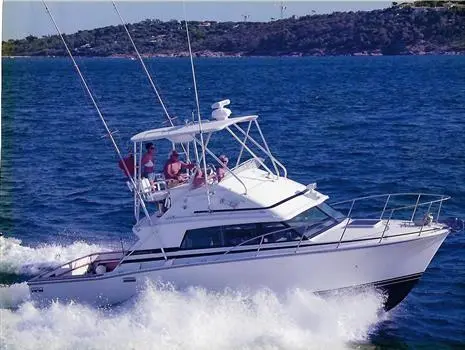

The Bertram 33 Sport Fish is renowned for its classic flybridge design and exceptional hull shape, proven over many years. This pedigree boat has a strong following. This particular model features new engines installed in 1998, equipped with the silky smooth and reliable Yanmar 6LYA diesels, offering an ideal blend of performance and economy.
Principal Features

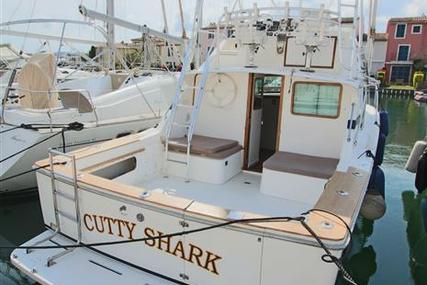

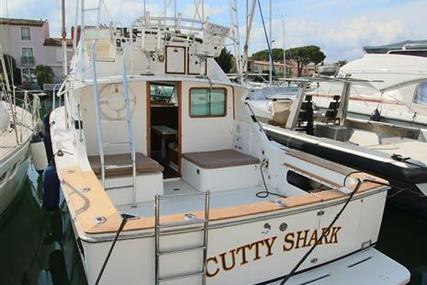

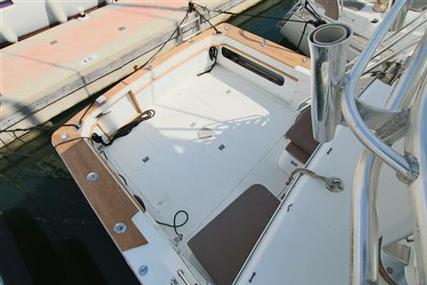

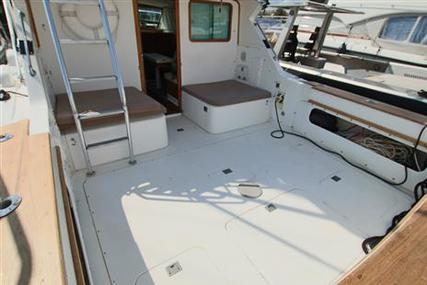

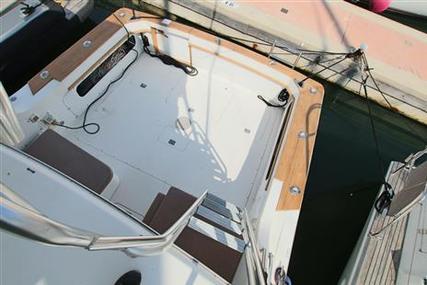

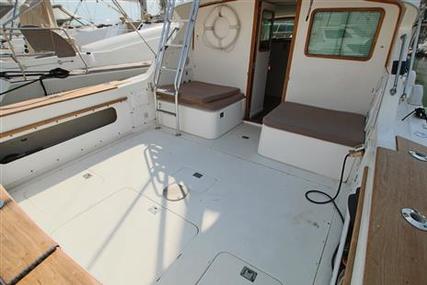

- Massive cockpit
- Large Swim Platform
- Yanmar engines

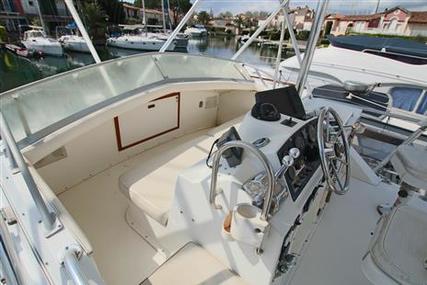

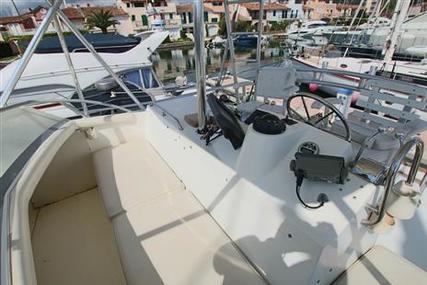

- Seating on the flybridge
- Hard top on Flybridge
- Navigation kit upgrades
Construction, Mechanical & Electrical Information
Construction
-
Hull: GRP – deep V from the famous moppie lines. Hand laid glassfibre construction.
-

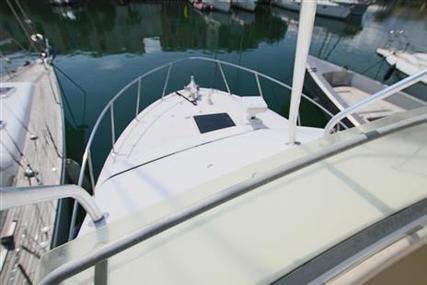

Deck: GRP – moulded non-slip surfaces on side decks.
-
Superstructure: GRP, Aluminum rails screen and roof supports.
-
Bathing Platform: Large GRP platform with swim ladder and large transom door.
-
Interior Colours: Furniture finished in natural light teak. Updated upholstery and soft furnishings with teak and holly floors.
-
External Colours: Helm console finished with cream GRP moulding. Flybridge upholstery in off white vinyl and cushions for engine lids in sand cotton fabric.
Mechanical

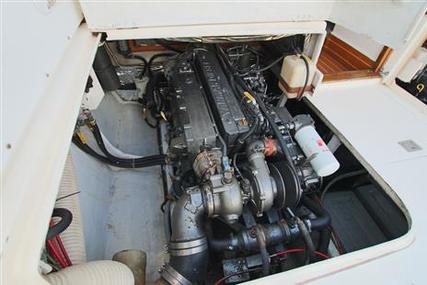

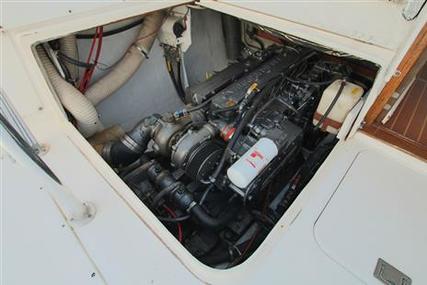

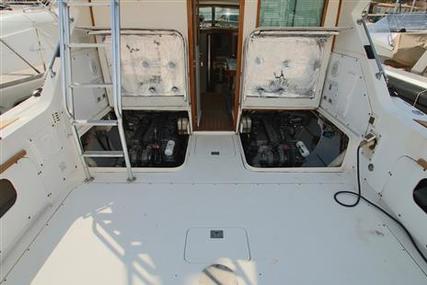

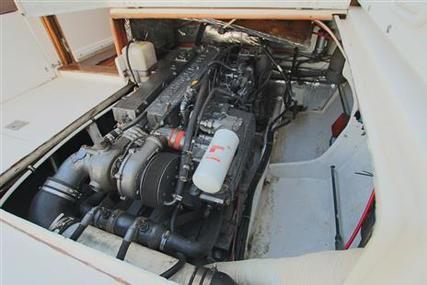

- 2 x straight 6 Yanmar 6LYA-STE 350hp Turbo diesels
- Cruising speed: 18 knots @ 2500 rpm
- Maximum speed: 25 knots @ 3000 rpm
- Maximum range: 350 miles

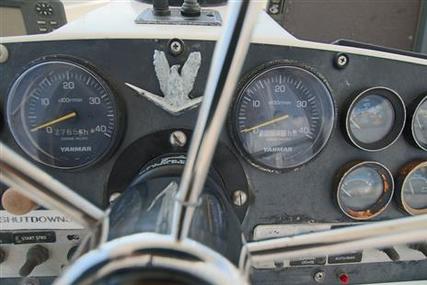

- Engine hours: 2765
- Straight Shaft drive via gearboxes
- Trolling valves
- Twin lever Morse engine and gearbox cable controls
- Twin bronze spade rudders
- 2 x Bronze 3 blade propellers
- Bennett Trim tabs – Hydraulic
- Hydraulic steering with emergency tiller
- 1 x manual and 3 x auto electric bilge pumps
- 2 Dry powder fire extinguishers

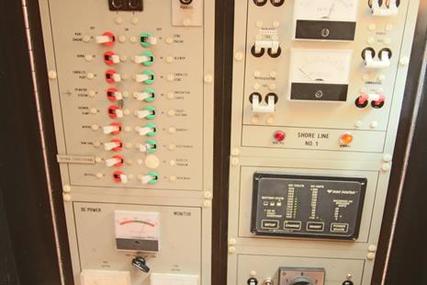

Electrical
- One set of two 12v batteries for engine starting (2018)
- One set of one 12v battery for domestic services (2018)
- Shore power cable 220v
- 220v Ring main with various sockets throughout boat
- 12v socket by helm
- Frequency converter to drop 220v to 100v for certain appliances (AC/Fridge)
- Charging 2 Engine alternators charge via blocking diodes to isolate engine start batteries from auxiliaries
- Fully automatic 12v Float battery charger
Water Systems, Tankage, Navigation Equipment & Deck Equipment
Water Systems
-
Hot water production: 110 volt immersion and hot water calorifier
- Pressurised hot and cold water system
- Water level gauge, Deck filler
Tankage
-
Fuel: 216 Gallons, 1,000 Litres, stainless steel tank
- Fuel cross over valve, 2 Separ primary fuel filters
-
Water: 60 gallons, 272 litres, plus 10 gallons hot water
Navigation Equipment

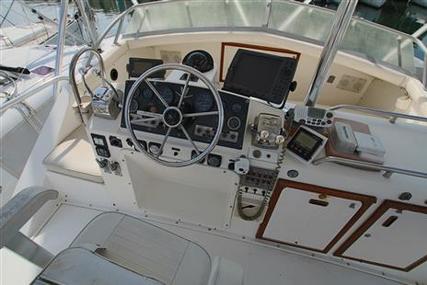

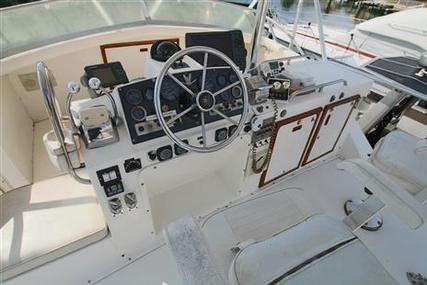

- At Flybridge Helm: Garmin 2010C - Touch Screen Display GPS/Depth/Radar
- Garmin Radar open Scanner
- Raymarine Ray 54 VHF
- Robertson AP3000X Autopilot
- Richie Helm Compass
- Furuno RD-30 Depth display
Deck Equipment

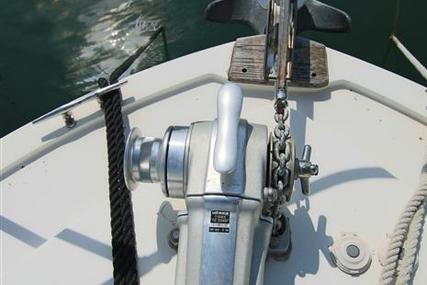

- Reversible electric (1200 watt) Lofrans Tigres anchor winch with Capstan, foredeck / helm position controls
- 10kg Bruce Anchor and 50m stainless steel chain feeding through bow roller
- Full set of IMCO navigation lights
- Remote control search light
- Stainless steel bow and stern cleats in pairs with fairleads
- Electric horn
- Swimming ladder of platform which folds down

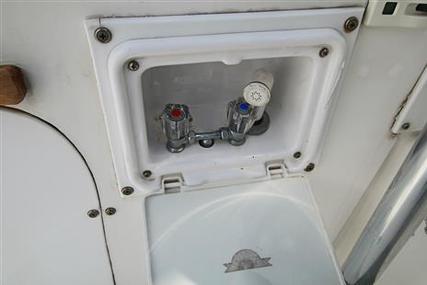

- Cockpit shower
- Cockpit deck lighting
- Flybridge and cockpit speakers – 4 total
- Schafer Riggers for fishing
- 4 fly flybridge rod holders
- 8 Fishing Rod holders

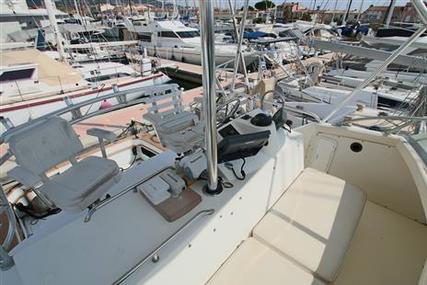

- Captain and co-pilot seats
- Salt water wash down
- Storage lockers on flybridge
- Two sets of large forward and aft cleats and 4 smaller midships cleats
Accommodation & Domestic Equipment
This boat features a two cabin layout, with galleys in the saloon to port. Opposite is an L-shaped seating area with a table that lifts out and extends to become a double bed. The foreword cabin has a large V berth arrangement, and both cabins share one heads and shower.

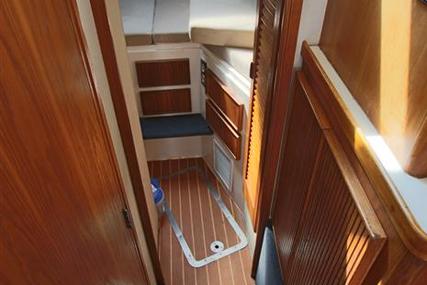

Forecabin

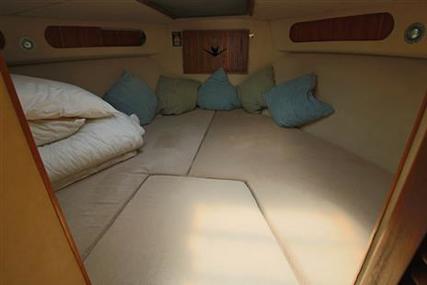

- Large V berth with infill
- Hanging locker
- Drawers below the beds and overhead storage
- Individual berth lights
- Opening overhead hatch

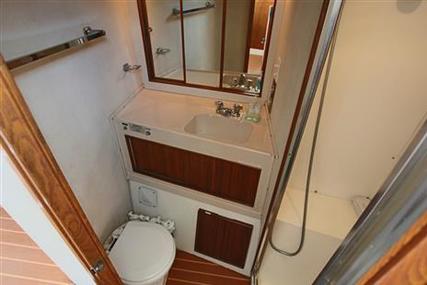

- Shower/WC; Access from main corridor

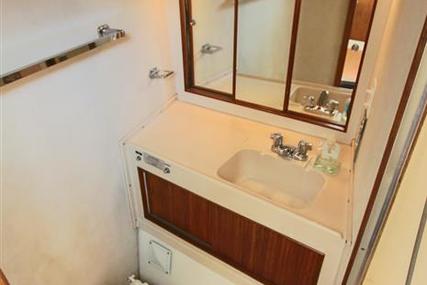

- Washbasin

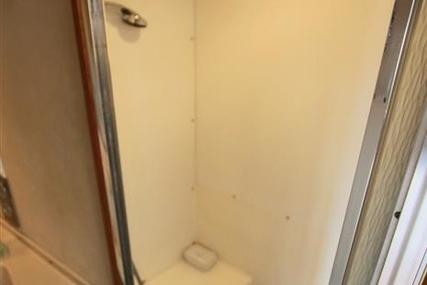

- Separate shower area with folding doors
- Automatic pump-out
- Extractor fan
- Shaver point
- Electric heads

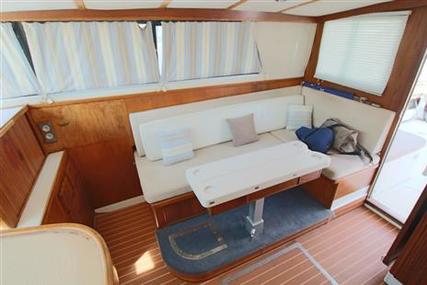

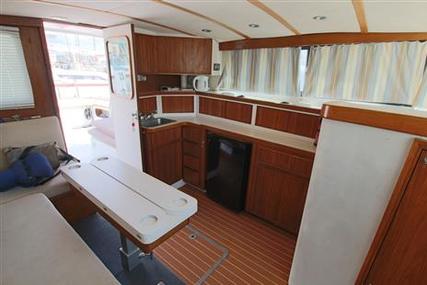

Saloon

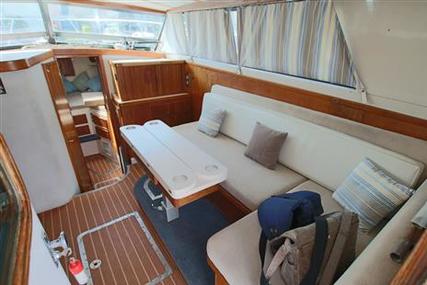

- L-shaped sofa and main dining table to starboard finished in cream upholstery
- A long sideboard to port with useful storage and galley storage
- The saloon features all original chrome lighting with normal side windows allowing plenty of natural light in
- Forward in the saloon to starboard is a useful storage unit
Galley
- Located on the port side of the saloon
- The white Avonite style worktop matches that found on the sideboard and bar in the saloon

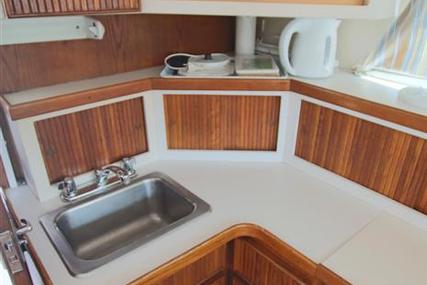

- Deep stainless sink

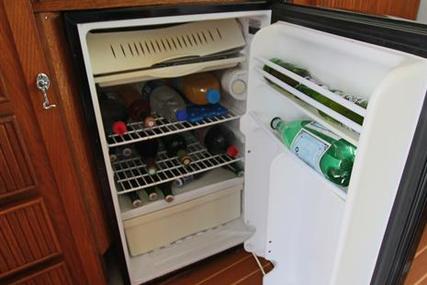

- One large fridge and ice compartment in the galley
Domestic Equipment
- Deep stainless steel sink with mixer tap
- 1 x GE 12v/110v refrigerator
- 90 lit galley
- Heads: Electric flush
- Raritan Jensen Radio/CD sound system with speakers in the saloon and cockpit
- FCF Air-con unit for saloon and cabin – 110v
