Broom Boats 42cl for sale in Reading United Kingdom

LOCATION

Reading United Kingdom

YEAR

2001

LENGTH

42.42 ft.

DETAILS

Condition

Used

Name

Sinemora

Year

2001

Make & Model

Broom Boats 42cl

Boat type

Power

Length

42.42 ft.

Fuel Type

Diesel

Location

Reading United Kingdom

Tax status

Paid

MEASUREMENTS

Beam

13.91 ft.

Berths

4

Cabins

3

Draft Max

3.51 ft.

LWL

37.63 ft.

DESCRIPTION

Sinemora is a Broom 42 which has only had 2 owners from new. Designed by Andrew Wolstenholme

Fitted with the upgraded 350 hp Yanmar diesels. She was fully specified with navigation aids and is finished in the High Gloss Maple interior joinery & has numerous customised upgrades carried out by Broom in build for the original owner.

The boat has been used on the River Thames, South coast and Northern European locations.

Title Documentation, Serial Numbers & Maintence Record

Registered Port: LONDON
Registered Number: 904206 MMSI ship
Title Documents; Full Title Documents from new
VAT Documents: Original VAT invoice
RCD Certification; Declaration of Conformity at new & Owners manual
River License / Authority & Expiry Date: December 2022 Cost in 2022 £1,300.00
BSC Serial No: BSSER-371645/19
BSC Expiry Date : 02/05/2023
HIN No: HIN GB-BRO-42008-E101
Serial No: B42CL/ 008
Engine(s) Make & Model: Yanmar 6LYA-STE
Engine Power: 2 x 350hp
Engine Number: Port 51148 Starboard 51151
Commissioned Date: Launched 1 June 2001

Manufacturer Provided Description

Designed by Andrew Wolstenholme, the Broom 42cl is a good fast cruising seaboat which is capable of, and most suitable for, cruising the inland waterways of Europe. With the capability of speeds up to 28 knots and cruising speed well in excess of 22 knots, the 42 is a truly serious cruising boat with the excellent handling qualities, comfort, and superb finish on which Brooms have built their reputation.

Inventory, Systems & Equipment

EXTERIOR INVENTORY

• 10 aluminium deck cleats
• Electric anchor winch Deck and dash control
• Fuel & water deck fillers
• Full-length stainless-steel pulpit with 4 fender holders
• 2 x single fender holders to aft rails
• Tender outboard storage bracket
• Large self-draining anchor locker
• Opening forward hatch
• Aluminium windscreen frame with glass windscreen with side windows, Side opening on starboard side by helm, all with windscreen washers & demisters
• Full set of navigation lights
• Two 240v sockets fitted complete with USB ports at helm.
• Tek deck covered self-draining cockpit
• Stainless steel handrails on radar arch / Cabin roof / transom etc
• Stainless steel flag socket
• Integral Tek Deck laid bathing platform
• Stainless steel ladder to water
• Cockpit access door in transom
• Stainless steel D Rubber fending strip
• Shaped cockpit seating
• Cockpit table
• Double helm seat with large stowage locker under
• Cockpit storage lockers
• Storage locker with 3 x 4.5 KG Butane gas bottles and drain
• Cockpit lighting
• Fully adjustable two-part canopy (new 2019) with removable window sections at side and rear allowing conversion to bimini if required. Pram hood forward of radar arch with two quick release catches and removable side windows
• Stainless steel canopy frame
• Full engine instrumentation
• Single lever engine controls Dual Controls
• Area for chart with Perspex cover
• Sliding / Opening access door to saloon

INTERIOR ARRANGEMENTS LAYOUT OF CABINS AND INTERIOR
FORWARD CABIN

• Fully lined throughout
• Carpet & curtains
• Large fully upholstered V Beds with storage below and custom built at new cupboards over berths
• Hanging wardrobe with shelves
• Vanity unit with mirror
• Storage drawers
• Storage cupboards
• Brass Barometer & Clock
• 220V socket & Bunk reading lights
• Opening windows
• Opening hatch
FORWARD HEADS / BATHROOM

• Large toilet compartment with ensuite facility to saloon and forward cabin
• Electric flush toilet with fresh water to holding tank or sea by changeover valve - Holding tank capacity gauge
• Hand basin
• Separate basin & Mira mixer shower tap with pressurised hot & cold water
• Vanity unit with storage compartments with further cupboard over with mirror
• Toilet roll, towel and toothbrush holders
• Overhead lighting
• Mirror
• Shaver socket
• Opening window with new venetian blind 2022

GALLEY

• Circular stainless-steel sink and oblong rinsing sink
• Mixer tap serving both sinks, pressurised hot & cold water
• Hob with cover matching worktops
• Oven and grill
• Aquafor Vetus water purifier to sink
• Large fridge
• Freezer Compartment within Fridge
• High level storage cupboards with custom crockery
• High level storage cupboards
• Overhead lighting
• Opening window
• Fire Extinguishers + fire blanket
• 220V sockets, Generator control, water tank gauge and anchor cut off
• Cork finish floor

• Electrolux extractor fan

DINETTE

• U shape seating with book case over and storage cupboards fore and aft, one with breaker panel for forward electrical systems
• Adjustable table to become double berth with infill cushion stored below seating with 2 stools
• Refrigerator cooler below seating
• Fixed side lamps over dinette and galley
• Storage beneath seating
• Custom cocktail cabinet with Decanter and wine glasses, which are engraved with ships name

SALOON

• Saloon fully soft / Timber lined throughout
• Carpet to floor.
• Fully upholstered 'U' shaped seating with storage under
• Saloon coffee table with storage compartment
• Overhead lighting
• 220V socket + 12 volt socket in cupboard unit + Cigar lighter socket over seating
• Electrical control panel for 220V AC circuit with indicator which shows correct or reverse polarity. Control switch for webasto hot air heating system to saloon, dinette and forward cabin. Radio/CD player.
• Electrical control panel for 12V DC circuit
• Opening windows, to port and starboard. The main screen and forward windows are fitted with Venetian blinds (new 2022).  The starboard opening window is fitted with a sliding insect net. (There are further insect excluders for all windows stored in the helm seat locker).
• Engine space access hatches in floor

COMPANIONWAY TO AFT CABIN

• Cupboard off contains washer/dryer (Eumenia Sparmeister 802 model) with wet gear hanging above

AFT CABIN

• Fully lined throughout
• Carpet & curtains
• Fully upholstered large double bed
• 2 X Hanging wardrobes, further cupboards and storage to port and starboard
• Vanity unit to port
• x2 Dressing tables with mirrors and lights
• 220V socket, reading lamps to berth
• Opening windows to both sides and two opening glazed hatches to aft bulwark
• Port hanging cupboard contains control equipment for further electric equipment and hydraulic radar arch.
• Brass clock and brass barometer.
• Control switch for Webasto hot air heating system to aft cabin, ensuite and upper helm

AFT CABIN ENSUITE

• Ensuite with electric flush, fresh water toilet emptying to holding tank or diverter valve to sea
• Hand basin with mixer tap
• Vanity unit with mirrored cupboards above sink with hot and cold taps, cupboards below.
• Towel holder
• Toilet roll holder
• Toothbrush holder
• Overhead lighting
• Mirrors
• Shaver socket
• Opening window with venetian blind(new 2022)

AFT CABIN SHOWER ENSUITE

• Separate shower room with Mira shower and sink with hot and cold taps (sink optional extra
• Moulded shower room with opening window & venetian blinds to window (new 2022).
• Thermostatic mixer valve
• Drain overboard via drain box

ENGINE COMPARTMENT

• Accessed by single hatch on hydraulic struts through saloon sole (optional extra).
• Starter batteries (06/2020), domestic batteries (07/2018).
• Manual & Automatic bilge pump
• Automatic fire extinguisher system
• Two fuel filters (Racor)
• 3kva Fischer Pander generator (fully serviced and new exhaust system fitted 06/2021). • 2 X 240v sockets
• Engine room fans
• Weed Filters
• Calorifier with immersion heater

STANDARD FACTORY EQUIPMENT

• S/L 1000 reversible electric windlass
• Bow thruster
• 16 Kg Delta anchor
• 40m chain
• Searchlight
• Full 220V shore support system
• Battery charger
• Generator Fischer panda 4KW
• Hydraulic steering
• Engine hour meter
• Fuel gauges
• Speed and depth indicators
• Skanti with DSC VHF & Icom 501 Euro VHF
• Compass
• Horn
• Helm indicator
• Windscreen wipers
• Radio/CD player with four speakers
• Fire extinguishers
• 1 manual operated bilge pumps
• 3 x 12v bilge pumps
• Fresh water pump
• Automatic shower drain boxes x 2
• Calorifier with Immersion heater
• Water contents gauge
• 10 fenders
• Boat hook
• 4 Mooring and 10 fender ropes
• Manufacturers owner’s manual

ADDITIONAL EQUIPMENT FITTED TO THIS VESSEL

• Belgium Reg K71817
• Antwerp Port Tax Reg FD94919
• Navigation Gear * all fitted 2012
• Ray marine ST60 depth gauge
• Ray marine ST60 speed gauge
• Ray marine ST6000+ autopilot
• Ray marine GPS Chartplotter E70013 C125 multifunction display (SNwith AIS 350 receiver E32157 using port side aerial
• Ray marine RD418D 4kw 18” digital Radom E91230 Radar (SN
• Ray marine DSC VHF
• ICS Nav6 Navtex receiver
• 2 x 8 foot (2.84m)VHF aerials (Shakespeare)
• 10” Bow thruster
• Hydraulic assisted folding mast
• Whittall Model 170 Stainless Steel davits
• Searchlight Electric operation
• Central Heating Hot Air - 2 units aft cabin / aft deck & saloon / forward cabin / dinette
• Remote control for Thruster
• Black waste tank with deck point and or thru hull discharge via macerator pump
• TV aerial
• Aft Heads upgraded to Electric flush
• Battery Charger
• Inverter for TV only
• Shoreline cable

FURTHER INFORMATION SUPPLIED BY VENDORS

Dimensions: L 42’6” (12.95m) B 13’11” (4.24m) deck 39’9” (12.1m)
waterline length 37’8” (11.47”) Draught 3’6” (1m06)
Total height 17’ 0” (5m20) mast down 11’ 0” (3m35)
Weight 13 tons (registered tonnage = 20.8 tons)
Height for transport - keel to top of screen 14’ 4” (4.37m)

Engines 2x350 Yanmar supercharged 6LYA STE Port 51148 Stbd 51151
6 cylinder 5.18 litres (350hp @ 3300 rpm)
Continuous Rating Output 3100
SAE 15W40 replace every 250 HRs oil and filter max = 20litres
GEARBOXES twin Disc h Port 239 Stbd 235

Range/consumption
1400 rpm = 8 kts
1800rpm = 10 kts i litres per hr 466 miles
2200 rpm = 13 kts 40 “ 366
2600 rpm = 18 kts 64 “ 305
3000 rpm = 22.5 kts 99 248
3100 rpm = continuous rating output
3200 rpm = 25kts 124 221

Generator Fischer Panda 3kva. Water pump F35B8
Fuel comes from stbd fuel tank
Filters for Genny = 65mm high

Batteries: Domestic 4 x 6 volt x 216(07/2018) amp/hr heavy duty semi-traction, charged through splitter unit
Starter 2 x 12 volt x 125 amp/hr, (06/2020) charged separately through splitter unit
Generator 1 x 12 volt x 60 amp/hr

Anodes MG Duff ZD78BM (Zinc = salt) (magnesium = fresh) (aluminium = fresh/salt/brackish) (all new 07/2020)

Hydraulic helm = Hypro Marine Hydraulic Sea Star
Engine Controls = Morse MT2
Propellers = Clements Ltd Four bladed, turning outwards in forward drive 24” Dia 30” pitch on 1.75” x 132.25” s/s shaft (FEC-FPB)

Capacities:
Fuel, each tank 138 gals (630 litres
Oil max 20 litres each engine 15W40 replace every 250 hrs (oil and filters)
Water, 93.25 imp gals (424 litres)

Both WCs are fresh water flushed

Water Purifier = Aquafor Vetus (domestic)

Holding tank 34 gals (154 litres)
Gas Calor 2x 4.5 kg bottles

Webasto Airtop 3500 D12v (Port product code1628. Serial 039390 Stbd
1. Saloon, galley, fwd cabin draws from port fuel tank
2. Aft cabin, aft corridor, aft toilet and helm draw from stbd fuel tank

Eumemia Sparmeister 802 washing machine

PROPULSION

Cruising Speed

30.77 knots

Engine Count

2

Engine Horse Power

700.0

Engine Location

Starboard

Max Speed Knots

39.16

ADDITIONAL INFORMATION

HULL

Designer

Andrew Wolstenholme

Hull Material

Fiberglass

Hull Type

Semi Displacement

OTHER

Bathrooms

2

Double Berths

2

Single Berths

2

Length on Deck

12.1 meters

Drive Transmission Description

Direct

Dry Weight

13000 kilograms

Engine Year

2001

Engine Type

Inboard

Fuel Tanks Capacity

1381.68 liters

No of Heads

2

Holding Tanks Capacity

200 liters

Water Tanks Capacity

908.5 liters

Bridge Clearance

3.35 meters

Drive Up

1.06 meters

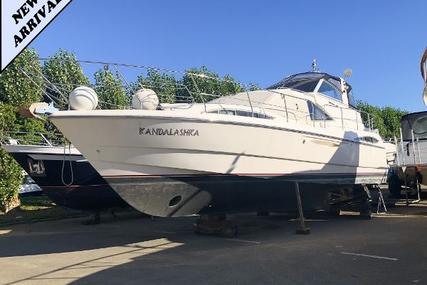

ABOUT BROOM BOATS 42CL

The Broom Boats 42cl is a 42 feet long that boasts a 14 feet beam. and a draft of 1.07 meters.This 2001 diesel Broom Boats 42cl is powered by a Yanmar 6LYA-STE, with 700.0 horsepower, capable of reaching a maximum speed of 39.16 knots and a cruising speed of 30.77 knots. The Broom Boats 42cl is made of fiberglass.
