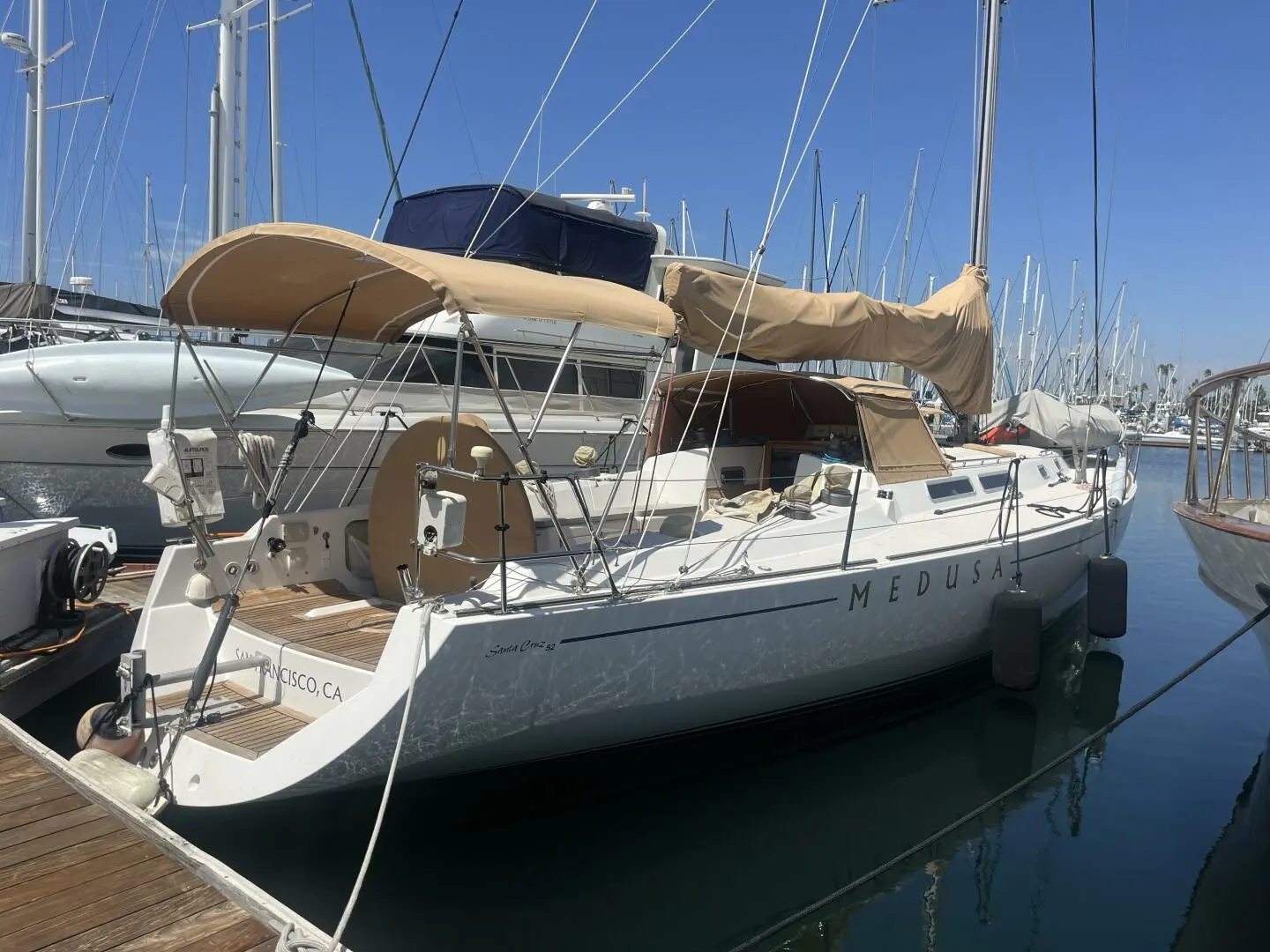

1996 Santa Cruz 52

MORE INFO

Rigging by Scott Easom - Easom Rigging San Francisco

It is time for MEDUSA to take its new owners to the PODIUM!

INTERIOR LAYOUT

The SC52 features a spacious interior finished in rich teak with red leather seating, along with teak and holly flooring hatches. It includes molded fiberglass settees and storage cabinets. The spacious Owners Stateroom located forward consists of a double berth with a plush mattress and built-in shelves port and starboard. It also has built-in storage drawers, a large hanging storage locker located to starboard with a small seat below, and additional storage drawers just aft of the seat. There is private access to the forward head located on the port side just aft of the Owner stateroom and forward of the mast and main bulkhead.

Moving aft past the forward bulkhead, you will find a straight settee to starboard with a Quarter Berth/Pilot Berth above and outboard. On the port side, there is a "U" shaped settee with a dining table and a Quarter Berth/Pilot Berth above and outboard of the settee. Further aft along the starboard side, just aft of the settee, is the forward-facing Nav Station. Across from there to port sits the Galley, beyond which is the aft Head with storage access through the Head. Here you will find a Pipe Berth, H2O heater, H2O maker, and plenty of storage for miscellaneous items, with additional access from the cockpit Lazerette. A wet locker is located to starboard just beyond the NAV Station, along with an Aft Berth, an upper folding Pipe Berth, and a storage hanging locker.

DIMENSIONS

• LOA: 53 ft
• LWL: 46.5 ft
• BEAM: 14 ft
• DRAFT: 8 ft 5 in
• Ballast: 9,100 lb
• Displacement: 21,000 lb
• Designer: Bill Lee "The Wizzard"
• Builder: Santa Cruz Yachts

ENGINE

• Brand: Yanmar Diesel
• Model: 4JH2TBE
• Drive: Shaft w PSS Dripless Shaft Seal
• Prop: Folding 3 blade
• Engine Hours: TBD

TANKAGE

• Fuel/Diesel: 104 us gallons
• Fresh Water: 147 us gallons (Boat has a Watermaker as well)
• Holding: 26 us gallons

RIG AND RIGGING

• Aluminum Spar Xtra Tall Rig (Keel Stepped)
• Aluminum Boom
• Carbon Spin Pole
• Reaching Struts
• Navtec Discontinuous Rod Rigging
• Navtec Hydraulic Adjustments boom vang / backstay / outhaul

SAILS

• A-1 Red North Sails
• A-2 Red North Sails
• A-3 Green/grey North Sails
• A-4 Grey (Robbie Haines favorite)
• A-5 Light blue/gray (Scott Easom's favorite)
• Code-0 White wire luff North Sails with Harken furler
• Staysail White Spinnaker Cloth North Sails on Harken furler
• Genoa Stay Sail 3DL Carbon North Sails
• #3 Jib 100% maybe 110%.
• #2 Full carbon 3DI North Sails Genoa
• Mainsail Carbon Race Quantum Sails
• Old practice sail
• # 1 160% Genoa
• Mainsail old practice
• Mainsail Heavy cruising Dacron Evolution Sails on the boat now.
• A-2 Blue and white
• A-2 White
• A-2 Red white and blue practice sail
• Cruising spinnaker in sock all Blue Quantum sails (great easy sail for short handed)

HULL MODIFICATION

• New Rudder Designed by Alan Andrews (see photo)
• Emergency Rudder and Associated Mounting Hardware
• Bottom Faired

NAV ELECTRONICS

Instruments located above main hatch in Instrument pod:

• 1 B&G Hercules 2000 MFD
• 3 B&G 20/20s

Instruments located at Navigation Station:

• GPS/CHARTPLOTTER Garmin 4212 series
• B&G Hercules 2000 MFD
• Link 2000 Heart Interface Invert / Charger Monitor
• Village marine H2O maker Monitor
• SAT PHONE
• SSB Radio: ICOM ICM 804
• VHF Radio: ICOM ICM 504
• 1 at nav station
• 1 in cockpit with commercial oversize ram Mic
• Simrad AP28 Auto Pilot
• Panasonic XM Radio - Sirius Sat Radio
• Laptop connectivity for navigation

SAFETY GEAR

• XX Man Liferaft (Cert thru XXXX)
• Epirb
• MOM module
• Life Sling
• Ditch bag
• Potable VHF Radio
• Fire Extinguishers
• Flares
• Air Horn
• Jack Line Attachment Padeyes
• Jack lines

ELECTRICAL

• Separate AC and DC electrical distribution panels
• XX House Batteries Size ______ Amp Hrs ______Battery System consists of 6v batteries in parallel 240 AMP per
• 30 amp Shore Power Service and Power Cord

DECK HARDWARE

• Turning blocks / leads / jammers - through bolted and custom backing plates used for all deck hardware

WINCHES

• (2) Harken 58 2-speed self-tailing (Primary/Jib)
• (2) Harken 48 2-speed self-tailing (Runners)
• (2) Harken 48 2-speed self-tailing (traveler)
• (3) Harken 44 2-speed self-tailing (halyards)
• (1) Harken 44 electric winch mounted on cabin top
• (10) Spinlock Rope Jammers
• Harken deck leads
• Harken turning Blocks at mast base
• Harken Adjustable Genoa tracks
• Navtec three function hydraulics (vang, flattener(outhaul), backstay)
• Running backstays
• Harken roller furling system
• Carbon Spinnaker pole
• Spin track on front of mast and running rigging setup for pole
• Reaching strut

PLUMBING

• Village Marine Water Maker 800 Gal Per Day
• Refrigerator on DC System
• RK Systems H2O Cooled Refrigeration
• Fresh Water Electric Flush Heads(2)
• Hot Water Heater 8 gal/ Engine Driven or Via Shorepower
• Cabin Heater
• Shower Sump Pump
• Sump Pump Located at Base of Mast
• Manual/Auto Bilge Pump in Anchor Windlass Locker at Bow
• Manual/Auto Bilge Pump in Main Saloon
• Salt Water Wash-down in Anchor Locker at Bow

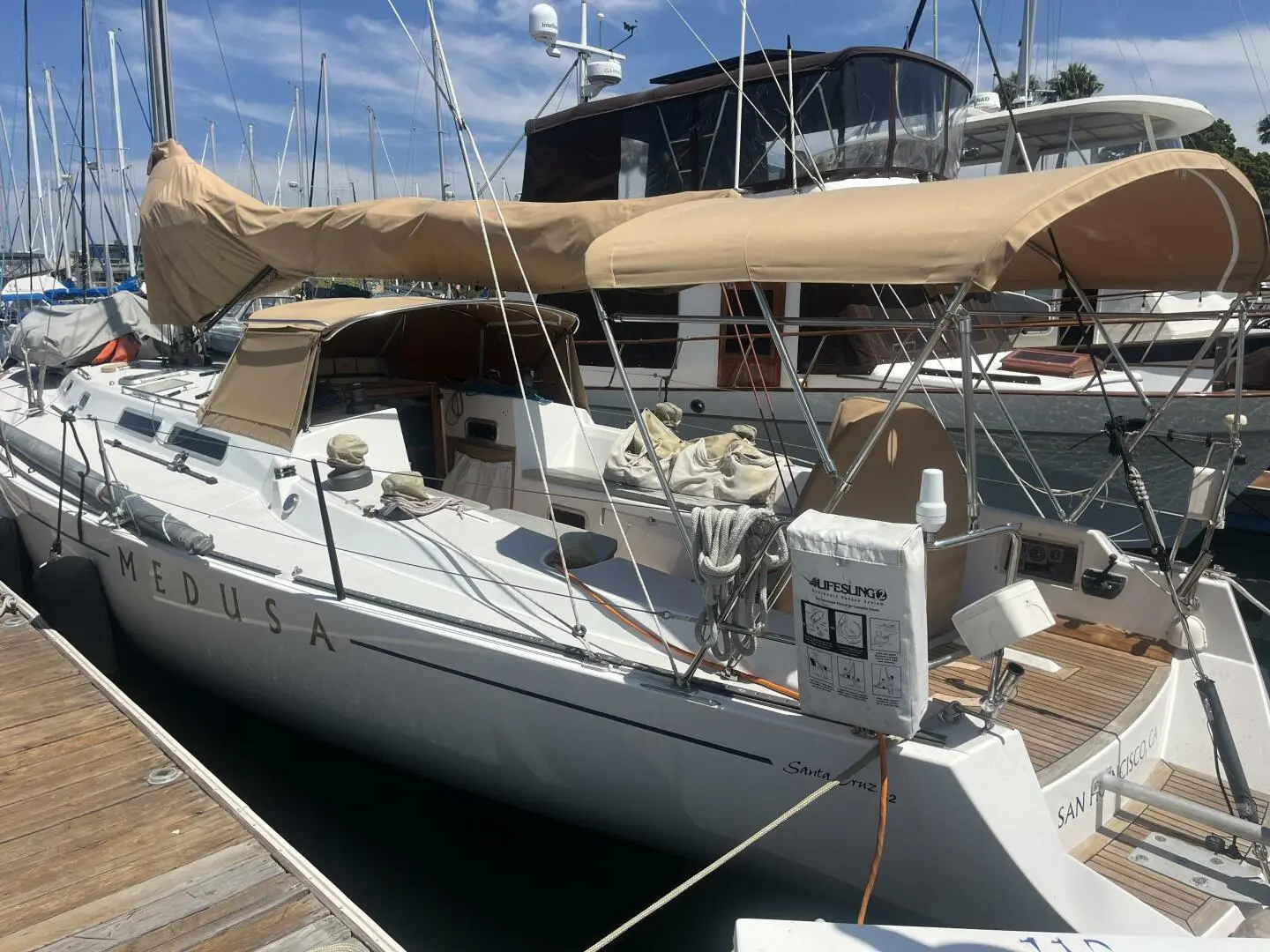

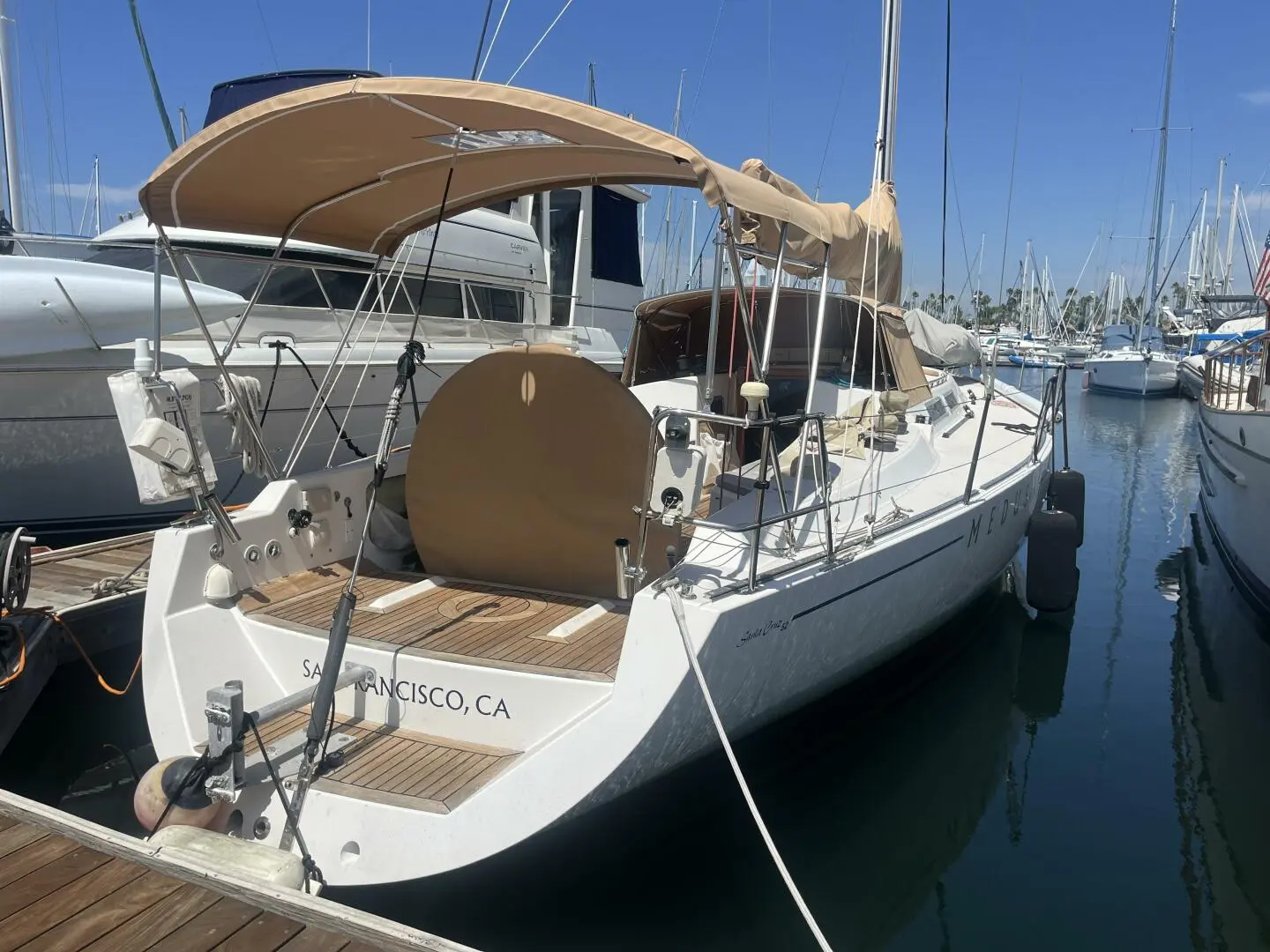

CANVAS

• NEW Dodger / Bimini / Wheel / Sheet Bag Canvas (Memos Canvas San Diego 7/2024) All Done in Toast / Tan Color
• Mainsail Cover
• Folded Bimini Cover
• Winch Covers
• Leather Wrapping Around Shroud Bases

DINGHY

• Carib Hard Bottom Inflatable
• 7hp outboard
• Dinghy Cradle For foredeck storage

OTHER

M E D U S A is held in a LLC. Transferable with sale of vessel upon agreement with owner.
