Accommodations
Deck And Hull
- Hand-laminated GRP
- Awl Craft Flag Blue hull and waterline stripe paint (2019)
- Bottom Paint (2019)
- First layers: laminated with isopthalic polyester resin, optimal strength/weight ratio achieved by using unidirectional, biaxial and triaxial glass fibers
- Sandwich construction above water line; core material is PVC (closed cell)
- Stainless steel grid bonded to the hull with structural glue transferring loads from mast and keel. This signature structure is designed to securely spread the loads from the keel, shrouds and mast, and distribute them evenly throughout.
- Hull inner-liner reinforced with carbon fiber in high stress areas.
- Structural glued longitudinal.
- Stress areas on deck (where winches and major deck fittings are fixed) reinforced by replacing PVC core with plywood or aluminum
- Hull and deck are bonded with Methyl-Methacrylate structural glue
- The (teak) toe rail is bolted through deck and hull flange
- Iron epoxy encapsulated keel with LED bulb (t-shaped)
- Performance deep draft keel 7'2

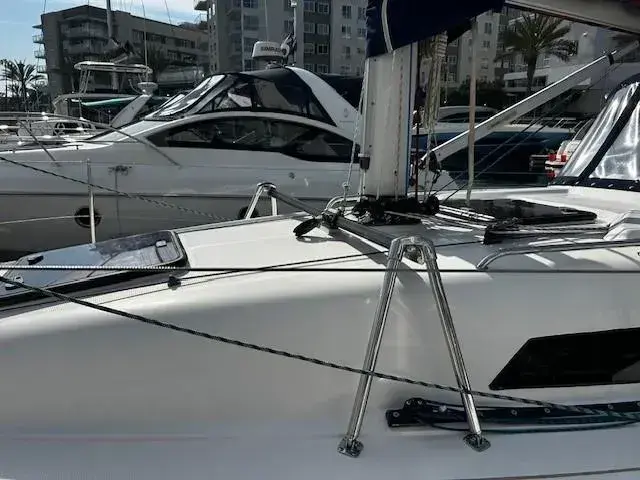

Deck

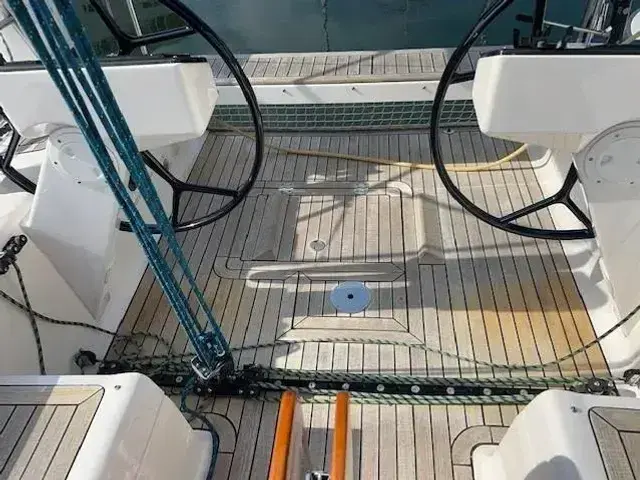

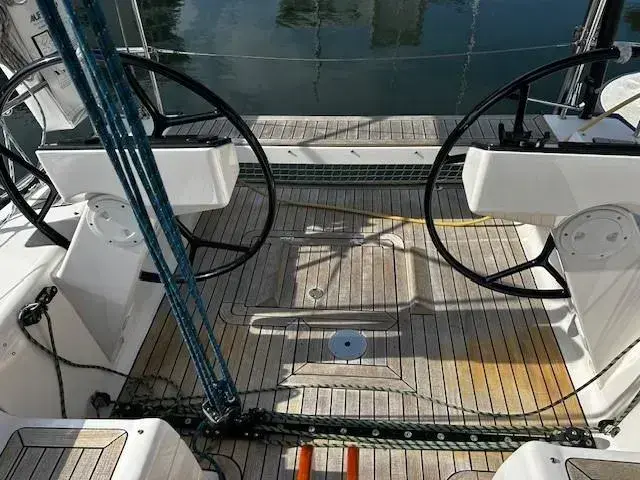

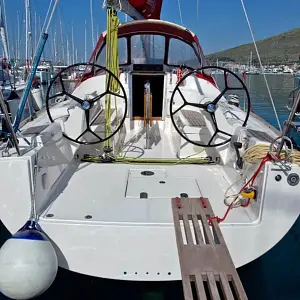

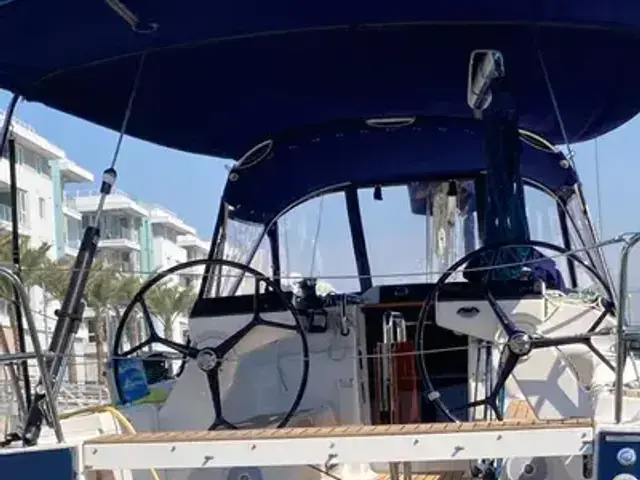

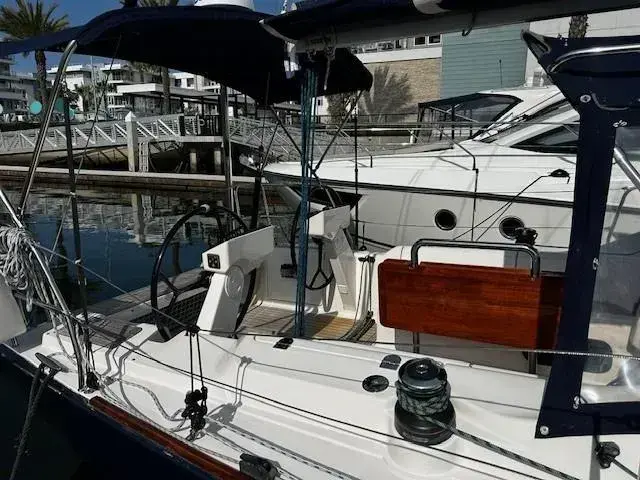

- Twin Composite helm wheels

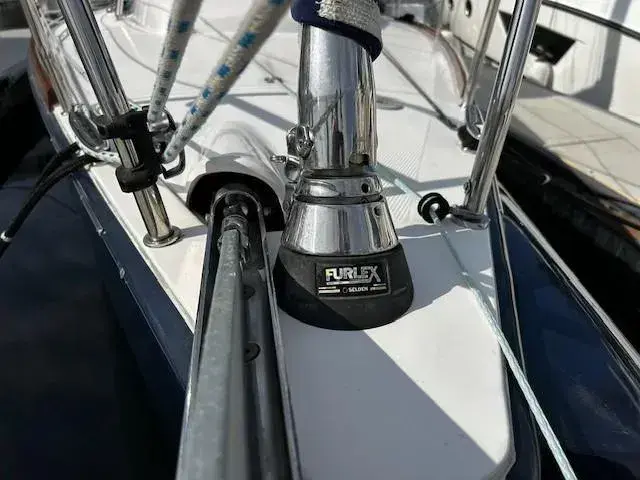

- Seldon below deck jib furler

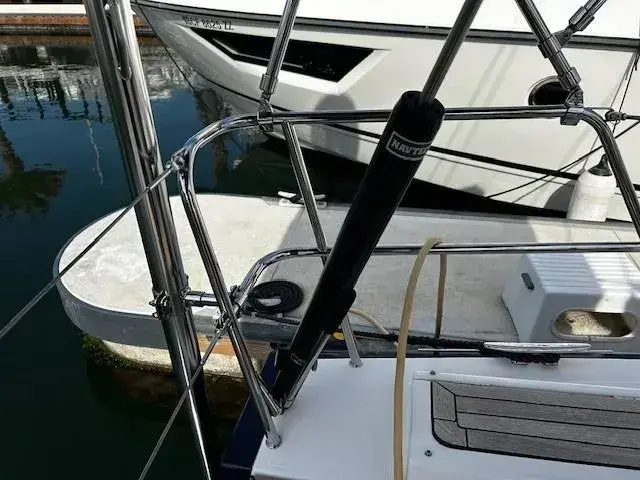

- SS bow pulpit and stern push pits w/double lifelines

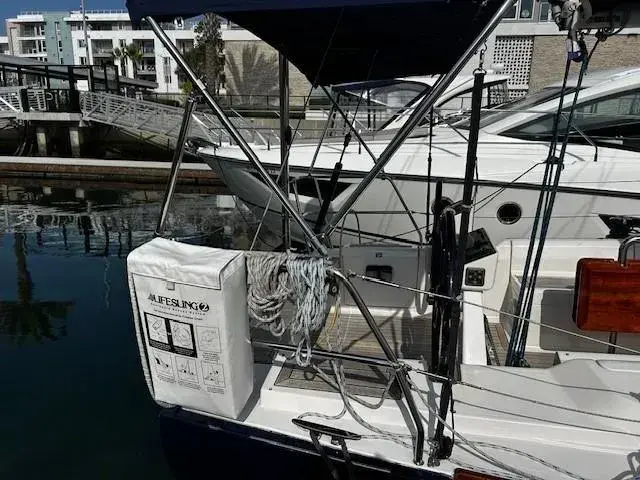

- Open transom with removable bench seat

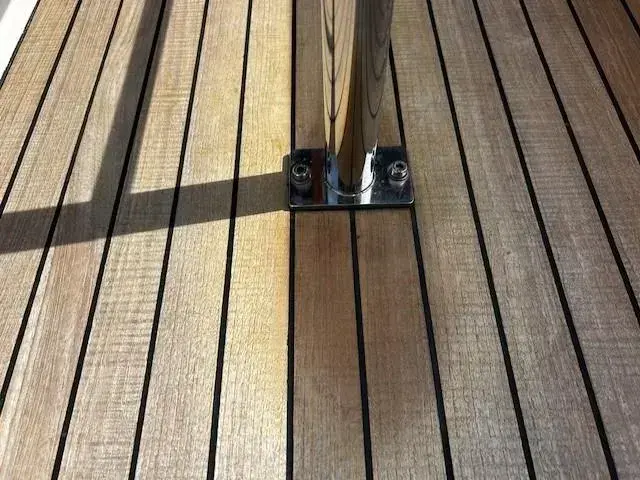

- Teak cockpit floor and seats
- (3) Harken two-speed self tailing winches

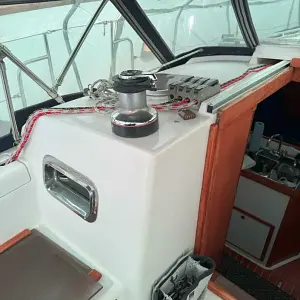

- Harken self tailing two-speed electric main halyard/reef winch
- All reefs and halyards lead to back of cabin top

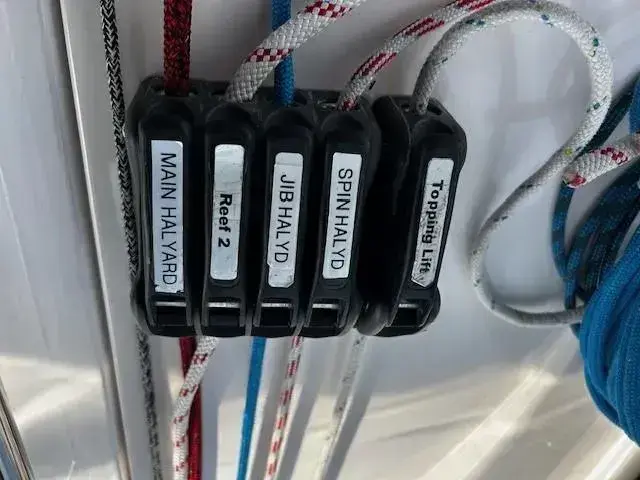

- Halyard clutches for halyards and reefs
- SS handrails on the coach roof
- Toe rails stripped/sanded/bleached and varnished (2019)
- Self draining bow anchor locker

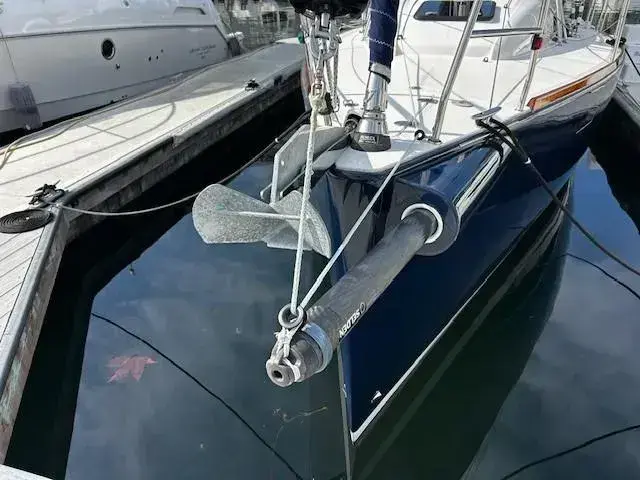

- Bow anchor roller
- Plow bow anchor with 150 Rode and 100" Chain
- Seldon self tacking jib system
- Hot/cold cockpit shower
- Electric bow anchor winch

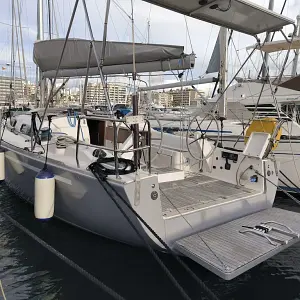

Cockpit
- 8 mm solid teak ribs/massive on cockpit seats, side trims
- Dry stowage locker on port&stbd side
- Storage locker in mid aft cockpit
- Removable transom bench
- Outboard drained two propane bottles (ps) compartment
- Rudder stock head (for installing the emergency tiller)

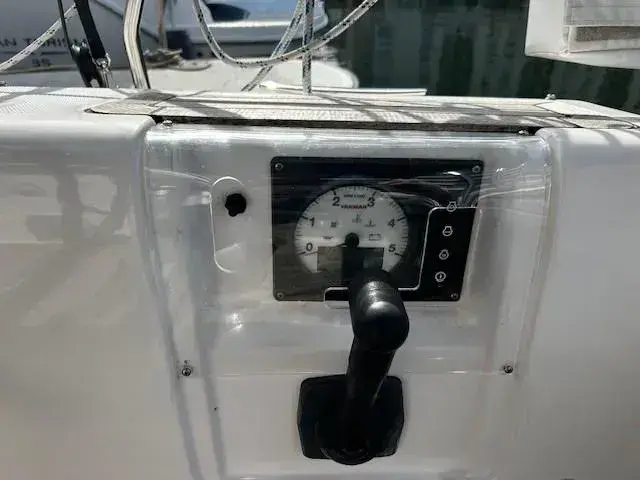

- Single lever engine control Recessed engine controls panel Fire Extinguisher

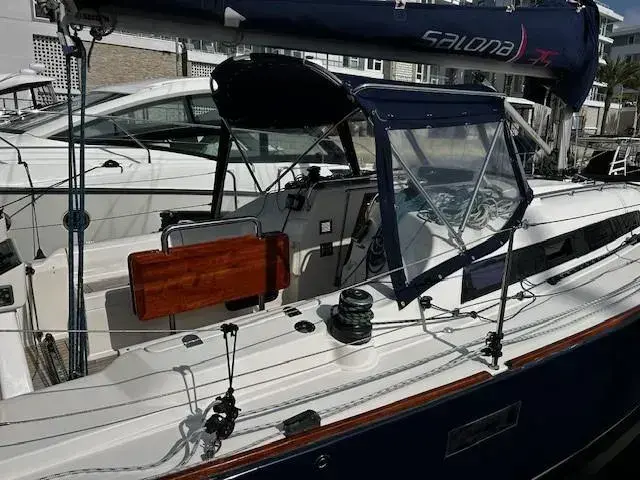

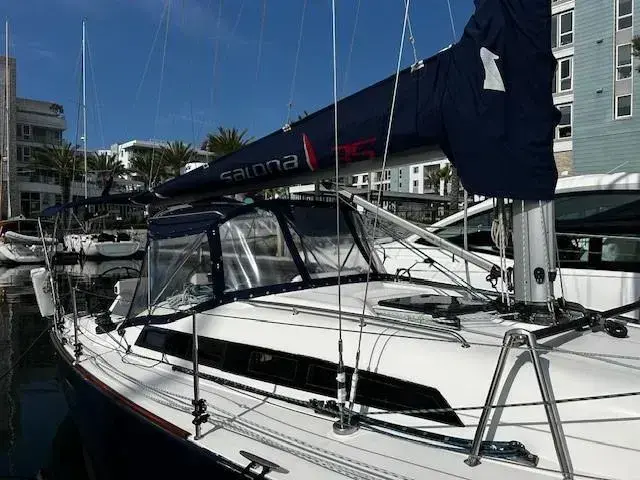

- Custom made cockpit canvas - Sunbrella dodger, mid & rear bimini
- Custom made Ultra leather cockpit cushions

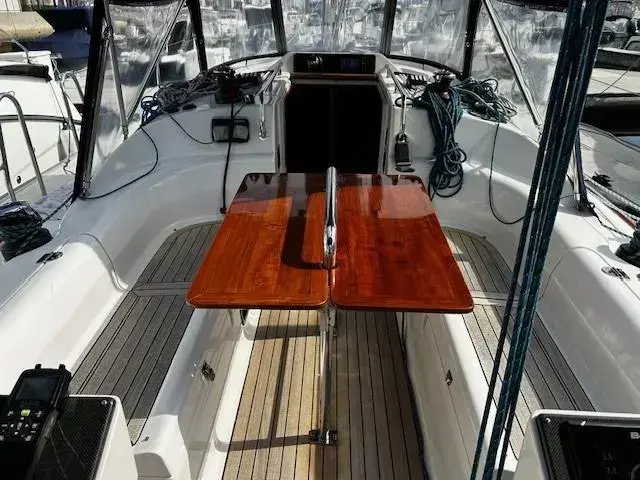

- Cockpit table easy removable for racing
Interior Accommodations
The S35 features the ideal accommodations for the family to stay overnight comfortably during leisure trips or for the crew to use during regattas. This S35 has the two cabin layout with spacious head and large navigation table with a functional galley.
- Interior in high quality marine core, mahogany veneered
- Fiddles, moldings and frames in solid wood Laminated floorboards
- All main Bulkheads are marine okume plywood bonded to Hull and Deck inner liner and laminated to hull sides
- Invisible Hull sides, Bottom, Bilge etc. are top coated
- Cabin mattresses and saloon cushions are made in high quality foam and upholstery, is removable for ease of maintenance.
- Custom made cabin Ultra Leather cushions
- Custom made Sunbrella mattress cushion fabric

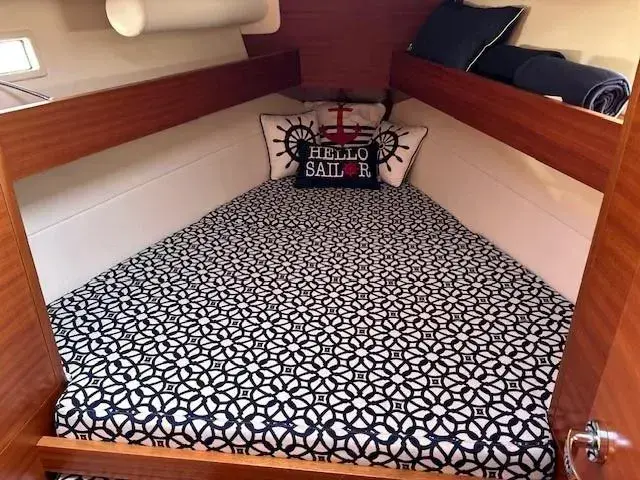

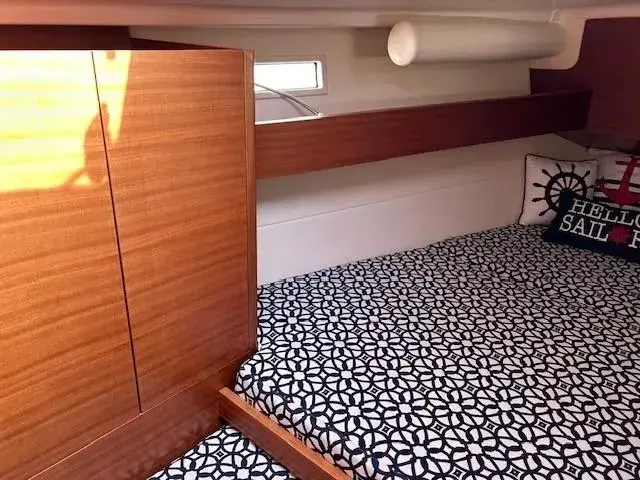

OWNER'S (FORWARD) CABIN
- Large double Berth towards fwd Mattress in 2 parts shelves above bed along Hull sides
- Access to stowage compartments under Berth
- 2 Double Wardrobes (port & stbd side) with Shelves and Hangers
- Seat forming shoe locker
- Fresh Water tank under Berth
- 1 large opening deck hatch with blind 2 hull windows
- 2 reading lights
AFT CABIN (PORT)
- Double Berth
- Mattress in 2 parts
- Shelve above bed along Hull port side
- Large hanging Locker with double door and shelve above

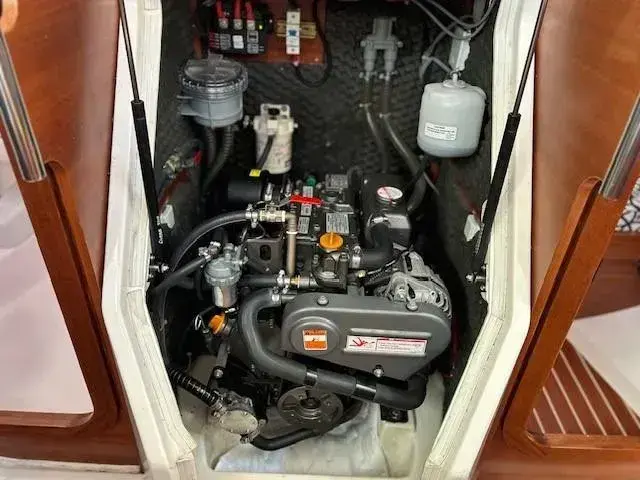

- Access to the engine
- 1 opening porthole on coaming with blind 1 opening porthole on cockpit with blind
- 1 hull window
- 1 reading light

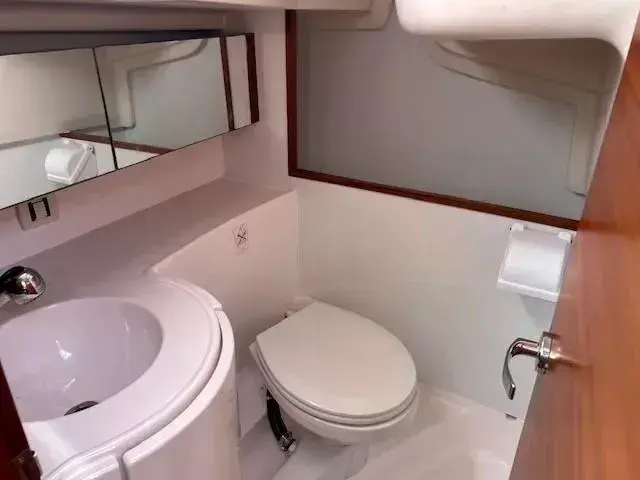

AFT HEAD UNIT

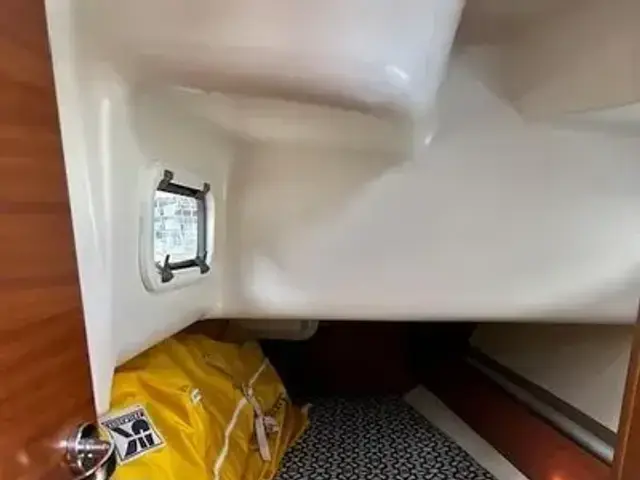

Molded GRP unit with wash basin hot and cold fresh water mixing tap / shower
Shower directly drained by electric pump Manual marine toilet
Front opening Locker with Mirrored door Wet Locker for drying of wet sailing cloth
40 L waste holding tank
Toilet accessories
Stainless steel handhold
1 opening porthole on coaming with blind

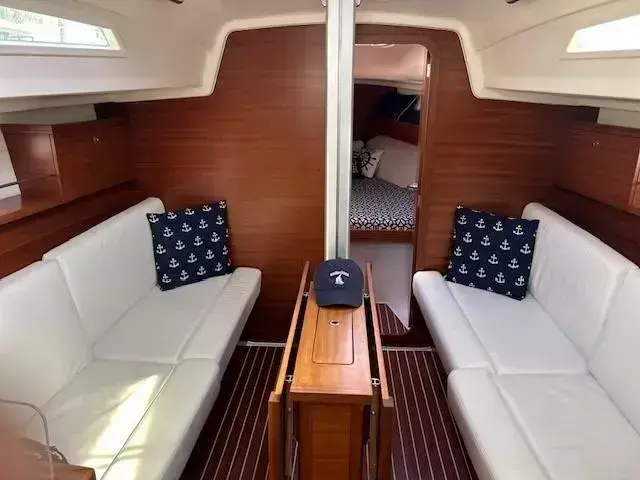

SALOON
- Large sofas on each Hull side

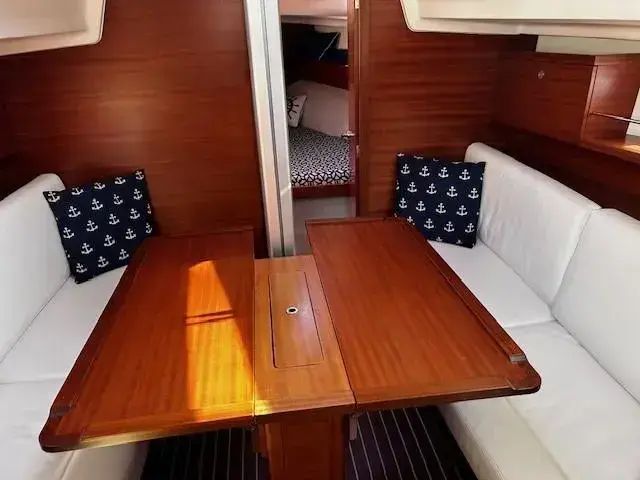

- Foldable and removable saloon Table with bottles storage inside
- Backrests and seats in foam
- Stowage lockers with doors and bookshelves above each sofa
- Stowage compartments under seats

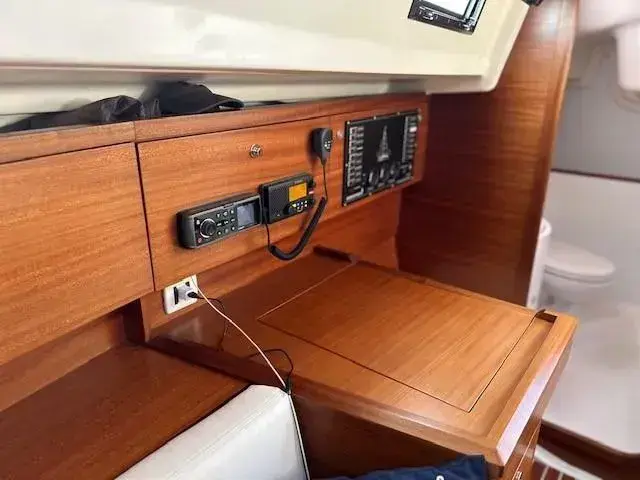

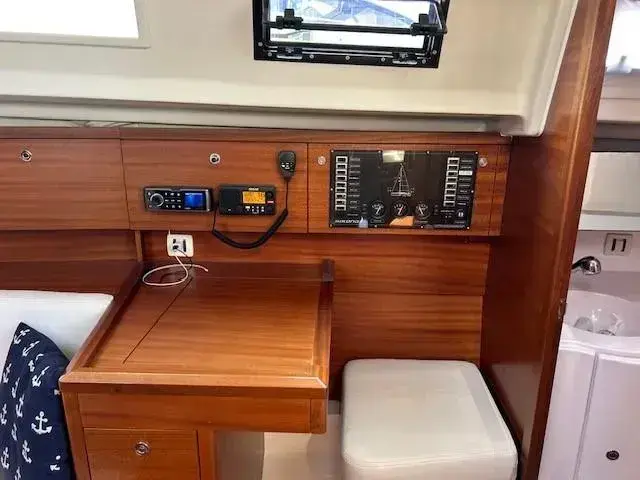

- Chart table desk, space for charts and instruments on stbd side
- Stowage under chart table with drawers and door
- Upper Locker for navigation instruments and Electric switch panel along the hull
- Seat with cushion Fire Extinguisher
- Stainless steel Handrails mounted on top-sides
- 1 large opening deck hatch with blind
- 1 opening porthole on coaming with blind 2 hull windows
- Misc throw cushions

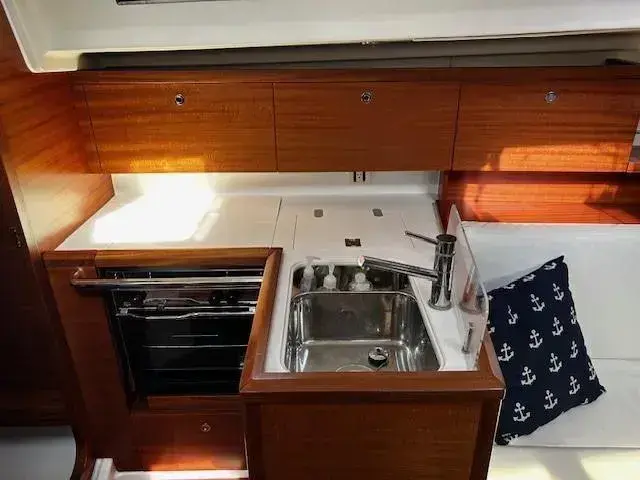

GALLEY
- L-shaped Galley
- White Compact worktop with wooden fiddle round it
- Removable worktop above stove Double stainless-steel sink
- Mixing tap for pressurized hot cold fresh water
- Gas stove (on gimbals) with an oven and 2 burners
- Top loading GRP refrigerator app. 80 L, 12V
- Storage lockers with shelves and doors above work top along Hull side
- Storage with shelve and door under sinks Bottles storage
- Plexiglas protection between galley and sofa Stainless steel handhold
- 1 opening porthole on coaming with blind
Spars, Sails And Rigging
- Tapered aluminum clear anodized mast w/swept back spreaders
- Hi-tec halyards w/shackles
- SS rod standing rigging
- Windex spar fly
- Solid adjustable boom vang
- Cascading adjustable backstay
- Dacron full battened main sail w/reef
- 107% furling jib
- Newer 90% furling jib on self-tacking system
- Lazy-jacks
- Stack-pack main cover system
- Code 0 Genaker on Furler
- Retractable carbon fiber bow sprit (adjusted from cockpit)
Electronics

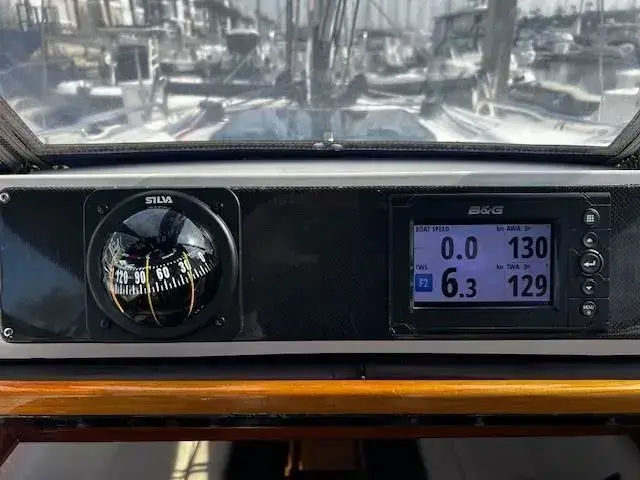

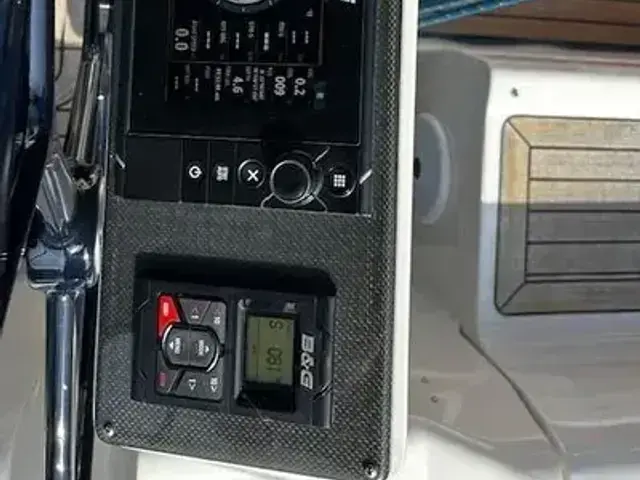

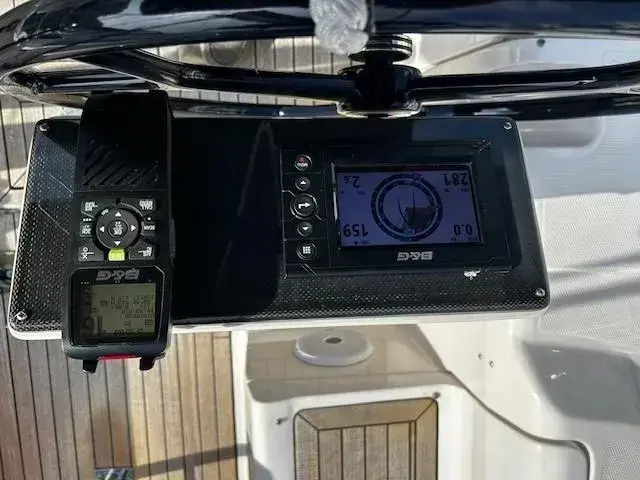

- Two B&G H5000 Displays for cockpit at Helms
- Wind Depth and speed sensor included
- Hercules CPU Processor
- B&G Autopilot System
- B&G RC42 rate compass
- B&G RF25 feedback unit
- B&G TRITON pilot control
- FUSION audio package CD/Radio Marine + 2 Speakers in Saloon
- B&G V50 fixed mount vhf (at nav station)
- Remote vhf at helm
- B & G AIS Transceiver

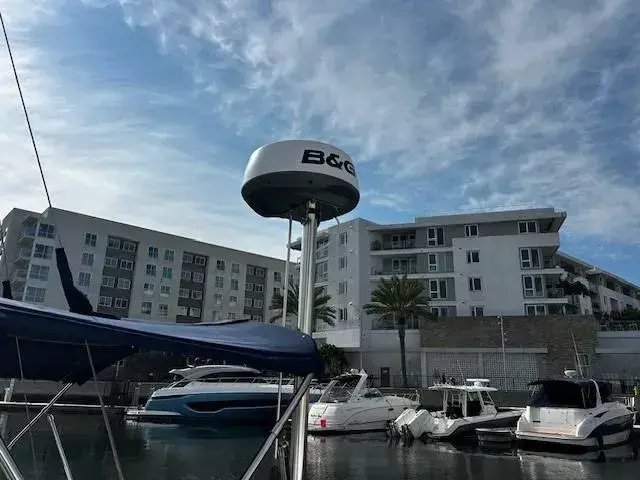

- B & G Halo 20 Radar on Stern 8' Post
ELECTRICAL SYSTEMS
12 V DC SYSTEM
- Main Switchboard includes LED indicators and thermomagnetic switches
- 12 V sockets
- 1 x 12V 100 Ah engine start Battery
- 1 x 12V 100 Ah service Battery
- Battery Switch for each battery
- Safety battery protector Anode
- Emergency start crossover system
- Led lights for interior
- Owner's manual and CE certificates, A-ocean by GL
