1973 Nautor Swan 48
$237,619
Highlights
DETAILSOffered By
Michael Schmidt & Partner
Boat Type
Sail
Make & Model
Nautor Swan 48
Length
47.9 ft.
Tax Status
Tax Paid
MEASUREMENTS
Beam
13.62 ft.
Draft Max
7.87 ft.
Description
Description
Boat Details
One of the Classics, A Swan 48 here for sale now.
The Sparkman and Stephens Swan 48 is widely considered to be one of the most iconic blue water sailing designs of all time. It is well-balanced, stable, and seaworthy, capable of handling various weather conditions and long passages. It is also fast and responsive, with good upwind performance and reaching speed.
The Swan 48 was in production between 1971 and 1975, with 46 hulls built in total and was designed to rate under the I.O.R. (International Offshore Rule) and at the same time to offer the comforts of a great cruising boat. Because of this design criteria and its extremely strong structure, the S&S Swan 48 suits very well for trans-ocean racing as well as comfortable cruising and even circumnavigating the world;
The Swan 48 is famous for its two wins in the Newport-Bermuda Race, a prestigious offshore sailing event that covers about 635 nautical miles (1,176 kilometres) from Newport, Rhode Island to Bermuda.
The first win was by 'Noryema VIII' in 1972, skippered by Ted Turner, and the second win was by 'Constellation' in 1992, skippered by John Winder. The S and S Swan 48 has also participated in other notable races and events, such as the Fastnet Race, the Sydney-Hobart Race, the Transatlantic Race, the ARC (Atlantic Rally for Cruisers), and the World ARC.

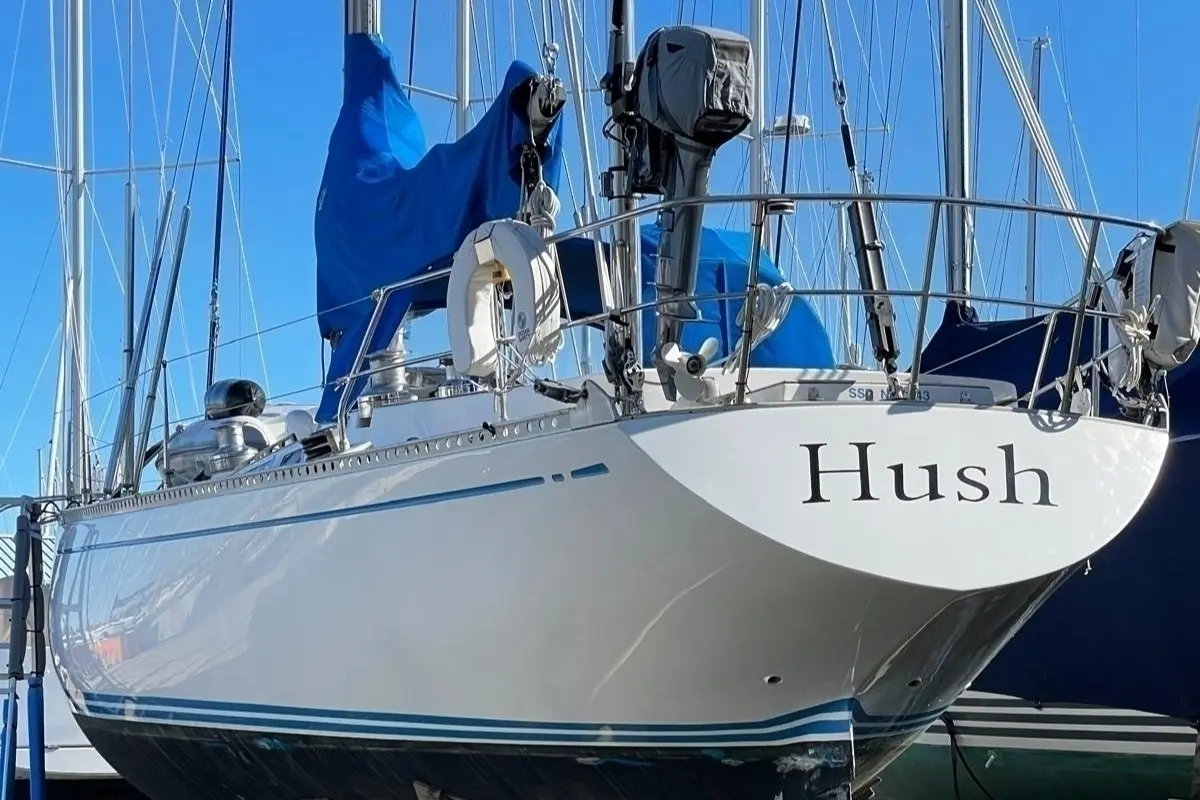

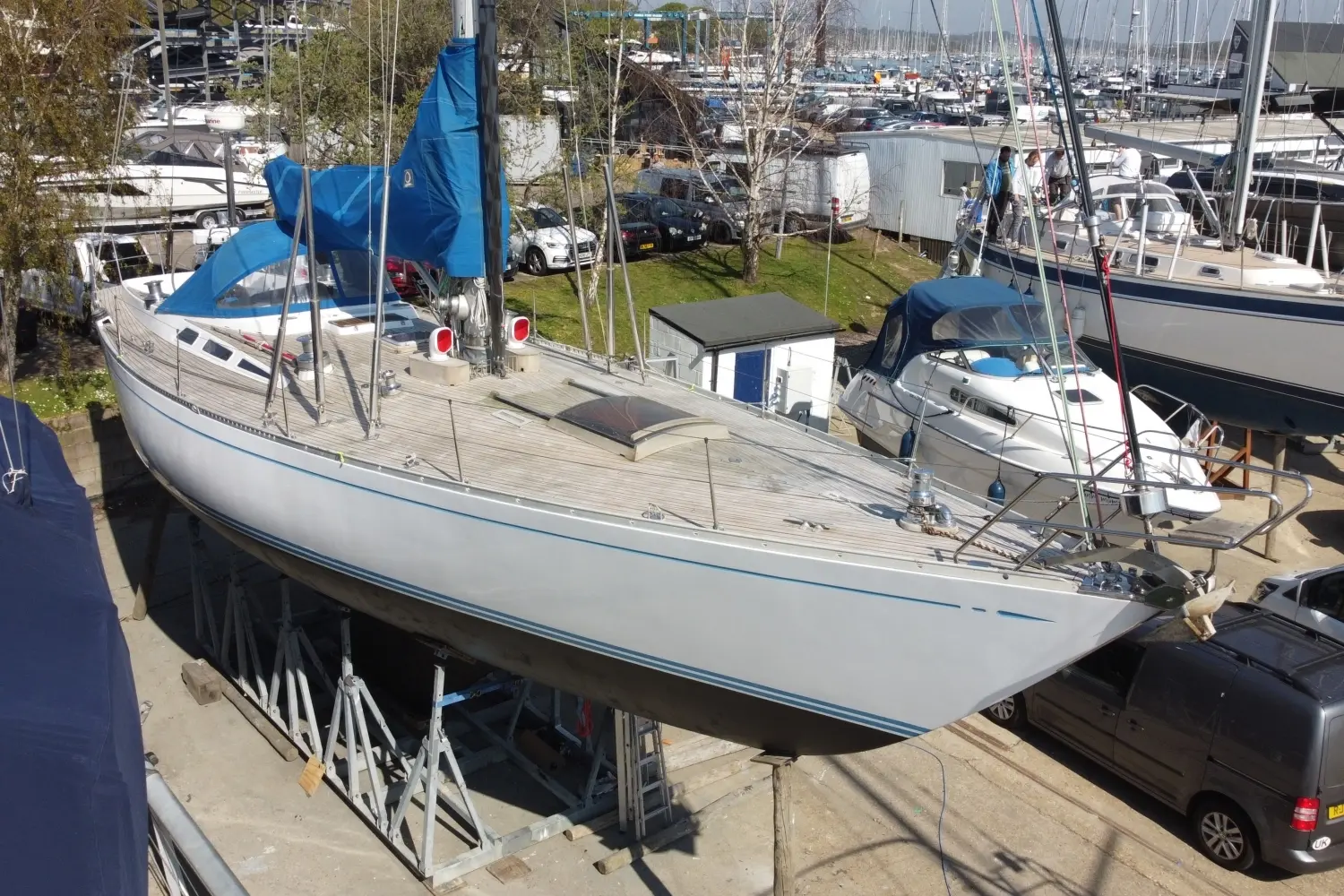

Having been sailed up from the med single handedly, Hush is ashore for viewing here at Hamble Point marina with Michael Schmidt and Partner.
360
Dimensions
| LOA | 14.6m |
| LWL | 11.36m |
| Beam | 4.15m |
| Draft | 2.40m |
| Displacement | 16300 kg |
Hull, Deck & Keel
Hull- White GRP with classic Swan livery
- Topsides painted with International Mediterranean White in 2018
- Encapsulated Fin keel with trim tab and skeg
- Hull sound and faired and antifouled in November 2024 International Hard Racing
- Skeg hung rudder.
New Anodes all replaced 2024
Seacocks all good and serviced
- Teak Replaced 2013, great condition. Minor re-caulking carried out in 2024
- Min 10 – 12 mm across the deck.
- Cockpit seat teak and some areas of the companion way entrance teak replaced.
- Fore hatch rebuilt in 2014 all in good condition Good condition
- Saloon hatch - Lewmar
- Companion hatch replaced Aug 2017 Teak. Spare Perspex wash board

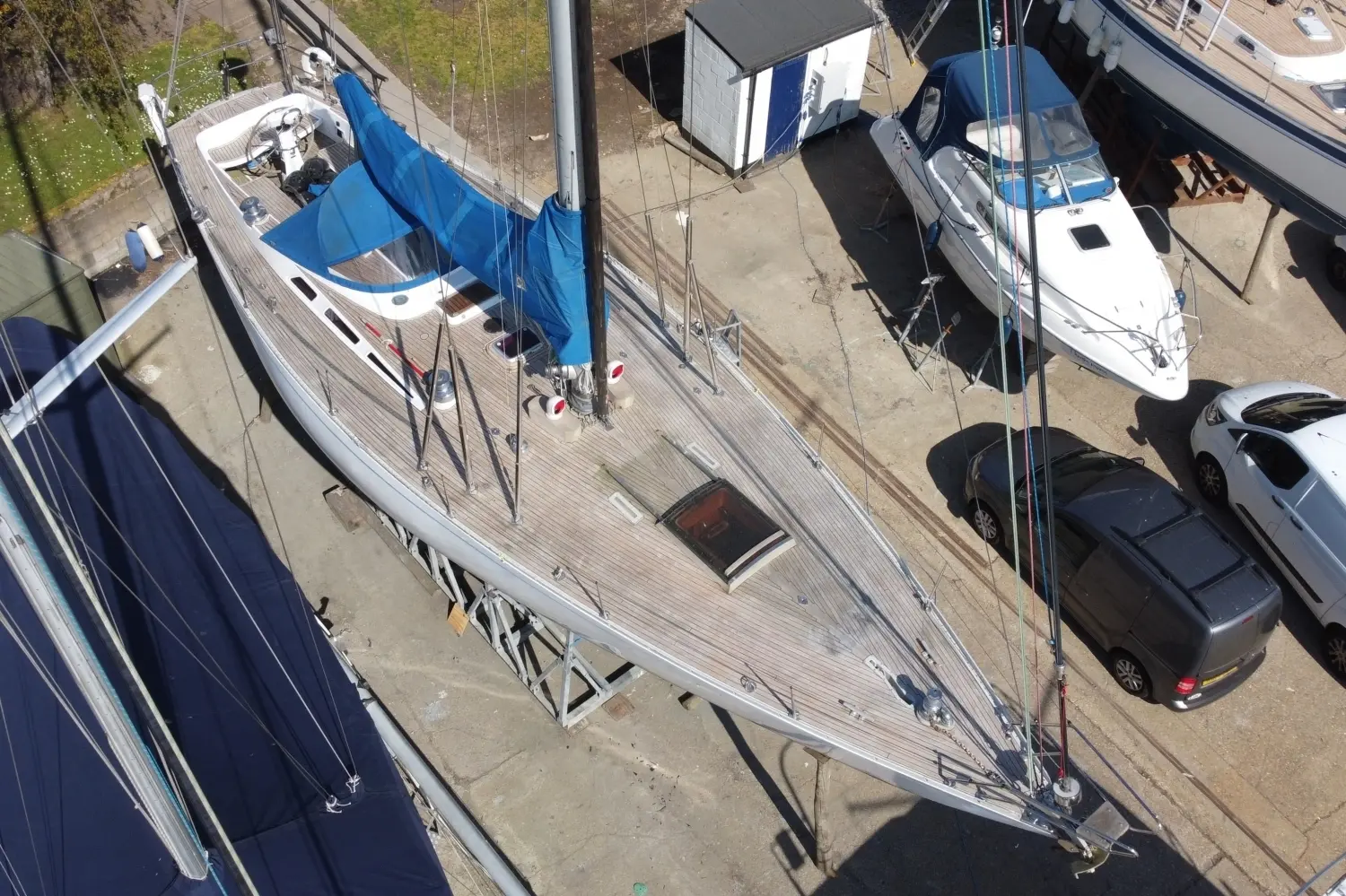

Deck Equipment
Wheel steering
Binnacle with steering compass
Pushpit and Pulpit replaced 2020
Stanchions replaced 2012
Side windows replaced in May 2023
Windlass 2014
Anchor Chain 50 Meter 2016 New Swizzle / shackles / Rope 50 Meters
New pad eyes at mast base 2017
Furling line jammer / Spinlock
Jack stays New 2023
New Lewmar genoa turning blocks 2023
Custom car travellers for Lewmar Genoa cars
Harken Main sheet track
New radar pole and outboard engine mounting
Toe rails good
- Safety line pad eye May 2023
Blue lights for cockpit apres sailing seating May 2023
Red night light on helm May 2023
New cleats Aug 2017
Lewmar 65 spinnaker winches 3 speed (Aug 2017)
Lewmar 65 primary 2 speed (Aug 2017)
All stripped, overhauled, working perfectly (Aug 2017
5 self-tailing winches on mast (Aug 2017)
New Lewmar self tailing winch for main sheet (Aug 2017)
New Lewmar self tailing winch for furling line (Aug 2017)

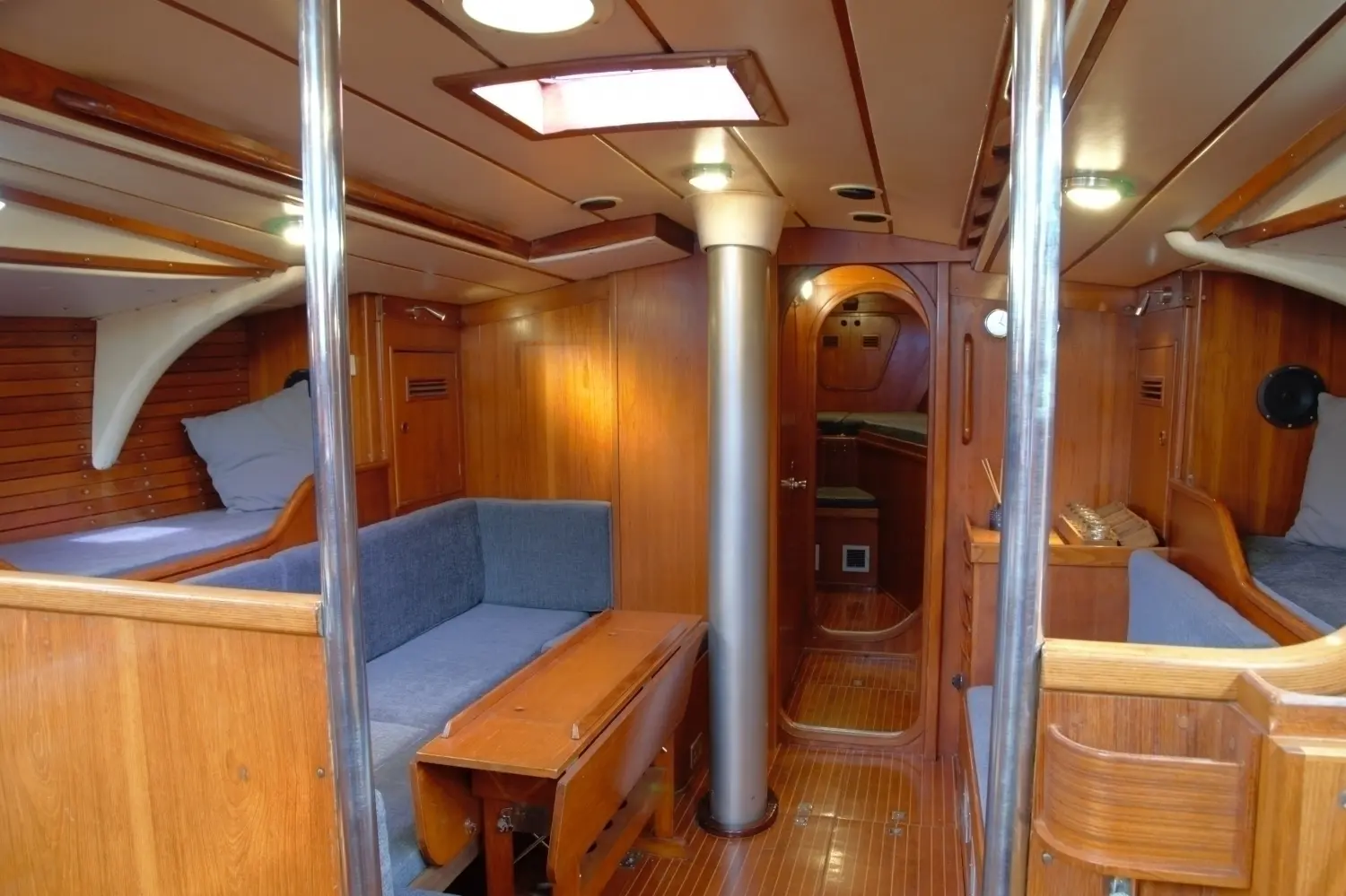

Interior & Accommodation
Teak Woodwork and Holly inlay flooring
Upholstery all New 2023
- Saloon table with bottle storage set to Port
- Settee berths port and starboard
- Pilot berths outboard
- Reading lights
- Saloon lights
- Information
- Information
- Galley to Port at foot of companionway steps
- New cupboard doors / Black Perspex 2024
- Gas system replaced / twin bottles and regulators 2023
- 4 ring stove / oven / Grill, ring jets serviced
- 12v Fridge plate and Compressor new 2017
Galley equipment included
Custom teak storage units manufactured
New LED lights
New extractor fan Jan 2024
- Set to Starboard at foot of companionway steps
- Forward facing Chart table with storage
- Drawers under (self restraining)
- Switch panel outboard
- Large double V Berth (or two singles)
- Access to fwd heads
- Storage under
- Hanging locker
- Access to Anchor locker
Large athwartships double for harbour use
or two x large forward and aft beds port and starboard
New rear bulkhead teak panels,
new air vents/ access to transom.
Custom teak casing for steering quadrant.
New head lining.
New mirrors
Newly painted,
New Jabsco manual pump toilet 2017, new pipes.
New mirror
New Head Lights 2023
Newly painted,
refurbed New Jabsco 2020.
New mirror
Navigation Equipment
New VHF 2017
AP at helm
Raymarine Chart Plotters, 1 at the chart desk, 1 at the helm + 2 instruments at helm
Windlass remote
Auto pilot remote
Hand held VHF
Machinery & Propulsion
- Inboard diesel Yanmar 4JH4 TE 75 / hours 125
- Serviced annually with Oil change at every 50 hours or annually which ever dictates
- Shaft alignment and new aqua drive bearing 2023
- New engine mounts 2023
- New starter motor
- Max prop
- Heating - Webasto. All serviced working well
Rig & Sails
RigStanding Rig all replaced 2015.
All running rigging replaced 2023
Back stay adjuster Navtec
Reckman Furler
New chain plate covers
Rig inspection 2023, Mast head blocks replaced,
New shroud boots fitted
- Quantum Passage making Dacron mainsail (Old) - No bag
- Quantum Passage making Roller Furling Genoa (Old) - Navy bag
- Dacron # 4 - Navy bag
- RACE SAILS
- Mainsail - Blue Spin bag
- Light # 1 Genoa
- Heavy # 1 Genoa = Green bag
- # 2 Genoa - Orange bag
- # 3 Blade jib - Blue bag
- # 4 Jib - Pink bag
- Floater Spinnaker - Red bag
- All purpose spinnaker - Blue Bag
- Asymmetric spinnaker - Black bag
- New Orange Storm sails - Tri-sail and jib
- Assorted old sails
Electrical System
2 x House Batteries and 1 x Engine Battery (March 2019)
New Lopo LED nav lights fore and after – in addition to the Tri on mast head 2023
Sterling battery charger circa 2020
New 240v sockets in salon, chart table and galley
New map light
Chart table red / white lamp 2017
New fridge compressor 2020
Bilge Alarm 2023
New 12v sockets 2023
All LED, + spot lights + courtesy lights. White and Red night running
Lights rewired May 2023
RCD + fuses 2023
New Panel rewired Aug 2023
Audio Visual
- Stereo, New 2023
- Bose speakers May 2023
- 2 speakers in salon / 2 in cockpit / 2 in aft cabin new 2023
Plumbing & Tankage
Water in 4 tanks = 100 gallons
New bilge pump 2024
Water 4 tap manifold overhauled, and gate valves replaced May 2017
Water pump replaced 2024
Hot water calorifier 50 lts, under port salon seating. Heats from engine, Webasto heating and 240v element.
100 lts of spare fuel in transom
Fuel in one tank – 58 gallons, 236 lts / burns at 6 lts per hr at 1800 RPM
Fuel tank cleaned April 2024, New Racal filter added
Canvas work
- Sprayhood (Jan 2022)
- New Cockpit cushions (Jan 2022)
Main sail cover, (Jan 2022)
Helm cover (Jan 2022)
Hatch cover (Jan 2022)
Winch covers (Jan 2022)
Overall winter boat cover
Safety Equipment
EPIRB 406M ARC Global Pro Fix
Bilge alarm May 2023
Safety Equipment.
New horseshoes with strobe lights.
New flares
Additional Equipment
- Winch handles
- Warps
- Fenders (2019)
- 12v sockets
Boom light
Many spares
Propulsion
Propulsion
ENGINE 1
Engine Manufacturer
Yanmar
Engine Model
4JH4-TE
Drive Type
Shaft drive
Fuel Type
Diesel
Horse Power
75
Hours
125
Propeller Type
3 Blade
Engine Location
Center
Propeller Material
PVC
Additional Information
Additional Information
HULL
Hull Material
Fiberglass
ACCOMMODATION
Double Berths
3
Single Berths
6
Cabins
2
No of Heads
2
TANK
Fuel Tanks Capacity
236 liters
Water Tanks Capacity
454 liters
WEIGHT
Displacement(kgs)
16300
OTHER
Electrical Circuit
12v
Total Engine Horse Power
75
Fresh Water Tanks Number
4
Fuel Water Tanks Number
Yes
Keel Type
Fin
Length Overall
14.60 meters
Nominal Length
14.60 meters
Windlass Code
Electric windlass
Trim Tabs Indicator
N
Water Heater Count
1
Water Heater Capacity
50 liters
