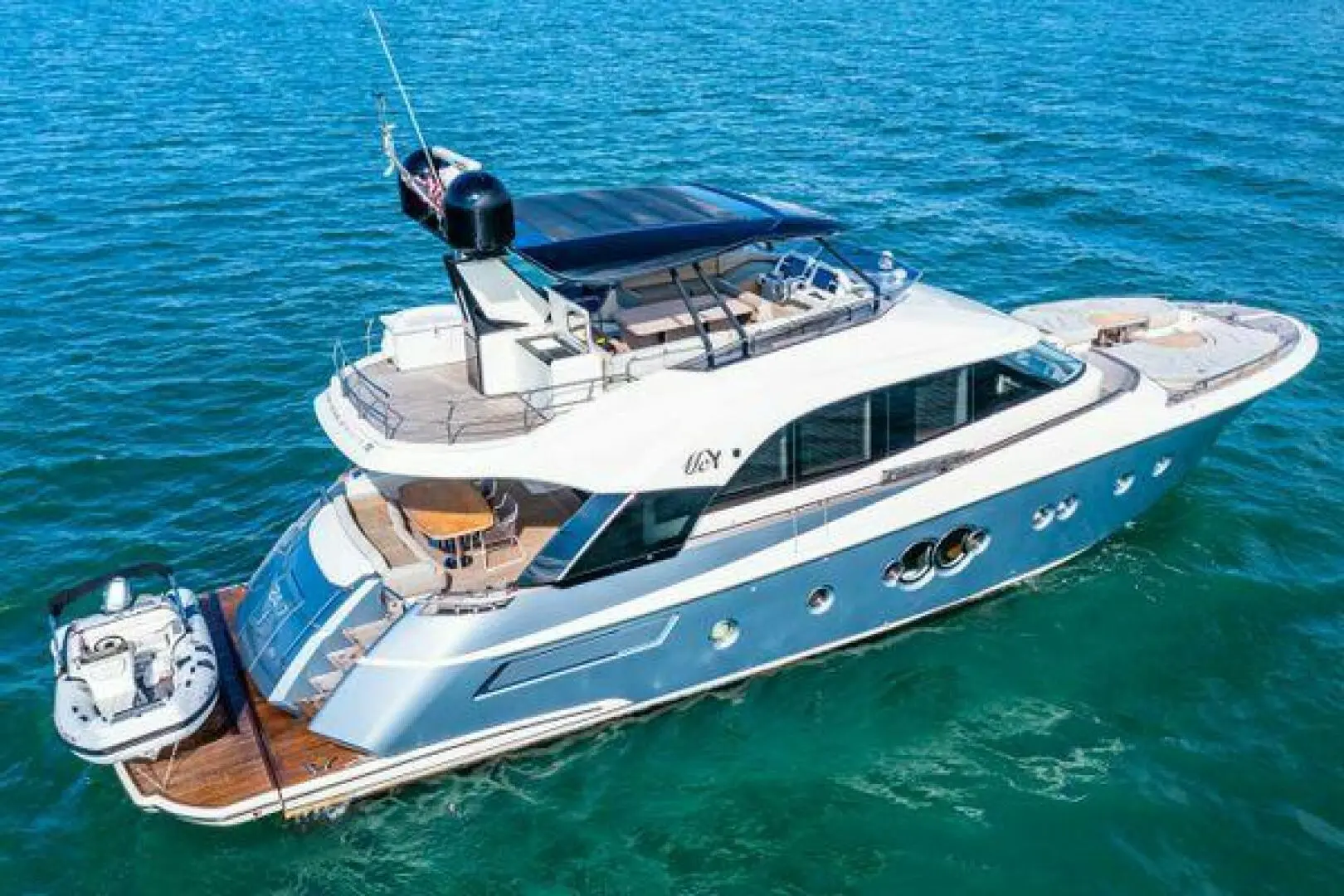

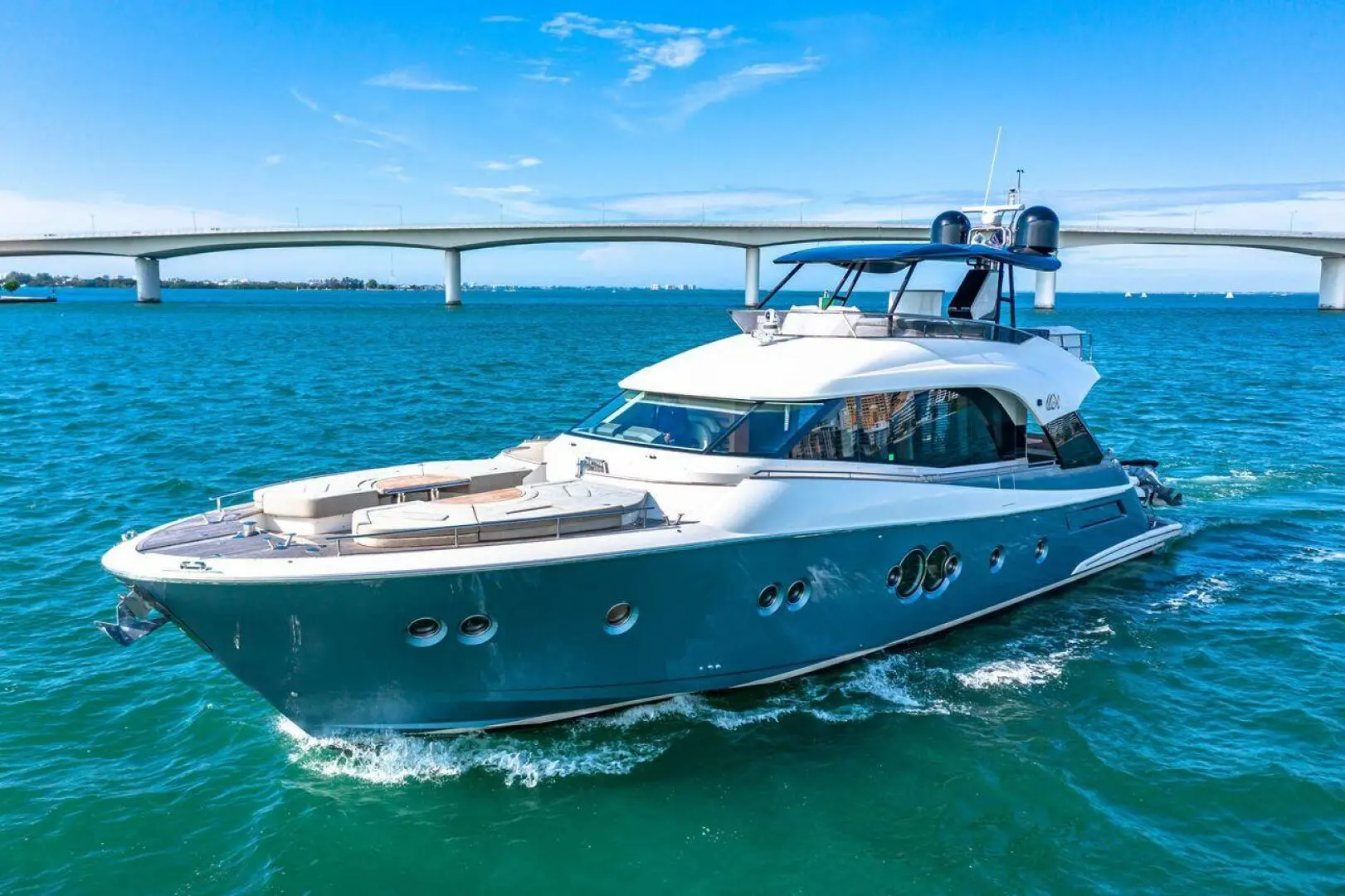

2018 Monte Carlo MCY 70

Boat Description

The MCY 70 is the perfect evolution of aesthetics and cutting-edge functional qualities. There is no yacht quite like the MCY 70; it is beautifully different from anything else found in the oceans of the world. Fitted with 1200 HP MAN engines, it features 4 staterooms with 4 heads in the main part of the yacht. Aft, with a separate entry, are two crew cabins plus a crew head.

A huge level of upgrades over already high factory spec includes:

• Power management system and low voltage boosters in motion
• Worldwide Live satellite feed along with Realtime Boning uplink
• Sea Keeper Gyro
• Active Humphrey trim tabs
• Exterior full covers
• Xenta Wireless Remote

Services are up to date, with new exterior upholstery as of 11/2024. The yacht is captain operated and maintained.

Electrical

• Generator
• Inverter
• Shore Power Inlet

Electronics

• Autopilot
• Cockpit Speakers
• Compass
• Computer
• DVD Player
• Depth sounder
• GPS
• Log-Speedometer
• Navigation Center
• Plotter
• Radar
• Radio
• Repeater(s)
• TV Set
• VHF
• Wind Speed and Direction

Inside Equipment

• Air Conditioning
• Battery Charger
• Bow Thruster
• Deep Freezer
• Dishwasher
• Electric Bilge Pump
• Electric Head
• Fresh Water Maker
• Heating
• Hot Water
• Manual Bilge Pump
• Marine Head
• Microwave Oven
• Oven
• Refrigerator
• Sea Water Pump
• Sea keeper
• Stern Thruster
• Washing Machine

Outside Equipment/Extras

• Cockpit Cushions
• Cockpit Shower
• Cockpit Table
• Davit(s)
• Gangway
• Hydraulic Gangway
• Swimming Ladder
• Teak Cockpit
• Teak Side Decks
• Tender

Additional Equipment

- Joystick Control

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Black and Grey Water System

• 1x grey water tank with 320 l / 84.4 US gal capacity.
• 1x black water tank with 320 l / 84.4 US gal capacity.
• Grey and black water tank levels are visible on the electronic management system LCD screens at the wheelhouse dashboard.
• Tank's emptying has automatic or manual outboard through 2 dedicated electric pumps.

Fuel System

• 2x GRP tanks, integrated in the midship structural bulkhead, for a total capacity of 4.000 l / 1.055 US gal.
• Each tank is provided with stainless steel breather pipe and electric sensor for level monitoring.
• Fuel tank levels are visible on the electronic management system LCD screens at the wheelhouse dashboard, at the port and starboard fuel inlets and directly on the starboard tank by an optical level, operating with a safety magnetic system.
• Fuel filling operation is carried out through inlets placed on each side of superstructure.

Fire Extinguishers

• 8x powder 1 kg extinguishers
• Option: 1x sea water fire hose located at bow in the mooring area (20 m length x 45 mm diameter)
• FEM 200 Seafire system in the engine room with alarm sensor and automatic shutdown.

Entertainment System

• Saloon: Wiring for 40" Edge LED full HD TV + Blue Ray DVD player, Wiring for Home Theatre Bose Lifestyle V-Class
• Owner Cabin: Wiring for 32" Edge LED full HD TV + Blue Ray DVD player, Wiring for Home Theatre Bose Lifestyle V-Class
• VIP Cabin: Wiring for 26" Edge LED full HD TV + Blue Ray DVD player
• Guest Cabin (Port): Wiring for 20" Edge LED full HD TV + Blue Ray DVD player
• Guest Cabin (STBD): Wiring for 20" Edge LED full HD TV + Blue Ray DVD player
• Crew Cabin: Wiring for 20" Edge LED full HD TV + Blue Ray DVD player
• Aft Cockpit: Two Bose External Speakers (with remote control)
• Bow Sunpad Area: Radio CD Player with External Loudspeakers
• Flybridge: Radio CD player with External Loudspeakers

Light System

• Engine room Spot power LED lights 24V DC are installed to the ceiling of the engine room. Engine room lights are connected to service batteries.
• Master, VIP and Guests cabin - Power LED spotlights and strip power LED in the ceiling - Courtesy strip LED around the bed and under the furniture - Lights control close to the entrance door and near the bed.
• Saloon and galley - Power LED spotlights and strip power LED in the ceiling - Blue power LED spotlights in the dashboard ceiling (night navigation lights).
• Dimmers to vary the brightness of light.
• Lights control close to the entrance door and near the cabin and galley stairs.
• Crew - Power LED spotlights and strip power LED in the ceiling - Courtesy strip LED under the bed - Lights control close to the entrance door.
• Bathrooms - Power LED spotlights and strip power LED in the ceiling - Courtesy strip LED around the furniture - Lights and shower ventilation control close to the entrance door.
• Exteriors - Power LED spotlights and strip power led in the aft cockpit ceiling and in the side walking’s ceiling - Courtesy LED spotlights around the floor of the external deck and the floor of the fly bridge - Courtesy Power LED spotlights around the radar mast on the teak floor - Courtesy Power LED spotlights on the upper side of the fashion plates - Power LED spotlights in the radar mast wings - Lights control close to the entrance door and in the electronic management system EMS.

Electrical System

General characteristics:

• The whole system has been carried out according to:
• 1) Directive 94/25/CE, amended by 2003/44/CE
• 2) EN ISO 10133:2000 “Small craft – Electrical systems – Extra-low-voltage d.c. Installations”
• 3) EN ISO 13297:2000 “Small craft – Electrical systems – Alternating current installation”
• 4) EN ISO 10134:2003 “Small craft – Electrical devices – Lightning protection systems”
• 5) EN ISO 16147:2002 “Small craft – Inboard diesel engines – Engine-mounted fuel and electrical components”
• Voltage system as follows:

• 24V DC with grounded negative for:
• Bilge systems
• Steering systems
• Engine room ventilation
• Internal / External lights
• Engine room lights
• Navigation lights
• Monitoring system
• Navigation systems
• Emergency systems
• Thrusters & Winches
• Other small utilities
• 230V AC, single phase, 60Hz for:
• Air conditioning systems
• Battery chargers
• 115V AC, single phase, 60Hz for:
• Galley appliances
• Electrical outlets
• Entertainment systems
• Other small utilities
• Electrical panels
• Main electrical control panels are installed in the:

Engine room

Main saloon

• Secondary electrical panels are installed in all the areas of the yacht.
• Wiring / Conduits: Electrical wiring is housed in metal or self-extinguishing closed PVC conduits. Electrical wiring is developed with no flammable materials and with proper cross section related to the use.
• Ground equipment - Ground system for all the water intakes, aluminum structures and steel components - Ground system for all the 230V AC equipment - Lightning protection: The ground system is connected to:
• Stern and under hull zincs
• Porous copper plates under the hull

• 230V AC Power sources:
• Shore Power
• Two 230V AC, 63A shore inlets placed on stairs hatch
• AC power source run to the main electrical panel in the engine room
• Power sources are protected by magneto/thermal breakers.
• Each shore power line has a multi-meter, to control all the electrical parameters (Volt, Amp, Watt, frequency, reverse polarity).
• Generator:
• Two 23KW Kohler generator, 115/230V AC, 60Hz, 12V DC starter, with sound shield box and electronic control panel located in the engine room. AC power source run to the main electrical panel in the engine room. Power sources are protected by magneto/thermal switches. Generator has a multi-meter that control all the electrical parameters (Volt, Amp, Watt, frequency, reverse polarity).
• 230V AC distribution:
• A double Bus (A,B) that spreads current to all the appliances is provided. Each appliance is protected by magneto/thermal breakers.
• 24V DC Power sources:
• Batteries:
• Group of 24V AGM Mastervolt batteries of 640Amp for services
• Group of 24V AGM Mastervolt batteries of 225Amp for engines
• Group of 24V AGM Mastervolt batteries of 225Amp for anchor winch and bow thruster
• 12V AGM Mastervolt battery of 130Amp for generator
• Battery chargers:
• 24V 100Amp Mastervolt battery charger for services/engine batteries
• 24V 30Amp Mastervolt battery charger for anchor winch and bow thruster batteries
• 12V 25Amp Mastervolt battery charger for generator
• Alternators:
• 24V 120Amp alternators connected to service battery, anchor winch and bow thruster battery
• 2 x 24V 120Amp alternators connected to engine battery
• Generator alternator connected to the generator battery

External Layout and Equipment

• Flybridge - External staircase with teak steps (openable to have direct access to the crew quarters) - Lights and perimeter courtesy lights - Plexiglass and aluminum access hatch to flybridge - Plexiglass and stainless steel windscreen - Stainless steel protection pulpit and handrails - Fiberglass radar mast, black painted, with aluminum wings supporting:
• Navigation lights
• Radar and GPS antennas equipment
• TV antenna
• Horn
• Lighting protection
• Flybridge lights
• Pilot console with navigation and engine control screens, including instrumentation as per paragraph.9, plus:
• Steering wheel in skay
• Main engines and reversing gear levers
• Key switches for port and starboard engines
• Horn, windscreen wipers, anchor winch and chain counter, search light, fire extinguisher controls - panel with warning and alarms for bilge pumps
• Helm seat with storage and sliding back
• C-shape sofa with integrated chaise longue, decorative cushions and large capacity storages
• L-shape sofa on port side, with storage and cushions
• Teak table for 8 people with 2 stainless steel legs
• Optional: teak table for 8 people with 2 electric adjustable height table stainless legs
• Sunbathing aft platform
• Galley with sink, hot and cold water supply, fridge, ice maker, grill and storage

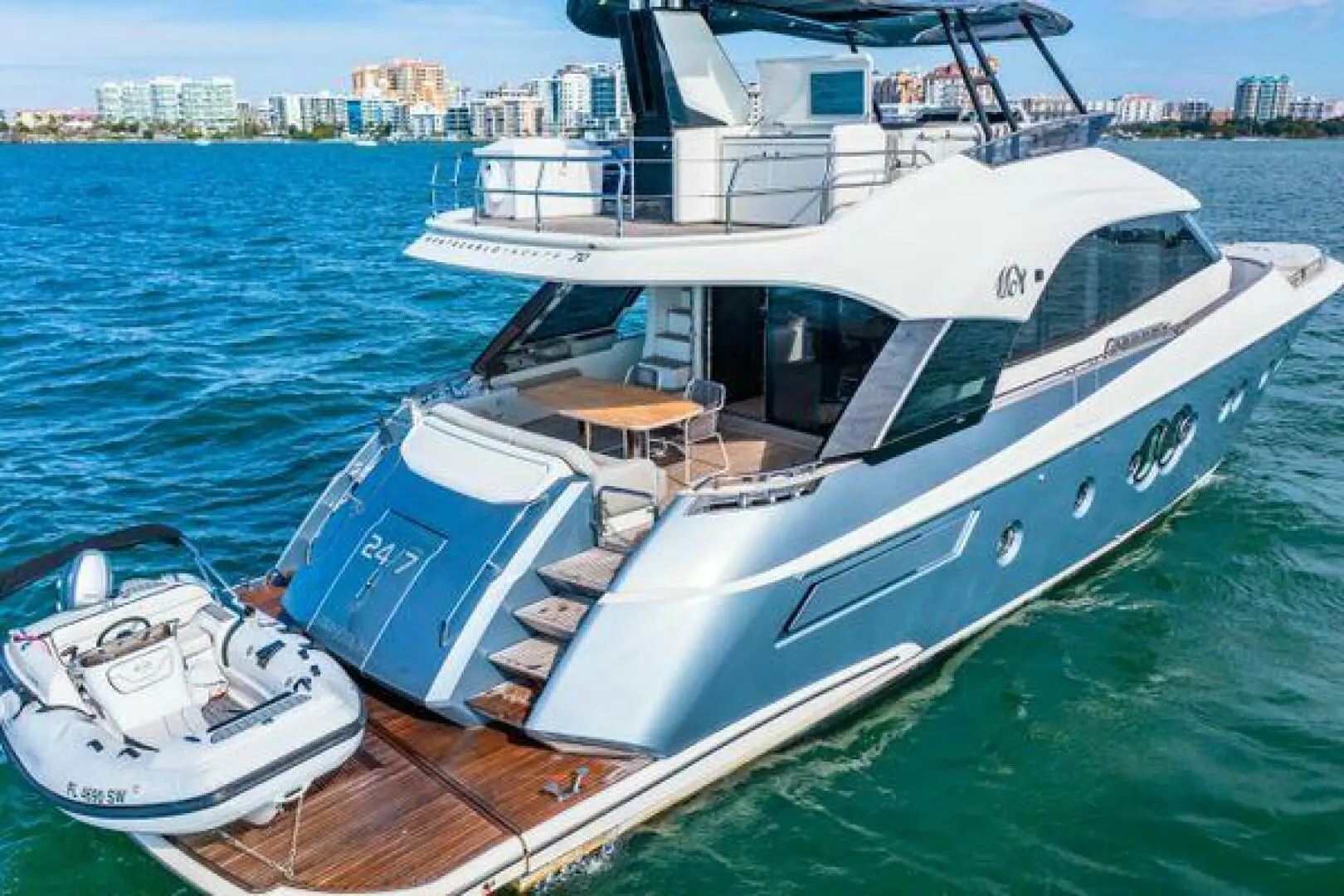

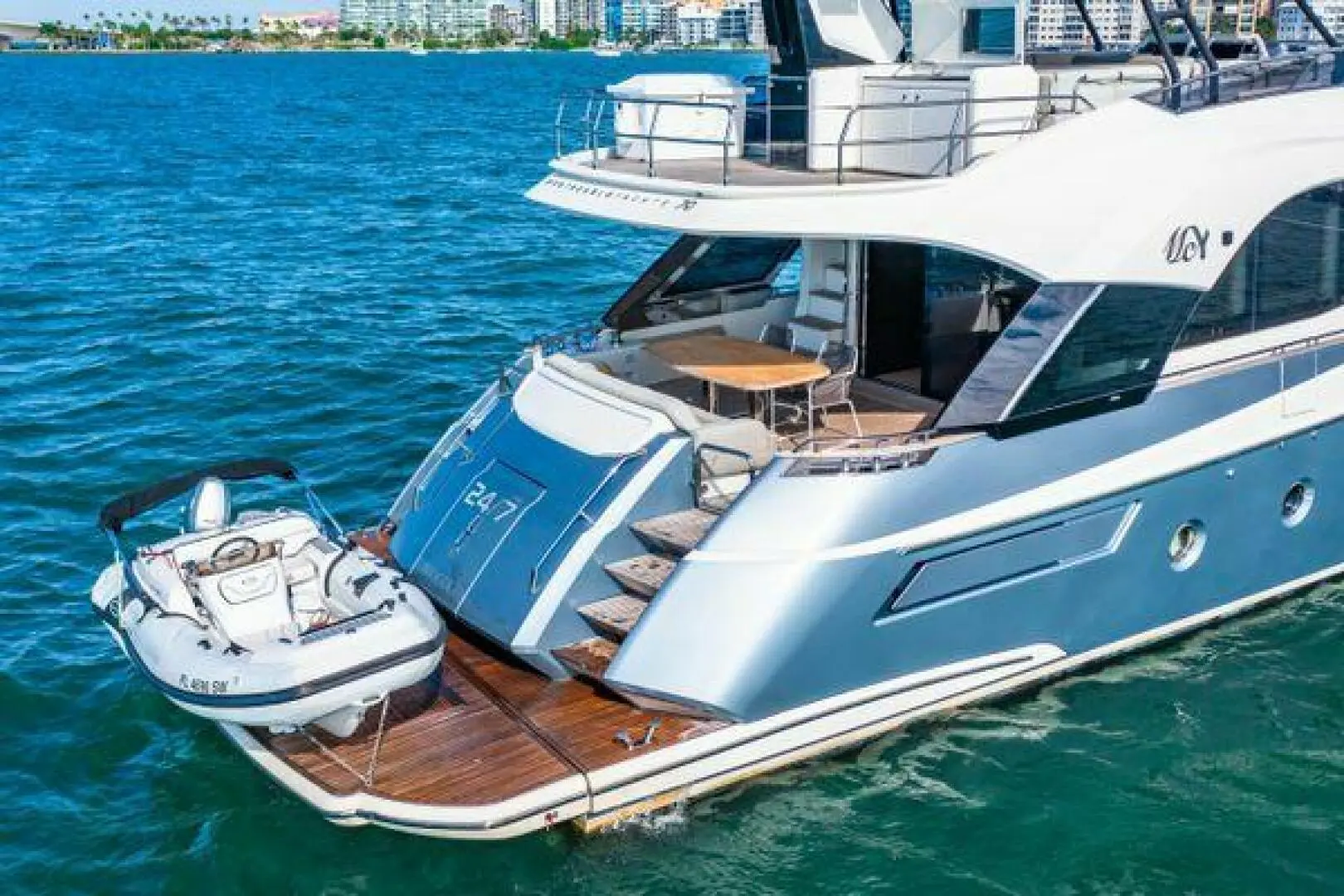

• Stern - Bathing platform with:
• Hydraulic up/down lifting system – 600 kg max loading capacity
• Platform size suitable for a 3.25 – 3.85 m tender length
• Platform teak floor and teak grating
• Stainless steel fender bar with rubber insert reinforcement
• Foldable bathing ladder (with storage supports into transom lazarette)
• Water proof access hatch to engine room and crew cabin
• Stern stairs to aft cockpit, with stainless steel handrails and hatches for shore power connection and stern platform shower (cold and hot supply)
• Electro-hydraulic concealed stainless steel gangway, with teak grating, automatic stanchions and courtesy LED lights
• Aft cockpit - Teak handrails on bulwark with stainless steel handrails
• Teak floor with perimeter courtesy lights
• Stainless steel and tempered glass fashion plates for lateral protection of the cockpit, with courtesy lights
• Saloon door in stainless steel and tempered glass with special system for complete folding of the 3 door panels on the portside
• Stainless steel and Plexiglas gates to stern staircases
• Stern sofa with storages
• Teak table for 8 people with 2 stainless steel legs
• Option: teak table for 8 people with 2 electric adjustable height table stainless legs
• Folding teak chairs (5 units)
• LED power and courtesy lights on ceiling Sideways
• Teak floor with perimeter courtesy lights
• Storage with GRP door, containing diesel intake on port and starboard sides on the superstructure and level indicators.
• Storages covered with teak door and step, containing black and grey waste discharges (on portside)
• Teak handrails on bulwark with stainless steel handrails
• Stainless steel fender rubber with rubber insert reinforcement
• LED power lights on ceilings
• Tempered high thickness glass windows glued to the superstructure
• Window on starboard side (manual)
• Bow cockpit - Chain locker in the anchor winch area, with:
• Two storages and handrails to fix fenders
• Chain guiding support
• Cold and hot water shower
• Teak floor with perimeter courtesy lights
• Flush deck hatch for VIP cabin emergency exit
• Semi-circular sofas, with integrated removable backrest for double function (sofa or sunbathing cushion), with large capacity storages and decorative cushions
• Semi-circular table in teak, with 2 electric adjustable height legs. Tables can be connected with one further teak table, to create a large dining table for 8 people.
• Stainless steel handrails
• Teak handrails on bulwark along the Portuguese bridge
• Forward windscreen in sandwich tempered glass, with UVA and IR filter films
• 2 electric windscreen wipers for forward windscreen

Mooring

• 50 kg steel anchor with 70 m chain, 12 mm diameter
• Reversible electric anchor winch (24V; 3.000 W), with foredeck, main helm and flybridge controls (controls on floor for up/down/captain operation)
• Stem head roller with automatic anchor launch and retrieve
• Bow stainless steel protection
• Stainless steel bow fairleads with stainless steel protection
• Stainless steel bow, stern and 6 spring cleats (and additional 2 as option)
• Stern stainless-steel fairleads with rollers

Power and Drive Systems

• Engines: Twin MAN Vcylinders (1400 hours), 90° V design maximum power output at 2.300 rpm: 886 kW
• Gearbox: ZF 500-1 IV 10° V-Drive, remote mount marine transmission with intermediate cardan shaft
• Shafts: Aquamet 22, diam. 80 mm
• Propellers: NiBrAl alloy, four blades, 850 mm diameter
• Rudder and AISI 316 steel, 0.3 sqm surface
• Steering system: Power assisted steering system
• Bow Thruster and Stern Thruster: 24 V, 300 mm diameter, 240 kg thrust
• Maneuvering system: maneuvering joysticks (main helm and flybridge) for easy control at docking, with electronic control of bow thruster engines (and stern thruster when installed)
• Humphres Automatic Hydraulic Trim Tabs System with ATOS + BTOS + CTOS

Hull Design and Characteristics

• MCY 70 has a planning hull, with a 15° deadrise angle along the entire bottom, deep “V” bow, with 6 iso-parametric spray rails. Structural project has been developed according with EN ISO 12215.
• Hull, deck and superstructure are made in sandwich lamination using only vinylester resin in the external skin to prevent osmosis phenomena and DCPD resin. A bow crash box to improve the resistance to waves and impacts is provided. Furthermore, in that same area, the hull is reinforced by using Kevlar lamination. Structural bulkheads are in sandwich. The other internal partition walls are built using LARICROSS composite materials.

Main Characteristics

• Overall Length (LOA): 21.30 m / 69’11”
• Hull Length (LH): 19.88 m / 65’ 3”
• Maximum Beam: 5.42 m / 17’ 9”
• Draft (full load, V-drive): 1.65 m / 5’ 5”
• Height above waterline: 7.67 m / 25’2”
• Load (dry): 41 t
• Load (full): 47 t
• Fresh water capacity: 840 l / 221 US gals
• Grey water capacity: 320 l / 84 US gals
• Black water capacity: 320 l / 84 US gals
• Fuel capacity: 4.000 l / 1057 US gals
• Cruising speed (half load): 24-26 KN
• Maximum speed (half load): up to 31 KN
• Design Category: CE-A
• Including radar mast and navigation lights
• Every attempt has been made to give accurate information, but performance and range figures are estimates, given as guide only. Growth on the hull, tuning of the engines, size, make of the engines fitted, damages to propellers, temperature of air and water, sea and wind conditions, weight of fuel, water, stores, number of people, quality of fuel and other matters, extra equipment installed, can all affect considerably the boat’s performance and range. For these and other reasons, no guarantees on performance and range can be given and neither such guarantees constitute an offer of contract or any representation or agreement or may otherwise relied upon.

Bilge System

• Centralized system with suction in each compartment connected to the main collector positioned in the engine room.
• 24 VAC electric pump with controller in main helm on the electronic management system LCD screens at the wheelhouse dashboard.
• Emergency manual pump in the engine room.
• 5x 24V automatic bilge pumps.
• High-capacity emergency bilge pump in engine room through engine sea intakes and water pump.
• Bilge level alarm.

Fresh Water System

• Fresh water system is fed by 2 tanks in the midship bilge (total capacity 840 l / 221.6 US gal) or by the shore connection on stern.
• Water tank levels are visible on the electronic management system LCD screens at the wheelhouse dashboard.
• 2x water heaters for a total capacity of 120 l / 31.7 US gal.

Sea Water System

• 4x main bronze sea water intakes with valves and filters: 2 for the engines, 1 for the generators and 1 for general utility.
• Chain washing with sea water supplied by an electric pump positioned under the floor of VIP cabin.
• Sea water firefighting system made up of the same electric pump.

Air Conditioning

• Engine room:
• 2x Cruisair chiller unit 48.000 (each) BTU - 1x Cruisair circulation pump - 1x Cruisair sea water pump
• Interiors – lower deck:
• VIP cabin: 2x Cruisair AT4FZ fan coil unit 4.000 BTU - Port guest cabin: 1x Cruisair AT4FZ fan coil unit 6.000 BTU - STBD guest cabin: 1x Cruisair AT4FZ fan coil unit 6.000 BTU - Owner Cabin: 1x Cruisair fan coil unit 4.000 BTU + 9.000 BTU - Crew cabin: 2x Cruisair AT4FZ fan coil unit 4.000 BTU
• Interiors – Saloon, wheelhouse and galley:
• 2x Cruisair AT6HVZ fan coil unit 6.000 BTU - 4x Cruisair ATL9HVZ fan coil unit 9.000 BTU

Venting and Extraction System

• Interiors ventilation:
• Centralized system for toilet air extractors. Each toilet is equipped with 230V AC electric extractors with dedicate control. Galley extractor (Miele or similar)
• Engine Room Ventilation:
• Engine room ventilation system: - 4x electrical ventilators 24V DC - 2x electrical extractor 24C DV Engine room ventilation system control is connected to the engine keys and to the electronic management system.
• 2 x air/water separators on ventilation inlet

Insulation

Hull and deck sandwich lamination together with absorbent, sound-proofing and heat insulation materials guarantee high level of noise reduction and thermal insulation. Interiors ceilings and floorings are soft mounted through vibration absorbers materials and system in order to maximize vibrations and noise reduction. Complete noise and thermal insulation of engine room through insulation materials, covered with aluminum sandwich finishing walls.

Interior Features

• Main deck – Saloon - Furniture in oak and sycamore wood with hi-tech fabric and matt lacquered finishing - Internal part of furniture in maple, matt painted - Tops of all furniture in leather - Finishing of structural pillars in leather and oak wood - Ceilings in hi-tech skay - Walls covered with hi-tech microfiber
• Venetians blinds on both port and port sides, covered in hi-tech microfibre fabric - Floor in brushed teak
• Sofa, pouf and pillows in fabric
• Table in wood and leather with stainless steel supports
• N°2 poufs
• Stern door in stainless steel and glass - Power led lights and spot led lights
• Stairs to lower deck made with leather, teak and oak wood
• Main deck - Wheelhouse - Dashboard in oak wood with leather top; hi-tech fabric and matt lacquered finishing - Support for screens and steering wheel in leather - Steering wheel in leather - Handrail in satin stainless steel - N° 2 pilot seats in leather, electrically moved (up/down) - Footrests in stainless steel, oak and leather - Ceilings in Skay - Walls covered with hi-tech microfiber fabric
• Main deck – Galley - Lacquered furniture - Interior of furniture in maple, matt painted - Floor in teak - Walls in oak wood - Top and basin in Nokite stone - Ceilings in Skay
• Lower deck – Corridor - Walls covered with high quality fabric - Floor in teak - Ceilings in Skay and mirror - Doors in oak and printed leather, door handles in satin stainless steel
• Lower deck – Owner cabin - Furniture in oak and sycamore wood with hi-tech fabric - Tops of all furniture in leather - Walk-in closet with soft fabric walls - Carpet floor - Walls in oak wood and soft fabric - Bed head in fabric - Ceilings in Skay - Sofa in fabric - Bedcover in fabric - Interior of furniture in maple wood
• Lower deck – owner bathroom - Stone basin integrated in the top - Mirror - Furniture in oak wood - Doors covered with leather - Mosaic shower walls - Floor in teak
• Satin extra clear glass doors with stainless steel frame - Ceramic toilet and bidet - Interior of furniture in maple wood
• Lower deck – guest cabins - Furniture in oak and sycamore wood with hi-tech fabric - Internal part of furniture are in maple, matt painted - Doors of lockers covered with fabric
• Walls in oak wood and fabric - Bed head in fabric - Ceilings in hi-tech skay - Bedcover in fabric
• Lower deck – guest bathrooms - Doors covered with printed and smooth leather - Floor in teak
• Transparent extra clear glass doors with stainless steel frame - Ceramic toilet - Interior of furniture in maple wood
• Lower deck – VIP cabin - Furniture in oak and sycamore wood with hi-tech fabric - Interior of furniture in maple, matt painted - Doors of lockers covered with soft fabric and leather - Walls in oak wood and leather - Bed head in fabric - Ceilings in hi-tech skay fabric - Bedcover in fabric
• Lower deck – VIP bathroom - Floor in teak - Corian top - Mirror - Furniture in oak and sycamore wood - Doors covered with printed and smooth leather - Mosaic shower walls - Transparent extra clear glass doors with stainless steel frame - Ceramic toilet - Interior of furniture in maple wood
• Lower deck – Crew cabin - Oak furniture - Ceilings in Skay - Oak wood walls - Teak floor - Bedcover in fabric
• Lower deck – Crew bathroom - Oak wood furniture - Teak floor and grating - Ceramic toilet - Ceramic basin

Engines

Designed with clear vision and built with state-of-the-art production methods that feature a modular approach and innovative infusion process, the MCY 70, like all Monte Carlo Yachts, is built to take to sea and sail well and safely. The advanced keel structure features self-supporting sandwich plating that together with longitudinal reinforcements - there are no floor plates - a bow crash box, and extensive use of kevlar in the areas of greatest impact provide the Monte Carlo Yachts with a very solid but light shell.

External Features

The MCY 70 features all the form and function the range is known for. The spacious aft area is fully sheltered by the extended flybridge and the ingenious usage of steel and glass fashion plates, a signature Monte Carlo Yachts trait, further increases the feeling of onboard privacy.

Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.
