2025 Leopard 42

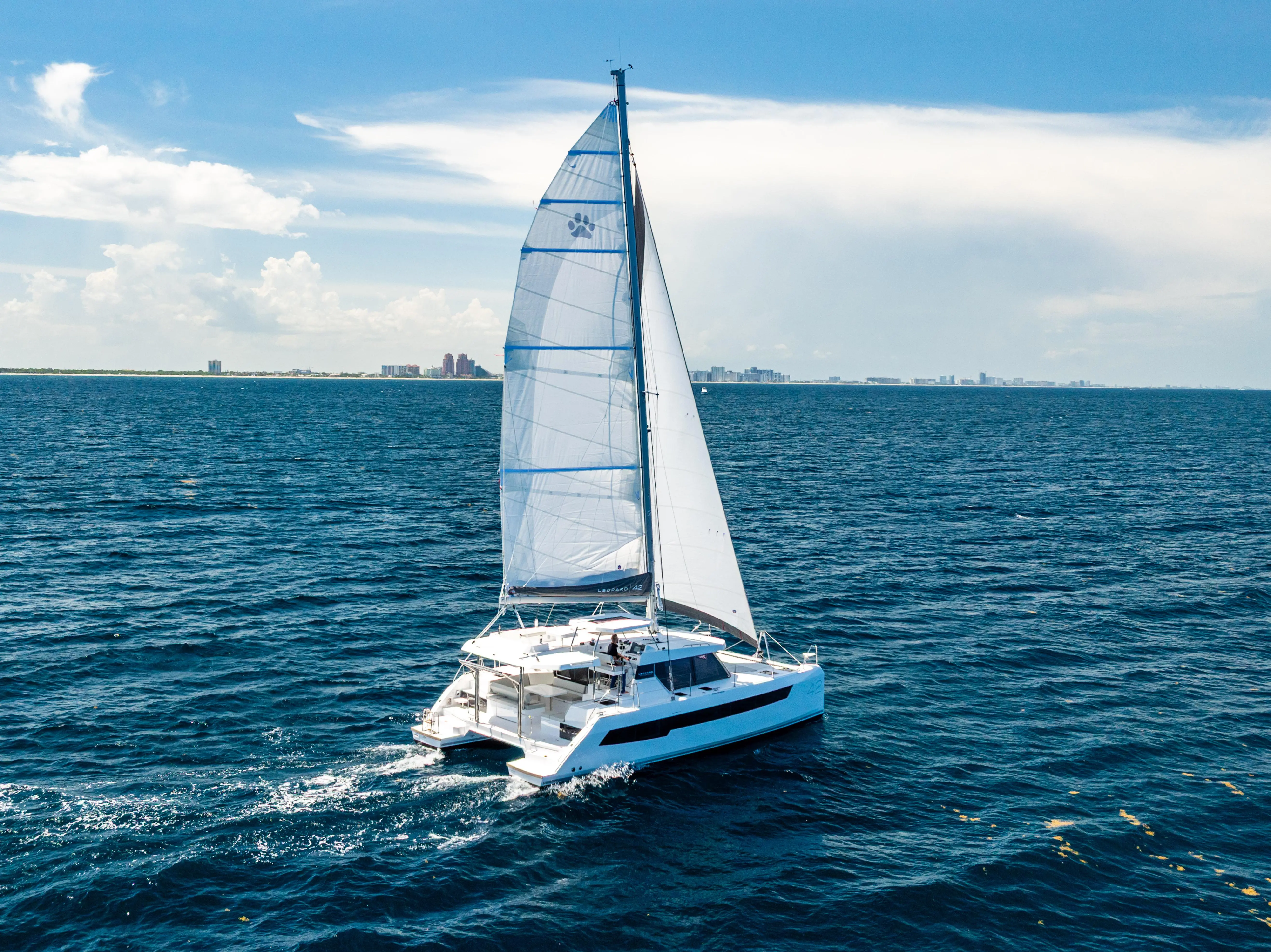

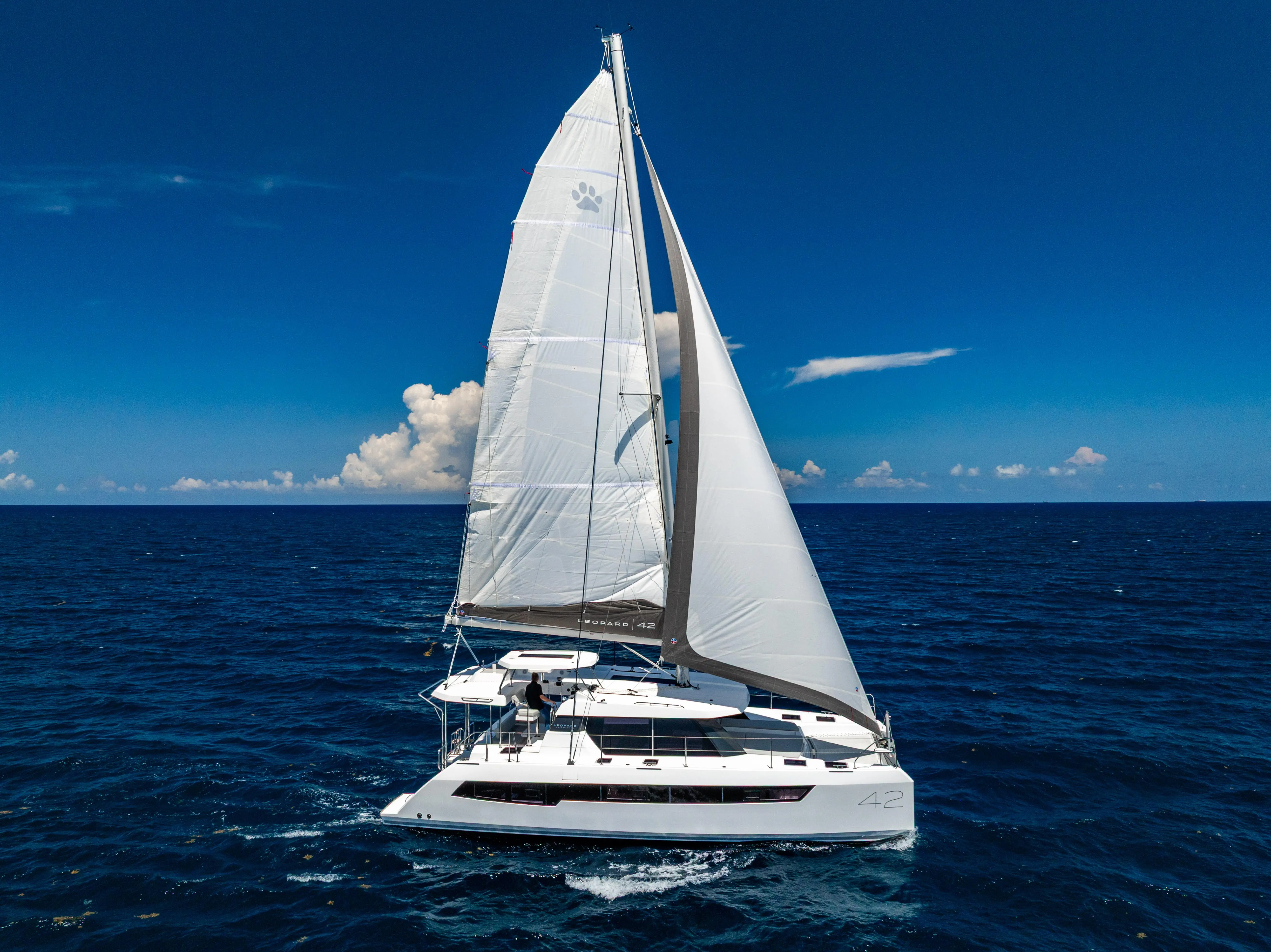

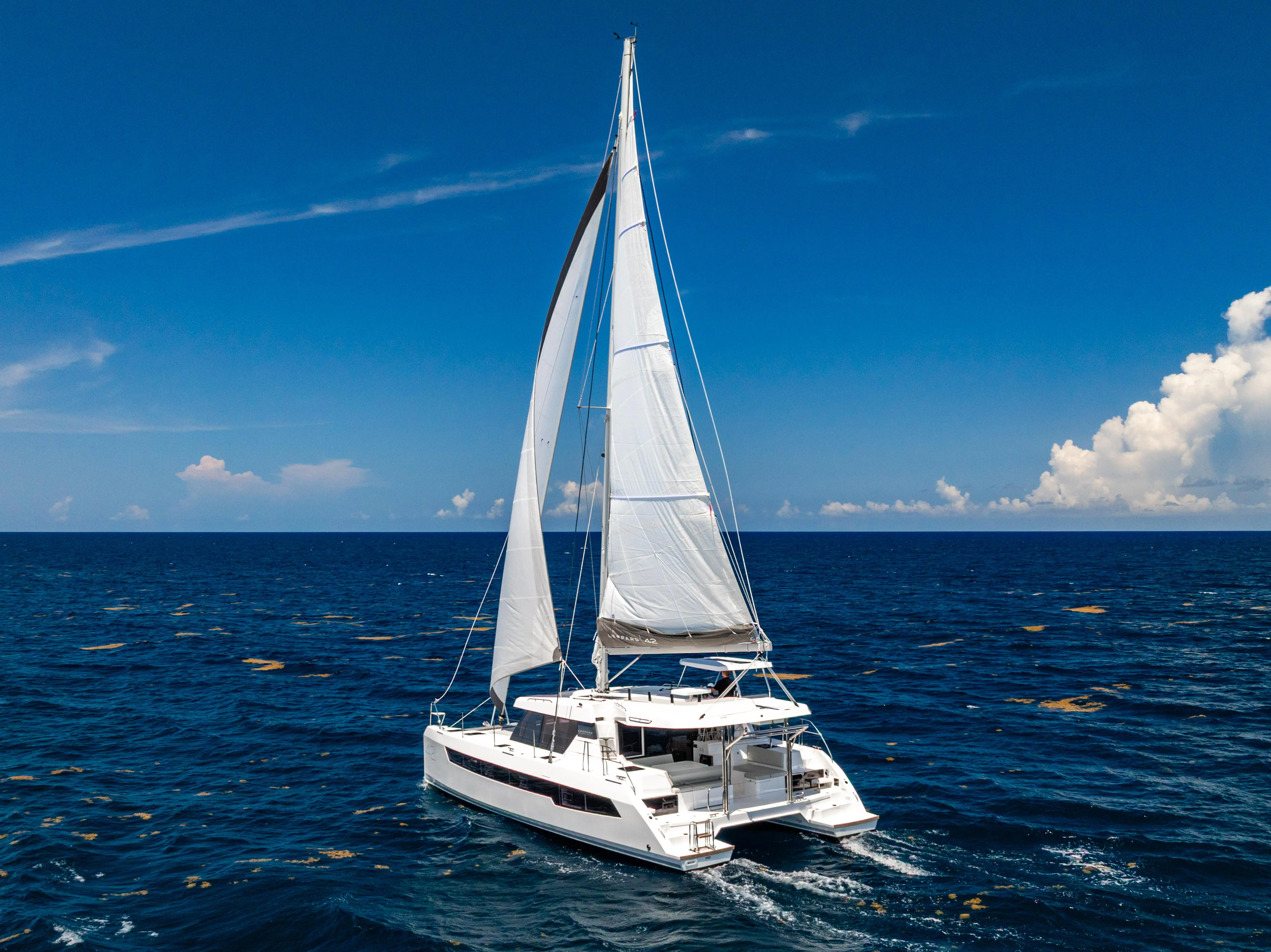

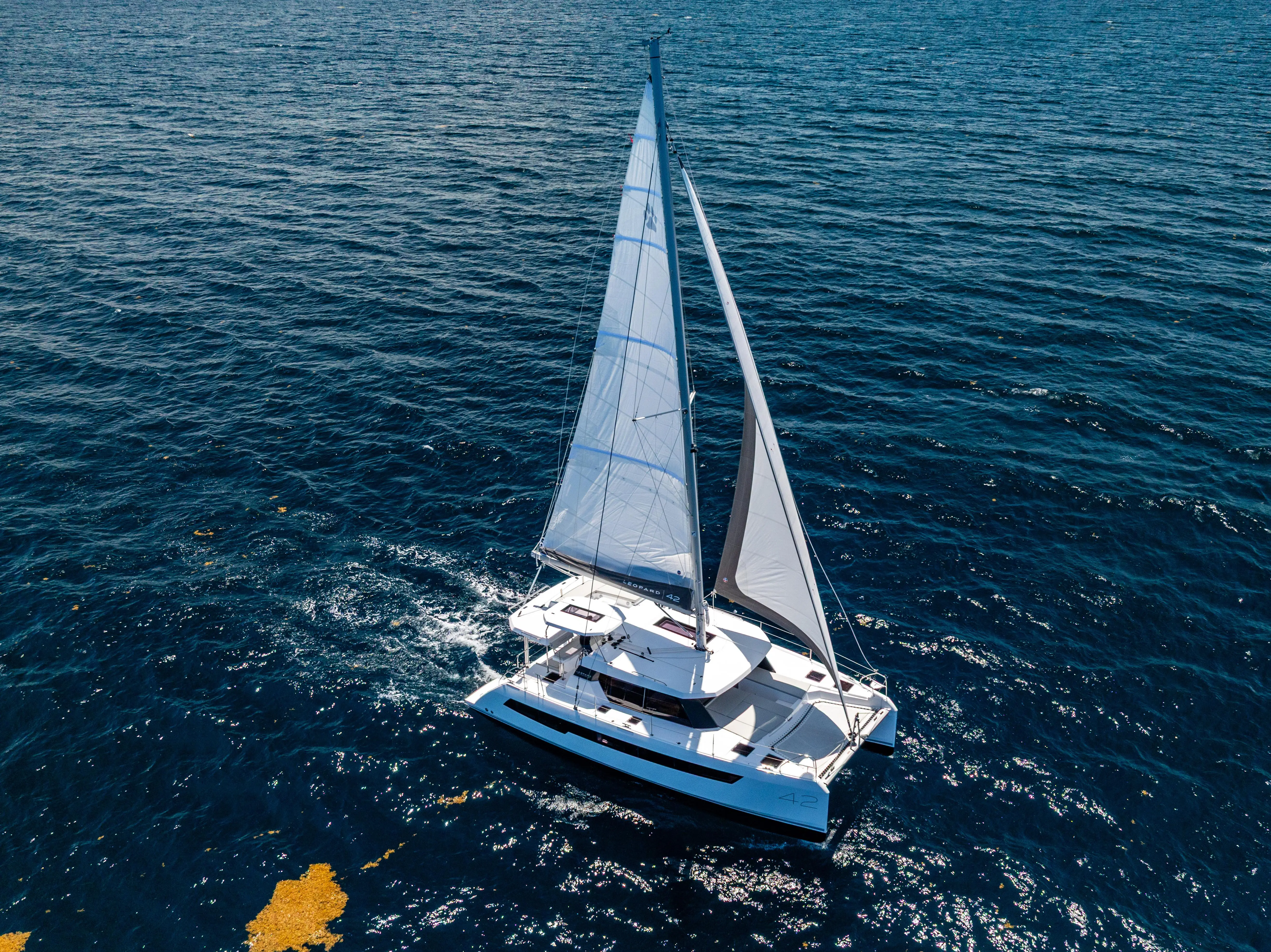

Leopard 42 Overview

Step aboard the new Leopard 42 and experience a new era of sailing. Joining the Leopard 46 and Leopard 50, the Leopard 42 leaves no detail overlooked in size or possibility. Sailing performance and livability exist harmoniously under one sleek profile. The Leopard 42’s signature coachroof lounge provides ample space not found in other vessels, offering a place to convene and plot tomorrow’s next adventure.

Construction and Design

Built by Robertson & Caine and designed by naval architects Simonis Voogd, the Leopard 42 utilizes superior finishes and materials, creating a one-of-a-kind vessel that balances comfort, performance and ease of handling. A thoughtful design process ensures every feature and function has been anticipated, with minimal customization needed. Those onboard can move about effortlessly knowing their needs are fully addressed in every aspect of the Leopard 42.

The exterior’s striking design features continuous hull side windows, a continuous hardtop, and Leopard Catamaran’s signature upper-lounge area. Like the Leopard 50, the Leopard 42’s subtle elegance is accented by modern design elements and classic finishes without losing the rugged spirit and sportive quality for which Leopard is known.

Interior Features

A handsome interior reveals generous natural light from optimized window placements including an additional window in the aft starboard corner facing the helm seat and a skylight in the saloon. Preparing meals no longer feels like an afterthought with a forward-facing, L-shaped galley that invites everyone to participate in the process. The Leopard 42 reimagines comfort through its optimal use of space and attention to detail. All bunks are now island berths that allow access from both sides. Available in three cabin/three heads and four cabin/four heads, all cabins include private ensuite heads. All heads also include their own designated shower area, a feature not currently found on catamarans in this size range.

Performance and Capabilities

Equal parts luxury and performance, the Leopard 42’s capabilities far exceed its size. Together with new technology and building techniques, the Leopard 42 brings exhilaration and freedom to sailing in a way no other sailboat can. Always reaching new destinations, the Leopard 42 is ready for your next adventure.

Broker's Notes

This Leopard is available for immediate sale and cruising. Located at Dania Beach Leopard HQ.

Specifications

• Length overall: 41'7" / 12.67m
• Length waterline: 40'10" / 12.44m
• Beam max: 23'1" / 7.04m
• Draft (half load): 4'7" / 1.40m
• Bridgedeck Clearance (half load): 2'6" / 0.75m
• Mast Height (half load): 67'10" / 20.68m
• Saloon Living Area: 162sqft / 15sqm
• Displacement (Light ship): 30,183lbs / 13,691kg
• Load carrying capacity: 11,156lbs / 5,015kg
• Main sail area (standard): 717sqft / 66.6sqm
• Genoa Area: 501sqft / 46.5sqm
• Total upwind area (standard): 1,217sqft / 113.1sqm
• Code 0 area: 676sqft / 62.8 sqm
• Code D area: 1022sqft / 94.9sqm
• Fresh water capacity: 174gal / 660l
• Fuel capacity: 158gal / 600l
• Holding tank capacity: 32gal /120l (3 cabins) or 44gal / 150l (4 cabins)

Main Specifications

SALON

• Laminate finish with solid wood trims
• Wear resistant simulated wood flooring
• Saloon table - convertible to double bunk c/w mattress
• LED overhead lighting
• Concealed overhead rope lighting
• Overhead window with blind
• Ventilation through forward facing portlights
• Stowage space under settee cushions
• Forward doorway access to foredeck
• Access to aft cockpit through sliding door/window
• 2 x Loose Ottoman stools to be used as:
• Chart table seat
• Settee seating

GALLEY

• Solid surface acrylic worktops
• Single lever mixer faucet with pull-out sprayer
• Single bowl s/s sink
• Dish and cutlery drying recess with drainage
• Cover for drying recess
• Vitrifrigo 2-drawer fridge/freezer 56USgal / 212Ltr 12v
• ENO 3-burner gas hob
• ENO gas oven
• Gas solenoid shut-off valve with control at switch panel & warning light at cooker
• Gas cylinder regulator in dedicated cockpit LPG locker
• Separate garbage bin locker
• Stowage space in shelf lockers
• Stowage space under floorboards
• Pot drawer under oven
• 3 x Drawers alongside oven
• Outboard galley shelf
• Microwave locker

OWNER CABIN (3 CABIN VERSION)

• Laminate finish with solid wood trims
• Wear resistant laminate flooring
• Double berth (1.57m x 2.04m or 5'2" x 6'8")
• 1 x Full height hanging locker
• 1 x Full height shelf locker
• Vanity table/desk with storage locker under lid
• Fold up vanity mirror
• Drawer unit with 3 x drawers
• 2 x Stowage drawers under bunk
• Sliding entrance door with lock
• LED overhead lighting
• Concealed overhead rope lighting
• Concealed under bunk rope lighting
• 2 x LED reading lamps over bunk

NAVIGATION CONSOLE

• Chart table with storage locker under hinged lid
• LED overhead lighting
• Backrest s/s railing

HEADS COMPARTMENTS x 3 (3 CABIN VERSION)

• Large washbasin with basin mixer and solid surface acrylic top
• Under-basin locker with toilet roll holder
• Separate shower compartment with divider c/w lever mixer and adjustable drainage system
• Shower sump with automatic drainage system
• Large bowl manual toilet
• Double towel rail, hook and ring
• Vanity Locker with mirror
• Dedicated trashcan locker
• Large linen locker (can house optional washing machine)
• Sliding heads door
• Overhead roller blind for privacy
• LED Overhead lighting

DECK FITTINGS

• Guardwires with stanchions, bases, port & starboard side gates
• Guardwires across bow and stern
• 1600w vertical windlass 10mm gypsy and capstan c/w hand-held remote
• Anchor bow roller fitting
• Anchor chain stopper
• Liferaft locker with convertible fore/aft seat bolster
• Sliding companionway door/window
• Hardtop over cockpit complete with LED lighting
• Hardtop over helm with supports and LED light
• Forward window brow complete with LED lighting
• Side window brows
• Folding swimming ladder c/w teak steps
• Emergency ladder mounted on port transom
• Cockpit table
• Bridle mainsheet system (3:1 purchase)
• Trampoline
• Helmseat with upholstered backrest
• Acrylic smoke grey tinted windows
• Hardtop supports
• Hatches:
• Size 10 Flush Hatch: 4-Cabin Layout has 4x over heads.
• Size 10 Flush Hatch: 3-Cabin Layout has 2x over port heads, 2x over study.
• Size 44 Flush Hatch: 4-Cabin Layout has 4x over cabins and 2x over forepeaks.
• Size 44 Flush Hatch: 3-Cabin Layout has 3x over cabins, 1x over owner's heads and 2x over forepeaks.
• Portlights:
• Size 5 Portlights: Both Layouts has 2x in windscreen
• Size 1 Portlight: 4-cabin Layout has 10x in hull side and transom
• Size 1 Portlight: 3-cabin Layout has 9x in hull side and transom
• 1 x Anchor chain bin
• 1 x Anchor/windlass locker
• 2 x Foredeck locker
• Forward access to foredeck c/w watertight saloon access door
• 2 x Pulpits with seat
• 2 x Pushpits
• 2 x Coachroof handrails
• 1 x Coachroof Steps handrail
• 2 x Hardtop grab handles
• 2 x Transom grab handles
• 9 x 310mm mooring cleats
• 2 x Winch handles
• 2 x Primary winches - (black anodised alloy)
• 1 x Main sheet winch (black anodised alloy)
• 2 x genoa cars with pin stop
• 2 x genoa tracks
• 2 x Halyard clutch at helm (main & gennaker)
• 2 x Genoa sheet clutch at helm
• 2 x Mainsheet clutch at helm
• 2 x Reef clutch at helm
• 1 x Furler clutch at helm
• 1 x Genoa Halyard Clutch and cleat on mast
• Drinks holders
• 2 on forward Coamings
• 2 at helm
• Rope bag at helm (comes with winch handle pocket sown in)

COACHROOF LOUNGE

• L-shaped GRP settee (optional seat cushions, backrest and table)

ENGINE & CONTROLS

• Double lever throttle / gearshift control
• Sound deadening panels in engine room
• 2 x Engine room ventilation fans and ducting
• 2 x Yanmar 45hp diesel engines with sail drives
• 2 x Propellers - fixed blade
• 2 x Fuel deck fillers
• 2 x Fuel filter / water separators
• 2 x Fuel tanks 160USgal / 600Ltr total capacity
• 2 x Exhaust skin fittings (s/s)
• 2 x Exhaust water locks
• 2 x Cooling water inlet strainers
• 2 x Exhaust cooling water temperature sensors with audible alarms at helm

ELECTRICAL INSTALLATION

• Digital monitoring with 7" Multi-function Display
• LED Courtesy lights at stairways
• Bi-colour & stern navlights
• 12v DC switch panel
• 12v Outlet plug at helm station
• USB Outlet at helm station
• 1 x Double USB socket at saloon cave locker
• 2 x Double USB socket at Nav station
• 1 x Double USB socket in each cabin
• 1 x Wireless mobile phone charger at nav desk
• 2 x House batteries - 210Ah deep cycle lead acid type
• 2 x Engine starter batteries - 100Ah lead acid type
• 1 x House battery isolator switch
• 2 x Engine starter battery isolator switches
• 2 x Alternators, standard with engines
• 1 x Electrical spares kit: fuses, relays, fuse holders

PLUMBING INSTALLATION

• Hot and cold pressurized fresh water system consisting of:
• 2 x Water tanks, 174USgal / 660ltr total capacity
• 1 x fresh water pressure pump with accumulator tank
• 2 x Hot water cylinders 12USgal / 46ltr total capacity
• Transom shower (cold only)
• 4 x Automatic shower drain pumps
• 2 x Holding tanks, 32USgal / 120ltr total capacity (3 cabin) or 40USgal / 150ltr total capacity (4 cabin)
• 2 x Electric bilge pumps (keel sump) with float switches and alarm at switch panel
• 2 x Manual bilge pumps (keel sump)
• 2 x High bilge float switches with alarm at switch panel
• 2 x Electric bilge pumps (engine room) with float switch and warning light at switch panel
• Freshwater connection
• Water purifying filter system (Purifying water tap located at galley)

NAVIGATION EQUIPMENT

• Compass at helm position

RUDDER & STEERING SYSTEM

• Balanced spade rudders
• Rudder stock in 17-4 PH stainless steel
• Self aligning bearings
• Chain-and-wire steering system c/w bulkhead steering unit and brake
• Destroyer-type steering wheel
• Emergency tiller (s/s)

RUNNING RIGGING

• 2 x Main sheets (3:1 purchase)
• 2 x Genoa sheets
• 3 x Halyards (main, genoa & spare)
• 2 x Single line reefs lead aft
• Main boom topping lift

MAST, RIGGING, & SAILS

• Natural anodized mast
• Natural anodized crossbeam c/w mooring cleats
• Wind indicator
• Genoa furler
• Mainsail full battened c/w 2 rows reefs
• Furling genoa
• 2 x Additional spare 12v wires in mast
• Additional spare conduit with messenger in mast

GENERAL EQUIPMENT

• 6 x Fire extinguishers(3C) and 7 x Fire extinguishers(4)
• Owner's Operating Manual
• CE Certification
• NMMA Certification
