Johnson Skylounge for sale in Kaohsiung, Taiwan

83' JOHNSON SKYLOUNGE W/FISHING COCKPIT (New Construction)

Please note, this is an unbuilt new construction project which has not yet been started.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete! Completion time is approximately 14 months depending on other yard projects.

**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

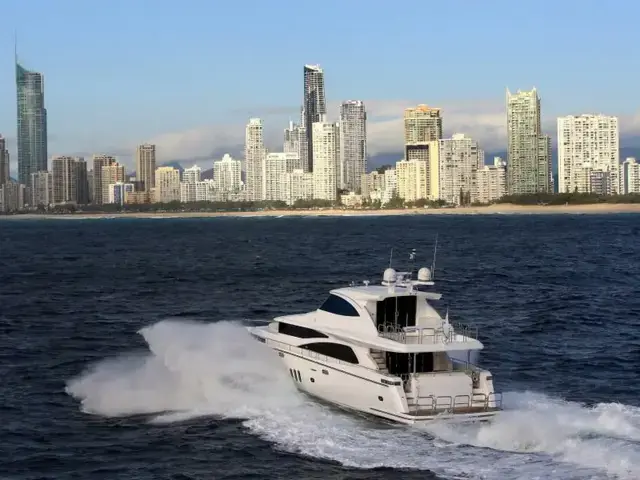

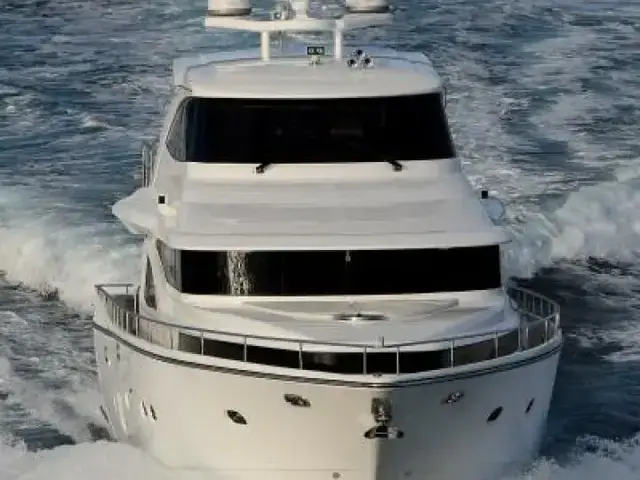

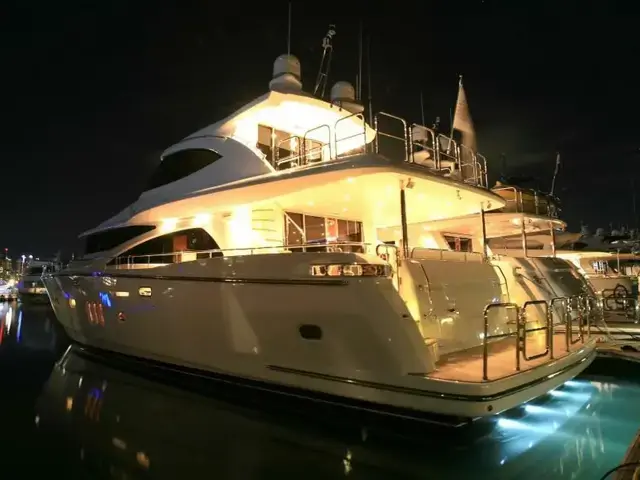

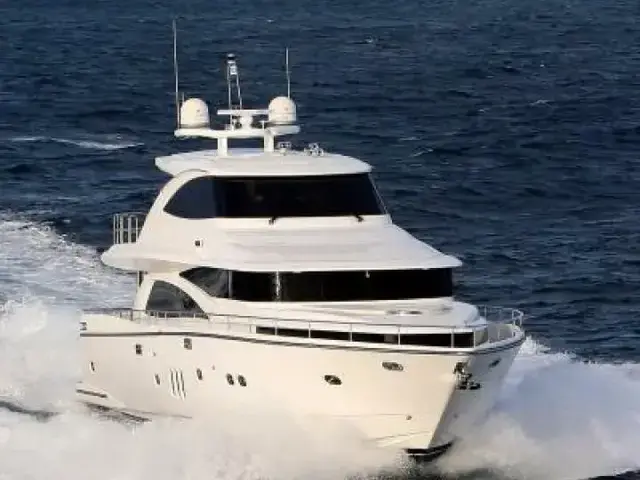

Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.

I. HULL & DECK - EXTERIOR GENERAL

• MAIN DECK-TEAK 14MM
• STAINLESS STEEL AND NYLAC INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN WITH GROOVE MACHINED INTO ROLLER
• 250 FEET GALVANIZED CHAIN (3/8")
• MAXWELL HYDRAULIC WINDLASS VWC4000 (SINGLE)
• STAINLESS STEEL 120 LB ANCHOR (SINGLE)
• FRESH WATER ANCHOR CHAIN WASHDOWN PLUS OUTLET ON FOREDECK FOR HOSE ATTACHMENT
• HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS IN ELLIPTICAL S/S
• HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS WITH 2 EXTRA POP UP CLEATS ON AFT PLATFORM
• BLACK TEMPERED SAFETY GLASS LAMINATED 5MM+ 5MM GLASS
• STAINLESS STEEL SALOON PENUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS
• PANTOGRAPH STYLE SIDE DOOR IN DECK HOUSE (PORT ONLY)
• MANSION ELLIPTICAL STAINLESS STEEL PORT LIGHTS
• S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT
• STERN CAPSTAN MAXWELL VC1500 24V x 2

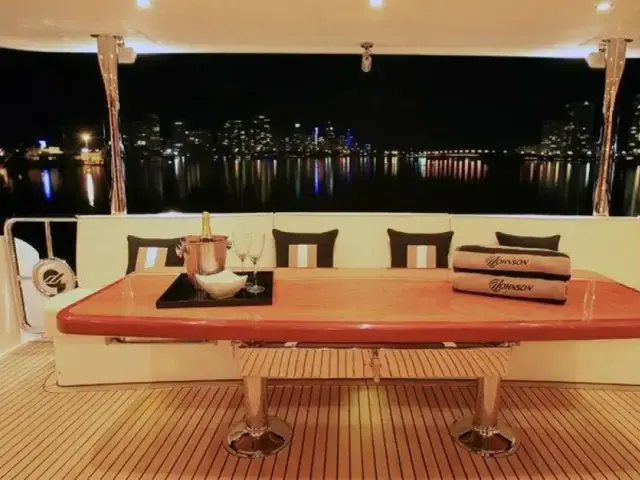

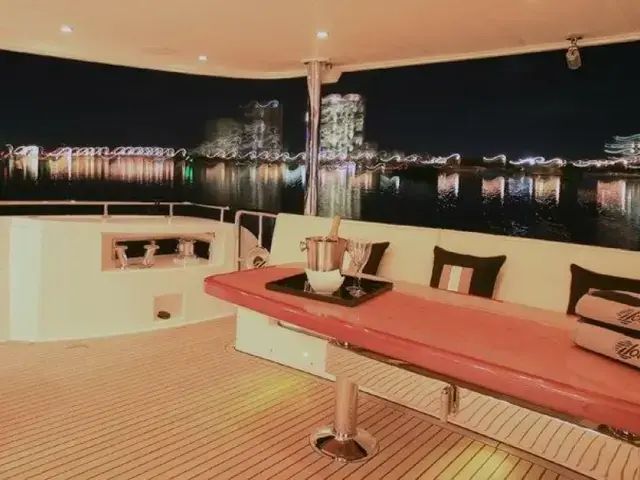

• AFT DECK SEATING W/ CUSHIONS IN SUNBRELLA OUTDOOR FABRIC
• AFT DECK TABLE WITH PROTECTIVE COVER
• LOW LEVEL LED COURTESY LIGHTS ON SIDE DECK
• LOW LEVEL LED COURTESY LIGHTS ON AFT DECK
• STAIRS TO FLYBRIDGE WITH TEAK LAID DECKING TREADS
• LARGE TEAK INLAY SWIM PLATFORM WITH CURVED STAIRWAY TO AFT DECK
• HOT & COLD SWIM SHOWER
• S/S SWIM LADDER
• LAZARETTE STORAGE FOR FENDERS
• ONE SET OF ENGINE AND THRUSTER CONTROLS FITTED TO STBD OR PORT AFT COAMING
• HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/1873 LBS. LIFTING CAPACITY)

II. UNDERWATER GEAR

• 5 BLADE BRONZE PROPELLERS x 2
• BRONZE P-BRACKETS x 2
• S/S AQUATECH 22HS SHAFTS 3 ½" DIAMETER x 2
• SHAFT SEAL AND SHAFT LOGS TIDES MARINE SHAFT LIP SEAL GLANDS 3 ½" x 5 ½" AND DURAMAX MARINE CUTLASS BEARINGS
• HIGH PERFORMANCE S/S RUDDERS USING AQUATECH 22 STAINLESS STEEL STOCKS WITH TIDES MARINE SHAFT LIP SEAL GLANDS AND BRONZE BEARING
• ANTI-FOULING BOTTOM PAINT SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK OR 3430 DARK BLUE
• BOOT TOP STRIPE SIZE 3” COLOR: BLACK, BLUE OR RED
• FULL CATHODIC BONDING SYSTEM TO ZINC ANODES
• SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONER
• SEACOCKS ON ALL UNDERWATER FITTINGS
• HYDRAULIC BOW THRUSTER
• HYDRAULIC STERN THRUSTER
• "AT REST" STABILIZERS
• UNDERWATER EXHAUST SYSTEM WITH MUFFLERS AND BYPASS
• HYDRAULIC STEERING BY HYNAUTIC MODEL PSHC5803 WITH POWER STEERING

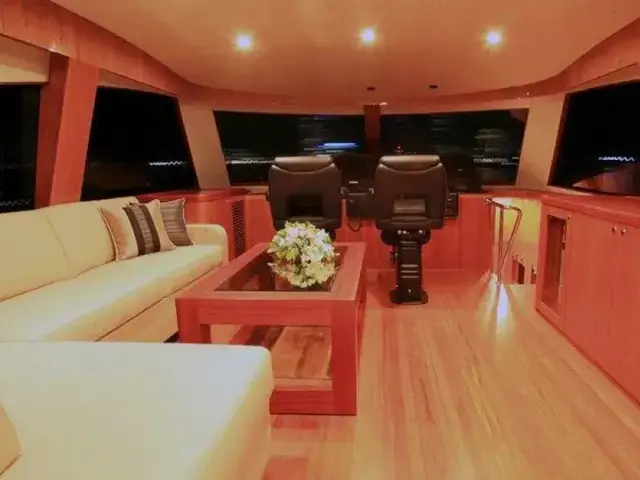

III. SKYLOUNGE

• TEAK FLOOR WITH 14MM TEAK AND HOLLY WITH MATT FINISH
• INSTRUMENT CONSOLE UPHOLSTERED WITH LEATHER
• ACCESS HATCH AND STAIRS TO SALOON IN S/S WITH TEAK TREADS
• HIGH QUALITY BUILT IN LEATHER COUCH & SMALLER COFFEE TABLE
• HYDRAULIC STEERING HYNAUTIC PSHC5803
• ENGINE CONTROL AND INSTRUMENTATION
• MAGNETIC COMPASS
• CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
• I. GARMIN
  • GPSMAP® 8617 17" FULLY-INTEGRATED MULTI-TOUCH MFD x 2
  • GMI 20 MARINE INSTRUMENT DISPLAY x 1
  • GMR FANTOM™ 4”/40W/72NM, SOLID-STATE, OPEN-ARRAY RADAR x 1
  • GARMIN VHF 210 MARINE RADIO x 1
  • GARMIN AIS 600 CLASS B TRANSCEIVER x 1
  • GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
  • GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1
• II. RAYMARINE
  • RAYMARINE GS15.4" GLASS BRIDGE MULTIFUNCTIONAL DISPLAY WITH WI-FI x 2
  • RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
  • RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
  • RAYMARINE RAY218E VHF RADIO x 1
  • RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
  • RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR CONTROL UNIT x 1
  • RAYMARINE CP100 DOWNVISION FISHFINDER x 1
• STABILIZER CONTROL AND MONITORING DISPLAY
• BOW & STERN THRUSTER CONTROL PANEL
• CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH
• RUDDER INDICATOR
• FUEL GAUGE HEADHUNTER TS-3000 SERIES
• SEARCH LIGHT PARWITH JOYSTICK CONTROL
• FUSION STEREO SYSTEM
  • MS-AV700I DVD / RECEIVER–WITH FUSION LINK.
  • MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
  • MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• POP UP TV CABIN W/ 32" LCD TV
• APPLE TV
• LOW LEVEL LED COURTESY LIGHTS 24V
• LIGHTS UNDER RADAR ARCH LED 24V
• S/S GRAB RAIL AROUND BAR UNIT
• LED INDIRECT LIGHTING UNDER WET BAR AND SEATING
• BUELL AIR HORN
• LEBROCK LX DOUBLE WIDE TWO SEATER HELM SEAT
• S/S STEERING WHEEL

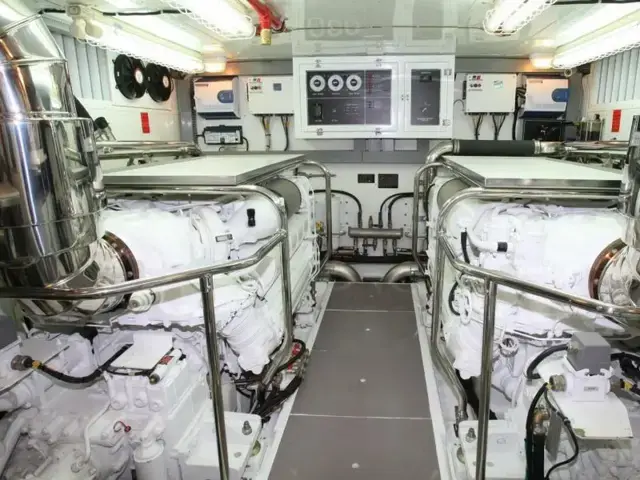

IV. ENGINE PROPULSION & E/R EQUIPMENT

• MAN D2842 LE433 1550HP/2300RPM ENGINE ZF TRANSMISSION ZF2050A, 2.029:1 RATIO
• ONE DUAL RACOR FILTER FOR EACH ENGINE
• GENERATOR RACOR FILTER FOR EACH GENSET
• VAN CAPPELLEN DESIGN DOUBLE SOUND & HEAT INSULATED MATERIAL WITH FOAM & LEAD COMBINATION THROUGHOUT ENGINE ROOM
• WELL PLANNED, SPACIOUS E/R WITH WHITE PAINTED FINISH AND GREY NON-SKID RUBBER FLOORING
• FUEL TANKS WITH ELECTRIC SENDING UNITS HEADHUNTER TS-3000 SERIES
• AUTOMATIC FIRE EXTINGUISHER SEAFIRE FM-200
• EXTRACTOR FANS DELTA “T” SYSTEM WITH AUTOMATIC VENT CLOSURE IF FIRE
• E/R AC FLOURESCENT LIGHTS & LED DC DOME LIGHTS
• MANUAL BILGE PUMP WITH PICKUP AT LOWEST POINT WHEN VESSEL IS AT REST
• HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP HEADHUNTER MARCH 5 M5-115 AC PUMP GROCO PSRV DC PUMP
• CHILLED WATER AIR CONDITIONING CRUISAIR AIR CONDITIONING 96,000 BTU
• WATER MAKER - AQUA WHISPER DX 450 450GPD x 2
• OIL CHANGING PUMP FOR ENGINES, GENERATORS AND TRANSMISSIONS
• GENERATOR 1 ONAN QD MDKDS 29 KW 60HZ GENERATOR 2 ONAN QD MDKBU 29 KW 60HZ (OPTION)
• WATER HEATERS - TORRID 20 GALLONS x 2
• EMERGENCY TILLER
• HYDRAULIC PUMP ON EACH ENGINE FOR THRUSTERS, STABILIZERS AND STEERING
• CENTRAL VACUUM CLEANER (NUTONE CV352 110V/220V SYSTEM)

V. ELECTRICAL

• 110V/220 AC ELECTRICAL SYSTEM
• DC 24V SYSTEM
• 75’ GLENDINNING CABLE MASTER - 50 AMP x 2 SETS
• BATTERY CHARGER FOR 24V CIRCUIT
• BATTERY CHARGER FOR 12V CIRCUIT
• ALTERNATOR SPLIT CHARGING SYSTEM LINKED CHARGING THE HOUSE BANKS WITH BEP HIGH CHARGE REGULATORS FITTED
• 4 x 255AMP/HR 12v GELL CELL SEALED BATTERIES FOR SHIP SERVICE
• 225AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4
• 210AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1
• AC SOCKETS THROUGHOUT THE BOAT
• GFI PROTECTION FOR AC REQUIRED SOCKETS
• BEP BATTERY SELECT SWITCH
• MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS WITH 4 PANELS (E/R, HELM, A/C AND DC) WITH AUTOMATIC BACKLIGHTING WHEN DOOR OPENS
• ANTI-ELECTROLOSIS BONDING SYSTEM
• AUTOMATIC ISOLATING & BOOSTER TRANSFORMER - 50AMP x 2

VI. PLUMBING SYSTEM

• 100 GALLON BLACKWATER HOLDING TANK WITH MACERATOR PUMP
• “Y” VALVE FOR HOLDING TANK OVERBOARD PUMP OUT
• HOLDING TANK LEVEL INDICATOR HEADHUNTER
• SUMP PUMP FOR SHOWER
• MARINE GRADE LINES FOR FRESH WATER SYSTEM
• S/S WATER TANK WITH SENDING UNIT - 350 GALLONS
• SIGHT GAUGES FOR FUEL AND WATER TANKS
• DOCKSIDE FRESH WATER INLET
• COLOR CODED PIPING FOR EASY IDENTIFICATION
• BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS
• MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU-HULL FITTINGS
• FRESH WATER SEALAND VACUUM TOILET SYSTEM
• HIGH WATER BILGE ALARM IN ENGINE ROOM, FORWARD BILGE AND LAZARETTE COMPARTMENTS x 6 WITH MIMIC PANEL AT HELM
• BILGE PUMP x 6 RULE 3700 GPH PUMPS WITH FLOAT SWITCHES WITH HIGH WATER ALARMS

VII. INTERIOR FINISH

• INTERIOR JOINERY IN MAHOGANY OR CHERRY, BURR WOOD AND IVORY LACQUER WITH A CHOICE OF UPHOLSTERY FABRICS

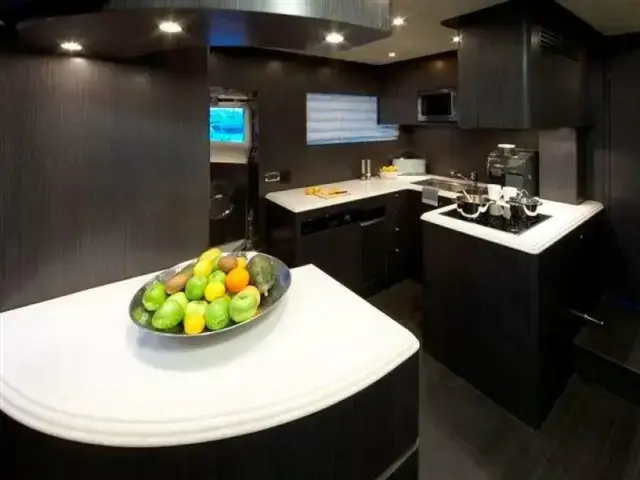

VIII. GALLEY

• ELECTRIC REFRIGERATOR/FREEZER - G.E. LATEST MODEL
• COOKTOP - G.E. LATEST MODEL
• OVEN - G.E. LATEST MODEL
• MICROWAVE W/EXTRACTOR FAN - G.E. LATEST MODEL
• S/S SINK
• HOT AND COLD WATER
• TRASH COMPACTOR - G.E. LATEST MODEL
• DISHWASHER - G.E. LATEST MODEL
• DOUBLE AC SOCKETS x 2
• CUPBOARD, DRAWERS AND STOWAGE
• TEAK FLOOR OR MARBLE FLOOR
• OVERHEAD STORAGE ABOVE GALLEY BENCH

IX. SALOON

• DINING AREA IN UPPER SALOON
• PNEUMATIC SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSOR DEVICE
• 42" LCD TV
• BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM
• PIONEER BDP-160 BLU-RAY DISC PLAYER
• APPLE TV
• HIGH QUALITY LEATHER COUCH IN LOWER SALOON BUILT IN CURVED SEATING
• MAIN CONTROL PANEL AC/DC
• LOW LEVEL LIGHTS 24V LED
• CEILING LED LIGHTING 24V
• COFFEE TABLE

X. MASTER STATEROOM

• KING SIZE BERTH
• STORAGE BENEATH BERTH
• DRAWERS IN BASE OF BERTH
• VANITY
• COUCH
• WALK-IN CLOSET FINISHED IN CEDAR WOOD
• LED CEILING LIGHTING 24V
• READING LIGHTS 24V x 2
• LARGE SIDE WINDOWS 3 x MANSHIP S/S W/ 2 FIXED AND ONE OPENING
• 42" LCD TV
• FUSION MS-205 RECEIVER/MEDIA PLAYER WITH FULL IPOD/IPHONE CONTROL
  • MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
  • MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• PIONEER BDP-160 BLU-RAY DISC PLAYER
• APPLE TV

XI. MASTER EN SUITE SHOWER ROOM

• VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
• WASH BASIN WITH MARBLE COUNTERTOP
• HOT & COLD WATER
• FAUCET AND FITTINGS
• MIRROR AND MIRROR CEILING
• LACQUER FINISH ABOVE BASIN COUNTERTOP
• VENEER FINISH BELOW BASIN COUNTERTOP
• EXTRACTOR FAN
• AC DOUBLE SOCKET WITH GFI
• LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS
• LED CEILING LIGHTS 24V
• MARBLE FLOOR

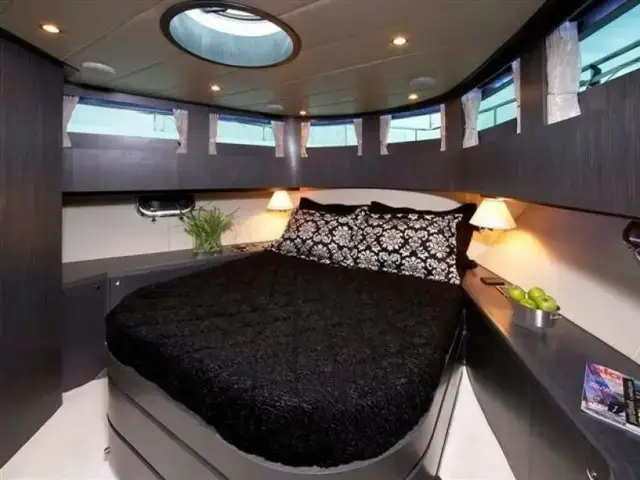

XII. FORWARD (VIP) STATEROOM

• DOUBLE BERTH
• STORAGE BENEATH BERTH
• DRAWERS IN BASE OF BERTH
• WALK-IN CLOSET FINISHED IN CEDAR WOOD
• DRESSING TABLE W/STOOL
• READING LIGHTS 24V x 2
• LED CEILING LIGHTS 24V
• AC DOUBLE SOCKETS
• 32" LCD TV
• FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
  • MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
  • MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• APPLE TV

XIII. FORWARD (VIP) EN SUITE SHOWER ROOM

• VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
• WASH BASIN WITH MARBLE COUNTERTOP
• HOT & COLD WATER
• FAUCET AND FITTINGS
• MIRROR AND MIRROR CEILING
• LACQUER FINISH ABOVE BASIN COUNTERTOP
• VENEER FINISH BELOW BASIN COUNTERTOP
• EXTRACTOR FAN
• AC DOUBLE SOCKET WITH GFI
• LARGE SHOWER W/LACQUER FINISH AND MARBLE FLOORS
• LED CEILING LIGHTS 24V
• MARBLE FLOOR

XIV. PORT GUEST CABIN

• TWO SINGLE BERTHS
• UNDER BERTH STORAGE
• READING LIGHTS 24V x 2
• LED CEILING LIGHTS 24V x 2
• HANGING LOCKER
• PULLMAN BERTH
• 32" LCD TV
• FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
  • MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
  • MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• APPLE TV

XV. PORT TOILET/SHOWER ROOM

• VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
• WASH BASIN WITH MARBLE COUNTERTOP
• HOT & COLD WATER
• FAUCET AND FITTINGS
• MIRROR AND MIRROR CEILING
• SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS
• AC DOUBLE SOCKET WITH GFI
• LACQUER FINISH ABOVE BASIN COUNTERTOP
• VENEER FINISH BELOW BASIN COUNTERTOP
• EXTRACTOR FAN
• LED CEILING LIGHTS
• MARBLE FLOOR
• FULL HEIGHT WASHER/DRYER - G.E. LATEST MODEL

XVI. STARBOARD GUEST CABIN

• DOUBLE BERTH
• UNDER BERTH STORAGE
• READING LIGHTS 24V x 2
• LED CEILING LIGHTS 24V x 2
• HANGING LOCKER
• 32" LCD TV
• FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
  • MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
  • MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• APPLE TV

XVII. STARBOARD TOILET/SHOWER ROOM

• VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
• WASH BASIN WITH MARBLE COUNTERTOP
• HOT & COLD WATER
• FAUCET AND FITTINGS
• MIRROR AND MIRROR CEILING
• SEPARATE SHOWER COMPARTMENT W/LACQUER FINISH AND MARBLE FLOORS
• AC DOUBLE SOCKET WITH GFI
• LACQUER FINISH ABOVE BASIN COUNTERTOP
• VENEER FINISH BELOW BASIN COUNTERTOP
• EXTRACTOR FAN
• LED CEILING LIGHTS 24V
• MARBLE FLOOR

XIII. CREW QUARTERS

• ENTRANCE DOOR FROM TRANSOM
• TWO SINGLE BERTHS
• READING LIGHTS 24V x 2
• LED CEILING LIGHTS
• AC DOUBLE SOCKET
• HANGING LOCKER
• HOT & COLD TO WASH BASIN AND SHOWER WITH MARBLE COUNTERTOP AND FLOOR
• VACUUM TOILET - SEALAND VACUUM TOILET (BONE COLOR)
• 24" LCD TV
• FUSION MS-AV700I DVD / RECEIVER – WITH FUSION LINK
  • MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
  • MS-BT-200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• APPLE TV

XIX. FISHING COCKPIT

• CATCH WELL, UNDER DECK
• LIVE BAIT WELL WITH PUMP AND LIGHT
• 8 FLUSH MOUNTED ROD HOLDERS SURROUND THE FISHING COCKPIT AND ROCKET LAUNCHER
• NON-SKID DECKS

XX. REMARKS

Please note, this is an unbuilt new construction project which has not yet been started.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete! Completion time is approximately 14 months depending on other yard projects.

**ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

COMMENT

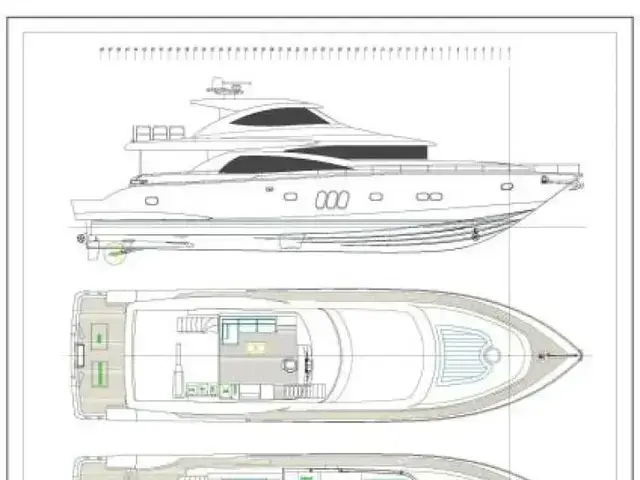

Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.

Price FOB Taiwan and includes U.S. Duty and Pre-Delivery Commissioning

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
