Johnson Flybridge for sale in Kaohsiung, Taiwan

Project Overview

Please note, this is an unbuilt new construction project which has not yet been started.

Completion time is approximately 18 months depending on other yard projects.

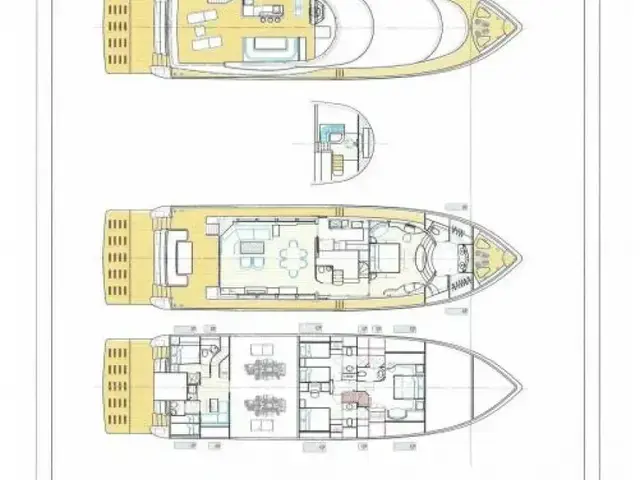

The layout drawing reflects the newly available large hull side windows with opening portholes.

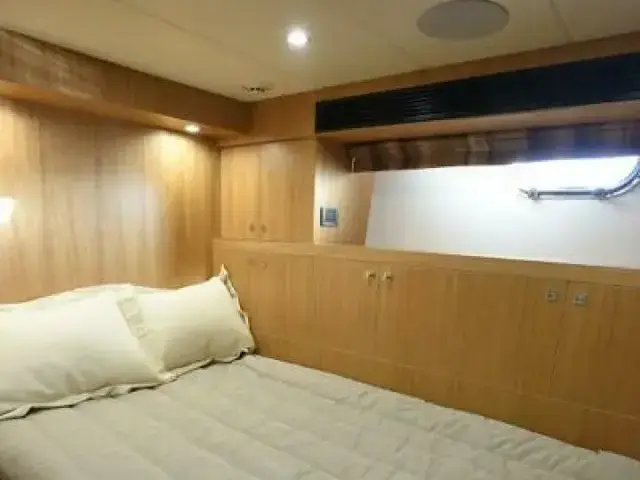

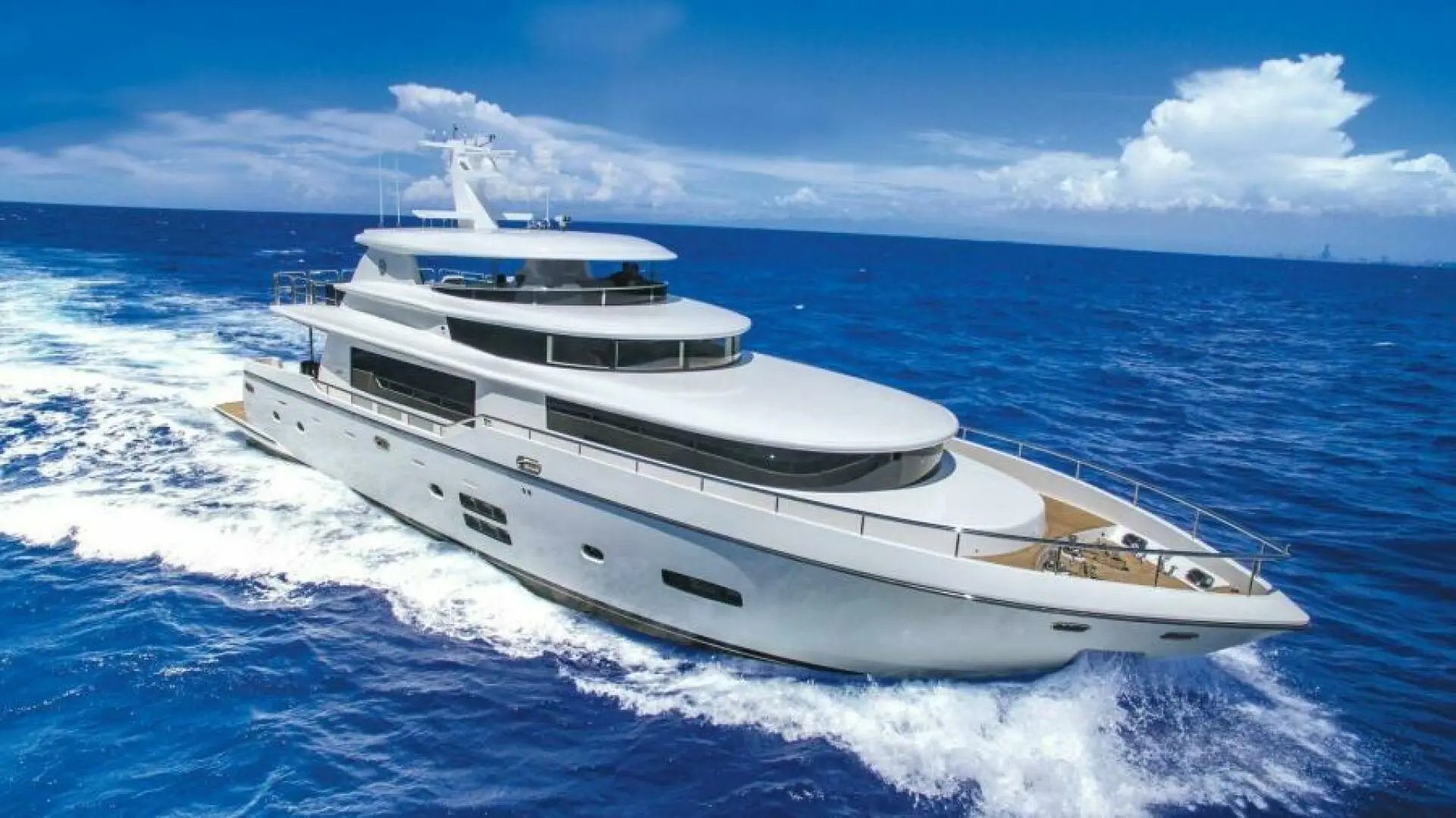

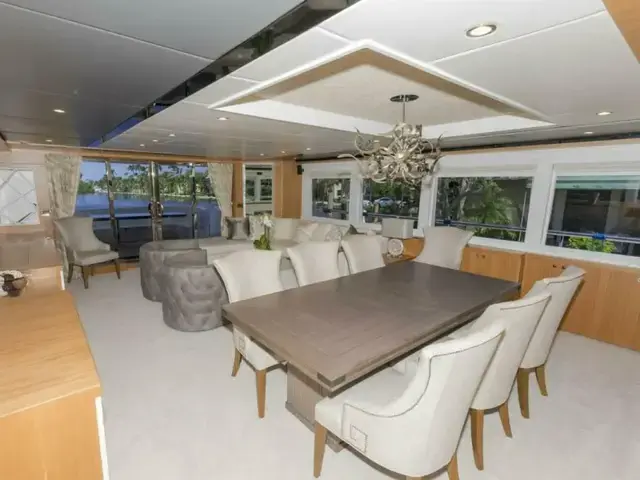

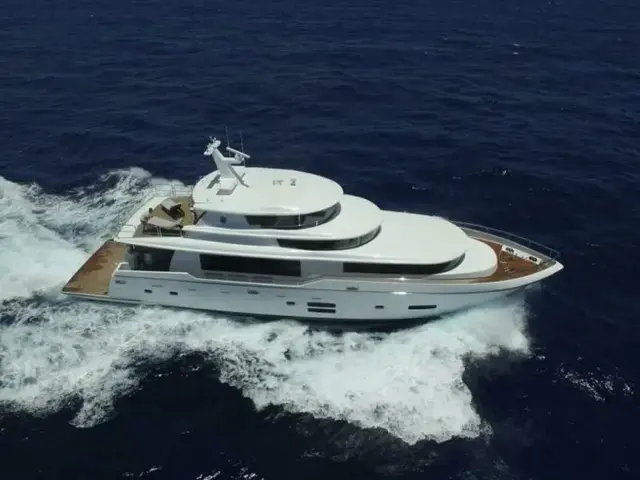

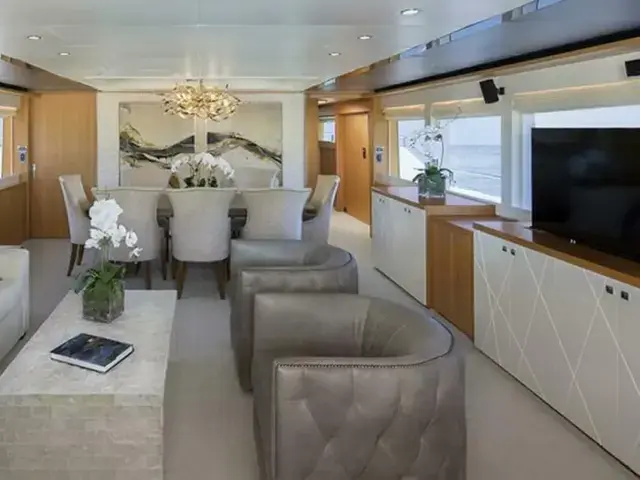

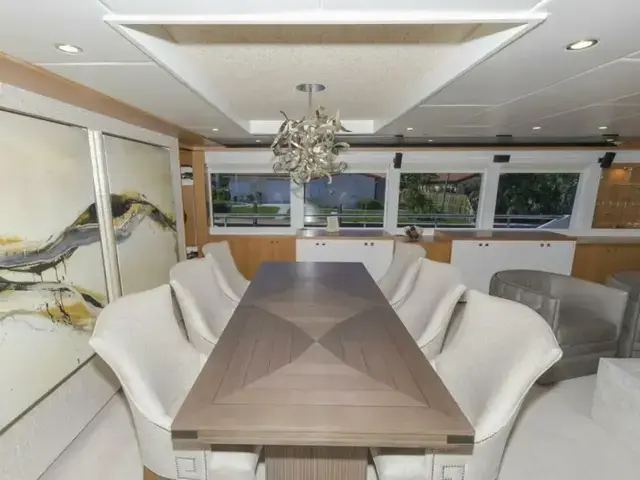

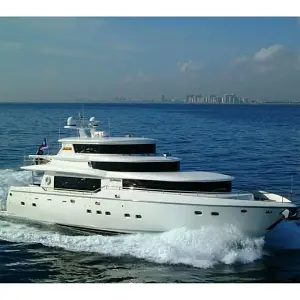

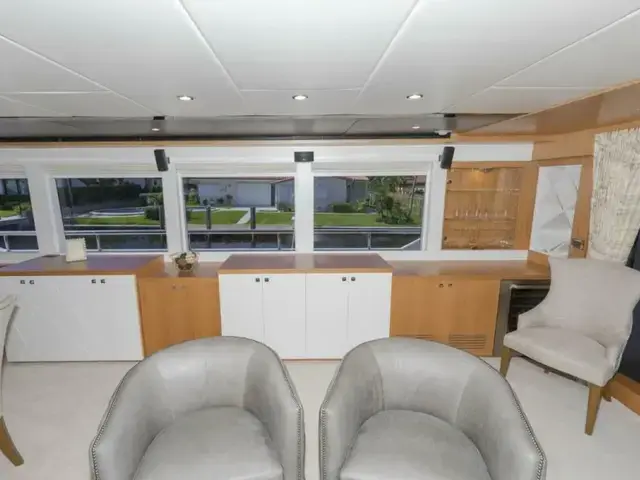

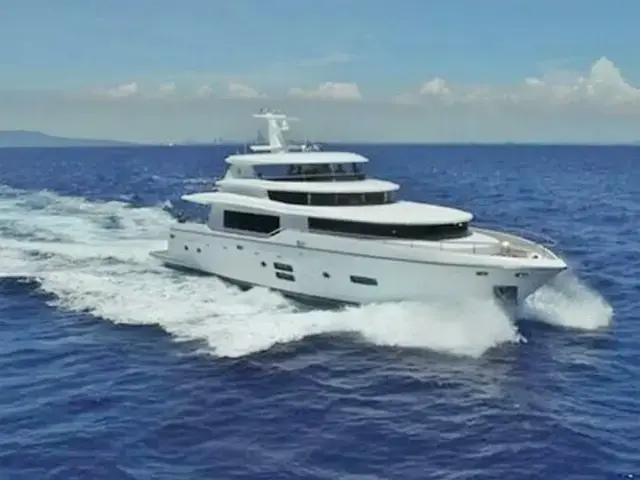

Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.

** ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

Hull and Main Structure

• DNV Type approved fiber/resin & sandwich core material applied
• Isophthalic white gelcoat finish for hull above waterline, exterior decks and furniture
• High-density foam cored hull bottom
• High-density foam cored hull sides, decks and superstructure
• Stringers with high density foam coring
• Interior structural components all properly bonded to hull.
• Anti-fouling paint. Primer system.
• Tunnels for reduced draft

Exterior Deck and Equipment

• 14 MM main deck teak floor
• Stainless integral rollers & chain stopper for anchor chain
• 300 feet galvanized chain (5/8")
• Maxwell hydraulic windlass VWC4000BB/HYD
• Stainless Steel 250 lb. anchor x 2
• Heavy duty 316# S/S handrail & stanchions
• Heavy duty 316# cleats and fairleads
• Medium tinted safety glass
• Stainless steel pneumatic saloon sliding door with button and safety sensor device
• Stainless steel rubrail with rubber insert around hull & deck joint
• Aft deck seating built-in with cushions

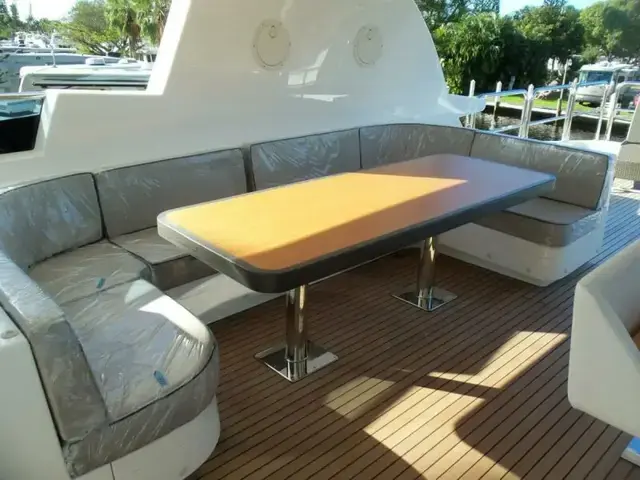

• Aft deck wooden table with protective cover
• LED low level courtesy lights on side deck
• LED low level courtesy lights on aft deck
• Stair to flybridge
• Hot & cold transom shower
• Stainless steel swimming ladder
• Water fill deck fitting
• Diesel fill deck fitting
• Flojet raw water deck wash down pump
• LED floodlights for cockpit x 2
• Stern capstan Maxwell VC2550 24V x 2

Underwater Gear

• 5 blade bronze propellers x 2
• Bronze p-brackets
• Stainless steel Aquatech 22HS 4" diameter shafts
• 3 1/2" Tides shaft and rudder seals
• Boot top stripe size 3" color black, blue or red
• Full cathodic bonding system to zinc anodes
• Seawater strainers for engines, genset and air conditioning
• Seacocks on all underwater fittings
• Underwater exhaust with bypass

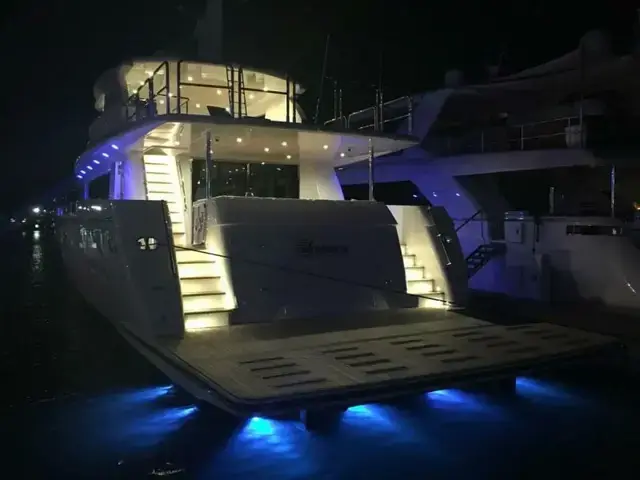

• Aqualuma underwater night Sport series x 8
• Aritex hydraulic swimming platform with lifting capacity of 2640 lb.

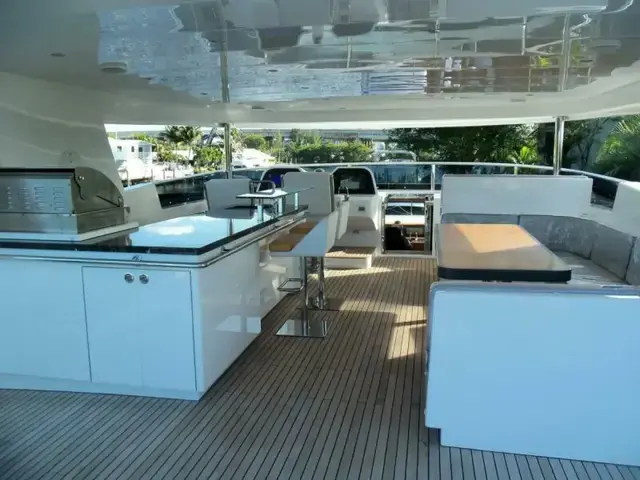

Flybridge

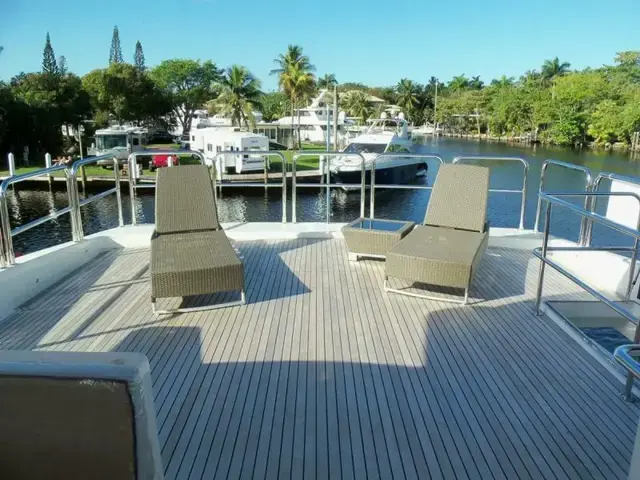

• Teak flybridge deck on entire deck area

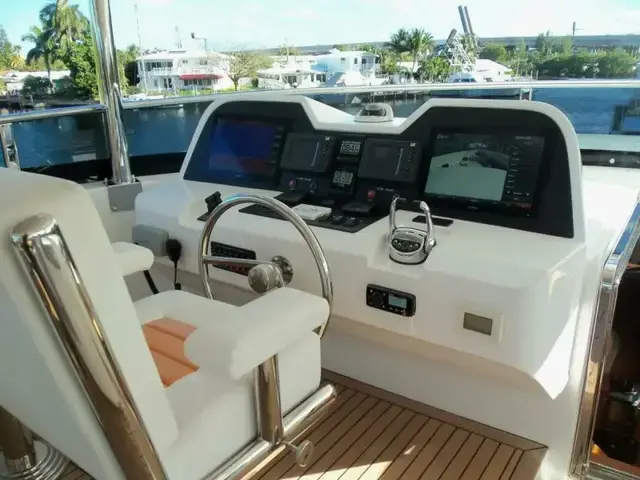

• Instrument console
• Built-in seating with cushions and height adjustable table
• Custom walk behind wet bar
• Isotherm Inox refrigerator
• Isotherm 5W08A141LMN000 ice maker
• High quality Aritex stainless steel gas BBQ 30"
• Rudder indicator
• Magnetic compass
• Stainless steel guard rails and grab rails
• Low level courtesy LED lights 24v
• PAR Jabsco search light
• Buell airhorn
• (2) Manual pilot chairs
• Stainless steel steering wheel
• CCTV system with 5 cameras (engine room, aft deck port & stbd/fwd deck)
• Fuel gauge Headhunter TS-3000 series
• One shipset LED navigation lights
• Fusion stereo system

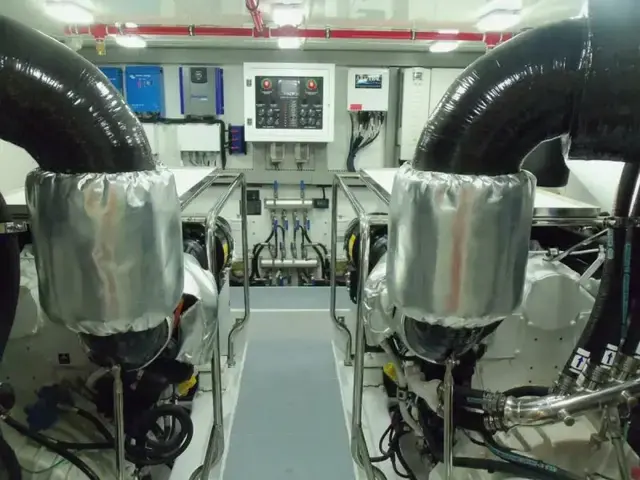

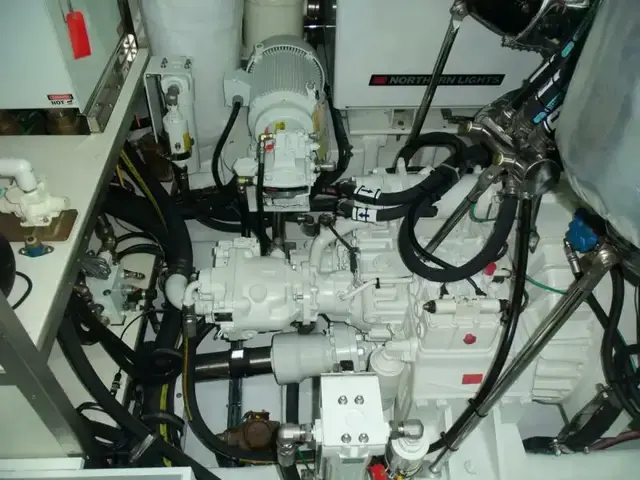

Engine Room and Equipment

• Engine room clean designed with lightweight honeycomb floor.
• Sound proofing throughout engine room
• Heavy duty insulated engine room door
• Stainless steel grab rails on each side of engine
• Engine room LED ceiling lights
• Engine compartment ventilation blowers
• Man Ship engine room demisters

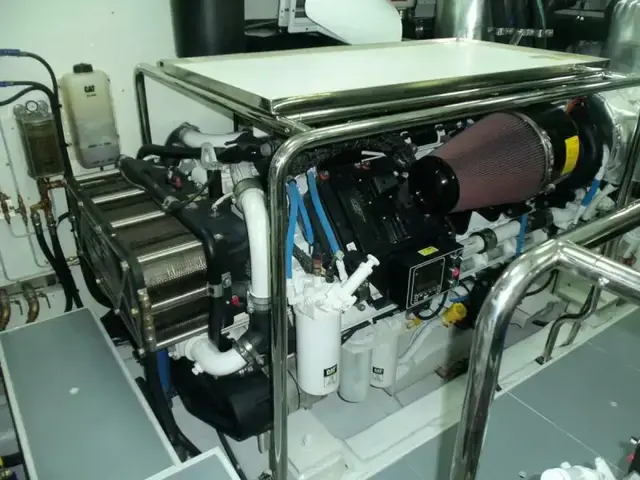

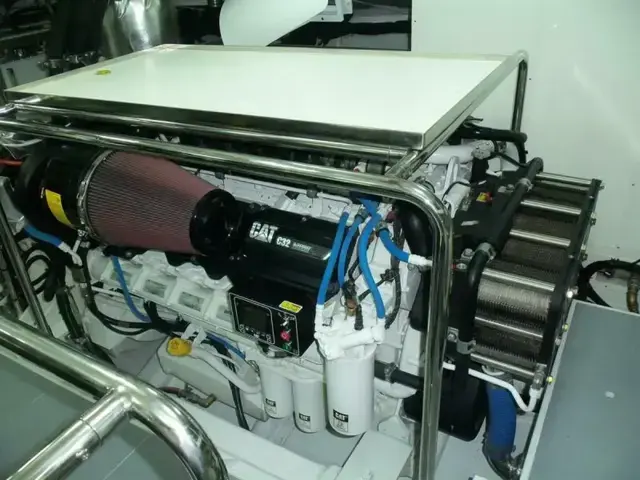

• (2) CAT's C-32 ACERT 1925 HP engine
• Hydraulic steering system
• Engine load distributed through flexible mountings on stainless steel engine bed bonded to FRP hull girder
• Engine alarm system
• Air compressor
• Trident hose or equivalent for engine exhaust
• Hydraulic "AT REST" stabilizer system
• Hydraulic bow and stern thrusters

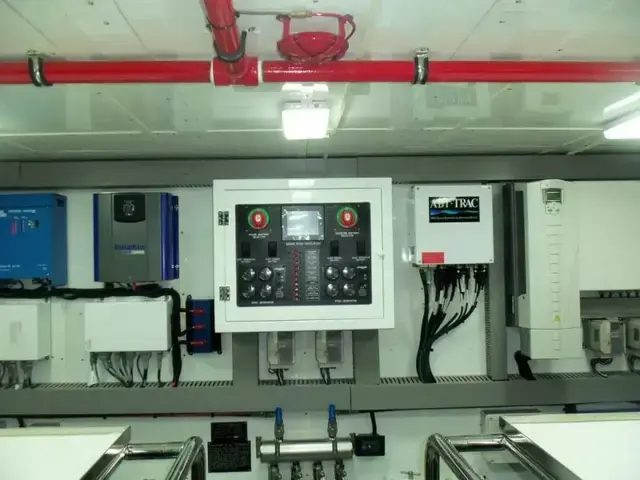

Electrical

• 110V/220V AC electrical system
• DC 12/24V system
• Color-coded wiring for easy identification
• Main electric panel includes AC & DC circuit breakers
• AC 110V receptacles located sockets throughout the boat.
• GFI protection for all AC outlets in exterior, heads, galley and engine room
• Fiberglass water/exhaust separator for generators
• Electrolysis bonding system
• Cathodic protection with zinc anodes for shafts, struts, etc.
• Indirect lighting under valance in saloon, staterooms and galley
• Italian Vimar switches for lighting system
• (2) 100 amp shore power connections with auto isolating & booster transformers.
• AC/DC Main Power System
• (2) Northern Lights generators 55kW (60Hz) with sound shield
• Battery charger for 24v
• Battery charger for 12v
• Alternator split charging system
• (4) 255 amp/hr AGM ship service batteries
• (4) 255 amp/hr AGM engines start batteries
• (2) 255 amp/hr AGM generator start batteries
• All batteries enclosed with proper fixtures
• (2) Shore power connections wired with 2 units of 100amp automatic isolating & booster transformers
• (3) BEP battery select switches
• Inverter - Victron energy 24/5000-120V

Navigation System

• Garmin GPS
• Garmin compression radar
• (2) Garmin 17" multifunction displays
• Garmin autopilot system
• Garmin AIS
• (2) Garmin VHF radios
• Ritchie FD-500P 5" 24V compass

Mechanical and Plumbing

Fuel Oil System

• Fuel tanks with sight and electric gauges and capacity as specified in Principal Dimension above
• Dual Racor duel filter/water separator for each engine
• Racor duel filter/water separator for generator
• Oil changing pump for engine, generator and clutches

Fresh Water System

• Stainless steel water tank with electric gauge and capacity as specified in Principal Dimension above
• Headhunter March 5 M5-230 AC pump
• GROCOV DC pump for back-up
• Marine grade lines for fresh water system
• (2) 40 gallon water heaters - Torrid MV 40
• Hot water circulation pump
• Dockside fresh water inlet

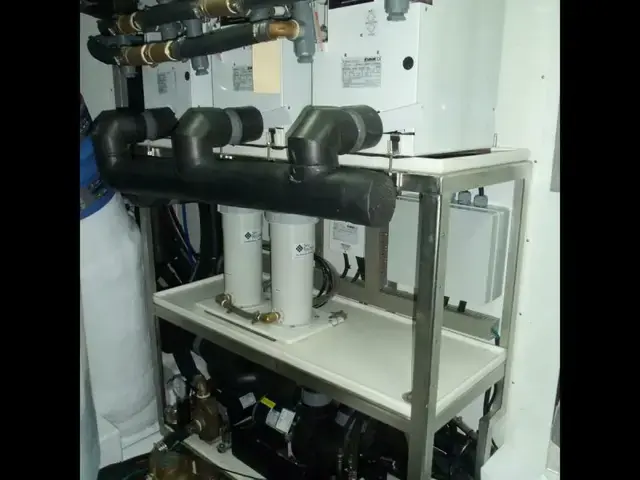

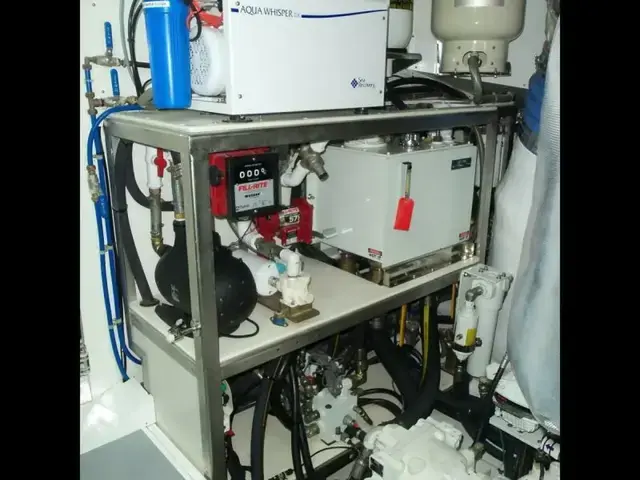

• Watermaker 1400 GPD

Sanitary System

• Holding tank with macerator pump
• Holding tank level indicator
• Y-valve for holding tank with deck fitting for dockside pump out
• Sealand toilet system
• (5) Sump pumps for shower water

Bilge Water System

• (7) DC 24V Rule 3700 bilge pumps
• PAR JABSCO manual bilge pumps in engine room
• (7) Highwater level bilge alarm system
• Bilge exhaust ventilation fans

Air Conditioning System

• (3) Cruisair chilled water air conditioning system with 60,000 BTU compressor
• Air handlers throughout

Fire Safety System

• Insulating with fire protection material in engine room wall
• Auto shutdown system
• Automatic/manual Sea-Fire fire extinguisher system
• Integrated fire alarm system in helm station with smoke detector in each cabin

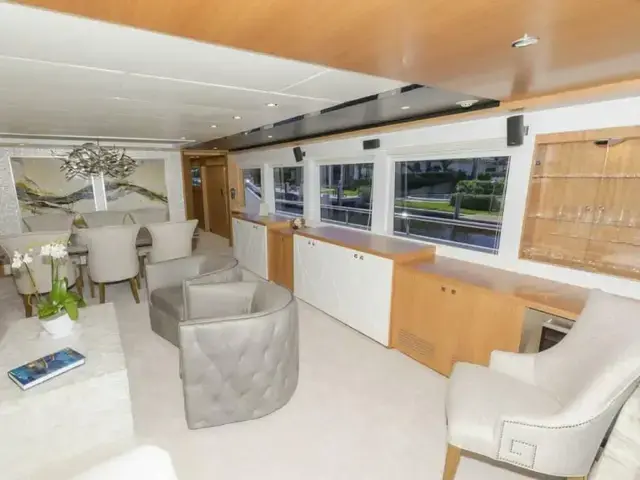

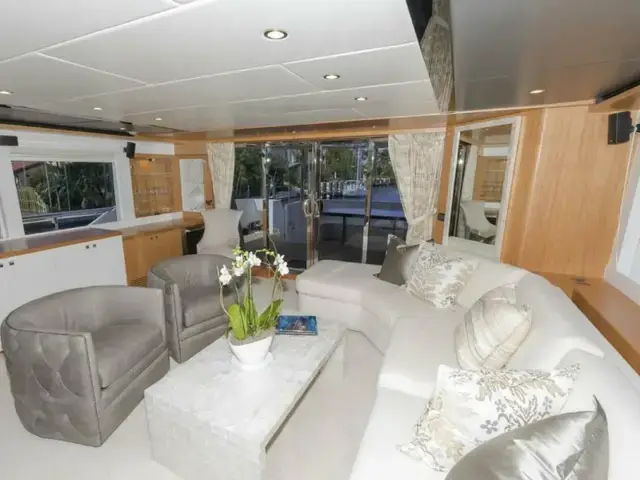

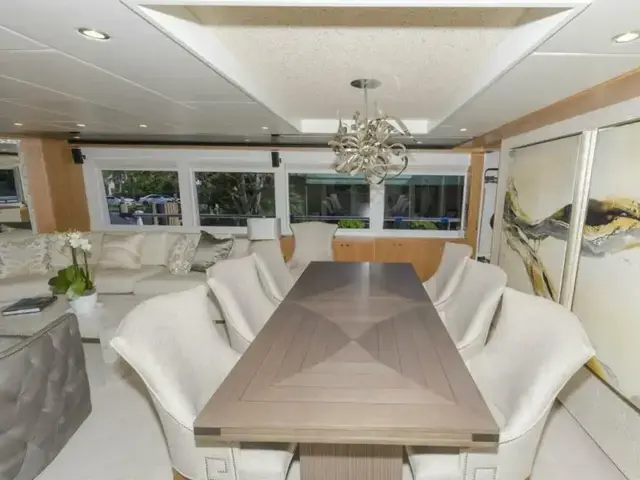

Interior Design and Equipment (Per layout plan)

Interior Decoration

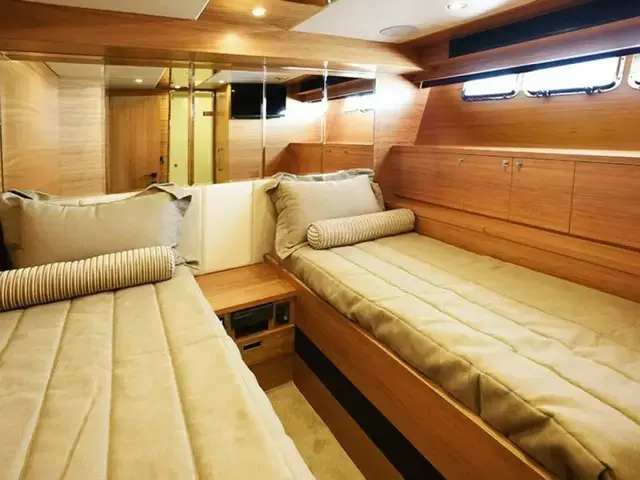

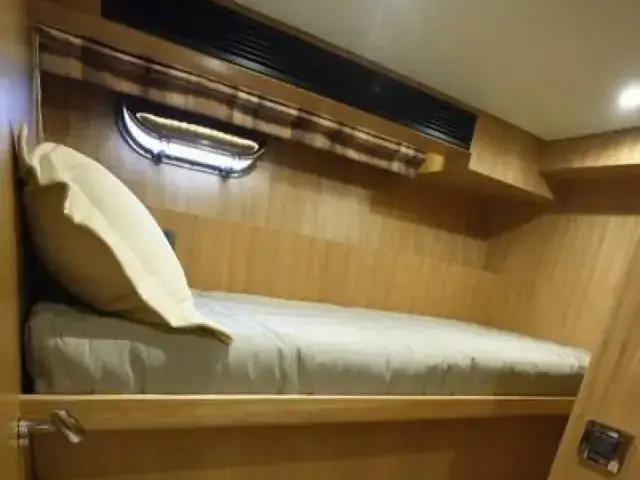

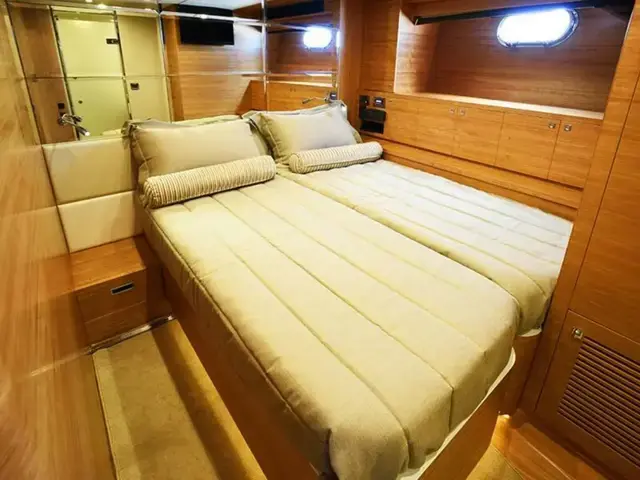

• Standard layouts: Master stateroom, VIP plus 2 guest cabins and 2 crew cabins
• Standard collection of wood for interior
• Standard collection of carpet except in wood floor areas
• Standard collection of interlocking vinyl ceiling panels throughout

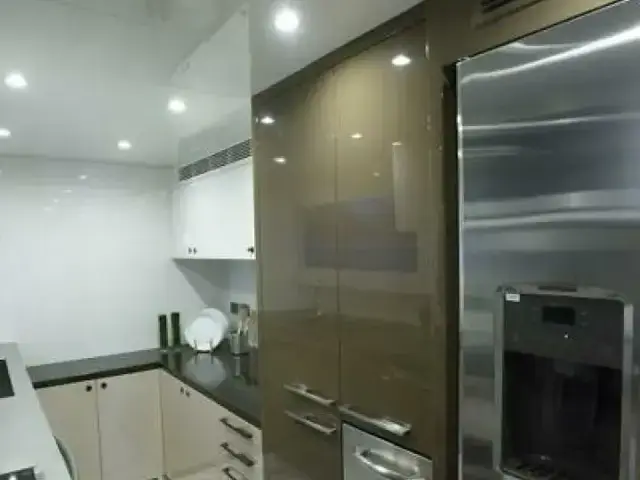

• Choice of marble/granite/wood floors in galley from standard collection
• Choice of granite/glass/quartz stone for galley countertop and backsplash from standard collection
• Standard choice of fabrics for bedspreads, decorative pillows and sheet set (flat sheer, fitted sheet, pillow cases) one set per berth

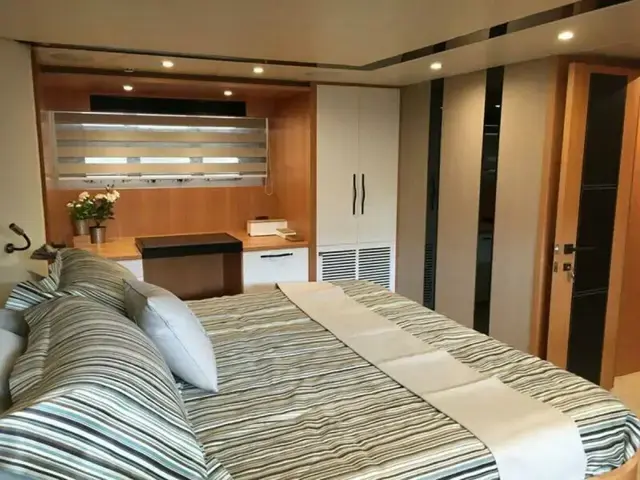

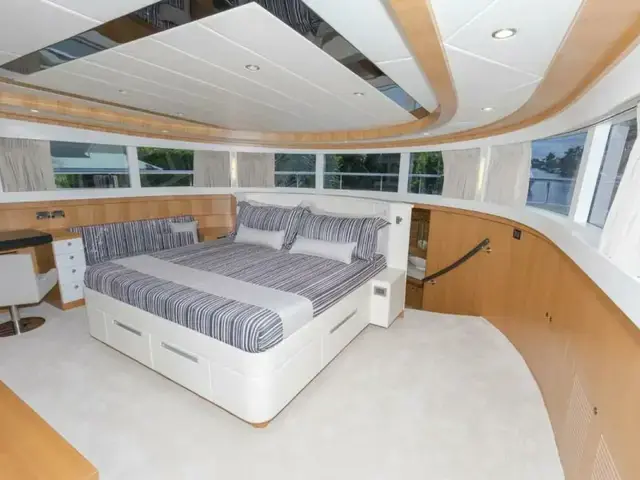

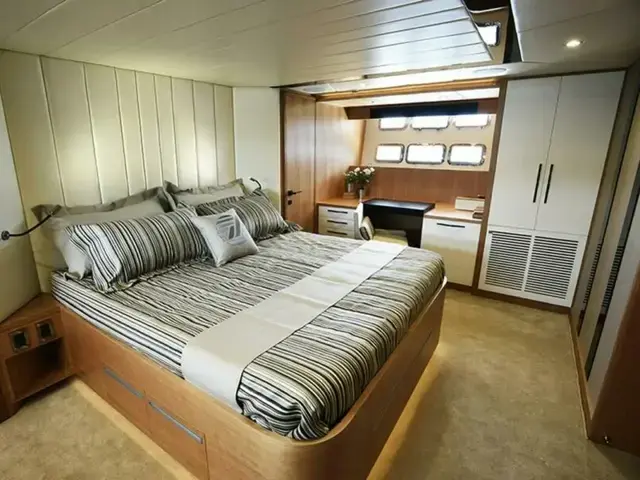

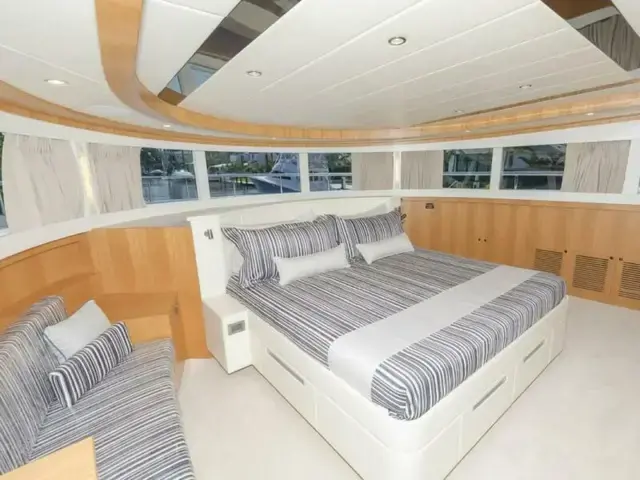

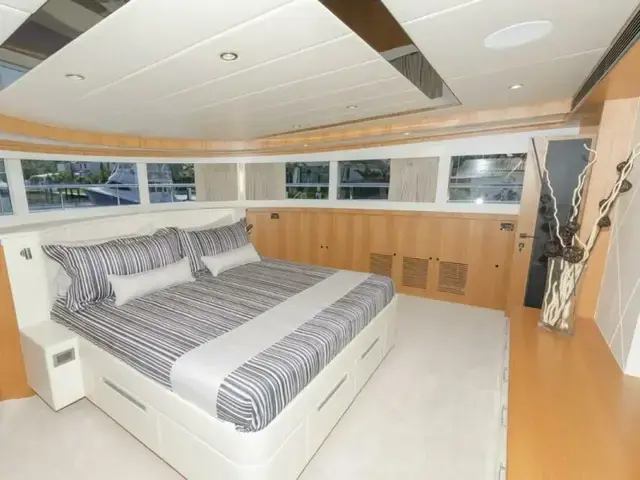

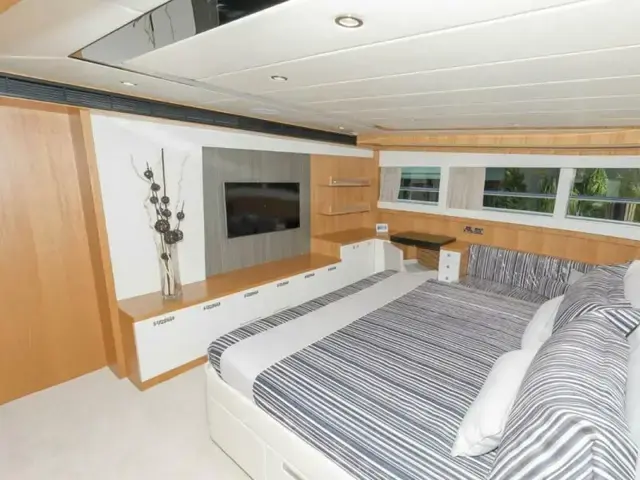

• King size bed in master stateroom
• Upholstered headboard for master stateroom, VIP stateroom and guest cabins
• Wood or upholstered bed frames in all cabins
• Hanging lockers in all staterooms
• Quick KAI XP-LP 4W LED ceiling lightings
• Indirect LED lighting system under bed and valances
• 24V Reading lights in each cabin

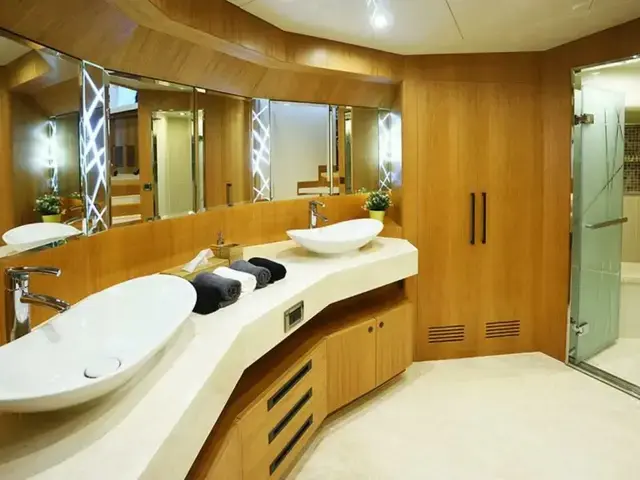

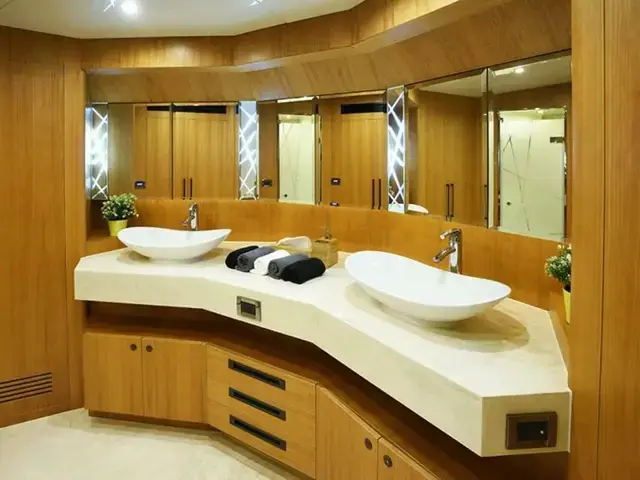

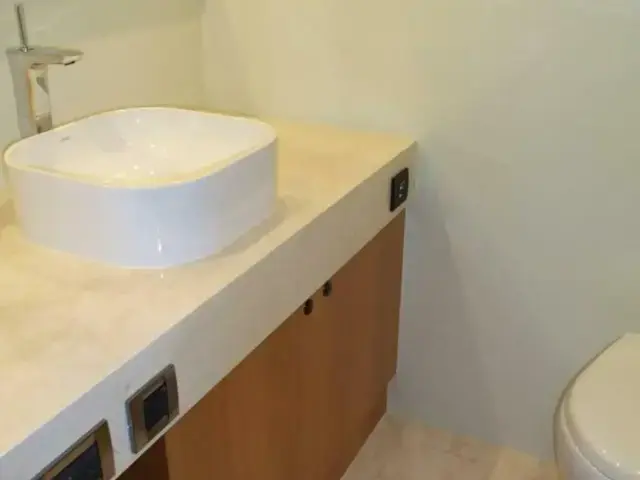

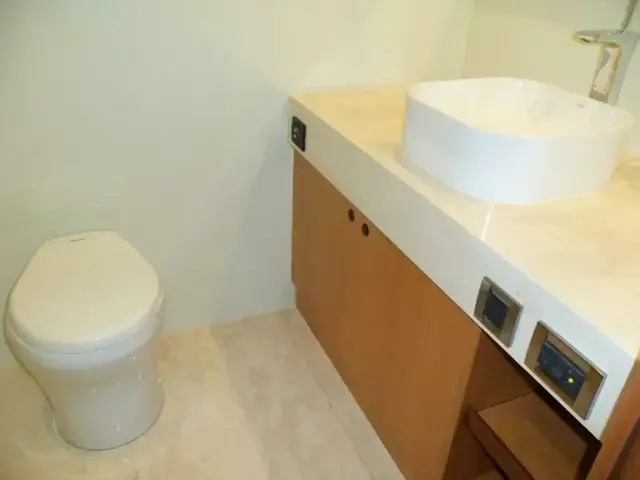

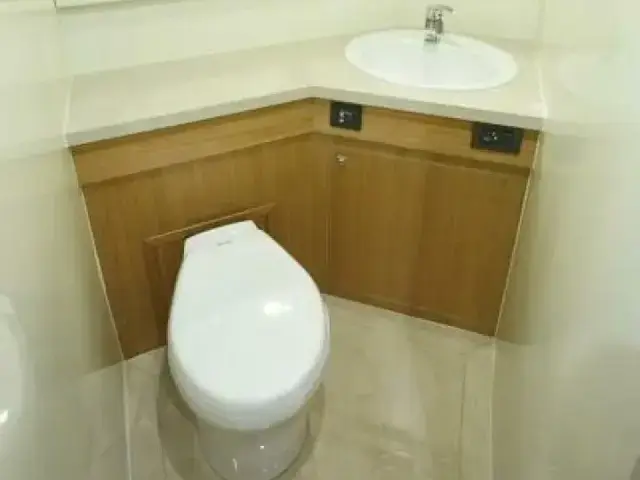

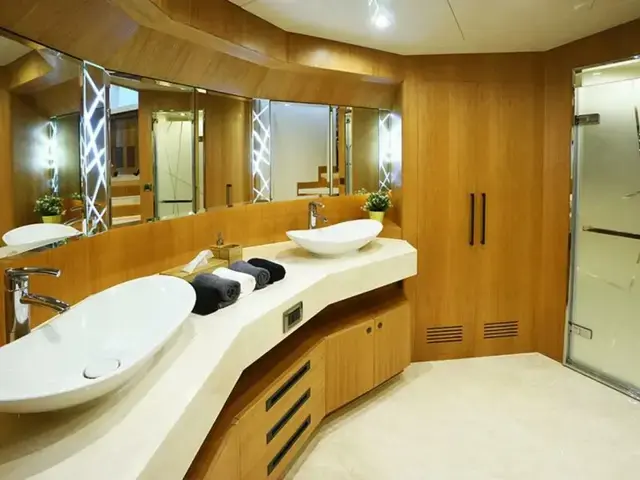

• Choice of marble/granite/mosaic/glass/quartz stone for countertop and backsplash in all heads from shipyard collection
• Choice of marble/granite/wood floor in all heads from shipyard collection
• Glass/dishes/plate holders if sample provided
• Grohe faucets, towel bars, towel rings cup/brush/soap holders, toilet roll holders in all heads.
• Toto or equivalent basins
• Lacquer finish above basin countertop
• Wood finish below basin countertop
• Exhaust blower for each head

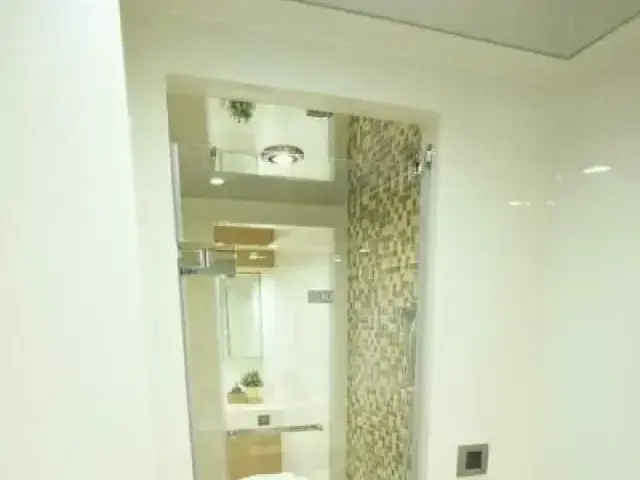

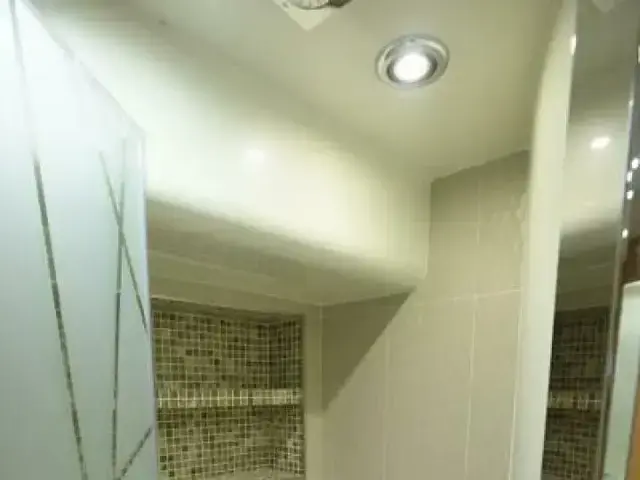

• Standard choices of mosaic finish for all shower walls except for crew which is to be finished in lacquer
• Mirror and mirror ceiling for all heads

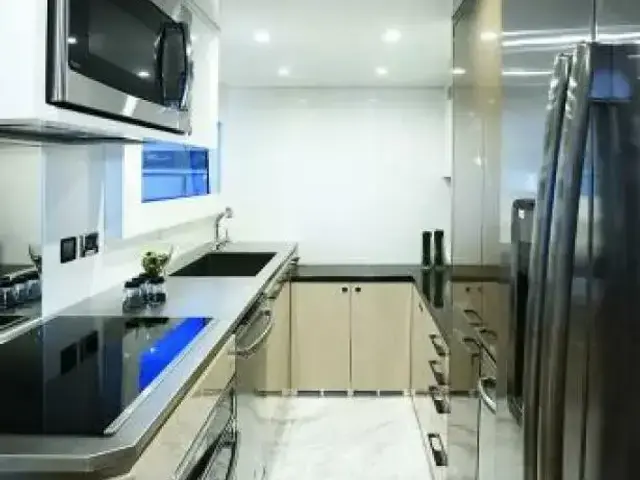

Appliances

• GE latest model refrigerator
• GE PDT720SSHSS dishwasher
• GE PVM9179SFSSI microwave
• GE PP9030SJSS cook top
• Stainless steel sinks per layout

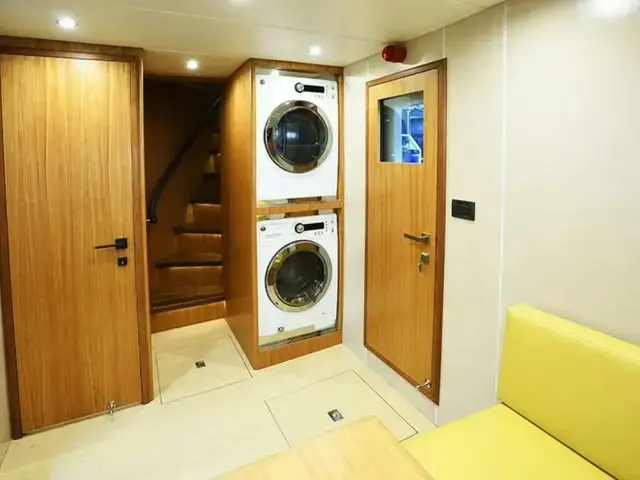

• GE WCVH4800KWW washer
• GE DCVH480EKWW dryer
• GE PT7050SFSS oven
• GE GCGI580RSS trash compactor
• GE 7N35AA6AJOOOO wine cooler
• Crew's galley: GE microwave, Isotherm refrigerator

Stereo System

• TV antenna on top of radar arch
• Wi-Fi booster system with wireless routers onboard
• Flybridge- (1) Fusion marine stereo and (4) speakers
• Saloon POP-UP VIZIO 50" LDC TV with Bose Lifestyle home entertainment system and separate Blu-ray disc player
• Master Stateroom VIZION 43" LDC TV with Fusion marine stereo system
• VIP stateroom VIZIO 32" LCD TV with Fusion marine stereo system
• Guest stateroom VIZIO 28" LCD TV with Fusion marine system
• Exterior connector for shore phone and cable TV

Comments

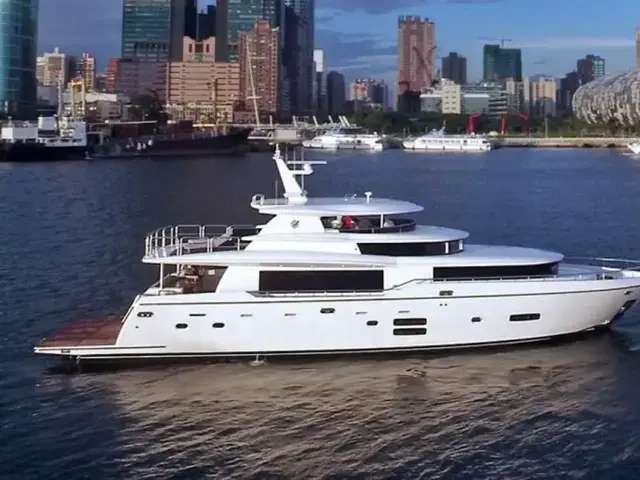

JOHNSON 93' OPEN FLYBRIDGE (New Construction)

Please note, this is a new construction project. The hull and deck are complete waiting for Buyer's choice of customization. Completion time is approximately 14 months depending on other yard projects.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!

** OPTIONS UPON REQUEST **

** ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

Price FOB Taiwan and includes U.S. Duty and Pre-Delivery Commissioning

The layout drawing reflects the newly available large hull side windows with opening portholes.

Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.

Custom Disclaimer

The company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change or withdrawal without notice.

Not included are pieces of free standing furniture and lamps, special designer-specified lighting, art work, cooking utensils, cutlery and flatware, soft goods and the design fees attendant to personalizing the owner's interior arrangement plan and design.

Performance statistics, weight, draft, freeboard and height are estimated only and are not warranted, and actual figures will vary depending on tolerances achieved during the vessel's construction process and the equipment, supplies and stores on board, as well as operational and sea conditions. Johnson Yachts reserves the right to substitute equipment and materials stated herein to others which it believes to be of equal or superior quality and to make such design and dimensional changes as it believes are necessary to improve the vessel's performance and function. Special treatment of interior fit-out and/or use of non-standard soft furnishings required by the purchaser may be subject to additional charges.
