Johnson 93 Sky Lounge for sale in Kaohsiung, Taiwan

JOHNSON 93' SKYLOUNGE w/ON DECK MASTER

New build project. Hull and deck are completed in the molds and waiting for Buyer's choice of customization. Completion time is approximately 14 months depending on other yard projects.

Listing broker has a list of popular options and prices, however, the standard equipment list above is very complete!

** OPTIONS UPON REQUEST **

** ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.

• MAIN DECK-TEAK 14MM
• HIGH BULWARK W/FLUSH MOUNTED LED DECK LIGHTS, TWO REAR BULWARK SIDE DOORS FOR BOARDING (ONE BOARDING GATE ON EACH SIDE)
• STAINLESS STEEL INTEGRAL ROLLERS & CHAIN STOPPER FOR DUAL ANCHOR CHAIN
• VERTICAL ELECTRIC ANCHOR WINCHES x 2 - MAXWELL VWC4000BB/HYD VERTICAL HYDRAULIC WINDLASS, DUAL DIRECTION, CHROMED, MATCHED PAIR, WITH CHAIN WHEEL 5437/016 (1/2”HT) AND PARTS: 2 x AA560 ROPE/CHAIN COUNTER/REMOTE CONTROL (1 at PH and 1 at FB), 1 x BAND BRAKE, 1 x CHAIN ROLLER STOPPER TENSIONER, 1 x HAND HELD REMOTE CONTROL
• AFT DECK MOORING CAPSTAN x 2 SETS - MAXWELL VC2500W/D VERTICAL ELECTRIC CAPSTAN, WIDE DRUM SINGLE DIRECTION, 24VDC, CHROMED, AND PARTS: 1 x FOOT SWITCH W/COVER, 1 x 80 AMP BREAKER PANEL, 1 x REVERSING SOLENOID PACKS, 24VDC
• STAINLESS STEEL 250 LB ANCHOR x 2
• HIGH TENSILE GALVANIZED ANCHOR CHAIN x 2 LEFT: 300 FEET (5/8”), RIGHT: 300 FEET (5/8”)
• FRESH WATER ANCHOR CHAIN WASH DOWN
• HEAVY DUTY S/S 3” OVAL HANDRAIL WITH 1 1/2” STANCHIONS
• S/S FLAGPOLE ON BOW RAIL
• BOW STORAGE LOCKER FOR FENDERS AND ANCHOR CHAINS
• HEAVY DUTY 316# STAINLESS STEEL TWIN CLEATS AND FAIRLEADS WITH ROLLERS
• BLACK TEMPERED SAFETY GLASS (EXCEPT 5 WINDOWS IN FRONT OF PILOT HOUSE)
• STAINLESS STEEL PNEUMATIC SALOON SLIDING DOOR WITH BUTTON AND SAFETY SENSOR DEVICE
• TWO PANTOGRAPH SIDE DOORS (PORT SIDE & STARBOARD SIDE) IN DECK HOUSE
• STAINLESS STEEL PORTHOLES ALL WITH BLACKOUT SHIELDS
• BUILT-IN HOT & COLD WATER SHOWER – SWIM PLATFORM SSISTOWAWAY SHOWER UNIT WHITE x 1 SET
• LARGE TEAK INLAY SWIM PLATFORM WITH STAIRWAYS TO AFT DECK
• FRP “U” SHAPE SEATING ON AFT DECK WITH CUSHION AND COVERS
• AFT DECK CUSTOM SLIDING HIGH-LOW TABLE WITH COMPASS INLAY x 2
• FRP STORAGE CABINET ABOVE RUDDER IN THE LAZARETTE
• ANTI-FOULING BOTTOM PAINT SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK OR 3430 DARK BLUE
• SINGLE BOOT STRIPE COLOR: BLACK
• S/S HANDRAILS ON AFT DECK STAIRS WITH TWO INTERMEDIATE RAILS
• LED FLOOD LIGHT ON THE END OF AFT DECK CEILING x 2
• EXTERIOR STEP LIGHTS - IMTRA KODIAK BLUE LED S/S 24V
• RUB RAIL WITH S/S CAP ON LOWER AFT HULL SIDES
• SOLID STAINLESS STEEL RUB RAIL AROUND HULL/DECK JOINT
• ZINC ANODES ON TRANSOM, SHAFT AND BOW AND STERN THRUSTER
• FRESH WATER WASH DOWN SPIGOTS ON THE BOW AND AFT DECK - SCANDVIK 10187 S/S
• AFT DECK REFRIGERATOR - U-LINE WH95TP-20 110V/60HZ
• DECK WASHDOWN, SALT WATER FLOJETL WATER PUMP 24V w/NOZZLE x 1
• HYDRAULIC SWIMMING PLATFORM (BESENZONI PL850 OR EQUIVALENT W/ 1873 LBS. LIFTING CAPACITY
• LADDER, SIDE RAILS + SUN PADS ON MASTER COACH ROOF
• WATER FILL DECK FITTING x 1
• DIESEL FILL DECK FITTING x 4

• TEAK FLOOR WITH 14 MM TEAK AND HOLLY WITH MATT FINISH
• FRP RADAR ARACH, MAST, AND WINGS
• TEAK TREAD STAIRWAY FROM AFT DECK TO FLYBRIDGE WITH HAND RAILS AND LED STEP LIGHTS
• AIR HORN BUELL S/S AIR HORN COMPRISING: 1 XV TANK MOUNTED COMPRESSOR, 1 X 1062 12” STROMBOS AIR HORN, 1 X 1063 15” STROMBOS AIR HORN, 1 X 1064 18” STROMBOS AIR HORN
• CUSTOM WALK BEHIND WET BAR REGRIGERATOR/ICEMAKER: ULINE LATEST MODEL 110V/60 HZ, MICROWAVE: GE LATEST MODEL, FAUCET: GROHE, SINK, 3 x BAR STOOLS, GRANITE TOP
• WOOD/ UPOLSTERED SETTEE + COFFEE TABLE
• S/S FLAG STAFF ON REAR OF FLYBRIDGE
• HELM SEAT PORT SIDE: AIRTEX HELM SEAT X 2
• HIGH QUALITY ARITEX S/S GAS BBQ
• S/S HATCH ON F/B DECK STEP OPENING
• OVERSIZE DRAINS W/STRAINERS AT EACH CORNER OF FLY BRIDGE DECK WITH INTERNAL OVERBOARD DRAINS
• CUSTOM LIFERAFT BRACKET ON THE OUTBOARD X 2 LIFERAFTS OWNER SUPPLIED
• SEARCH LIGHT, DUAL STATION ACR RCL100 24V
• CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
• GARMIN GPSMAP® 8215 FULLY INTEGRATED MULTITOUCH MFD x 2, GMI 20 MARINE INSTRUMENT DISPLAY x 1, GMR™ 404 XHD OPEN ARRAY RADAR AND 4KW PEDESTAL x 1, GARMIN VHF 200 MARINE RADIO x 1, GARMIN AIS 600 CLASS B TRANSCEIVER x 1, GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1, GARMIN GSD 24 MARINE NETWORK SOUNDER 2KW x 1
• RAYMARINE RAYMARINE A125 MULTIFUNCTIONAL DISPLAY WITH WIFI x 2, RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1, RAYMARINE 48” HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1, RAYMARINE RAY218E VHF RADIO x 1, RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1, RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU400 ACTUATOR CONTROL UNIT x 1, RAYMARINE CP100 DOWNVISION FISHFINDER x 1
• STABILIZER CONTROL AND MONITORING DISPLAY
• BOW & STERN THRUSTER CONTROL PANEL
• CCTV SYSTEM WITH 8 CHANNEL NETWORK DVR, 5 CAMERAS WITH 2 IN THE ENGINE ROOM AND 2 ON AFT DECK, AND ONE ON FOREDECK FACING WINCH
• RUDDER INDICATOR
• FUEL GAUGE HEADHUNTER TS3000 SERIES
• DANFORTH 5" MAGNETIC COMPASS x 1
• FUSION STEREO SYSTEM, FLYBRIDGE, AFT DECK MSAV700I DVD / RECEIVER–WITH FUSION LINK, MSCL602 6” MARINE CEILING MOUNT SPEAKERS x 4, MSBT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• POP UP TV CABINET W/ 32" LCD TV
• APPLE TV
• LOW LEVEL COURTESY LED LIGHTS 24V
• INTERNATIONAL NAVIGATION LIGHTS & CONTROLLER ALL LED AQUASIGNAL ONE SET (5), 3532003 #55 MASTHEAD LIGHT 24V, 3535103 #55 STARBOARD LIGHT 24V, 3534203 #55 PORT LIGHT 24V, 3533703 #55 STERN LIGHT 24V, 3531703 #55 ALLAROUND LIGHT 24V
• BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM W/ SPEAKERS
• PIONEER BDP160 BLURAY DISC PLAYER
• PNEUMATIC STAINLESS STEEL SKYLOUNGE SLIDING DOOR WITH BUTTON AND SAFETY SENSOR
• SIDE AND AFT BRIDGE RAIL STAINLESS STEEL
• S/S GRAB RAIL AROUND BAR UNIT
• INDIRECT LED LIGHTING UNDER WET BAR AND SEATING
• OVERHEAD LED LIGHTS
• INTERLOCKING HEADLINER
• DAYHEAD WITH TOILET AND WASH BASIN

• ENGINE CAT C32 ACERT 1925 HP X 2
• GEARBOX ZF2070A MARINE GEAR RATIO 2.467:1 RATIO x 2
• SOUNDOWN ENGINES MOUNTS TO REDUCE VIBRATION
• CAT ELECTRONIC ENGINE CONTROL SYSTEM, INCLUDING REMOTE STATION CONTROL & BACKUP SYSTEM FIXED STATIONS x 2 AT F/B; REMOTE CONTROL STATION x 2 IN THE AFT DECK PORT & STBD SIDE
• ENGINE FUEL FILTERS RACOR 75/1000MAX2 W/ALARM x 2
• GENERATOR FUEL FILTERS RACOR 75/500MAX2 W/ALARM x 2
• S/S SHAFTS AQUATECH 22 HIGH STRENGTH DIAMETER 4" x 2
• HIGH PERFORMANCE 5–BLADE PROPELLERS HUNG SHEN NIBRAL PROPS x 2
• MAIN & INTERMEDIATE BRONZE SHAFT STRUTS WITH BACKING PLATES
• SHAFT & RUDDER PACKING GLANDS WITH MAINTENANCE FREE TIDE STRONG SEALS TIDES MARINE RUDDER SEAL DIAMETER 3 1/2" & SHAFT SEAL DIAMETER 4"
• HYNAUTIC POWER STEERING SYSTEM WITH PTO ON BOTH ENGINES PSC2252212 DUAL STATION W/COOLING WATER FLOW DETECTOR
• SEA WATER STRAINERS FOR ENGINE, GENERATORS, AIR CONDITIONER AND WATER MAKER
• SEA COCKS ON ALL UNDERWATER FITTINGS
• S/S EMERGENCY TILLER
• S/S RUDDERS DIAMETER 31/2"
• HEAVY DUTY S/S WIPERS WITH VARIABLE SPEED CONTROLS & SCREEN WASHER SYSTEM EXALTO 24V x 4, PILOTHOUSE AND SKYLOUNGE
• HYDRAULIC BOW/ STERN THRUSTER WITH CENTRAL HYDRAULIC SYSTEM
• "AT REST" HYDRAULIC STABILIZER SYSTEM
• STEERING WHEELS AT P/H & F/B S/S 22” DIAMETER x 2
• UNDERWATER EXHAUST WITH BYPASS

• WELL PLANNED, SPACIOUS E/R WITH REMOVABLE NIDACORE DECK PLATES
• VAN CAPPELLEN CONSULTANCY DESIGN SOUND INSULATED MATERIALS
• WATER TIGHT BULKHEAD UP TO ENTRANCE DOOR
• FULL LENGTH S/S GRAB RAIL ON EACH SIDE OF ENGINE
• E/R AC LED LIGHTS & DC LED DOME LIGHTS
• ENGINE COMPARTMENT BLOWER & MOISTURE ELIMINATOR DELTA "T" BLOWERS WITH 600P/T4 CONTROL SYSTEM, ADJUSTABLE SPEED DRIVE AND COLOR TOUCH SCREEN /8 INTAKE FAN W/DAMPER, AXIAL. 21 IN. x 2 SETS /8 EXHAUST FAN W/DAMPER, AXIAL. 15 IN. x 2 SETS
• AUTOMATIC FIRE EXTINGUISHING SYSTEM W/AUTOMATIC ENGINES & VENTILATION SHUTDOWN SEAFIRE FM200 24V SEAFIRE FIRE DETECTION & MONITORING SYSTEM THROUGOUT THE BOAT
• ENGINE ALARM SYSTEM FOR LOW OIL PRESSURE & HIGH WATER TEMPERATURE
• HIGH VOLUME AC FRESH WATER PRESSURE PUMP & ONE DC PUMP FOR BACK UP HEADHUNTER XR124 1224VDC x 1, HEADHUNTER M5230 MACH 5 230VAC x 2
• CHILLED WATER AIR CONDITIONING UNITS LOCATED IN ENGINE ROOM CRUISAIR CHILLED WATER AIR CONDITIONING 230V/60HZ W/SMXHT DIGITAL CONTROL AIR COMPRESSOR: TWCV60C WITH SMART START (60000 BTU) x 3 AIR HANDLER: SALOON: 24000 BTU/HR x 2, GALLEY: 18000 BTU/HR x 1, KITCHEN: 12000 BTU/HR x 1, MASTER CABIN: 18000 BTU/HR x 2, MASTER BATHROOM: 9000 BTU/HR x 1, HALLWAY: 9000 BTU/HR x 1, AFT VIP CABIN/BATHROOM: 18000 BTU/HR x 1, PORT GUEST CABIN/BATHROOM: 9000 BTU/HR x 1, STBD GUEST CABIN/BATHROOM: 9000 BTU/HR x 1, SKYLOUNGE: 24000 BTU/HR x 2, LOWER HELM: 18000 BTU/HR x 1, CAPTAIN CABIN: 9000 BTU/HR x 1, CREW CABIN: 9000 BTU/HR x 1, CREW GALLEY: 9000 BTU/HR x 1
• ALUMINIUM & FRP FUEL TANKS W/ HEAD HUNTER FUEL GAUGE 723 GAL ALUMINIUM FUEL TANK x 2, 1,180 GAL FRP FUEL TANK x 1, 1,355 GAL FRP FUEL TANK x 1
• OIL CHANGE PUMP SYSTEM FOR ENGINES, GENERATORS AND CLUTCHES REVERSO OP704 24V x 1
• HEAVY DUTY ENGINE ROOM DOOR WITH VIEWING WINDOW
• MANUAL BILGE PUMP HENDERSON MK5 UNIVERSAL MOUNT PUMP x 1
• FUEL TRANSFER PUMP W/ MECHANICAL FLOW METER TUTHILL FR2410C 24V 1/4HP x 2, TUTHILL 9011 x 2
• S/S COVER OUTSIDE ENGINE EXHAUST
• FRESHWATER HOSE FOR FILLING ENGINE AND GENERATOR AND EXPANSION TANK IN ENGINE ROOM. BASIN: LP7000 x 1, TAP: SCANDVIK 10477 COMPACT MIXER WHITE x 1, SHOWER DRAIN: RULE 98 800GHP 24V x 1
• WATER MAKER SEA RECOVERY 1400GPD(ONE) COMPLETE PREFILTER, OIL/WATER SEPARATOR, CARBON FILTER, SRC FWF/AW AUTOMATICALLY RINSES WITH FRESH WATER
• WORK BENCH OVER THE ENGINE x 2

• 110/220 VOLT ELECTRICAL SUPPLY FROM GENERATOR OR SHORE POWER
• SHORE POWER INLET W/ RADIO REMOTE CONTROL IN THE TRANSOM GLENDINNING CABLE MASTER CM8 100AMP 24V WITH 100’ CABLE x 2, GLENDINNING RADIO REMOTE CONTROL TRANSMITTERS x 1
• INVERTER: MASTERVOLT MASS COMBI 24/4000100 x 1
• COLOR CODED WIRING FOR EASY IDENTIFICATION
• GENERATORS: NORTHERN LIGHTS GENERATOR 55 KW SINGLE PHASE,(60HZ); 110V/220V 60HZ x 2 INCLUDING STANDARD EQUIPMENT(CONTROL PANEL): SOUND SHIELD, WET EXHAUST MUFFLER, GAS/WATER SEPARATOR
• AUTOMATIC BATTERY CHARGER DOLPHIN 80 AMP 24V 115230V 50/60HZ x 2 FOR SERVICE BATTERIES, PROTECH 12V 30AMP x 1 FOR GEN BATTERIES
• BATTERY SWITCH (VAPOR PROOF) BEP 701MDO x 3
• 225 AMP/HR GEL CELL SEALED BATTERIES FOR SERVICE, ENGINES AND GENSETS SERVICE LIFELINE GPL8DL 255AMP x 4, ENGINE LIFELINE GPL8DL 255AMP x 4, GENSETS LIFELINE GPL8DL 255AMP x 2
• ALL BATTERIES ENCLOSED WITH FIBERGLASS BOXES AND COVERS
• MAIN ELECTRIC PANEL INCLUDES AC AND DC CIRCUIT BREAKERS
• 24 VOLT DC MONITORING AND MAIN CIRCUIT BREAKERS
• AC VOLT DUPLEX RECEPTACLES LOCATED THROUGHOUT INCLUDING ENGINE ROOM
• GFI PROTECTION FOR AC REQUIRED OUTLETS VIMAR 16511.16B 120V~60HZ
• AUTOMATIC ISOLATION & BOOSTING TRANSFORMER CHARLES 93ISOBOST 100 AMP x 2
• INDIRECT LED LIGHTING UNDER VALANCE IN SALOON, STATEROOMS, PILOTHOUSE, HAND RAILS, AND GALLEY
• COMPLETE ANTI ELECTROLYSIS BONDING SYSTEM VIA 2" COPPER STRAP AND HULL ANODES
• SHORE TELEPHONE INLET HUBELL PH6594TV x 1

• FWD 150 GALLON HOLDING TANK WITH MACERATOR PUMP & AFT 50 GALLON TANK WITH MACERATOR.
• WASTE TREATMENT SYSTEM IN ENGINE ROOM HAMANN SUPER MINI PLUS 230VAC x 1
• SUMP PUMPS FOR SHOWER RULE 12 24V/2000GPH x 3
• BILGE PUMPS RULE 16A 24V/3700GPH x 7
• FLOAT SWITCH LOWSUREBAIL 382251 x 6, HIGHSUREBAIL 382251 x 9
• MARINE GRADE LINES FOR FRESH WATER SYSTEM
• WATER HEATERS W/HOT WATER CIRCULATING PUMP WATER HEATER: TORRID MV40S 120V 1500W S/S 40 GALLONS x 2, HOT WATER CIRCULATING PUMP: GRUNDFOS UP1016B5/ATLC 115V/60HZ x1
• 634 GAL S/S WATER TANKS W/ HEADHUNTER TS3001B ELECTRIC WATER GAUGE
• PRESSURE STORAGE TANKS HEADHUNTER AVF4 4 GAL x 2, GROCO PST1 1 GAL x 1
• MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMISE NUMBER OF THRU HULL FITTINGS, IN BRONZE WITH BALL VALVES
• HIGH WATER BILGE ALARM SYSTEM 7 AREAS
• DOCKSIDE FRESH WATER INLET PAR JABSCO x 1
• COLOR CODED PIPING SYSTEM FOR EASY IDENTIFICATION
• BRONZE INTAKE VALVES (BALL). ALL THRU HULL FITTINGS ARE BRONZE
• 2HP AC FIRE PUMP WITH ONDECK FIRE HOSE
• BILGE EXHAUST VENTILATION PARV 3" FLANGEMOUNT BLOWER

• HIGH QUALITY FABRIC SOFAS
• INTERLOCKING VINYL CEILING PANELS THROUGHOUT
• HIGH QUALITY DOOR LOCK SETS THROUGHOUT HAFELESANDRA
• TGI LIGHTING SYSTEM THROUGHOUT TGI SP0101 (#3) / CHROME TRIM & WHITE COLOR
• ITALIAN SWITCH & OUTLETS THROUGHOUT VIMAR/ CHROME TRIM
• CHOICE OF FABRICS FOR BEDDING & CURTAINS
• INDIRECT LIGHTING SYSTEM THROUGHOUT, UNDER SOFAS, BEDS & CURTAIN VALANCES IMTRA LED ROPE LIGHTING 24V WARM WHITE
• INTERIOR STAIRWAYS WITH SAFETY LIGHT SYSTEM SEA WORLD 10435WW LED ROPE LIGHTING 24V WARM WHITE
• CEDAR LINED HANGING LOCKER CABINET W/LED LIGHT (SPK LEDCAchW24) IN EACH CABIN
• HIGH QUALITY OF SOUND INSULATION IN WALLS BETWEEN CABINS.
• CENTRAL VACUUM SYSTEM W/ OUTLETS NUTONE 110V/60 HZ x 1
• OPEN/CLOSE ELECTRIC CURTAIN IN SALOON & MASTER STATEROOMS
• CHROME COLOR BATHROOM FIXTURE THROUGHOUT

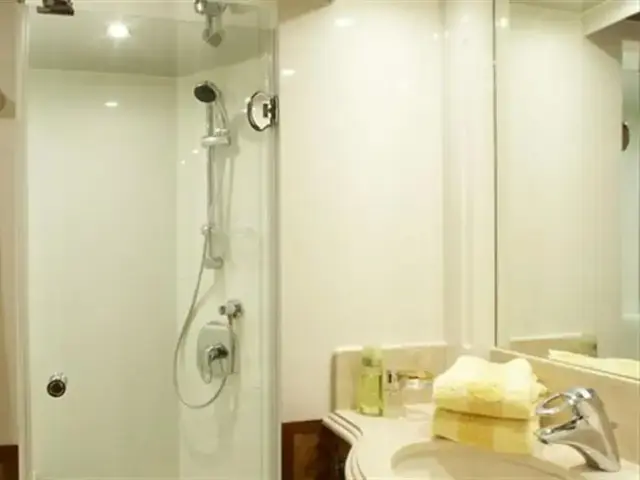

• FROSTED GLASS FOR SHOWER DOORS
• PAINTED SOJI SCREEN IN ALL STATEROOMS IN FRONT OF PORTHOLES

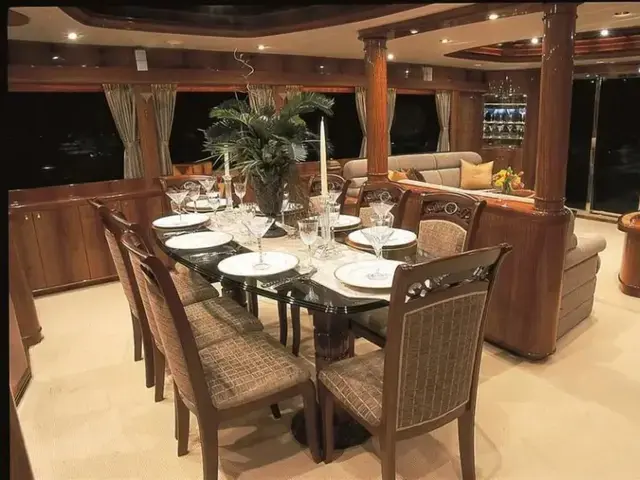

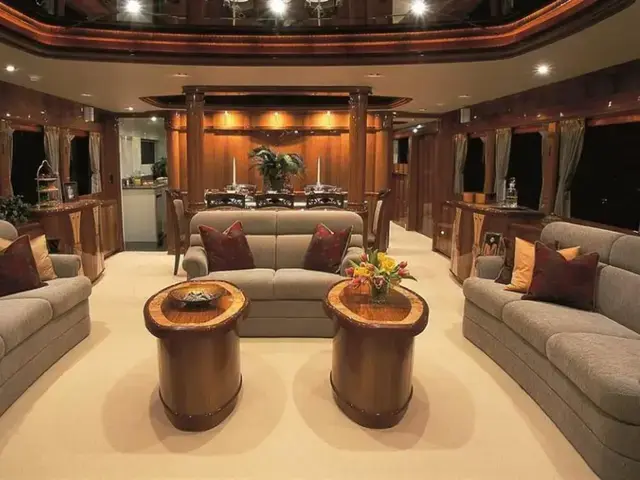

• SALOON: HIGH QUALITY CUSTOM BUILT UPHOLSTERED SOFA x 2, INTERLOCKING VINYL CEILING PANELS THROUGHOUT, S/S HIGH POLISH AIR DOOR, CUSTOM DESIGN DINING TABLE, CUSTOM DESIGN CEILING SOFFIT, CUSTOM DESIGN TV CABINET, HANGING CLOSET, BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM, SAMSUNG LCD 47” TV, PIONEER BLURAY DISC PLAYER, APPLE TV

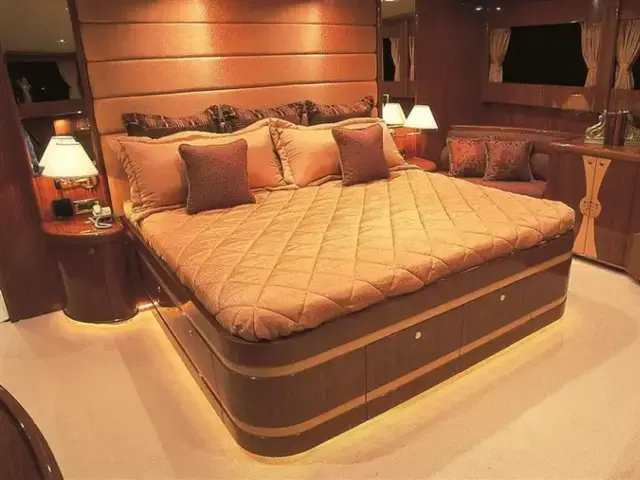

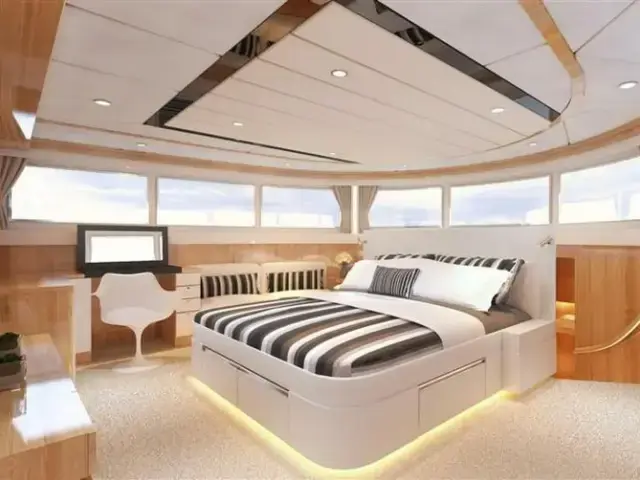

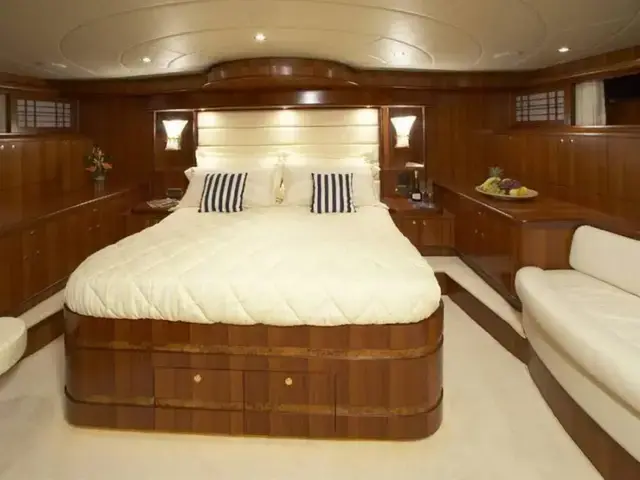

• MASTER CABIN: INTERLOCKING VINYL CEILING PANELS, KING SIZE BED, CUSTOM DESIGN HEADBOARD, CUSTOM STORAGE CABINETS, POWER CURTAINS, VANITY LIGHT: QUICK QBCOMPASS/CHROMED x 1, SIDE SOFA x 1, CEDAR LINED CLOSET, REFRIGERATOR: NORCOLD DE7040 24V, READING LIGHTS: QUICK DOMINIQUE 2235/CHROMED/SHADE LINEN/ B15D LED x 2, SAMSUNG LCD 47” TV, PIONEER BLURAY DISC PLAYER, APPLE TV, FUSION STEREO SYSTEM, MSRA205 RECEIVER / MEDIA PLAYER WITH FULL IPOD / IPHONE CONTROL, MSCL602 6" MARINE CEILING MOUNT SPEAKERS x 4, MSBT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• AFT VIP CABIN: INTERLOCKING VINYL CEILING PANELS, KING SIZE BED, CUSTOM DESIGN HEADBOARD AND CEILING, CUSTOM STORAGE CABINETS, VANITY LIGHT: QUICK QBCOMPASS/CHROMED x 1, CEDAR LINED CLOSET, READING LIGHTS: QUICK ISABELLA 1525/CHROMED/SHADE LINEN/ B15D LED x 2, SAMSUNG LCD 32" TV, APPLE TV, FUSION STEREO SYSTEM, MSAV600GDVD / RECEIVER–WITH FUSION LINK, MSCL602 6” MARINE CEILING MOUNT SPEAKERS x 4, MSBT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

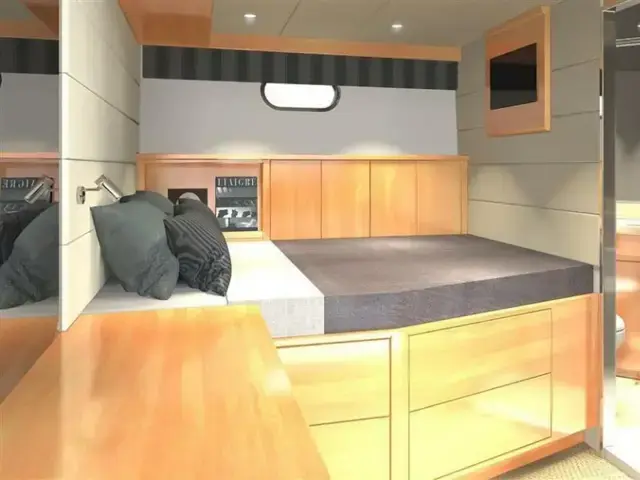

• PORT GUEST CABIN: INTERLOCKING VINYL CEILING PANELS, SLIDE TOGETHER TWIN BEDS FOR TWIN OR DOUBLE BED CONFIGURATION, CUSTOM DESIGN HEADBOARD AND CEILING, CUSTOM STORAGE CABINETS, VANITY LIGHT: QUICK QBCOMPASS/CHROMED x 1, CEDAR LINED CLOSET, READING LIGHTS QUICK ISABELLA 1525/CHROMED/SHADE LINEN/ B15D LED x 2, SAMSUNG LCD 32" TV, APPLE TV, FUSION STEREO SYSTEM, MSAV600G DVD / RECEIVER–WITH FUSION LINK, MSCL602 6” MARINE CEILING MOUNT SPEAKERS x 4, MSBT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• STBD GUEST CABIN: INTERLOCKING VINYL CEILING PANELS, SLIDE TOGETHER TWIN BEDS FOR TWIN OR DOUBLE BED CONFIGURATION, CUSTOM DESIGN HEADBOARD AND CEILING, CUSTOM STORAGE CABINETS, CEDAR LINED CLOSET, READING LIGHTS: QUICK MAYA 30 /CHROMED/ALUMINIUM x 2, SAMSUNG LCD 32” TV, APPLE TV, FUSION STEREO SYSTEM, MSAV600G DVD / RECEIVER–WITH FUSION LINK, MSCL602 6” MARINE CEILING MOUNT SPEAKERS x 4, MSBT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• CAPTAIN’S CABIN PORTSIDE: TEAK & HOLLY FLOORS, HANGING LOCKER, DOUBLE BED, DESK & READING LIGHTS, SAMSUNG LCD 24" TV, APPLE TV, FUSION STEREO SYSTEM, MSAV700I DVD / RECEIVER WITH FUSION LINK, MSCL602 6" MARINE CEILING MOUNT SPEAKERS x 4, MSBT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

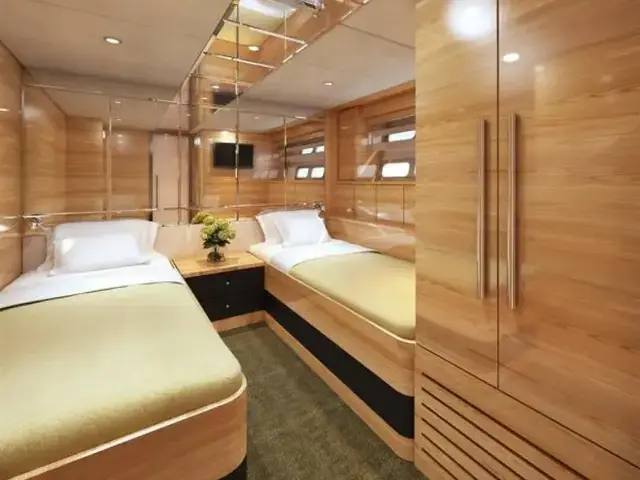

• CREW QUARTERS STBD SIDE: TWIN BEDS, READING LIGHTS, CREW’S GALLEY, REFRIGERATOR: ULINE CO29BTP20 BLK 110V/60 HZ, COOK TOP: SEAWARD SEWV/60HZ, MICROWAVE: GE LASTEST MODEL, WASHER: GE LASTEST MODEL, DRYER: GE LASTEST MODEL, 4 PERSON DINETTE, AUXILIARY ELECTRICAL PANEL, SAMSUNG LCD 24" TV, APPLE TV, FUSION STEREO SYSTEM, MSAV600G DVD / RECEIVER–WITH FUSION LINK, MSCL602 6" MARINE CEILING MOUNT SPEAKERS x 4, MSBT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

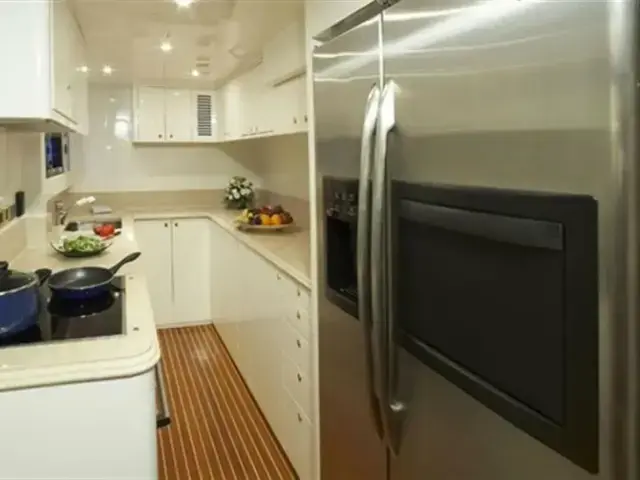

• TRASH COMPACTOR BROAN # 15SSEXF S/S
• COOKTOP GE LATEST MODEL
• DOWNDRAFT VENTILATOR GE LATEST MODEL W/ LIGHT
• DISHWASHER GE LATEST MODEL
• OVEN GE BUILTIN LATEST MODEL
• REFRIGERATOR + FREEZER GE LATEST MODELS
• MICROWAVE GE LATEST MODEL

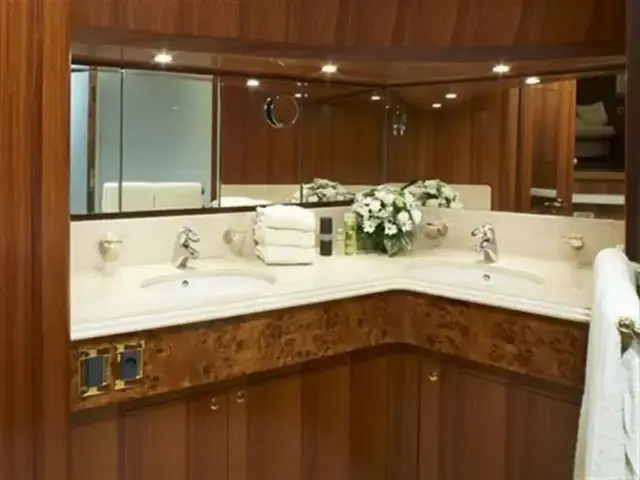

• MARBLE COUNTER TOP AND LACQUER FINISH IN ALL HEADS
• SEAMLESS POLYURETHANE FINISH IN ALL HEADS
• NONSLIDE MARBLE FLOORING SELECTED BY THE OWNER WITH HONEYCOMB BACKING
• SEALAND MASTERFLUSH 8600 SERIES TOILET SYSTEM IN EACH HEAD
• EXHAUST FANS IN EACH HEAD MANROSE BSL24C/24V
• MIRROR CEILING WITH WOOD BORDERS IN EACH HEAD
• SINKS WITH GROHE FAUCETS

• FLOOR: TEAK & HOLLY
• STAIRWAY: TEAK & HOLLY
• STAINLESS HANDRAIL OF STAIRWAY
• LEATHER SETTEE W/ WOOD TABLE
• HELM CHAIR BESENZONI P217 24V HELM SEAT x 1
• RUDDER INDICATOR VDOV x 1
• CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
• GARMIN GPSMAP® 8215 FULLY INTEGRATED MULTITOUCH MFD x 2, GMI 20 MARINE INSTRUMENT DISPLAY x 1, GMR™ 404 XHD OPEN ARRAY RADAR AND 4KW PEDESTAL x 1, GARMIN VHF 200 MARINE RADIO x 1, GARMIN AIS 600 CLASS B TRANSCEIVER x 1, GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1, GARMIN GSD 24 MARINE NETWORK SOUNDER 2KW x 1
• RAYMARINE RAYMARINE A125 MULTIFUNCTIONAL DISPLAY WITH WIFI x 2, RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1, RAYMARINE 48" HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1, RAYMARINE RAY218E VHF RADIO x 1, RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1, RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU400 ACTUATOR CONTROL UNIT x 1, RAYMARINE CP100 DOWNVISION FISHFINDER x 1

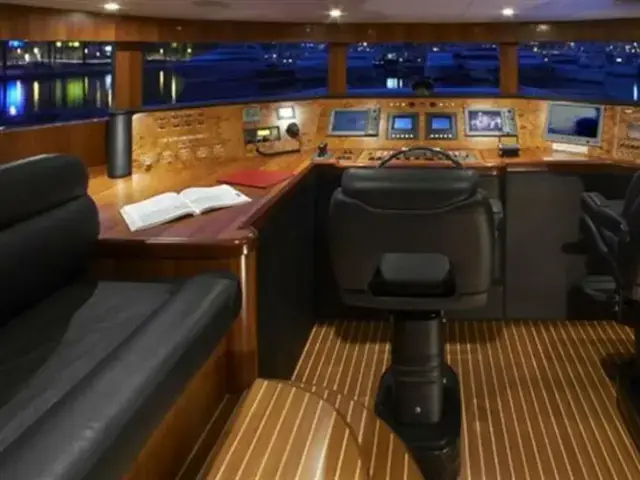

• INTEGRATED INSTRUMENT PANEL AT BOTH HELM STATIONS
• ENGINE CONSOLE WITH ALL GAUGES
• COMPASS DANFORTH 5" X 1

New build project. Hull and deck are completed in the molds and waiting for Buyer's choice of customization. Completion time is approximately 14 months depending on other yard projects.

Listing broker has a list of popular options and prices. The standard equipment list above is very complete.

** OPTIONS UPON REQUEST **

** ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

COMMENT

Since this is a new build offering, all photos are of previous projects. Exact layout, wood and stone selection are buyer's choice.
