Johnson 70 Open Flybridge for sale in Kaohsiung, Taiwan

New Construction Project

New construction project underway at Johnson Yachts.

An update to the popular 65' Johnson Motor Yacht, the 70' Johnson features four staterooms plus a new crew cabin aft of the engine room. Other important updates include a larger aft deck and flybridge plus a hydraulic tender platform which frees up additional flybridge deck area. Bold new hull windows update the new look. Available with or without a skylounge.

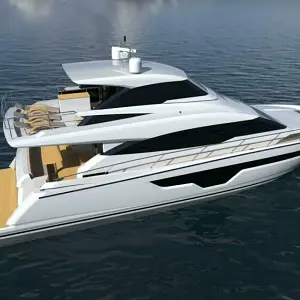

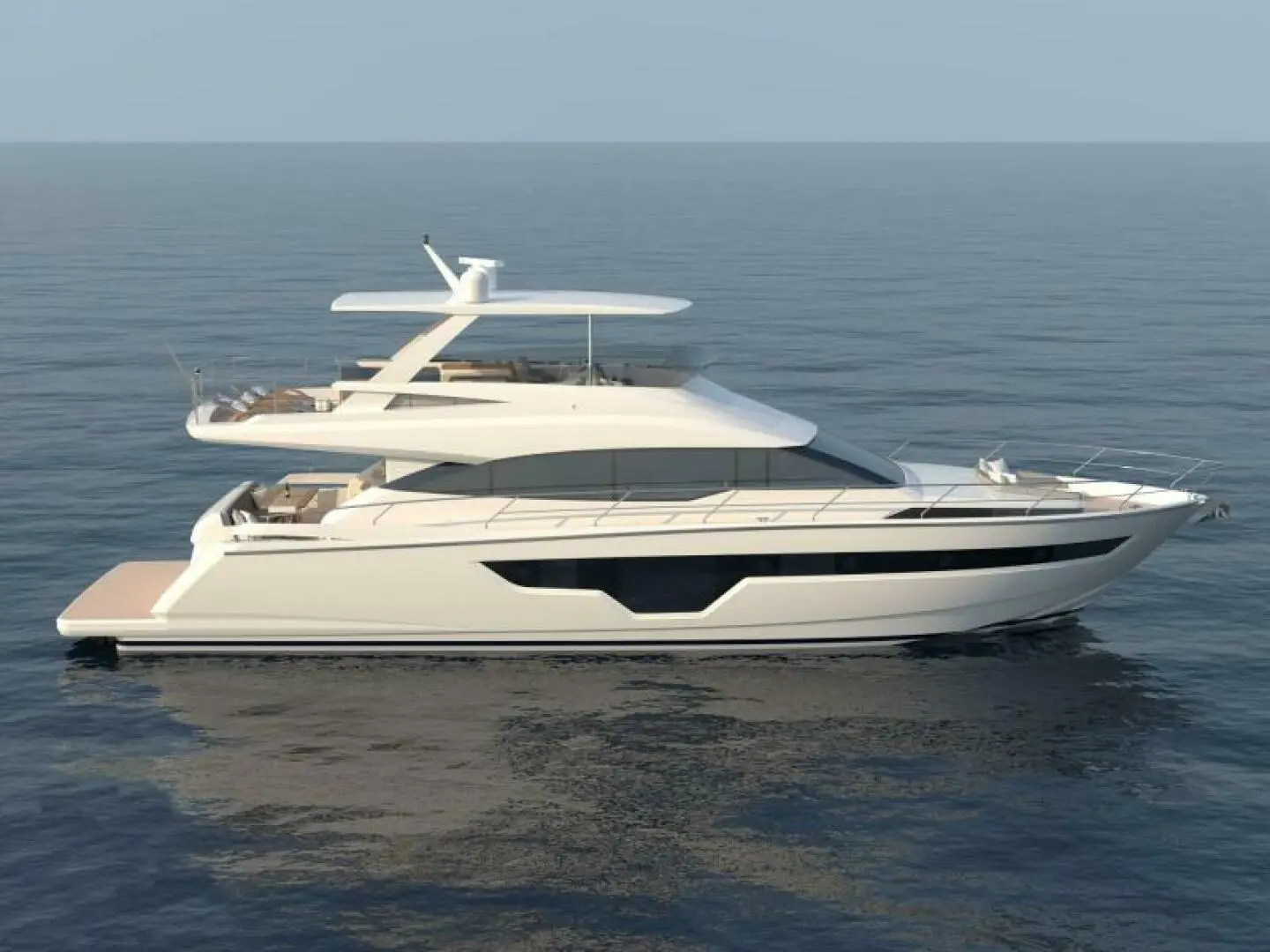

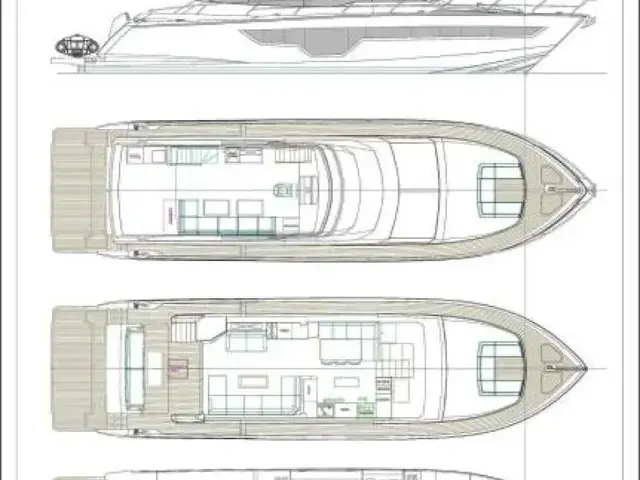

Since this is a New Build Project, all photos are actually renderings as per plans and drawings from DESIGN UNLIMITED, England.

** OPTIONS UPON REQUEST **

** ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

Accommodations

Accommodations: 4 double cabins with ensuites plus a new crew cabin aft of the engine room.

I. Hull & Deck - Exterior General

• MAIN DECK-TEAK
• STAINLESS STEEL INTEGRAL ROLLERS & CHAIN STOPPER FOR ANCHOR CHAIN
• 250 FEET GALVANIZED CHAIN (3/8")
• MAXWELL HYDRAULIC RC12-12 WINDLASS
• STAINLESS STEEL 120 LB ANCHOR (SINGLE)
• HEAVY DUTY 316# S/S HANDRAIL & STANCHIONS
• HEAVY DUTY 316# S/S CLEATS AND FAIRLEADS
• MEDIUM TINTED SAFETY GLASS
• PNEUMATIC STAINLESS STEEL SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS
• STAINLESS STEEL PORT LIGHTS
• S/S RUB RAIL W/RUBBER INSERT AROUND HULL & DECK JOINT
• STERN CAPSTAN 24V x 2 SETS - MAXWELL VC2500
• AFT DECK SEATING BUILT IN WITH CUSHIONS
• AFT DECK TABLE
• LED LOW LEVEL COURTESY LIGHTS ON SIDE DECK
• LED LOW LEVEL COURTESY LIGHTS ON AFT DECK
• STAIRS TO FLYBRIDGE
• LARGE TEAK INLAY SWIM PLATFORM WITH STAIRWAY TO AFT DECK
• HOT & COLD TRANSOM SHOWER
• S/S SWIMLADDER

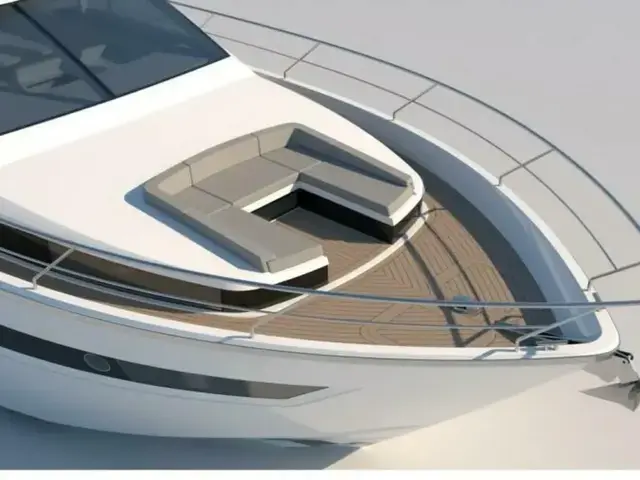

• SUN BATHING AREA ON FWD DECK
• WATER FILL DECK FITTING
• DIESEL FILL DECK FITTING
• FLOJETL DECK WASHDOWN PUMP
• FLOODLIGHT FOR COCKPIT - LED
• BESENZONI HYDRAULIC 24 V G304 DAVIT
• CANVAS COVERS FOR EXTERIOR SETTEE AND TABLES
• WATER RESISTANT SUN PAD ON BOW
• WHITE GEL COAT THROUGHOUT HULL

II. Underwater Gear

• 5 BLADE BRONZE PROPELLERS
• BRONZE P-BRACKETS
• S/S AQUATECH 22HS 3" DIAMETER SHAFTS
• SHAFT SEAL AND SHAFT LOG TIDES RUDDER SEAL 3"; TIDES SHAFT SEAL 3"
• ANTI-FOULING BOTTOM PAINT SEA HAWK PRIMER SYSTEMS TUFF STUFF 1284 GREY OR 1285 WHITE
• SEA HAWK SELF-POLISHING COPOLYMER ANTIFOULING CUKOTE 3445 BLACK OR 3430 DARK BLUE
• BOOT TOP STRIPE SIZE 3"; COLOR: BLACK, BLUE OR RED
• HUMPHREE INTERCEPTOR TRIM TABS H750 x 2
• FULL CATHODIC BONDING SYSTEM TO ZINC ANODES
• SEAWATER STRAINERS FOR ENGINES, GENSET AND AIR-CONDITIONING
• SEACOCKS ON ALL UNDERWATER FITTINGS
• UNDERWATER EXHAUST SYSTEM WITH BYPASS

III. Flybridge

• FRP NON-SKID DECK
• INSTRUMENT CONSOLE
• BUILT IN SEATING WITH CUSHION & HEIGHT ADJUSTABLE TABLE
• U-LINE COMBO REFRIG/ICE MAKER
• CHOICE OF (I) GARMIN OR (II) RAYMARINE NAVIGATION SYSTEM
• I. GARMIN
• GPSMAP® 8717 FULLY-INTEGRATED MULTI-TOUCH MFD x 2
• GMR FANTOM™ 4"/40w/72NM, SOLID-STATE, OPEN-ARRAY RADAR X1
• GARMIN VHF 200 MARINE RADIO x 1
• GARMIN AIS 600 CLASS B TRANSCEIVER x 1
• GHP™ 20 MARINE AUTOPILOT SYSTEM WITH SMARTPUMP x 1
• GARMIN GSD 25 MARINE NETWORK SOUNDER 2KW x 1
• II. RAYMARINE
• RAYMARINE GS15.4" GLASS BRIDGE MULTI-FUNCTIONAL DISPLAY WITH X2
• RAYMARINE I70 MULTIFUNCTION COLOR DISPLAY x 1
• RAYMARINE 48" HD COLOR OPEN ARRAY AND 4KW PEDESTAL x 1
• RAYMARINE RAY218E VHF RADIO x 1
• RAYMARINE AIS 650 CLASS B TRANSCEIVER x 1
• RAYMARINE EVOLUTION AUTOPILOT WITH P70R CONTROL HEAD & ACU-400 ACTUATOR CONTROL UNIT x 1
• RAYMARINE CP100 DOWNVISION FISHFINDER x 1
• RUDDER INDICATOR
• MAGNETIC COMPASS
• S/S GUARD RAILS AND GRAB RAILS
• SPEICH NAUTIC TYPE LP WIPERS x 2
• LOW LEVEL COURTESY LIGHTS 24V
• SEARCH LIGHT - PARV
• AIR HORN - BUELL
• BESENZONI P217 24V HELM SEAT x 1
• S/S STEERING WHEEL
• POP-UP TV CABINET WITH VIZIO M322I-B1 32" 1080P LED LCD HDTV
• FUSION STEREO SYSTEM
• MS-AV700I DVD / RECEIVER – WITH FUSION LINK.
• MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
• MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• APPLE TV
• C-ZONE AC/DC MONITORING SYSTEM
• CCTV SYSTEM WITH 4 CAMERAS (ENGINE ROOM, SALOON DOOR, AFT DECK PORT & STBD)
• ONE SHIPSET LED NAVIGATION LIGHTS

IV. Engine Propulsion & E/R Equipments

• CATERPILLAR C-18 ACERT 1015HP ENGINES x 2 WITH ZF 550IV GEAR BOXES
• ENGINE RACOR DUAL FUEL FILTERS
• GENERATOR RACOR FILTER
• SOUNDPROOFING THROUGHOUT ENGINE ROOM
• WELL PLANNED, SPACIOUS E/R WITH DIAMOND PATTERN DECK PLATES
• FUEL TANKS WITH BEP ELECTRIC SENDING UNITS
• AUTOMATIC SEA-FIRE FIRE EXTINGUISHER SYSTEM
• ENGINE ROOM AIR INTAKE SYSTEM
• E/R AC FLOURESCENT LIGHTS & DC DOME LIGHTS
• RULE 3700 GPH AUTOMATIC BILGE PUMPS x 2
• HENDERSON BP0510 MANUAL BILGE PUMP
• HIGH VOLUME AC F.W. PRESSURE PUMP AND ONE 24V DC PUMP FOR BACK UP
• HEADHUNTER MARCH 5 M5-115 AC PUMP
• GROCO PSRV DC PUMP
• CHILLED WATER AIR CONDITIONING
• CRUISAIR AIR CONDITIONING WITH 48000 BTU COMPRESSOR x 2
• SEA RECOVERY 700GPD WATER MAKER x 1
• OIL CHANGING PUMP FOR ENGINES, GENERATOR AND CLUTCHES
• GENERATOR - ONAN MDKDS 29 KW 60HZ x 1
• WATER HEATERS - SEAWARD HF2250 20 GALLONS x 2

Steering System

Joystick Control

V. Electrical

• 110V/220 AC ELECTRICAL SYSTEM
• DC 24V SYSTEM
• 70’ GLENDINNING CABLE MASTER CM7 50A x 2
• BATTERY CHARGER FOR 24V CIRCUIT
• BATTERY CHARGER FOR 12V CIRCUIT
• ALTERNATOR SPLIT CHARGING SYSTEM
• 255AMP/HR GELL CELL SEALED BATTERIES FOR SHIP SERVICE x 4
• 255AMP/HR GELL CELL SEALED BATTERIES FOR ENGINES x 4
• 210AMP/HR GELL CELL SEALED BATTERIES FOR GENSET x 1
• AC SOCKETS THROUGHOUT THE BOAT
• GFI PROTECTION FOR AC REQUIRED SOCKETS
• BATTERY SELECTOR SWITCH
• MAIN ELECTRICAL PANEL INCLUDES AC & DC CIRCUIT BREAKERS
• AUTOMATIC ISOLATING & BOOSTER TRANSFORMER 50AMP x 2
• ANTI ELECTROLYSIS BONDING SYSTEM
• 4KW INVERTER x 1

VI. Mechanical and Plumbing System

• HOLDING TANK WITH MACERATOR PUMP
• HOLDING TANK LEVEL INDICATOR
• SUMP PUMP FOR SHOWERS
• MARINE GRADE LINES FOR FRESH WATER SYSTEM
• S/S WATER TANK WITH SENDING UNIT 260 GALLONS
• ALUMINUM FUEL TANK WITH SENDING UNIT 920 GALLONS
• SIGHT GAUGES FOR FUEL AND WATER TANKS
• DOCKSIDE FRESH WATER INLET
• COLOR CODED PIPING FOR EASY IDENTIFICATION
• BRONZE INTAKE VALVES FOR ALL THRU-HULL FITTINGS
• MANIFOLD FOR OVERBOARD DISCHARGES TO MINIMIZE NUMBER OF THRU-HULL FITTINGS
• SEALAND FRESH WATER VACUUM TOILET SYSTEM
• HIGH WATER BILGE ALARM SYSTEM X 6 AREAS
• RULE 3700 BILGE PUMP 24V x 6
• BOW & STERN HYDRAULIC THRUSTERS
• "AT REST" STABILIZERS

VII. Interior Finish

• INTERIOR JOINERY IN CHERRY AND IVORY LACQUER WITH ANDARI COLLECTION OF UPHOLSTERY FABRICS
• OWNERS CHOICE OF MARBLE SHOWER FLOOR AND MARBLE COUNTERTOPS

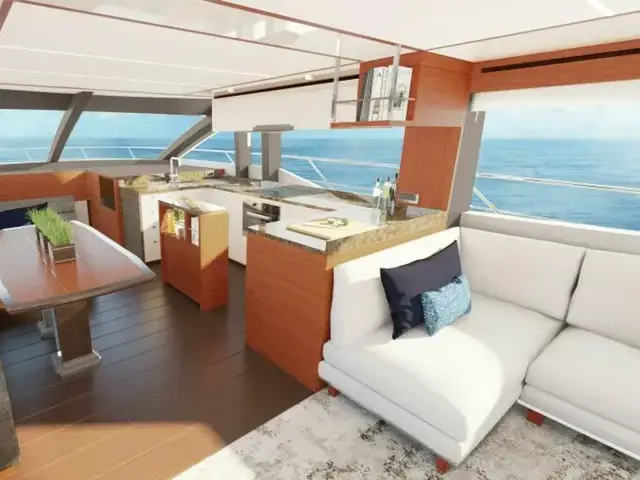

VIII. Galley

• SUB-ZERO ID-24R DRAWER TYPE REFRIGERATOR
• SUB-ZERO ID-24FI DRAWER TYPE FREEZER
• S/S SINK
• HOT AND COLD WATER SYSTEM
• FISHER & PAYKEL LATEST MODEL DISHWASHER x 1
• DOUBLE AC SOCKETS x 2
• CUPBOARD, DRAWERS AND STOWAGE
• GE LATEST MODEL MICROWAVE WITH EXTRACTOR FAN
• GE LATEST MODEL TRASH COMPACTOR
• TEAK SOLE
• ESCAPE POWER WINDOW
• MIELE LATEST MODEL 4 BURNER COOKTOP

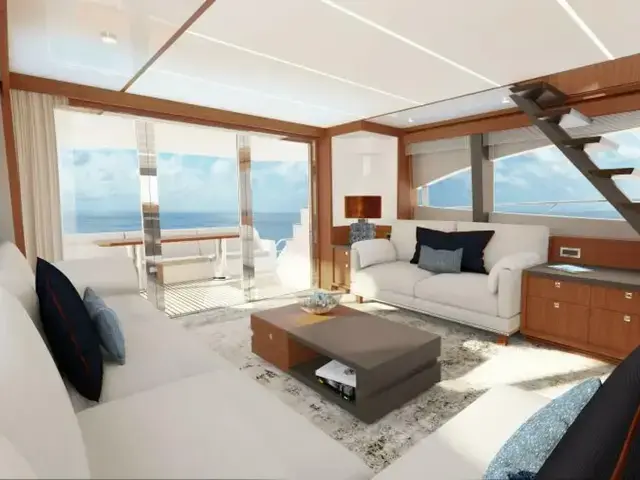

IX. Saloon

• PNEUMATIC S/S SALOON SLIDING DOOR WITH PUSH BUTTON AND SAFETY SENSORS
• VIZIO M471i-A2 47" TV
• BOSE LIFESTYLE 535 SERIES III HOME THEATER SYSTEM
• PIONEER BDP-160 BLU-RAY DISC PLAYER
• APPLE TV
• HIGH QUALITY LEATHER COUCH IN LOWER SALOON & DINING AREA
• BLINDS, CURTAINS
• LOW LEVEL LIGHTS 24V
• CEILING LED LIGHTING 24V
• COFFEE TABLE
• INDIRECT LED LIGHTING
• U-LINE LATEST MODEL WINE COOLER
• SPLENDID LATEST MODEL WASHER
• SPLENDID LATEST MODEL DRYER

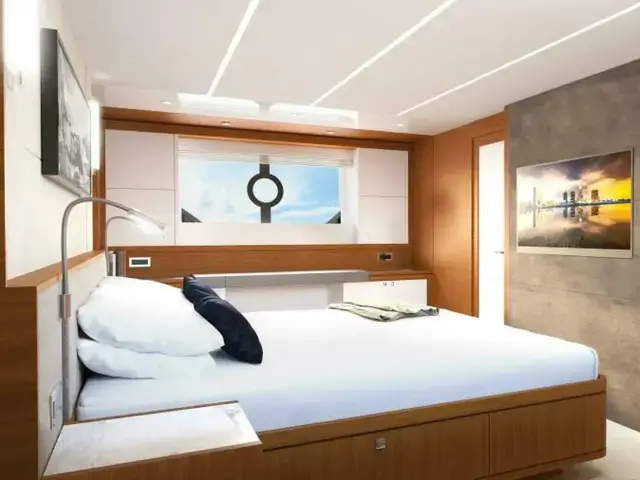

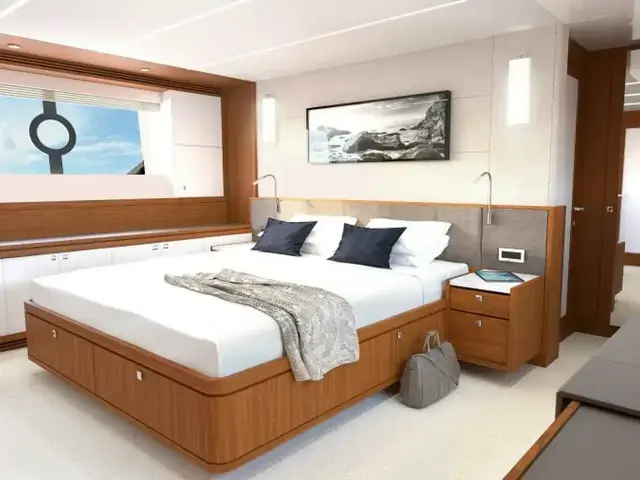

X. Master Stateroom

• KING SIZE BERTH
• STORAGE BENEATH
• DRAWERS IN BASE OF BERTH
• VANITY
• LED CEILING LIGHTING 24V
• CANTALUPI MILOS/CHROME/MATT NICKLE LED READING LIGHTS 110 VAC x 2
• TWO LARGE RECTANGULAR PORTLIGHT WINDOWS ON EACH SIDE W/CENTER PIECE OPENABLE
• VIZIO M322I-B1 32" 1080P LED LCD HDTV
• FUSION STEREO SYSTEM
• MS-RA205 RECEIVER / MEDIA PLAYER WITH FULL IPOD / IPHONE CONTROL
• MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
• MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• SONY BDP-S360 BLU-RAY DISC PLAYER
• APPLE TV
• WALK-IN CLOSET

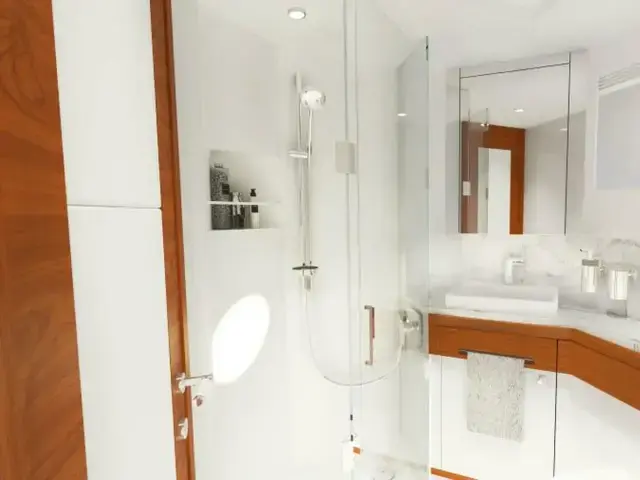

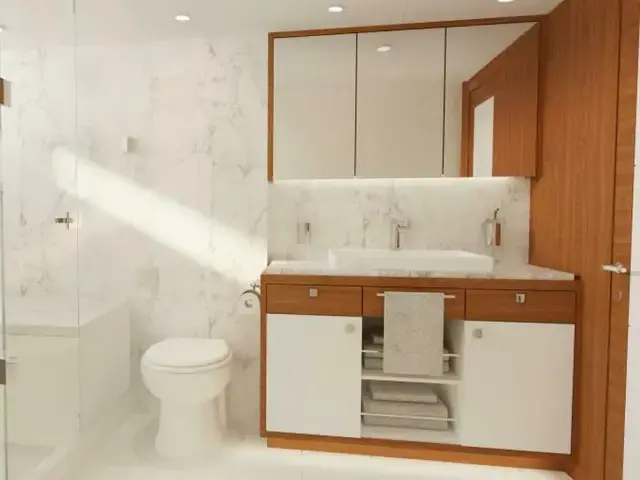

XI. Master En Suite Shower Room

• SEALAND VACUUM TOILET (BONE COLOR)
• WASH BASIN WITH MARBLE COUNTERTOP
• HOT & COLD WATER
• FAUCET AND FITTINGS
• DRESSING MIRROR AND MIRRORED CEILING
• LACQUER FINISH ABOVE BASIN COUNTERTOP
• VENEER FINISH BELOW BASIN COUNTERTOP
• EXTRACTOR FAN
• AC DOUBLE SOCKET WITH GFI
• LACQUER FINISH IN SHOWER AREA
• LED CEILING LIGHTS 24V
• MARBLE FLOOR

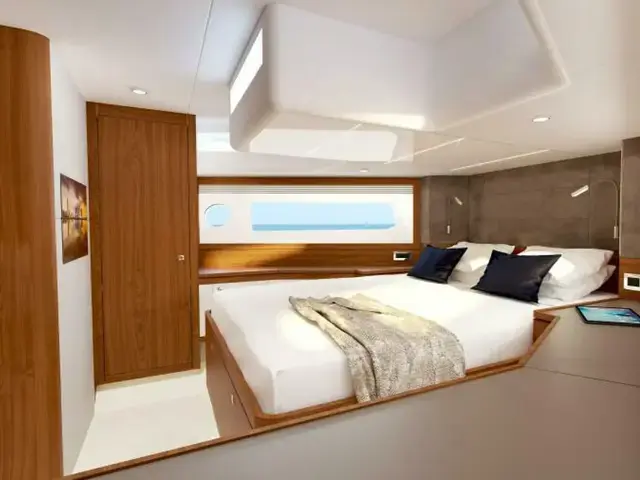

XII. Forward (VIP) Stateroom

• DOUBLE BERTH
• STORAGE BENEATH
• DRAWERS IN BASE OF BERTH
• WALK-IN CLOSET
• VIZIO M322I-B1 32" 1080P LED LCD HDTV
• QUICK MAYA30 READING LIGHTS 24V x 2
• LED CEILING LIGHTS 24V
• FUSION STEREO SYSTEM
• MS-AV700I DVD / RECEIVER – WITH FUSION LINK.
• MS-CL602 6" MARINE CEILING MOUNT SPEAKERS x 4
• MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• APPLE TV
• AC DOUBLE SOCKETS
• ESCAPE HATCH
• ONE LARGE RECTANGLE PORTLIGHT WINDOW EACH SIDE W/CENTER PIECE OPENABLE

XIII. Forward (VIP) En Suite Shower Room

• SEALAND VACUUM TOILET (BONE COLOR)
• WASH BASIN WITH MARBLE COUNTERTOP
• HOT & COLD WATER
• FAUCET AND FITTINGS
• MIRROR AND MIRRORED CEILING
• LACQUER FINISH ABOVE BASIN COUNTERTOP
• VENEER FINISH BELOW BASIN COUNTERTOP
• EXTRACTOR FAN
• AC DOUBLE SOCKET WITH GFI
• SHOWER AREA WITH LACQUER FINISH
• LED CEILING LIGHTS 24V
• MARBLE FLOOR

XIV. Port Guest Cabin

• ONE DOUBLE BERTH
• UNDER BERTH STORAGE
• QUICK MAYA30 READING LIGHTS 24V x 2
• LED CEILING LIGHTS 24V x 2
• HANGING LOCKER
• VIZIO M322I-B1 32” 1080P LED LCD HDTV
• FUSION STEREO SYSTEM
• MS-AV700I DVD / RECEIVER – WITH FUSION LINK.
• MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 2
• MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

XV. Port Head/Day Head

• SEALAND VACUUM TOILET (BONE COLOR)
• WASH BASIN WITH MARBLE COUNTERTOP
• HOT & COLD WATER
• FAUCET AND FITTINGS
• MIRROR AND MIRRORED CEILING
• SEPARATE SHOWER COMPARTMENT WITH LACQUER FINISH
• AC DOUBLE SOCKET WITH GFI
• LACQUER FINISH ABOVE BASIN COUNTERTOP
• VENEER FINISH BELOW BASIN COUNTERTOP
• EXTRACTOR FAN
• LED CEILING LIGHTS 24V
• MARBLE FLOOR

XVI. Starboard Guest Cabin

• ONE DOUBLE BERTH
• UNDER BERTH STORAGE
• QUICK MAYA30 READING LIGHTS 24V x 2
• LED CEILING LIGHTS 24V x 2
• HANGING LOCKER
• VIZIO M322I-B1 32" 1080P LED LCD HDTV
• FUSION STEREO SYSTEM
• MS-AV700I DVD / RECEIVER – WITH FUSION LINK.
• MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 2
• MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT

XVII. Crew Cabin

• ENTRANCE DOOR FROM PORT SIDE
• LED CEILING LIGHTS 24V
• AC DOUBLE SOCKET
• U-LINE CO29B03 ICEMAKER
• VIZIO 24" CLASS E241I-B1 SMART TV
• FUSION STEREO SYSTEM
• MS-AV700I DVD / RECEIVER – WITH FUSION LINK.
• MS-CL602 6” MARINE CEILING MOUNT SPEAKERS x 4
• MS-BT200 BLUETOOTH ADAPTER MODULE FOR SIRIUS PORT
• APPLE TV

Remarks

New construction project underway at Johnson Yachts.

An update to the popular 65' Johnson Motor Yacht, the 70' Johnson features four staterooms plus a new crew cabin aft of the engine room. Other important updates include a larger aft deck and flybridge plus a hydraulic tender platform which frees up additional flybridge deck area. Bold new hull windows update the new look. Available with or without a skylounge.

Since this is a New Build Project, all photos are actually renderings as per plans and drawings from DESIGN UNLIMITED, England.

** ALL SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE **

Disclaimer

The Company offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
