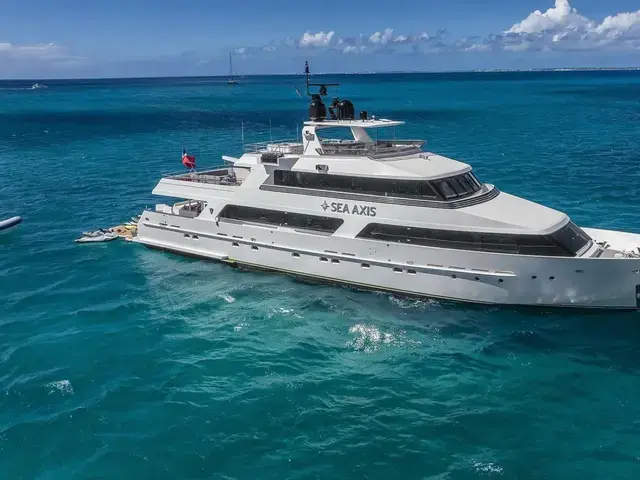

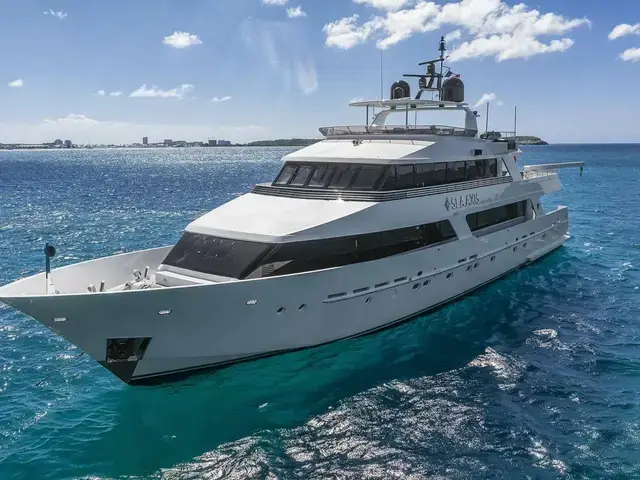

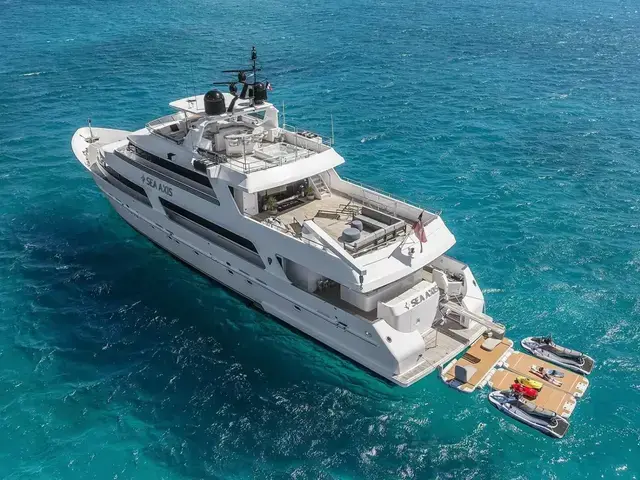

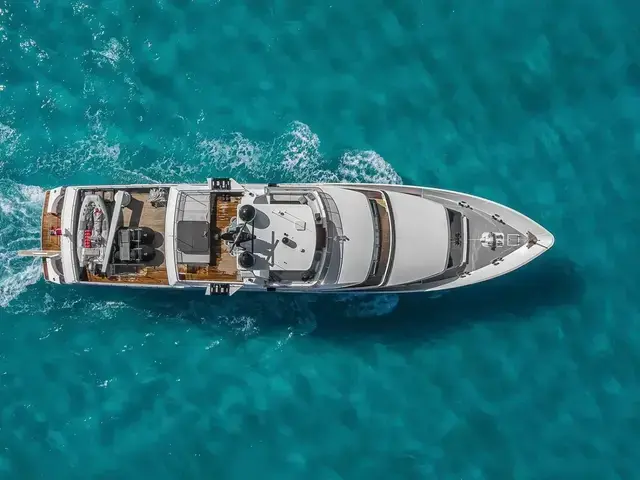

Heesen Tri Deck Motor Yacht for sale in Nassau, Bahamas

EXTRAORDINARY ONE OF A KIND ICONIC HEESEN MOTOR YACHT

Very Rare Opportunity To Own One Of The Most Iconic Motor Yachts On The Market Today! Sea Axis has had numerous carefully planned and strategically executed complete and extensive refits, leaving the end result flawless.

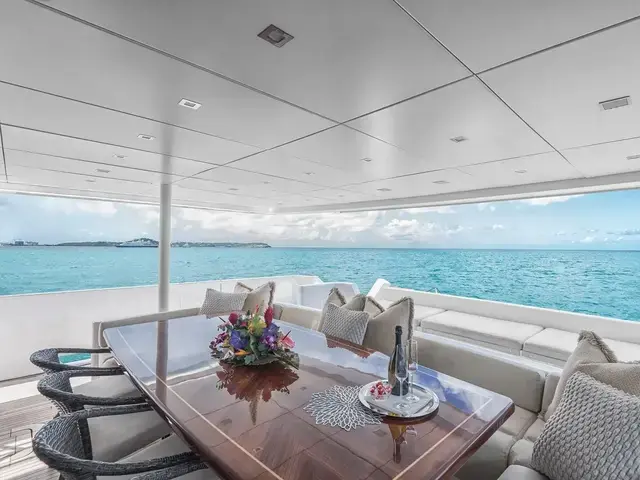

With no detail overlooked during its re-design to ensure its owners and guests are pampered with extreme comfort along with all the latest amenities onboard for entertainment. Offering an incredible balance of interior volume and immense exterior entertaining deck spaces.

Not only an amazing platform for you and your family to enjoy, “Sea Axis” is also a Top Performing Charter Yacht And Charter Revenue Generator that will offset your yearly fixed expenses.

If You Are A Buyer That Would Like To Walk Into A Turn-Key Charter Program And Capitalize From That Revenue Generation, “Sea Axis” Is Your Next Acquisition!

ALL YOU NEED TO DO IS MOVE YOUR LUGGAGE ONBOARD AND GO

NOTABLE HIGHLIGHTS AND UNIQUE FEATURES:

• BUILT TO ABS CLASSIFICATION AND MAINTAINED IN CLASS
• OFFSET OWNERSHIP EXPENSES WITH TURN-KEY CHARTER PROGRAM
• EXTENSIVE FULL REFITS MODERNIZING EVERYTHING ONBOARD
• BOW ANCHOR PLATING REPLACED AND ABS INSPECTED 2023
• COMPLETE EXTERIOR PAINT JOB 2023
• NEW TEAK DECKS 2023

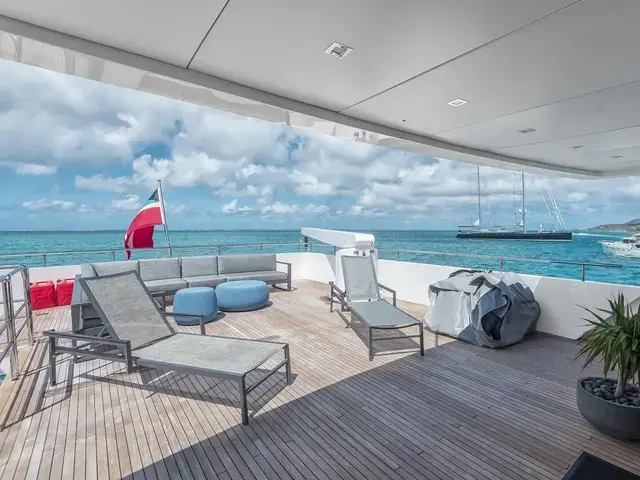

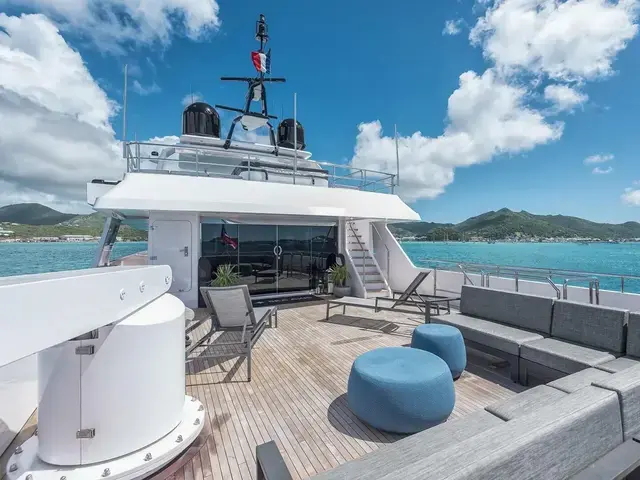

• PERFECT BALANCE OF IMMENSE EXTERIOR SPACES AND INTERIOR VOLUME
• 5 STATEROOM LAYOUT – SLEEPS 12
• KING MASTER ONDECK WITH TWO KING VIP STATEROOMS

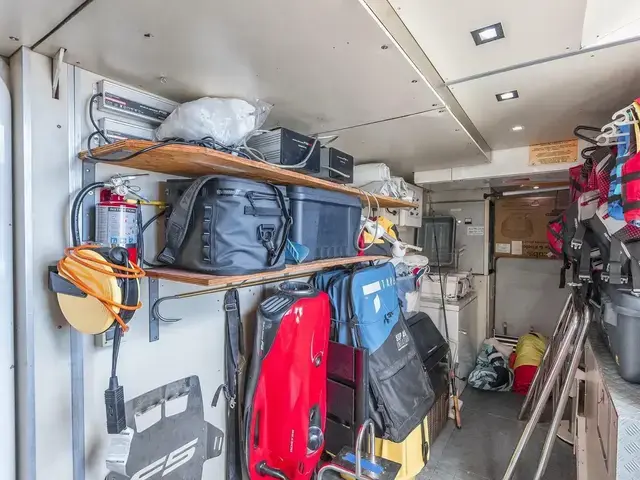

• STERN STORAGE FOR WATER TOYS
• STARBOARD GENERATOR REBUILT MARCH 2025
• FULL BOTTOM JOB WITH PROP SPEED ON RUNNING GEAR OCTOBER 2024

Not for sale or charter to U.S. residents while in U.S. waters

SPECIFICATION

Sea Axis has been maintained in ABS Class since her construction at Heesen Yachts, and has crossed the Atlantic on several occasions. With her economical Duetz engines, and Dutch seakeeping capabilities, she is very capable of long open ocean runs, but is also perfectly suited for cruising hidden Caribbean anchorages.

Builder: Heesen Yachts

Flag: Bahamas

Port: Nassau

Exterior Designer: Frank Mulder

Interior Designer: Artline

Hull Material: Aluminum

Dimensions LOA: 125’

LWL: 103’

Beam: 25’

Draft: 8’ 1”

Gross Tons: 257 GRT

Displacement: 147 metric tons

Cruising Speed: 12 knots

Max Speed: 17 knots

Water: 1400 gallon

Holding: 396 gallon

Tankage Fuel: 7000 gallon

Engines: 2x Deutz TBD616V16

Range: 3000 nm

Staterooms: 5

Heads: 7

YEARLY CHARTER REVENUE:

All Charter Revenue information provided below can be supported upon request. Owner’s use for each year is also noted. Revenue noted below does not include the reclaimed 10% VAT because she is Bahamian flagged.

Kept in immaculate top condition by its owner. Sea Axis employs a full-time top-notch crew that can stay onboard with the new owner, making this yacht a turn key operation to take over.

2021: $2.1M

2022: $1.328M

2023: $1.23M

2024: $1.4M

KNOWN REFIT HISTORY:

2009 – 2011: THE REBIRTH OF A CLASSIC – in 2009 the owner took the yacht back to Heesen for a complete rebuild. By its original designer, Frank Mulder managed this refit from bow to stern. The entire inside was taken back to the stringers and longitudinals with everything onboard made new. All exterior decks extended and completely new interior. Everything from the machinery, communications, electronics, audio visual etc. was renewed. A full report is available upon request.

2013: Brand new paint, new hull sections under the engine room, engine and generator overhauls, complete 5 yr ABS Survey, stainless handles replaced throughout, new water makers, AC serviced, engine room piping renewed or serviced, new interior carpet, interior teak varnished, exterior teak sanded, new exterior canvas, new exterior cushions and upgraded AV throughout.

2015: Full interior refit

2018: Interior refit

2019: Complete audio-visual refit. All TV’s replaced with new Samsung, every speaker onboard replaced, all new wiring and led bulbs replaced.

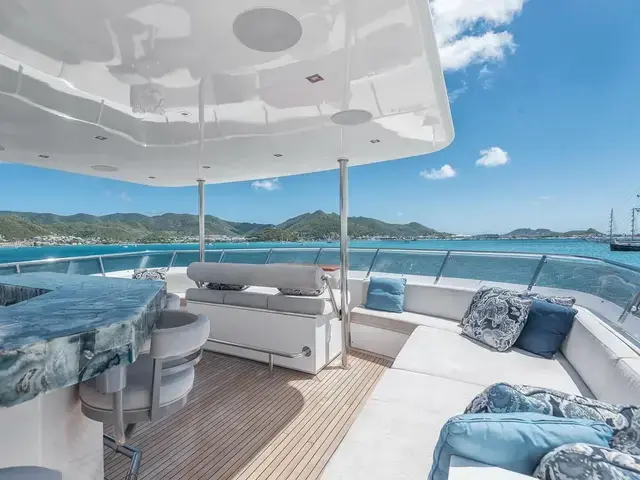

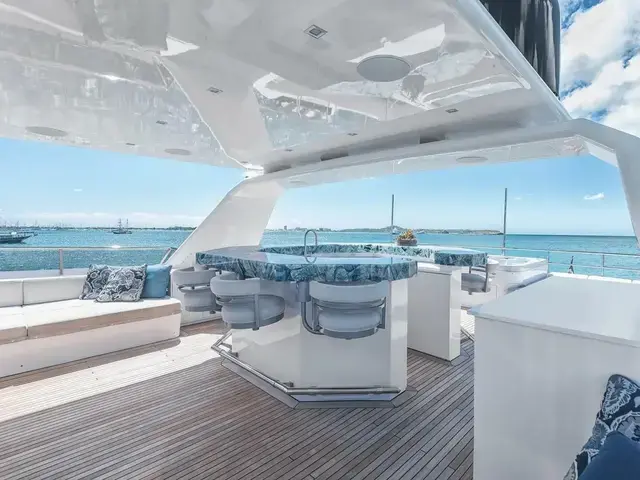

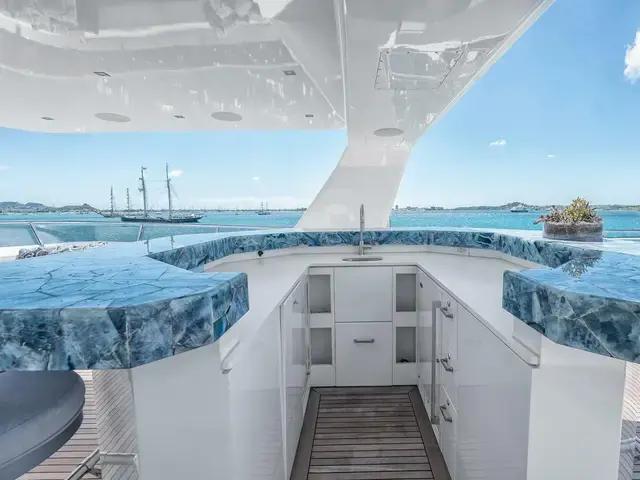

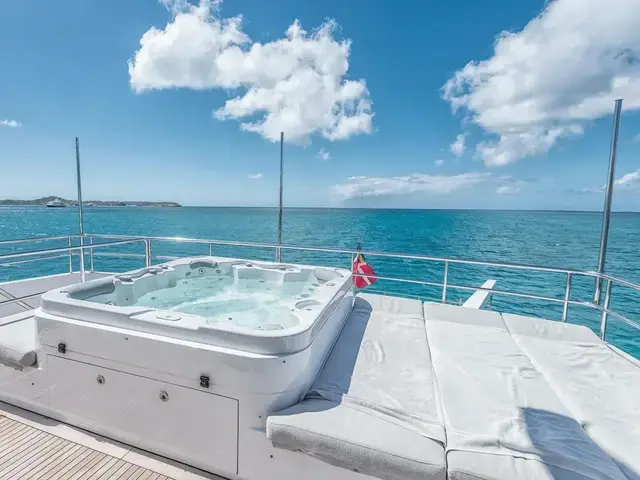

2023: Full paint job, interior cabinetry upgrades, bow anchor plating replaced and inspected by ABS, new jacuzzi, new soft goods, upgraded AV equipment, sun deck bar and new teak decks

YEAR ABS SURVEY:

The yacht has started its five-year ABS survey and the final survey will be complete at the end of July 2025. The final survey in July will include, main engine and generator inspections, gauging of the hull, gauging of the tanks and inspection, gauging of the anchor plating and inspections where applicable and valve inspections.

SERVICE HISTORY:

Upon request the yearly service history from 2019 to now can be provided.

Sea Axis has been managed by the same person for the last 6 years. With incredible record keeping and knowledge of her service maintenance and use.

ACCOMMODATIONS

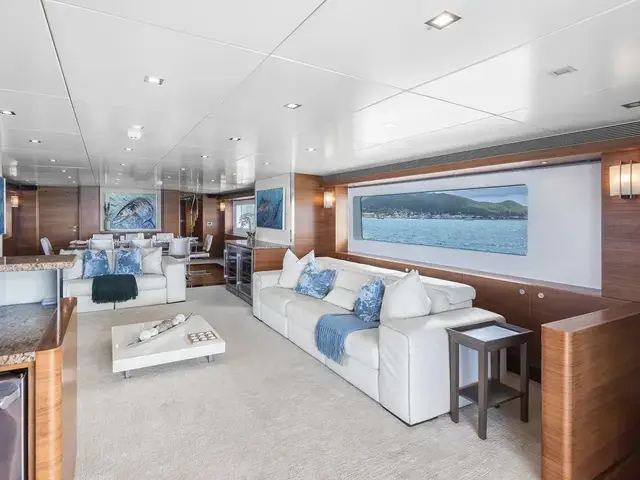

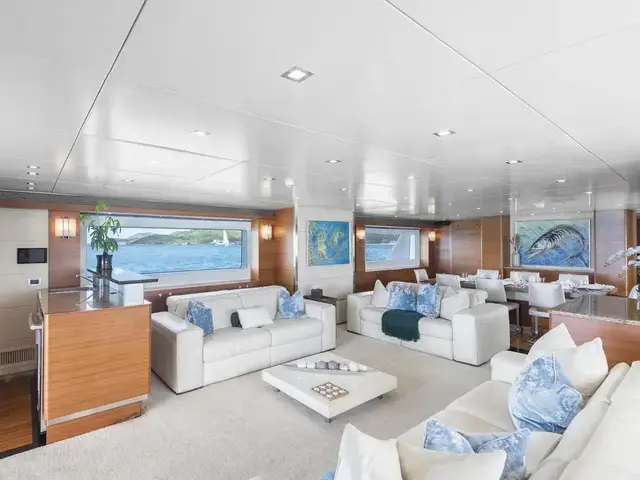

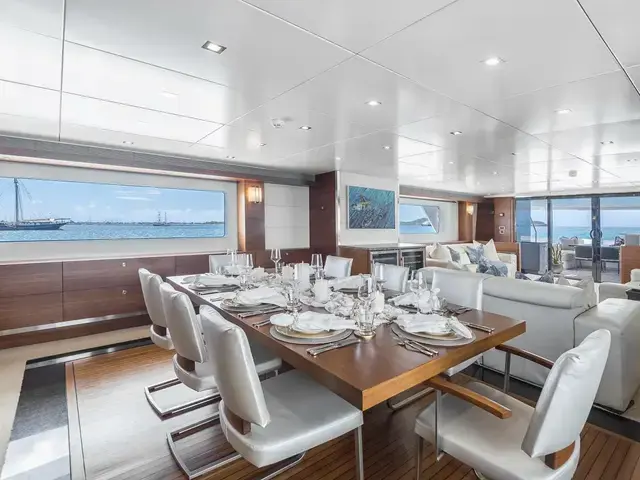

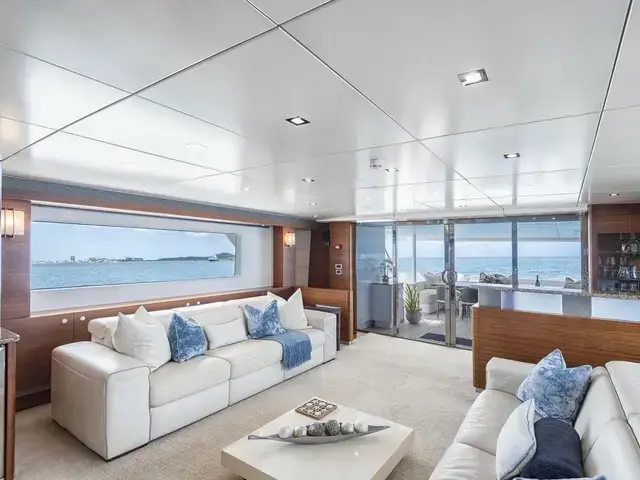

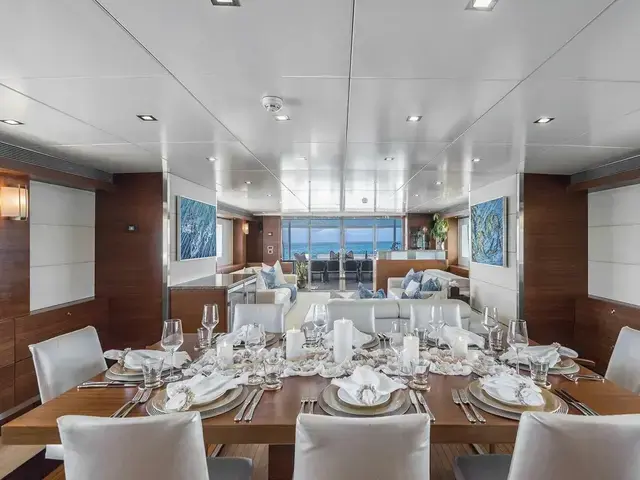

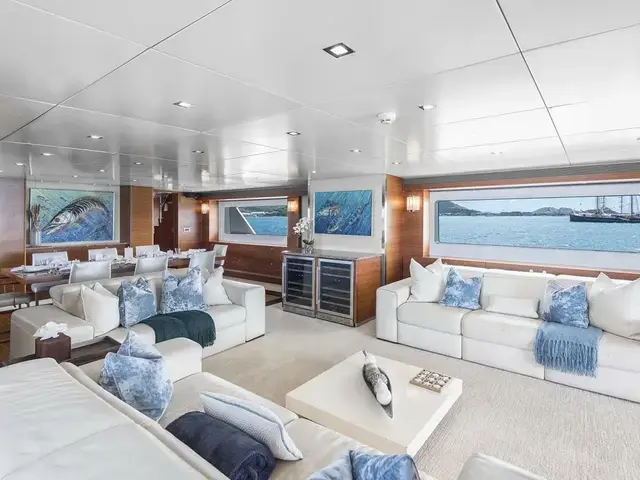

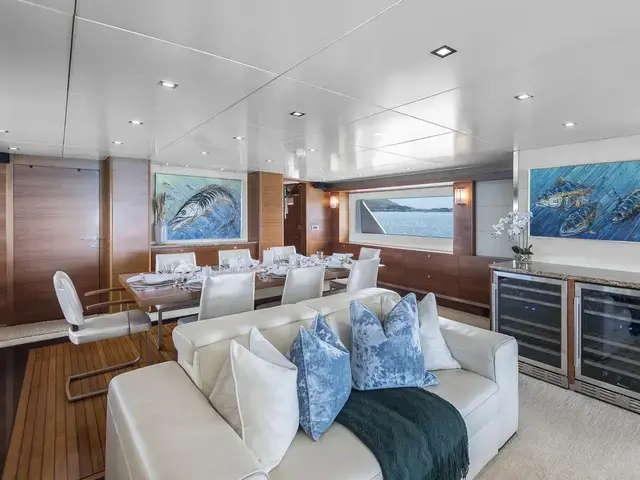

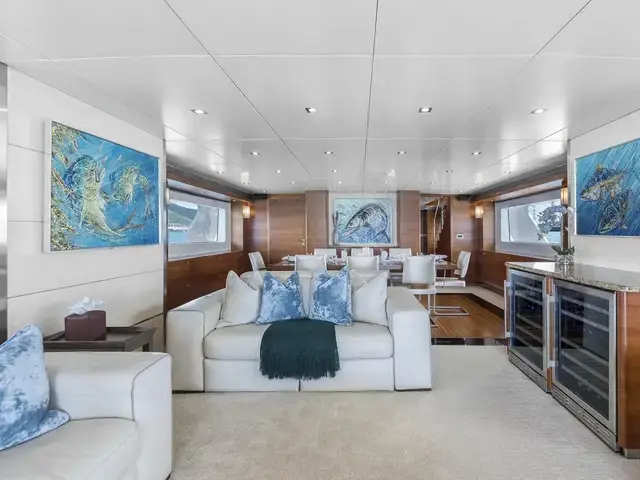

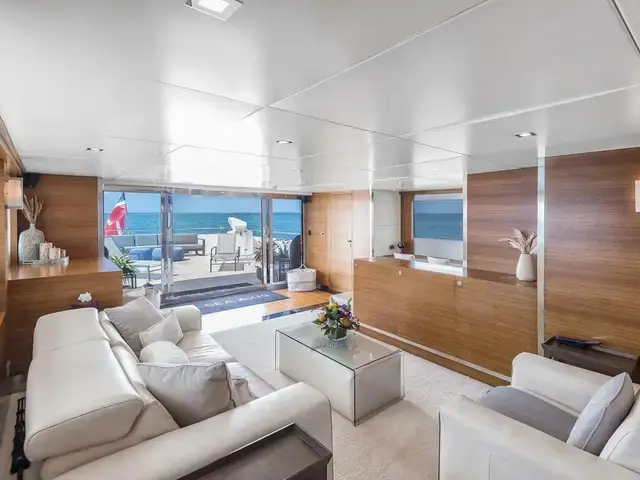

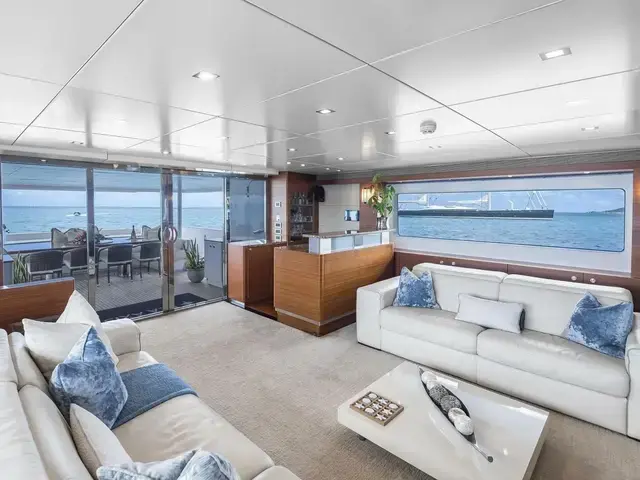

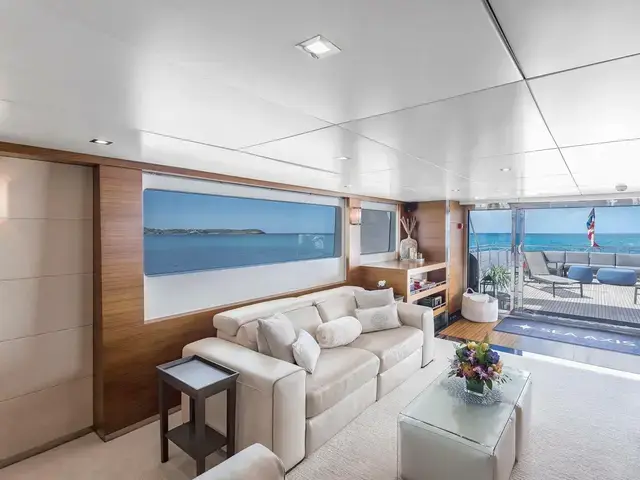

A beautifully open and flowing main salon layout allows for endless ways to entertain, adaptable for intimate gatherings or entertaining with an extensive guest list.

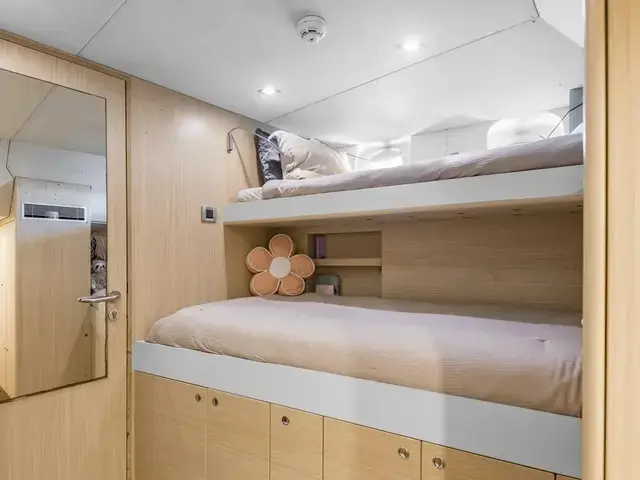

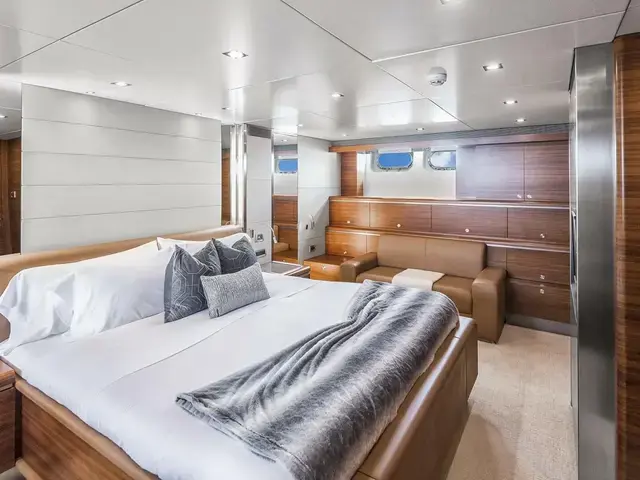

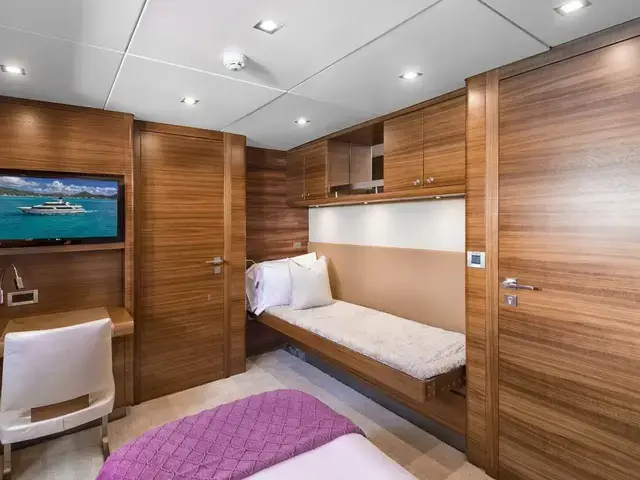

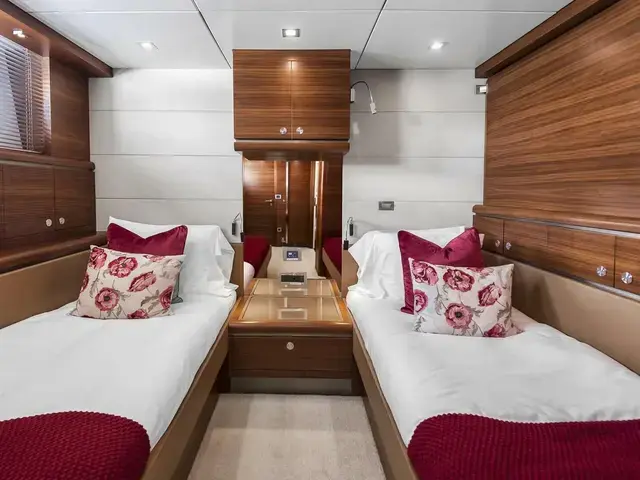

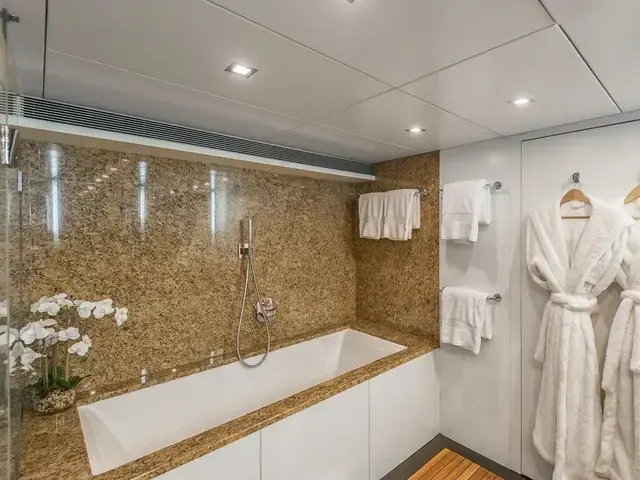

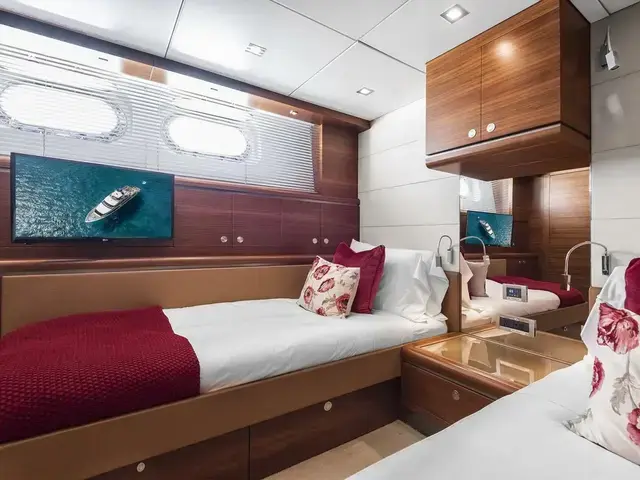

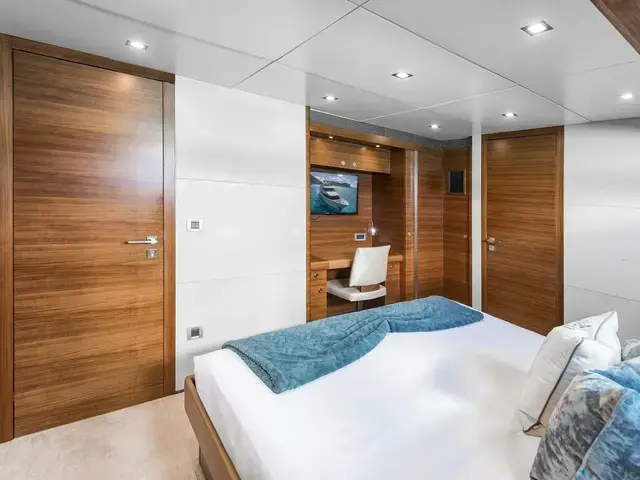

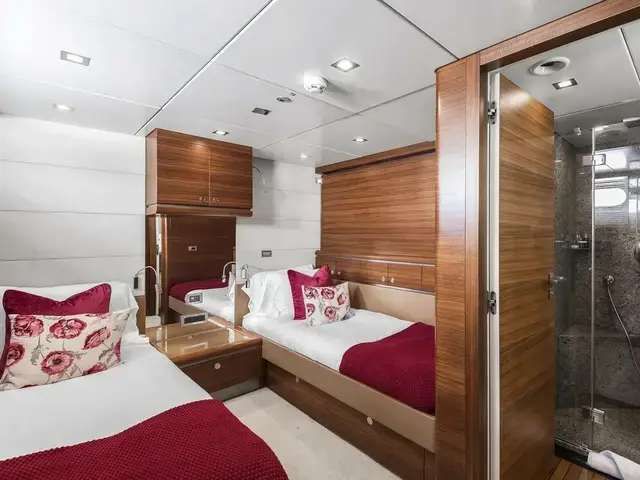

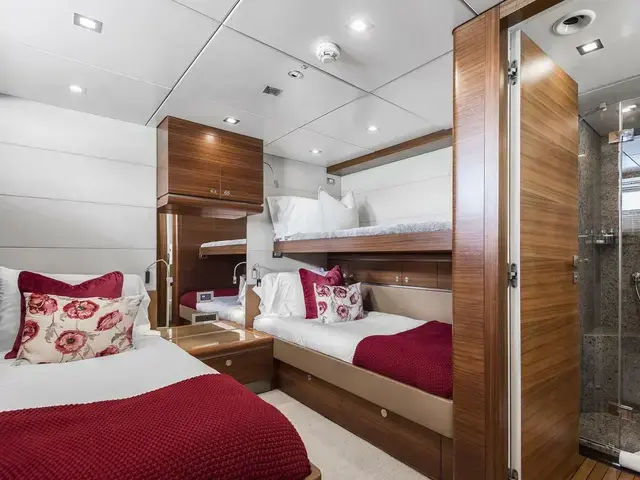

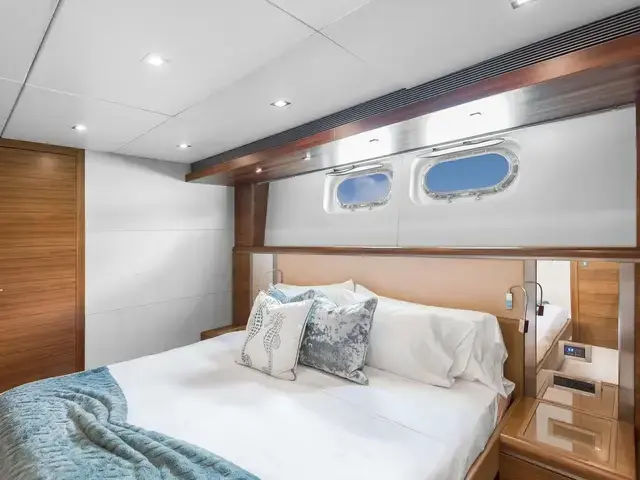

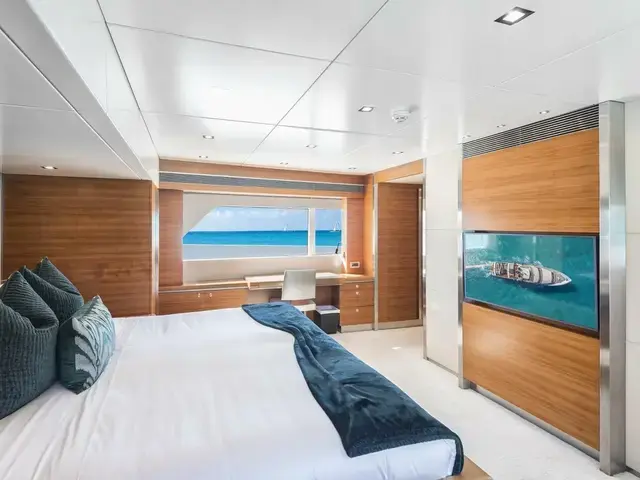

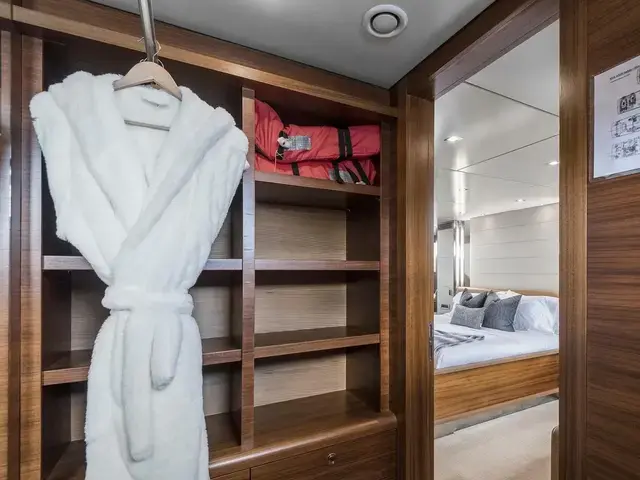

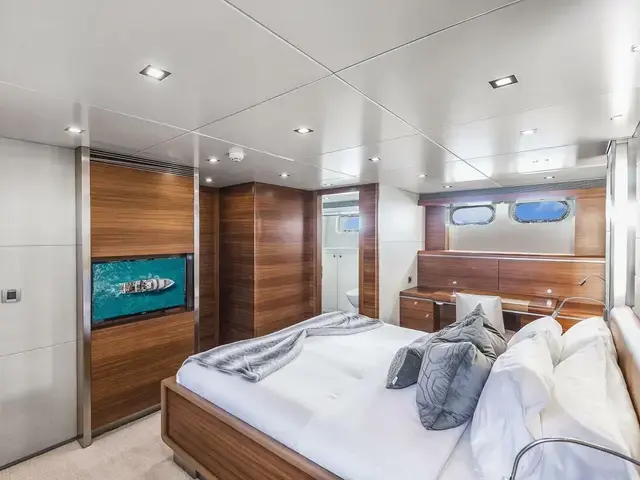

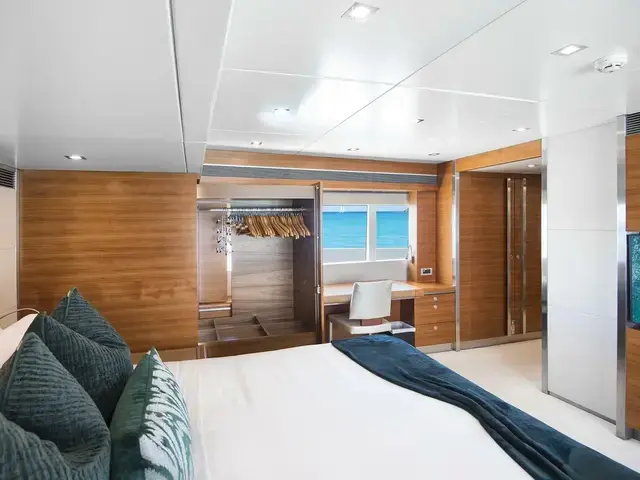

Five ensuite staterooms luxuriously accommodate up to 12 guests. Featuring an Ondeck Master, 2 lower deck VIP, and two twin cabins with Pullman berths. All are equipped with flat screen TV’s, Apple TV, DVD players, iPod and iPhone docking stations. All staterooms have been refurbished and/or redesigned to create individually unique and modern spaces with absolute luxury first and foremost. The main deck master suite is outfitted with king island berth, comfortable lounging area to port and office to starboard. Storage is plentiful in handcrafted drawers, cabinets and closets. The master bathroom features dual, sculpted granite sinks, floor to ceiling glassed in shower, bathtub with handheld shower fixture, toilet and bidet enclosure.

ENTERTAINMENT SYSTEM

• Marine Starlink – New 2022
• All TV’s replaced with Samsung – New 2019
• Creston Audio Rack – New 2019
• All Speakers – New 2019
• WiFi repeaters throughout yacht

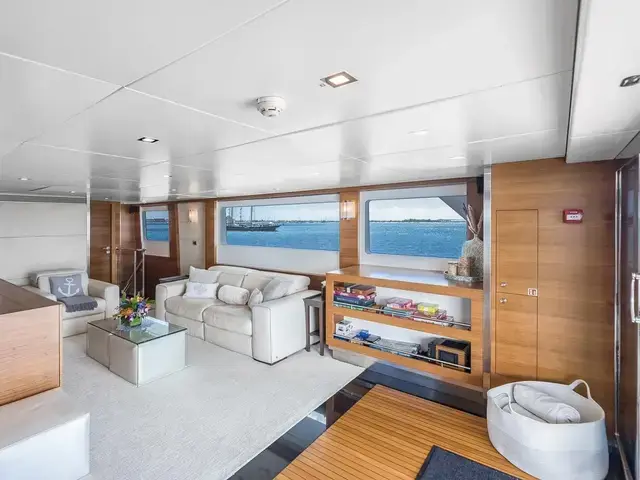

• Apple TV (Skylounge)
• 55" Sony Bravia flat screen (Skylounge)
• Apple TV (Guest Staterooms)
• Sony Bravia flat screens (Guest Staterooms)
• Apple TV (Crew Mess)
• Bravia flatscreen (Crew Mess)
• Bose Life Style Ill theatre entertainment system (Skylounge)
• Sony Bravia CCTV repeater Bose Free space amplifiers with Apple Airport Express receivers (Salon)
• Bose 151 speakers (Salon)
• SeaTel DAC2200 Sat TV ACU on board for our Direct TV services.

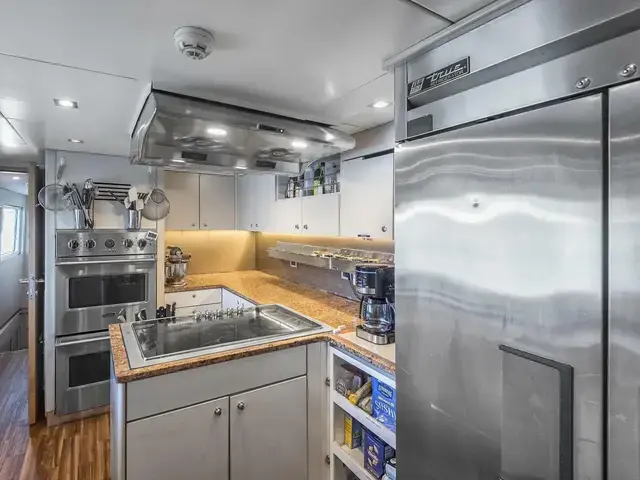

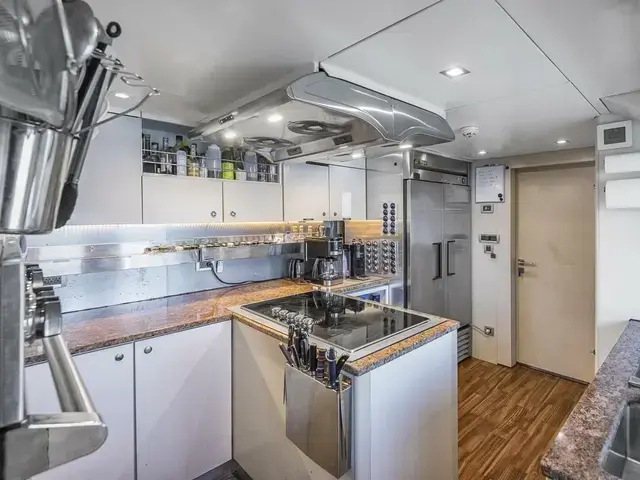

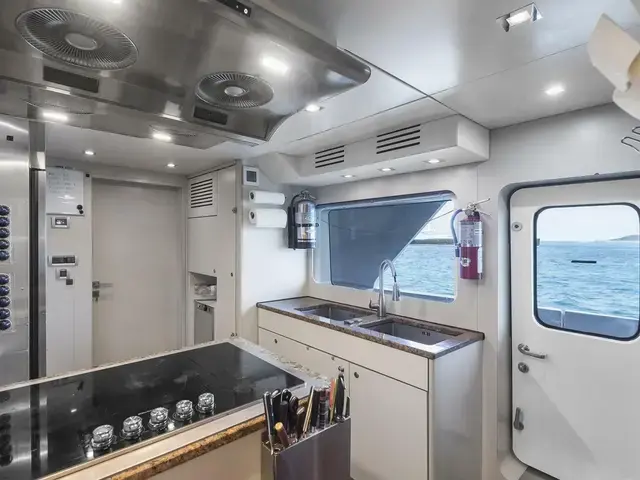

GALLEY AND LAUNDRY EQUIPMENT

• Viking Ovens – New 2024
• Kitchenaid range top – New 2024
• Microwave (Crew Mess) – New 2024
• Full size fridge/freezer (Crew Mess)

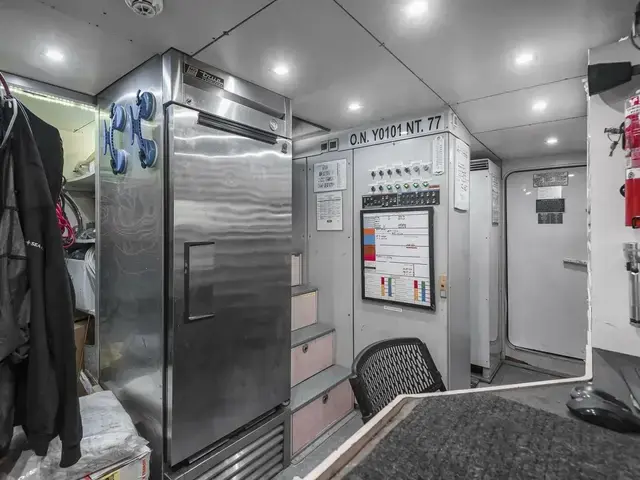

• True refrigerator and True freezer (Control room)
• (2) Kalamera wine fridge (Salon) – New 2020
• Vitrifigo Hydro automated icemaker (Salon) – New 2024
• (2) Miele Professional washers
• (2) Miele Professional dryers
• (1) Rowenta pressure iron & steamer

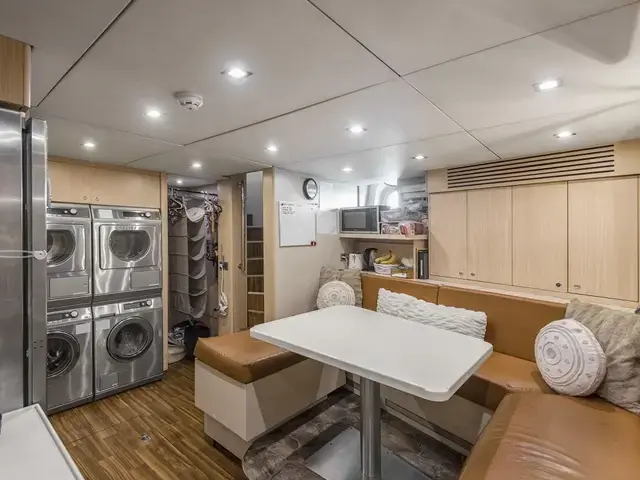

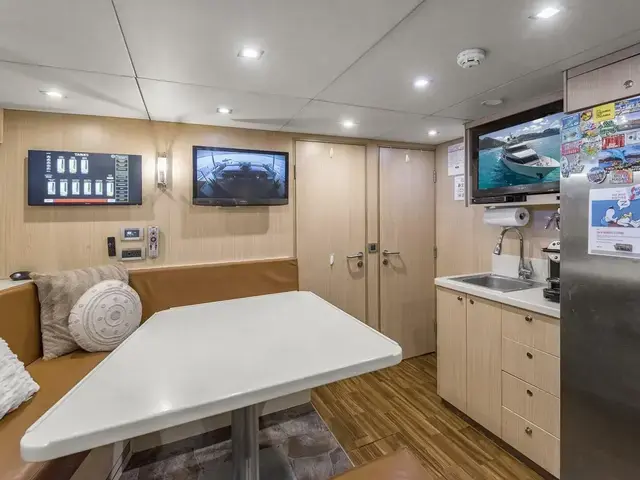

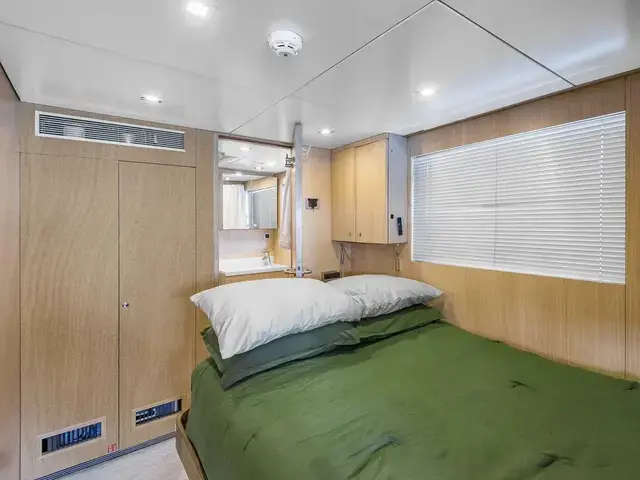

CREW QUARTERS

Spacious ensuite cabins and dedicated lounge create a cozy environment with the comforts of home, allowing the crew pleasant relaxation when not on duty.

• (3) Twin cabins with ensuite head and shower.
• Crew lounge.

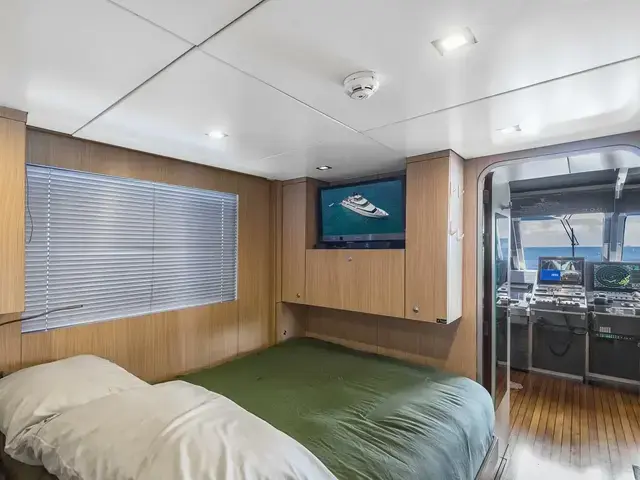

• Captain's double cabin on the bridge deck.

COMMUNICATION SYSTEM

• Nera F77 satellite phone
• KVH Mimi M satellite phone
• (2) Icom fixed VHF

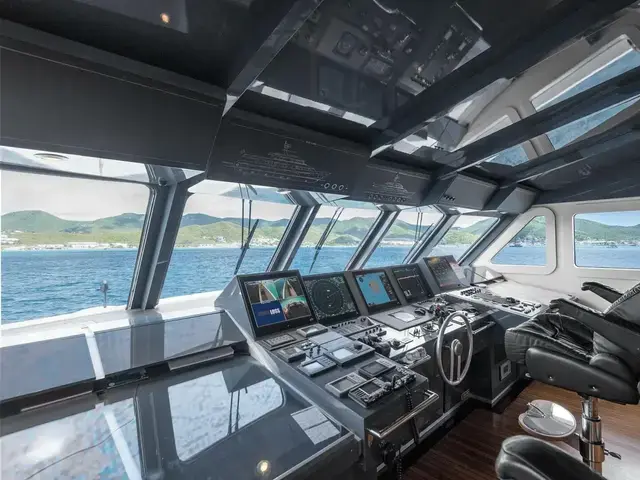

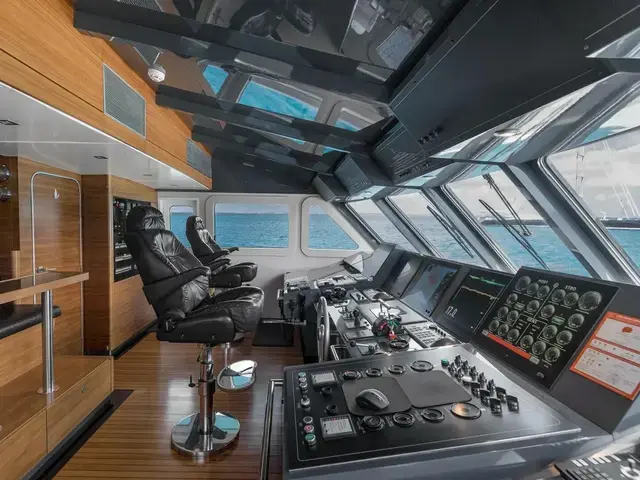

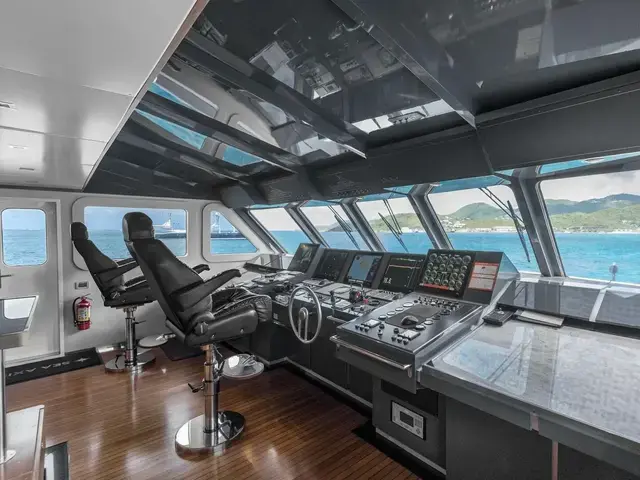

NAVIGATION SYSTEMS

• FLIR M232 PTZ – New 2022
• (2) Furuno radars – DC New 2023 – AC New 2024
• Sperry Marine Gyro compass
• Sestrel 6" Magnetic Compass
• Simrad Satellite HS52 compass
• Simrad Autopilot
• Furuno AIS
• Furuno Depth sounder
• Furuno GPS
• In Ship's Office computer with printer
• Time Zero on Furuno NavNet and ship's monitor plotter
• Furuno NX700 Navtex
• Kobelt Control System – New 2013 – Rebuilt 2023 with 1 full spare kit onboard

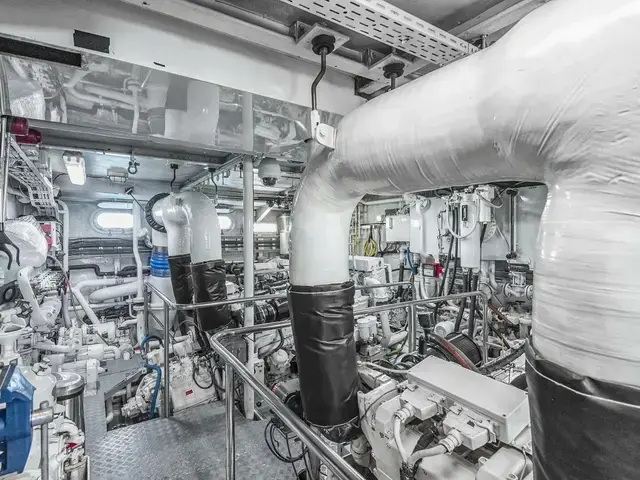

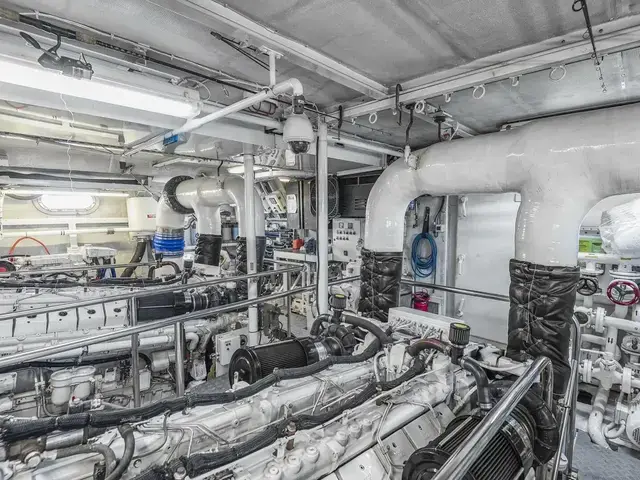

MACHINERY

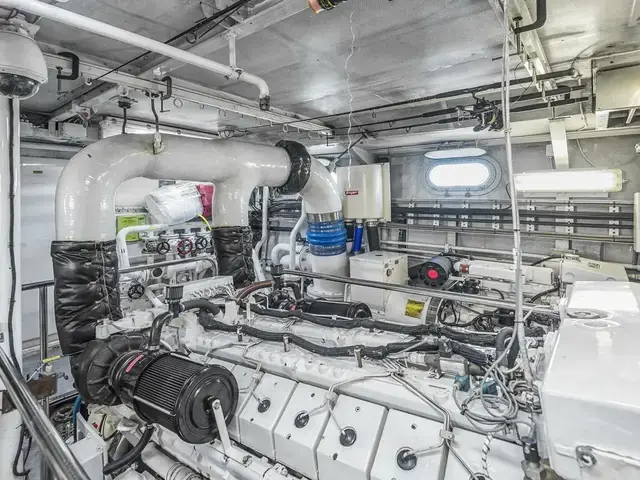

• (2) Deutz TBD 616V16 diesels. Engines new in 2002
• Port Engine Rebuilt 02/25/2013 Total Hours 5,356
• Starboard Engine Rebuilt 02/25/2013 Total Hours 5,328
• Port Engine Total Hours,673 –SMOH 5317
• Starboard Engine Hours,643 – SMOH 5315
• (2) ZF gearboxes – New 2019
• (2) 65 kW Northern Lights generators both rewound in V/60 Hz output
• Port Generator Total Hours– 27,180
• Starboard Generator Total Hours– 25,748 - SMOH 0 Hours
• Generator fuel consumption 4.8 gal/hr/ 18.2 liters/hr
• 20,000 BTU air conditioning, 2 chillers, 1 new in 2015
• Nautilus Sea-R.O. watermakers 2,800 US gallons per day
• (2) Naiad Datum stabilizers rebuilt in 2015
• Naiad bow thruster
• Electrohydraulic steering system
• Westfalia Centrifuge fuel separator & filtration & Racor filters
• (2) 110V Staingray fresh water system
• Atlas shore power
• Spa3 new in 2009
• Jets Head System
• Hamann Marine Sanitary System

DECK EQUIPMENT

• Steen dual horizontal gypsy anchor windlass system with capstans
• (2) Stockless Navy anchors 1/2" anchor chain
• Sangiunetti Chiavari 4400 lb. davit (2009)
• Besenzoni Passerelle integral to the hull swim platform
• Underwater lights x 6

SECURITY, FIRE FIGHTING AND SAFETY EQUIPMENT

• (2) ACR Spotlights with wireless remote – New 2022
• Custom CCTV System
• (4) Cameras Wheelhouse monitor
• Fire Control System Consilium 2009
• 208V fire/bilge pump
• 110V fire/bilge pump 24V fire/bilge pump
• (2) Fire fighting suits
• (2) Breathing apparatus
• (5) Fire hydrants
• (2) 10m hose
• (2) 20m hose
• Honda 4.5 hp crash pump with hose
• Handheld fire extinguishers throughout
• (2) CO2
• Propel Monitoring System – New 2022
• Propel Monitoring System and alarms added to crew mess – New 2023
• (2) EEBD
• Safety Equipment
• (2) 20 person life rafts
• (25) life jackets
• (1) EPIRBS
• (20) Flares
• First Kid Supply Kit
• (2) SOLAS inflatable life jackets
• (2) ACR GMDSS portable radios
• (20) Ascotherm Mk IV TPA (Thermal Protective Aids) AED

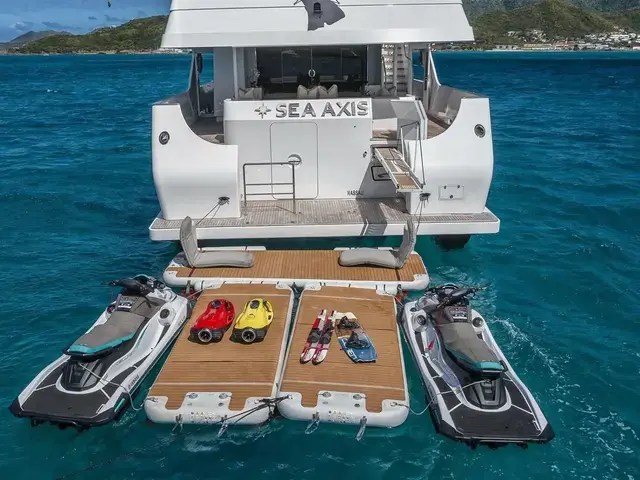

TENDERS AND TOYS

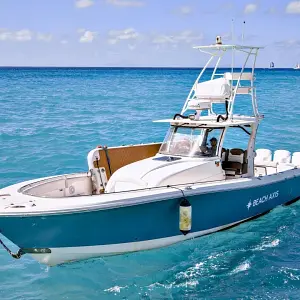

*Edgewater Can Be Negotiated As Part Of The Sale. All other below noted tenders and toys convey with sale.

• 17’ Novurania Inflatable 2009
• (2) Yamaha VX Limited WaveRunners – New 2023
• (2) Sea Bobs
• Knee Board
• 2 inflatable paddle boards
• Water Skis x 2
• Wake Board x 2 (Liquid Force)
• 12 standard snorkels & flippers
• Water Slide – New 2024
• Inflatable Hot Dog
• Inflatable Teak Docking system with two loungers
• Inflatable Big Slice Tube
• On Deck Cinema
• On Deck Rope Swing
• Board Games

REMARKS

Very Rare Opportunity to own one of the most unique TRI-Deck Motor Yachts in its size range. With the pedigree builders of the world focusing almost exclusively on 50m and above, this segment of the market is extremely niche! Making “Sea Axis” an extremely rare option. So many upgrades and improvements have been done making this one of the most unique Motor Yachts on the market today.

EXCLUSIONS

Owner's personal effects. A full list will be provided upon signed agreement.

MECHANICAL DISCLAIMER

Engine hours are a representation of what the listing broker has been supplied by the owner and/or actual reading of the engine hour meters. The broker cannot guarantee the true hours. It is the responsibility of the purchaser to verify engine hours, major overhauls and all other representations noted on the listing brochure.

DISCLAIMER

Yachting Select offers the details of this vessel in good faith but cannot guarantee or warrant the accuracy of this information nor warrant the condition of the vessel. A buyer should instruct his agents, or his surveyors, to investigate such details as the buyer desires validated. Hours listed may vary from actual hours due to recent use. Purchaser is encouraged to verify hours prior to purchase. This vessel is offered subject to prior sale, price change, or withdrawal without notice.
