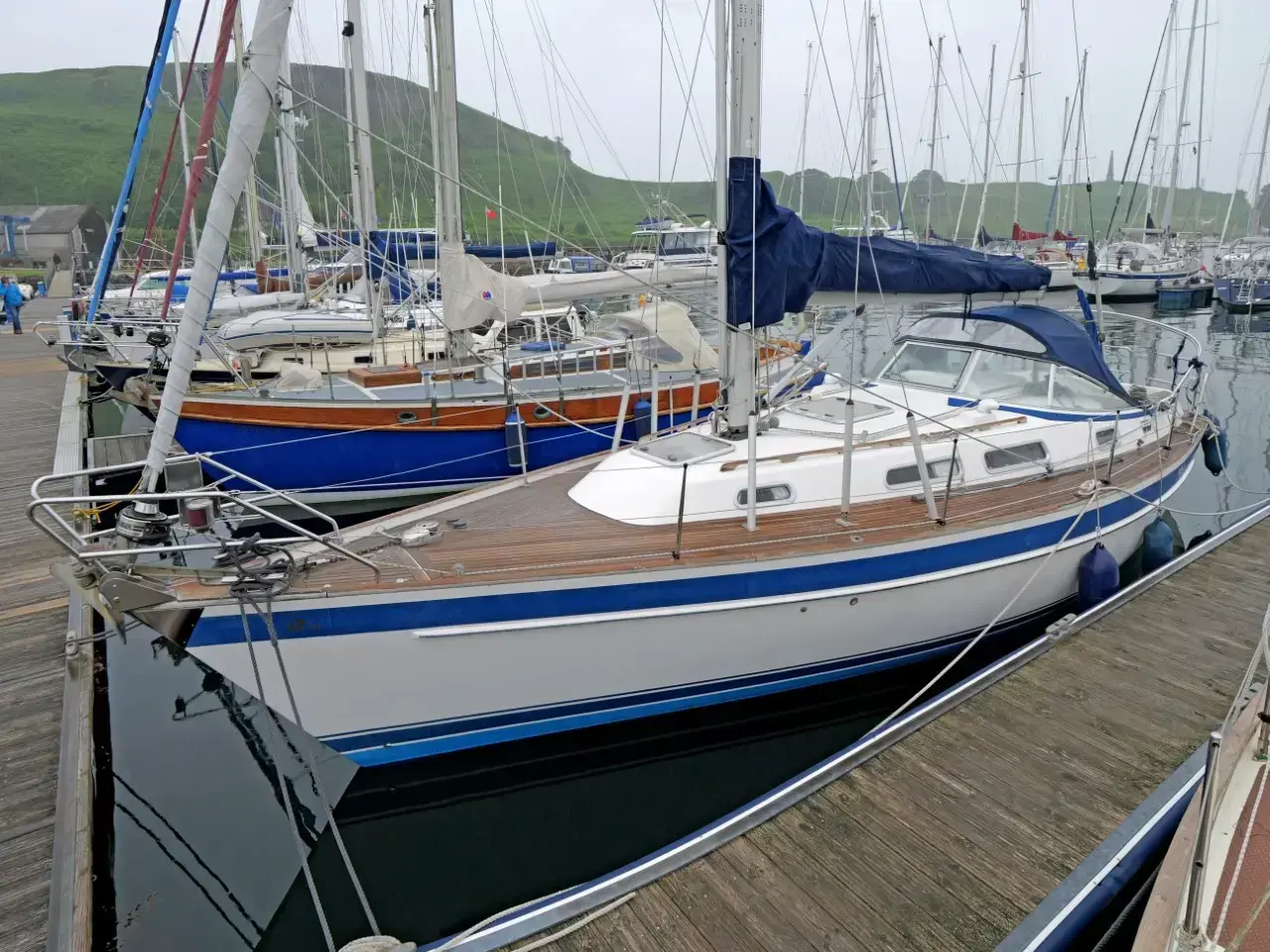

2005 Hallberg-Rassy 34

Boat Overview

Launched in 1990, the Hallberg-Rassy 34 represents a significant evolution in the design of the renowned centre cockpit Hallberg-Rassy models. Production continued until 2005, with ongoing modifications enhancing accommodation layouts, including adjustments to bulkhead placements, head configurations, and portlight positioning. Over 450 units of the Hallberg-Rassy 34 were produced before the introduction of the Hallberg-Rassy 342.

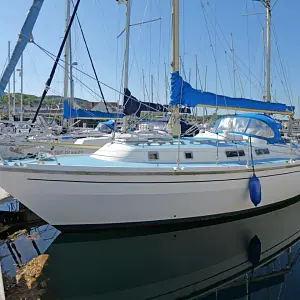

The Hallberg-Rassy 34, named MAID OF STRUAN, is hull number 472. She has had only her 2nd owner and has been based in Scotland since 2018. Now reluctantly offered for sale, her inventory includes:

• Original gelcoat finish to topsides and deck mouldings
• Volvo Penta MD2030 marine diesel engine with saildrive
• Sail drive diaphragm replaced 2021
• Domestic and Engine batteries replaced 2021
• Mastervolt BTM-I battery monitor display
• Eleab battery charger, 20amp
• Raymarine C80 Classic chart plotter / radar with 2kw radar scanner
• Raymarine tiller pilot autopilot system
• Raymarine ST60 navigation instruments
• Raymarine RAY54E DSC VHF
• Webasto cabin heating
• Eno gas cooker
• Jabsco manual marine toilet
• Roller reefing genoa x2
• Slab reefing mainsail
• Mainsail cover fitted new 2022
• Cockpit bimini fitted new 2022
• Electric anchor windlass
• Inflatable dinghy
• Outboard

Currently lying ashore at Kerrera Marina, Oban, Argyll, the Hallberg-Rassy 34 MAID OF STRUAN is available for viewing strictly by prior appointment.

Comments by Designer

‘The Hallberg-Rassy 34 with her efficient keel and fractional rig is a departure from the centre cockpit masthead type found on the 36, and a bigger sisters and it is good demonstration of the amount of thought and time dedicated to each one of the models offered.

This is a yacht which is more performance orientated, but keeping with the customary directions from Mr Rassy, also easy to steer and well balanced.

The aft cockpit is large and well-protected from the sea. The rig is simple and sturdy. The interior volume is very well distributed with good headroom and elbow space All in all, a very nice yacht that will remain attractive for many years.’

Germán Frers

Construction

RCD Status:
Our understanding is that the yacht is certified to CE Category A (unlimited ocean voyages)

Hull Construction:
Hull constructed of single-piece GRP moulding.
Isophthalic gelcoat and isophthalic polyester resin for lamination.
Hand lay-up method, insulated with Divinycell PVC-foam against heat and cold except in the keel area which is solid laminate.
Structural floors and stringer reinforcements, fully bonded to the hull.
Plywood bulkheads fully laminate to hull and deck mouldings on both sides.

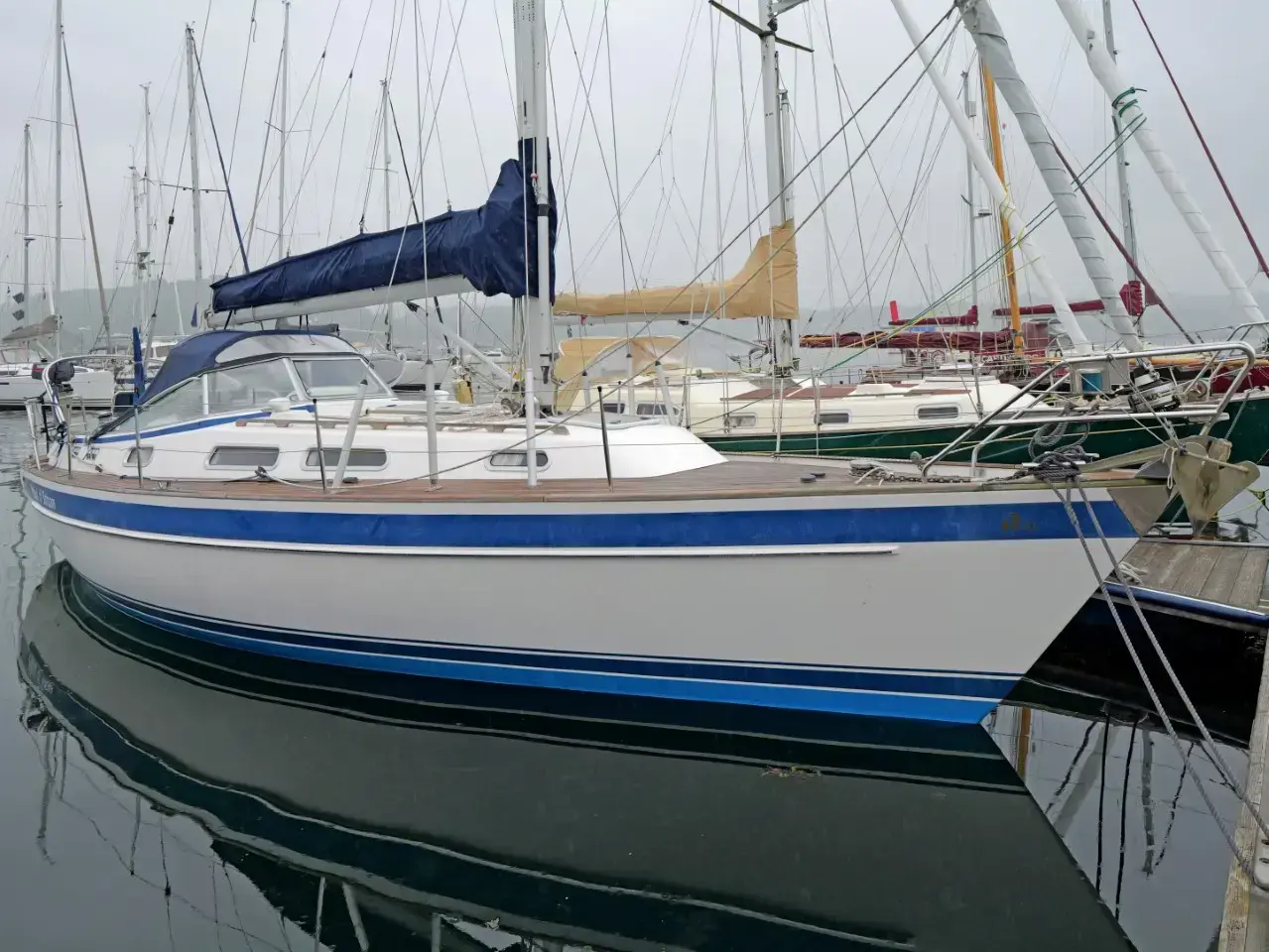

Hull finished in original off-white gelcoat with blue sheerband.
Integrated rubbing strake with brass strip.
Underwater hull finished with blue antifouling applied May 2024.

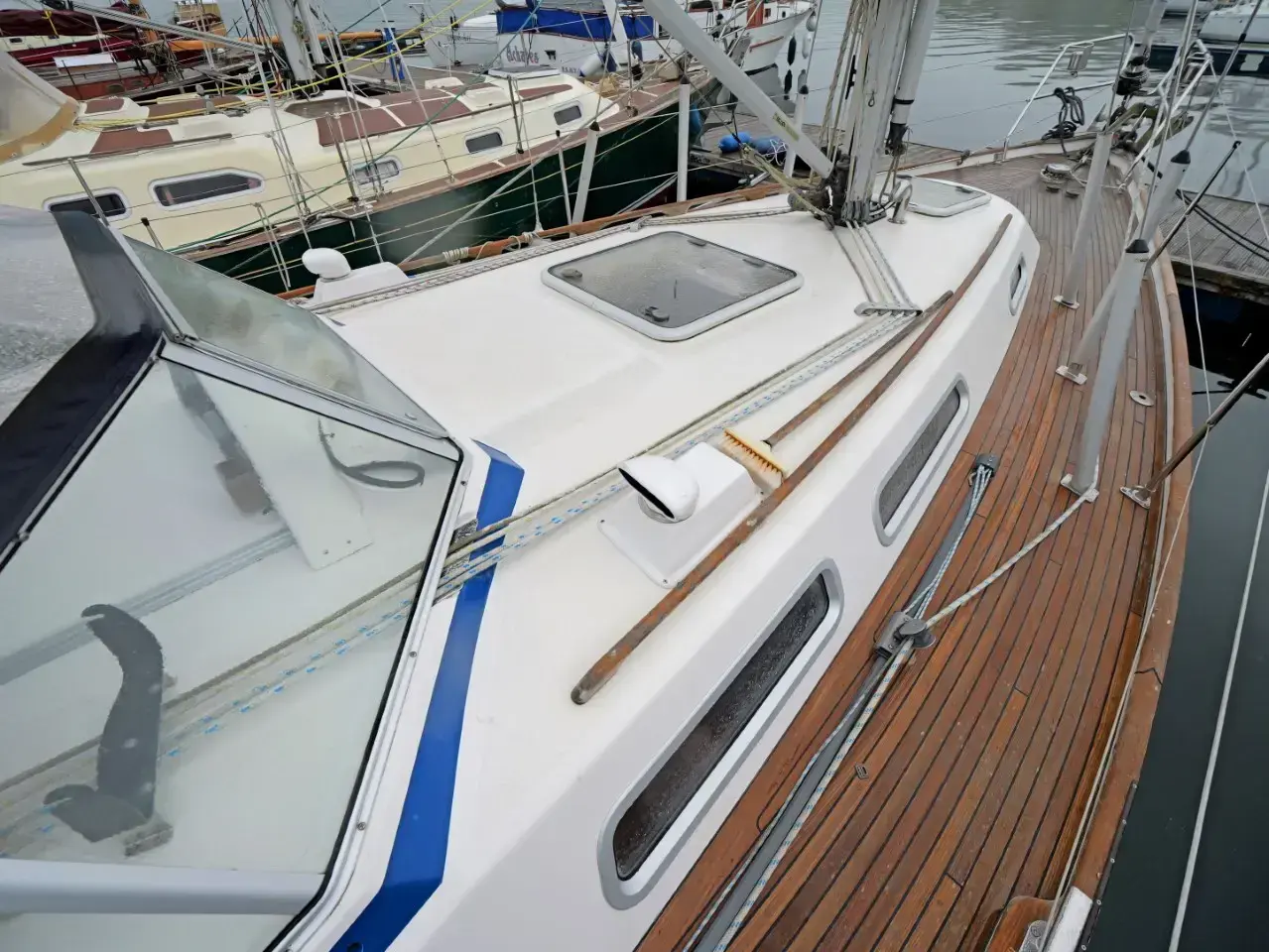

Deck Construction:
Single piece deck moulding incorporating coachroof superstructure and self-draining cockpit.
Deck and coachroof areas and also cockpit are of sandwich construction.
Solid laminate construction in way of high load areas.
Deck laminated to the hull.
Deck, coachroof, aft deck, bathing platform, toerail, cockpit seats, cockpit floor and side trims in top quality teak.
Portholes and portlights with alloy frames.

Keel & Rudder:
Bolt on lead external ballast keel.
10 stainless steel bolts securing keel.
Semi-balance skeg hung rudder.

Machinery

Engine & gearbox:
Volvo Penta MD2030 marine diesel engine
29hp
3 cylinder, naturally aspirated, indirectly cooled.
Volvo Penta saildrive.
Single lever morse control.

Maintenance & Performance:
Sail drive diaphragm replaced 2021.
Propellor stripped and rebuilt with new hub 2018.
Cruising speed 6kts.

Propulsion & Steering:
Volvo Penta saildrive unit.
2-blade bronze folding propellor.
Tiller steering.
Hardwood tiller.

Autopilot:
Raymarine tiller pilot system.
Raymarine ST6001 control head.
Raymarine tiller pilot drive unit.

Electrical Systems

Voltage systems:
12VDC onboard power system.
230VAC shore power system.

Shore Power System:
Extension lead to connect to shore supply.
Single 16 amp connection point.
Hardwired RCD protected system.
Continental type sockets, battery charger, immersion heater.

Battery Banks:
Engine Battery – 1x 12VDC, 85Ah, lead acid battery (2021).
Domestic Battery – 2x 12VDC, 85Ah, lead acid battery (2021).

Battery Monitor:
Mastervolt BTM-I battery monitor display at switch panel.
Voltmeter on switch panel.

Charging:
Eleab battery charger.
230VAC – 12VDC, 20amp.

Alternators:
Single engine mounted alternator.

Other Electrical:
12VDC auxiliary socket at switch panel.

Plumbing Systems

Fresh Water:
Pressurised hot and cold water system.
Mixer tap in galley.
Mixer tap in heads which can pull out for use as showerhead.
Manually pumped freshwater tap in galley.
Hot water provided from a calorifier heated by engine cooling water or immersion heater.

Bilge Pumps:
Manual Bilge Pump.
Electric Bilge Pump.

Tankage

Fuel:
Single diesel tank.
Approximate capacity 155ltrs.

Fresh Water:
Single fresh water tank.
Approximate capacity 255ltrs.

Holding Tank:
Single stainless steel holding tank.
Gravity discharge overboard or via deck suction.

Tank Monitoring:
Gauges for fuel and water tanks on the switch panel.

Navigation & Communication Equipment

On Deck:
Depth – Raymarine ST60.
Speed/Log – Raymarine ST60.
Wind – Raymarine ST60 – not currently functioning.
Magnetic Compass.

At Chart Table:
Plotter/Radar – Raymarine C80 Classic with mast mounted 2kw Raymarine radome radar scanner.
Repeater – Raymarine ST60 Graphic display.

Communications Equipment:
DSC VHF – Raymarine RAY54E.
Navtex – NASA Clipper Navtex display.

Domestic Equipment

Galley:
Cooker – ENO gas cooker. Two burner and oven, gimbal mounted.
Fridge – Built-in top loading fridge, with icebox. Isotherm chiller plate and compressor.
Double stainless steel sink.
Mixer tap.
Manually pumped freshwater tap.

Heads:
Jabsco manual marine toilet.
Porcelain wash hand basin.
Mixer tap which extends for use as shower head.
Teak sole grating.
Shower sump with electric pump to discharge.

Heating & Ventilation:
Webasto Airtop 3500 diesel fired blown air heating system.
Thermostatic cabin controller.
Outlets in cabins, heads and saloon.

Lighting:
Overhead lighting throughout interior.
Reading lights in saloon and cabins.

Entertainment:
Pioneer CD/Radio head unit with auxiliary input.
Speakers in saloon.

Accommodation

Summary of Accommodation:
Double cabin forward.
Saloon converting to provide two occasional berths.
Nav station.
Galley.
Double aft cabin.
Heads.

Accommodation Finish:
All interior woodwork in light Mahogany with a matt silk finish.
Locker doors with rounded edges and larger locker doors louvered for ventilation.
Floors are varnished teak with inlaid holly stripes.
Hallberg-Rassy mid blue upholstery throughout.
Fitted carpets in mid blue for saloon and cabins.
Saloon and aft cabin ceilings have panelling of mahogany strips.
Mahogany strips to line hull sides in cabins.
Curtains fitted for all skylights and portholes.
Solid handrails throughout the interior for easy movement offshore.
White laminate worktop in galley and countertop in heads.

Description of Accommodation from Forward:

Forward Cabin:
Double berth forward.
Lockers above bunk outboard to port and across forward end.
Standing room aft of bunk.
Countertop unit outboard to starboard with locker beneath and above countertop outboard.
Hanging locker outboard to port.

Saloon:
Centrally mounted saloon table with two folding leafs, bottle storage within table top centrally.
Bench settee to starboard.
L-shaped settee to port.
Settee backs lift to increase width of settees when converted to bunks.
Locker space below starboard settee with locker doors in bunk base to allow access without lifting cushions.
Lockers forward and aft with book shelf storage locker centrally, outboard, above settee backs to port and starboard.

Galley:
To port side of companionway.
L-shaped galley.
Double stainless steel sinks inboard forward.
Top loading fridge below forward section of worktop outboard.
Gimbal mounted gas cooker aft, outboard with stainless steel splash back around cooker.
Fold-up section of worktop inboard of sinks.
Storage lockers outboard of worktop and cooker with double sliding doors, lockers fitted with internal shelves.
Selection of lockers beneath worktop.

Nav Station:
To starboard side, aft of saloon.
Forward facing navigators seat with chart table.
Chart storage within table top.
Bosuns locker beneath table top forward.
Switch panel outboard of navigators seating.
Chart plotter display, VHF and navtex mounted forward of chart table working area.

Aft Cabin:
Access through galley area to port.
Double bunk aft.
Standing room forward of bunk.
Hanging locker outboard of standing room forward.
Lockers above bunk outboard.

Heads:
Located to starboard, immediately aft of nav station.
Forward-facing manual marine toilet located inboard aft.
Countertop unit running length of compartment outboard.
Inset porcelain wash hand basin forward.
Mixer tap which can extend for use as shower.
Vanity locker outboard of countertop with sliding doors.
General storage locker beneath.

Deck Equipment

Rig:
Deck stepped, double spreader, 7/8ths fractionally rigged sloop.
Silver anodised mast and spars manufactured by Selden.
Stainless steel standing rigging.
Selden Furlex 200S roller reefing system on forestay.
Slab reefing mainsail.
Selden rod kicker.
Spinnaker pole, stowing on mast.
Adjustable backstay.
Lines lead aft to cockpit.
Rope clutches for lines lead aft to cockpit.
Mainsail halyard replaced 2022.
Lazyjacks.

Winches:
Primary Winches – 2x Lewmar 44, two-speed, self-tailing.
Cockpit Halyard Winches – 2x Lewmar 16, two-speed, self-tailing.
All winches professionally stripped and serviced 2022.

Sails:
Mainsail – White Dacron, fully battened, slab reefing.
Genoa #1 – White Dacron, blue UV strip (new UV strip fitted 2021), roller reefing.
Genoa #2 - White Dacron, roller reefing.

Canvas Work:
Mainsail Cover – Stackpack type cover with mast boot and lazyjacks. Owen Sails (2020).
Sprayhood.
Cockpit Bimini – With stainless steel frame. Owen Sails (2022).
Tiller Cover.
Cockpit cushions – individual-type cushions.

Anchoring & Mooring:
Bower Anchor – CQR plough anchor on chain rode.
Kedge Anchor.
Anchor Windlass – Lewmar electric windlass with foot button controls on foredeck.
Mooring Warps – Selection.
Fenders - Selection.

Tender:
Tender – LodeStar inflatable dinghy.
Outboard – Yamaha 2hp, 2-stroke, outboard.

General:
Double stemhead roller.
Stainless steel pulpit and pushpit rails.
Stainless steel stanchions mounted on caprail with stainless steel guardwires.
Stainless steel mooring cleats mounted on cap rail forward, midships and aft.
Teak grabrails running length of coachroof aft from mast.
Lines from mast lead aft along port and starboard sides of coachroof.
Lewmar Ocean genoa tracks with towable cars controlled from cockpit.
Lewmar Ocean main sheet track.
Alloy framed windscreen with grab handles outboard to port and starboard.
Primary winches mounted on coaming tops outboard of cockpit.
Halyards and lines from mast lead aft to rope clutches to port and starboard sides of companionway.
Bench seating to port and starboard sides of cockpit.
Cockpit locker beneath starboard seating.
Gas locker beneath aft port section of cockpit seating.
Cockpit table, mounting on adjustable leg.
Teak outboard bracket on stern pulpit to starboard.
Folding stainless steel swimming ladder fixed on transom.

Safety Equipment

General note on safety equipment: Any safety equipment such as liferafts, Epirbs, fire extinguishers and flares etc. are usually personal to the current owner(s) and if being left on-board as part of the sale of a used vessel may require routine servicing, replacement, or changing to meet a new owners specific needs.

Navigation Lights:
Masthead tri-colour.
Masthead anchor light.
Steaming light.
Deck flood light.
Low-level running lights.

Life saving:
Liferaft – SEAGO 4 person valise.
OSCAR MOB rescue sling.
Throwing line.

Disclaimer

In this case we are acting as brokers only.
The Owner is not selling in the course of a business. whilst every care has been taken in their preparation, the correctness of these particulars is not guaranteed. The Purchaser is strongly advised to check the particulars and where appropriate at their expense to employ a qualified Marine Surveyor to carry out a survey and/or to have an engine trial conducted which if conducted by us shall not imply any liability for such engine on our part.
This vessel is offered subject to prior sale, price change, or withdrawal without notice.
