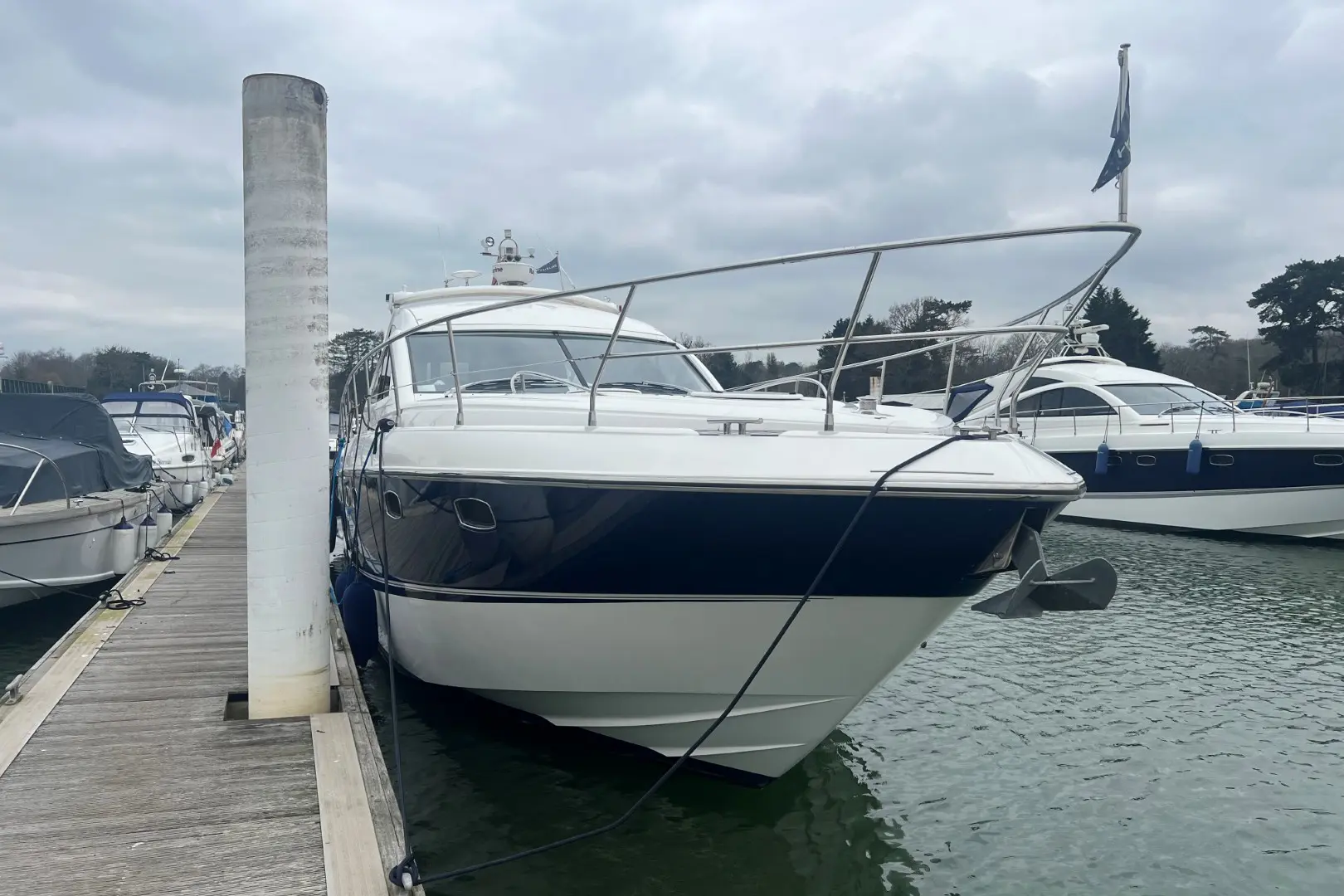

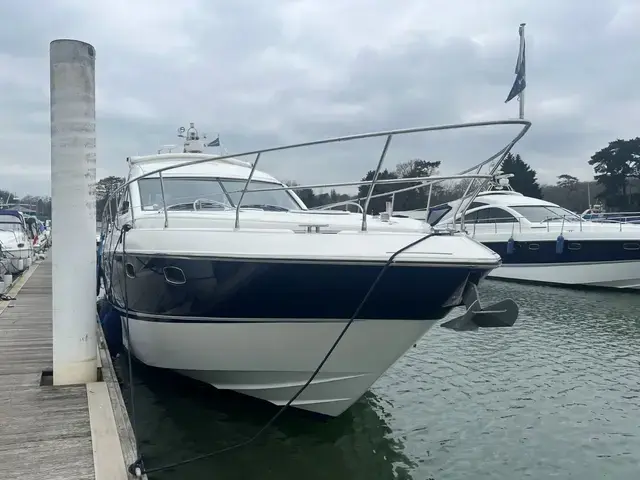

Boat Overview
Year: 2006
Engines: 2 x 775 HP Volvo D12-800
Berths: 6 in 3 cabins
Location: Lying: South Coast UK
Extras
- Raymarine E120 GPS/Radar Chartplotter
- Raymarine 4kw Digital Radome
- Raymarine ST70 Autopilot
- Raymarine ST70 Depth & Speed Log
- AIS
- 2 X Raymarine Cameras to Port Aft Quarter and Engine Room
- Reverse Cycle Air Conditioning throughout including Cockpit
- 13.5kW Onan Generator
- Hydraulic Paserelle
- Upgraded Side Power Bow & Stern Thrusters
- Teak Laid Side Decks
- Cockpit Wetbar including Griddle & Ice Maker
- Additional TV to Cockpit
- Holding Tank
- Dash Skylight to Port Cabin
- American Cherry Interior Wood
- Black Coral Galley Worktop
- Fresh Water Deck Wash
- Bespoke Aft Canopy/Bimini Framework
- Stainless Steel Stern Guard Rail
- Under Water Lights
- Additional Engine Room Lighting
- Windscreen Demist Fans
- Electric Heated Towel Rails
- Blue Low Level Cockpit Lights
Standard Specification
24 Volt Systems
- Batteries - 2 x 180Ah exclusively for starboard engine starting
- Batteries - 4 x 180Ah wired in parallel supplying domestic services and port engine starting
- Circuit breaker 80amp for anchor winch
- Circuit breaker for bowthruster 300amp
- Emergency battery coupling system permits each engine to start from opposite engine battery bank
240 Volt Systems
- Polarity check and earth leakage protection system
- Regulated 75amp charger for domestic batteries
- Cockpit 12v heavy duty weatherproof socket

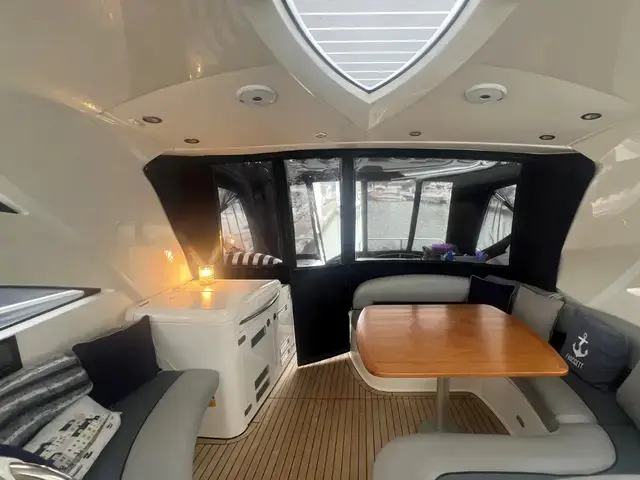

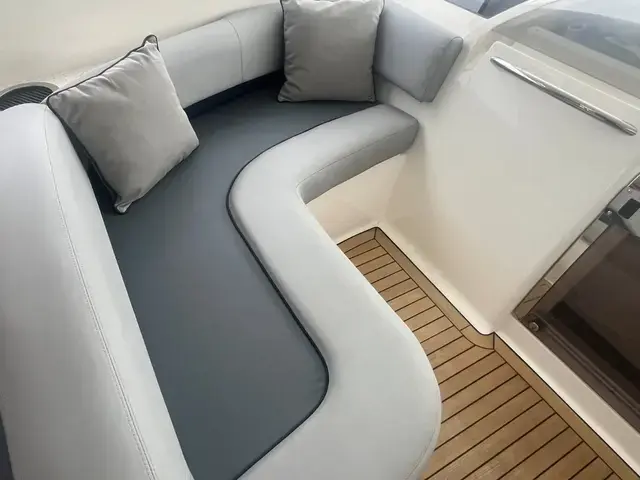

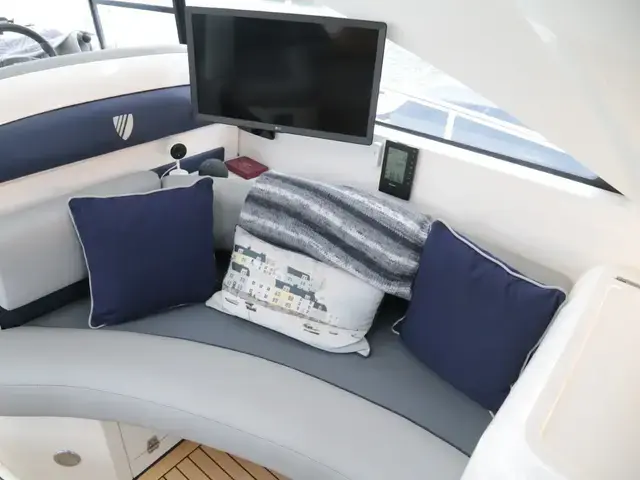

Access and Cockpit Features
- Access via transom deck to port and starboard side decks
- Aft cockpit hood with clear panels and zipped doorway
- Bathing platform lights

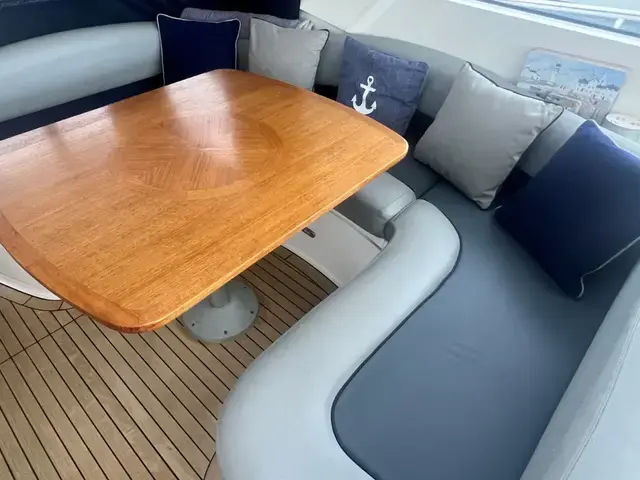

- Central dining area
- Cockpit bar with refrigerator, sink, hot and cold water, insulated coolbox
- Companion seating to helm
- Drinks holders
- Engine bay access hatch with stainless steel pneumatic support struts, independent of the tender garage
- Fender stowage
- Glove locker
- Manual bilge pump(s)
- Refrigerated coolbox to cockpit bar
- Stainless steel handrails
- Stowage lockers under cockpit seats
- Teak-laid floor throughout self-draining cockpit
- Warning light and audible alarm during garage door operation
- Warp lockers
- Deck Anchor chain locker
- Anchor winch (electric)
- Anchor winch controls
- Calibrated anchor chain
- Concealed telescopic swim ladder to bathing platform
- Full set of IMCO navigation lights
- Garage with winch system for concealed stowage of optional Jet RIB or PWC beneath aft sundeck
- Hot and cold water transom shower
- Life raft stowage
- Moulded non-slip deck surface
- Recessed self-draining area on foredeck with coachroof sun cushions
- 'Reticulated' non-absorbent foam cushions for forward and aft sundeck
- Remote control searchlight
- Riding light
- Rubbing strake
- Self-stowing through-hull Delta anchor
- Stainless steel bow fairlead(s)
- Stainless steel bow, spring and stern cleats
- Stainless steel handrails
- Stainless steel hull protection plate under bow
- Stainless steel pulpit
- Teak-laid bathing platform
- Toughened glass curved windscreen
- Transom gate from cockpit to integral bathing platform
- Twin horns
- Water filler(s)
- Windscreen washers
- Windscreen wipers
Electrical Systems
- All 240v, 24v and 12v circuits (where applicable) protected by circuit breakers with main electrical load control panel
- Electrical sockets
- Heavy duty circuit breakers
- Isolating switches to all batteries
- Onan generator 7kVA

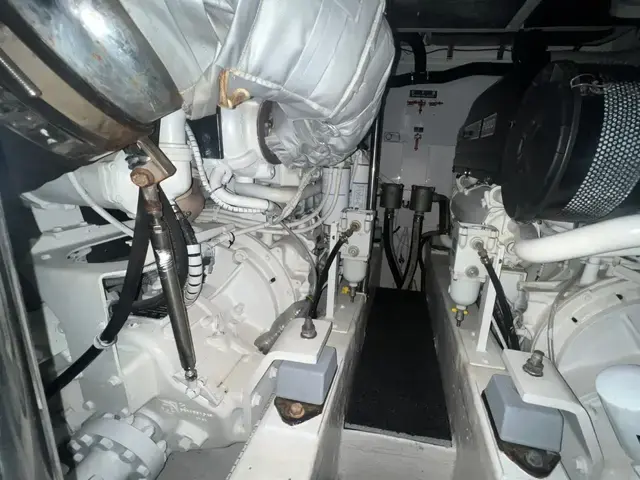

Engines and Sterngear
- Aerodynamically designed engine air intakes
- Automatic bilge pumps for forward bilge, engine bay and rudder bay with manual 'on' override
- Automatic engine bay fire extinguisher system
- Balanced rudders
- Cathodic protection
- Dripless shaft seals
- Electro-hydraulic trim tabs with cathodic protection
- Engine room soundproofing
- Electric engine bay fan(s)
- Engine bay lights
- Exhaust overheat warning system
- High capacity emergency manual bilge pump system with changeover valves
- Manganese bronze 'P' brackets
- Manganese bronze propellers contra-rotating
- Sea cocks on all inlets/outlets below waterline
- Stainless steel alloy shafts
- Water cooled through-hull engine silencers
Freshwater System
- Automatic, pressurised supply
- Calorifier hot water system
- Water tank(s)
Fuel System
- Changeover valve system to permit each engine to draw fuel from, and return fuel to, either tank
- Emergency fuel shut-off valves
- High capacity water separators and fuel filters
- Individual fillers and vents to port and starboard
- Marine grade alloy fuel tanks x 2
Galley
- Crockery stowage
- Electric ceramic/halogen hob
- Extractor fan
- Work surface with covers
- Halogen ceiling lights
- Integrated waste bin
- Lacquered cupboard doors
- Lockers (overhead)
- Microwave oven
- Random teak floor
- Refrigerator 4.6cu.ft. (130L) with automatic 12v/240v change-over
- Stainless steel opening porthole(s) with flyscreen
- Twin sinks with hot and cold mixer tap
- Towel rail
- Work surface lights

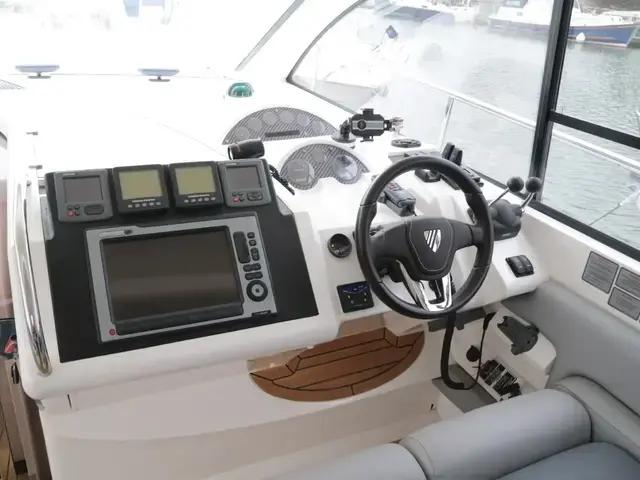

Helm Position
- 12v socket
- Adjustable/tilt steering wheel
- Bilge pump switches with integral operating warning lights and audible alarms
- Bolstered helm seat(s)
- Bowthruster controls
- Chart table and light
- Controls for engine bay fire extinguisher system
- Drinks holders
- Echosounder and speedometer/distance log repeater(s) with sea water temperature read out
- Electronic single-lever throttle and gear controls
- Folding foot plinth
- Fuel gauges
- Full engine instrumentation including; tachometers, oil pressure gauges, temperature gauges, battery condition indicators, audible alarms and engine hour meters
- GPS chartplotter interfaced with autopilot
- Helm position indicator
- High speed magnetic compass
- Powered steering
- Raymarine E120 navigation display
- Remote anchor winch controls
- Searchlight controls
- Trim tab controls
- VHF radio telephone
- Waterproof switches for navigation and riding lights, windscreen wipers and engine bay extractor fan(s)
Hullform and Construction
- All gel coat and glass fibre hand laid with unidirectional, biaxial and woven rovings
- Antifouling protection to hull
- Deep V forward; 20deg deadrise aft
- Designed by Bernard Olesinski and the Fairline design team
- Full length moulded spray deflectors
- Hull/deck join bolted and bonded
- Integrally moulded engine bearers
- Isophthalic gel coat backed by isophthalic resin-rich powder-bound glass mat
- The deck incorporates polyurethane foam cores for high strength and excellent thermal insulation
- The integral bathing platform gives the boat a longer waterline length for improved performance, particularly at reduced power settings
- The propellers are set in semi-tunnels enabling the engines to be located further aft, also reducing draught and improving efficiency by reducing the shaft angle
- Transverse and longitudinal strengthening stringers throughout hull

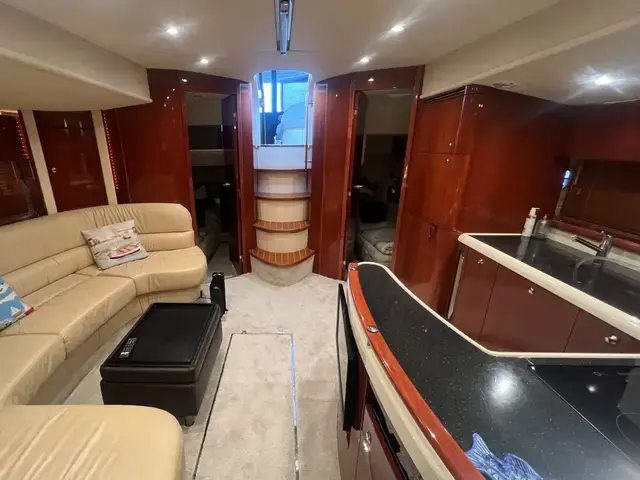

Main Saloon
- Access to day heads
- Aerial and connections for television
- Bar unit
- Control panel for 12v/24v/240v domestic electrical circuits
- Cocktail table converts to dining table with additional stools
- Deck hatch with flyscreen and blind
- DVD/CD/radio with 2 speakers in saloon and 2 waterproof speakers in cockpit
- Full-height standing headroom
- Handrail
- Halogen ceiling lights
- LCD TV
- Lockers (overhead)
- Mood lighting
- Sliding door to cockpit with integral blind system
- Sofa
- Stainless steel opening porthole(s) with flyscreen
- Stowage lockers under dinette seating
- Underfloor stowage hold

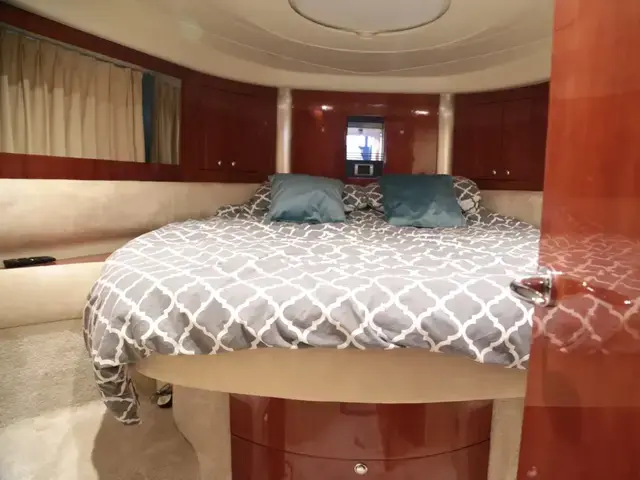

Master Cabin
- Access to en suite bathroom
- Bedside stowage
- Drawer(s) under bed
- Dressing table with vanity stowage
- Full-height standing headroom
- Halogen ceiling lights
- Large hatch with flyscreen and concealed blinds to foredeck
- Lockers (overhead)
- Mirror
- Moulded stowage locker under hinged bedboard
- Oversized double bed
- Stainless steel opening porthole(s) with flyscreen
- Upholstered bedhead
- Wardrobe(s)

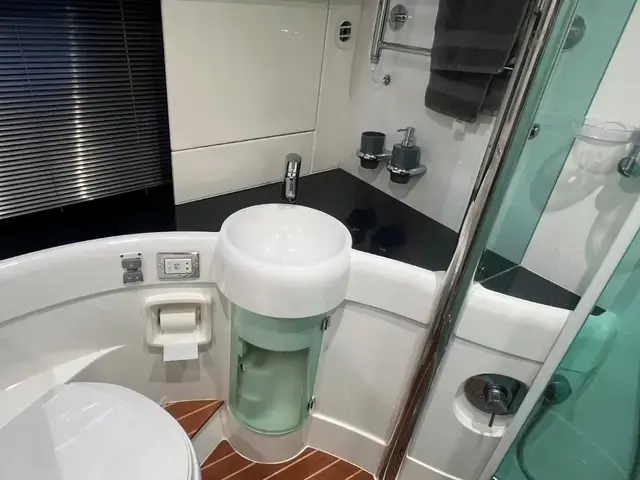

Master En Suite Bathroom
- 220v/240v shaving point
- Automatic shower tray pump-out system
- Electric silent-flush freshwater toilet
- Extractor fan
- Avonite vanity unit locker and basin with hot and cold pressurised water
- Full standing height circular shower with rotating screen
- Halogen ceiling lights
- Mirror
- Stainless steel opening porthole(s) with flyscreen

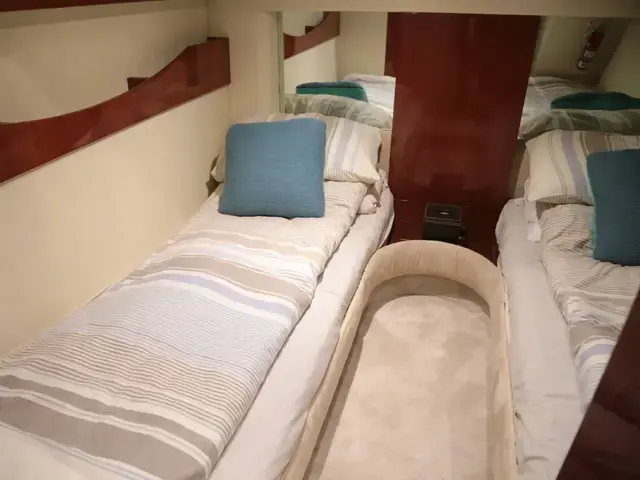

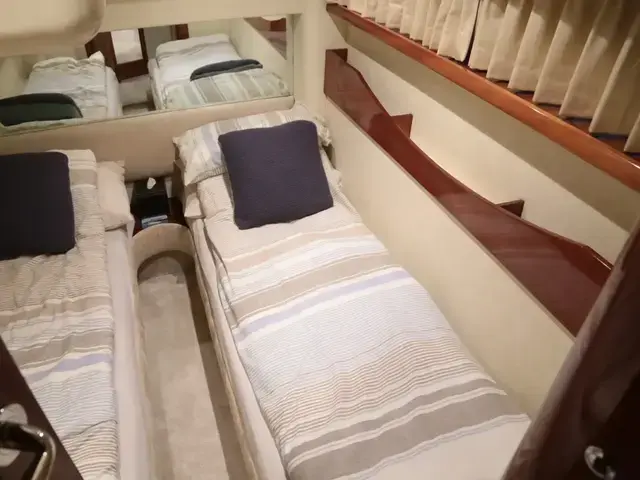

Port Guest Cabin
- Bedside stowage
- Drawer(s) under bed
- Full length berths x 2
- Halogen ceiling lights
- Mirror
- Stainless steel opening porthole(s) with flyscreen
- Upholstered bedheads
- Wardrobe(s)

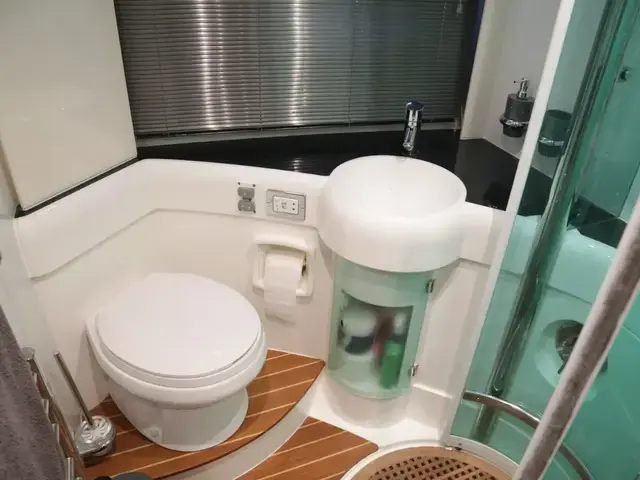

Shower/WC Compartment
- 220v/240v shaving point
- Automatic shower tray pump-out system
- Electric silent-flush freshwater toilet
- Avonite vanity unit locker and basin with hot and cold pressurised water
- Full set of bathroom fittings
- Full standing height circular shower with rotating screen
- Mirror
- Stainless steel opening porthole(s) with flyscreen
Starboard Guest Cabin
- Bedside stowage
- Drawer(s) under bed
- Full length berths x 2
- Halogen ceiling lights
- Mirror
- Stainless steel opening porthole(s) with flyscreen
- Upholstered bedheads
- Wardrobe(s)
