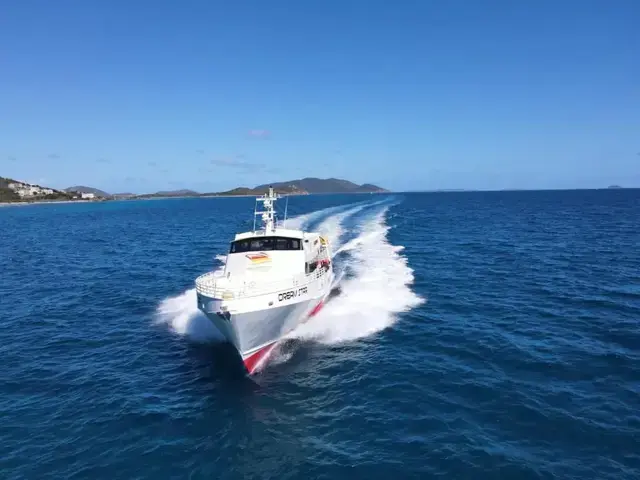

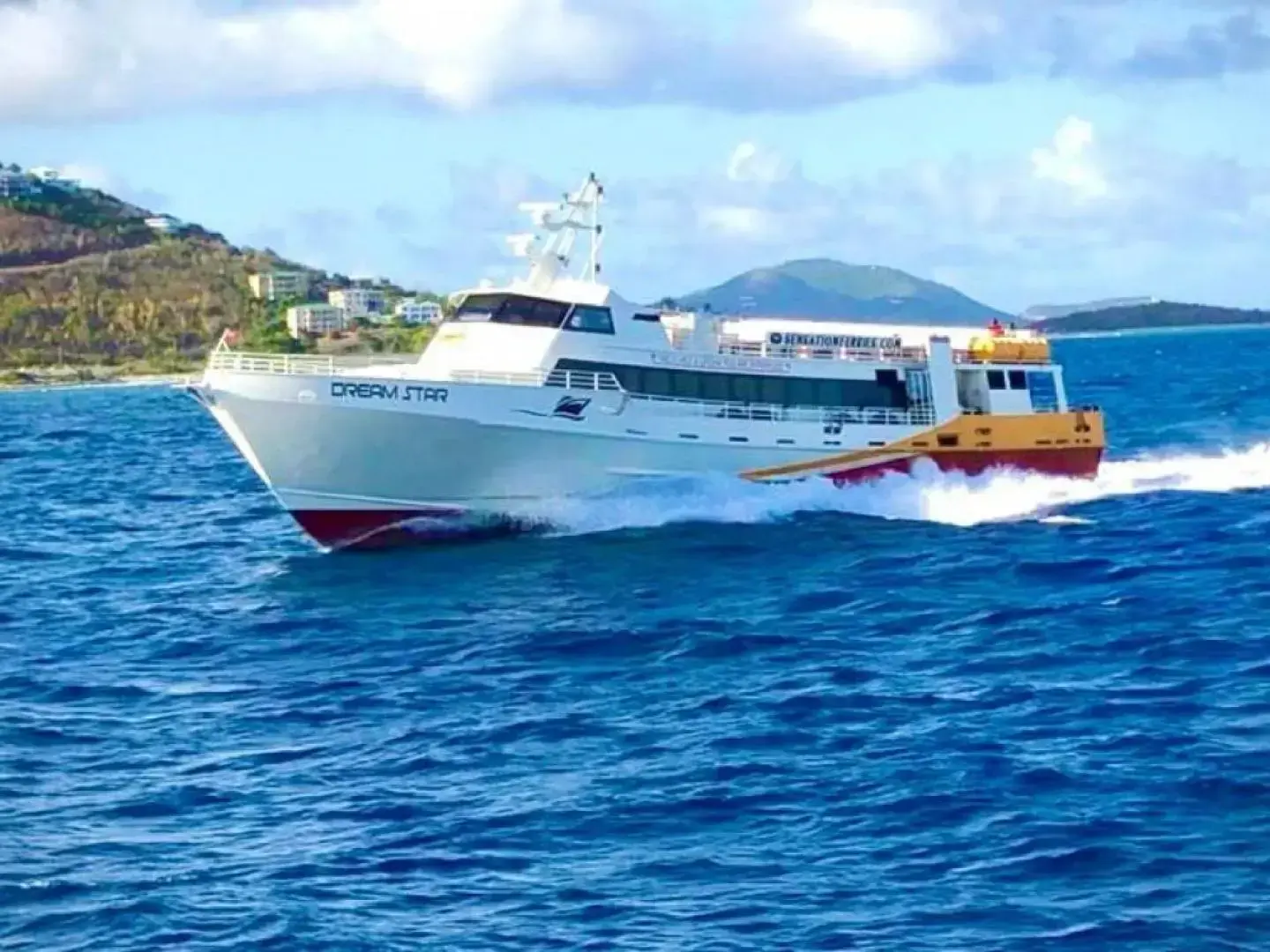

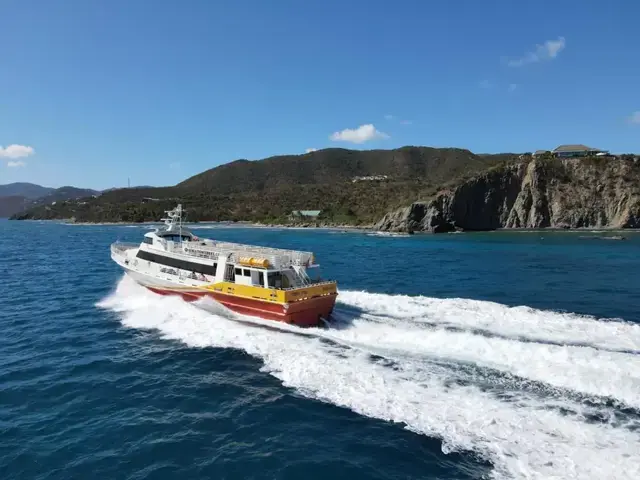

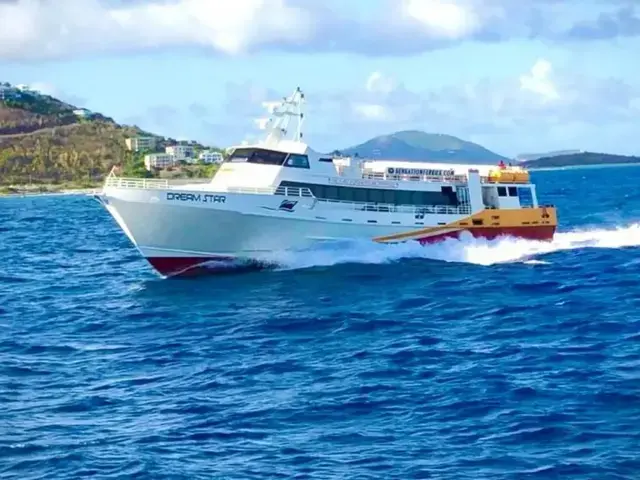

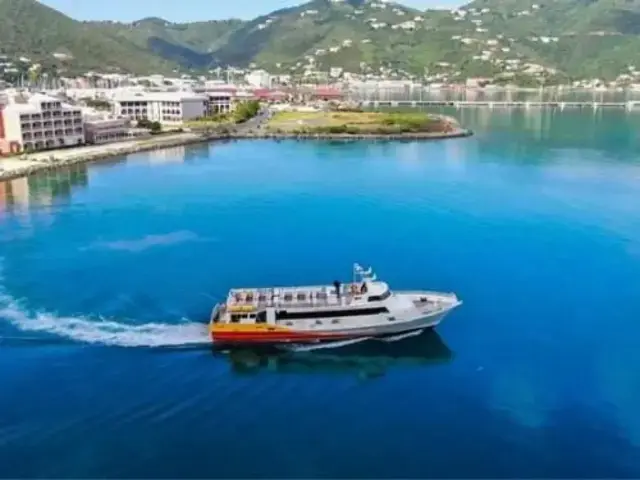

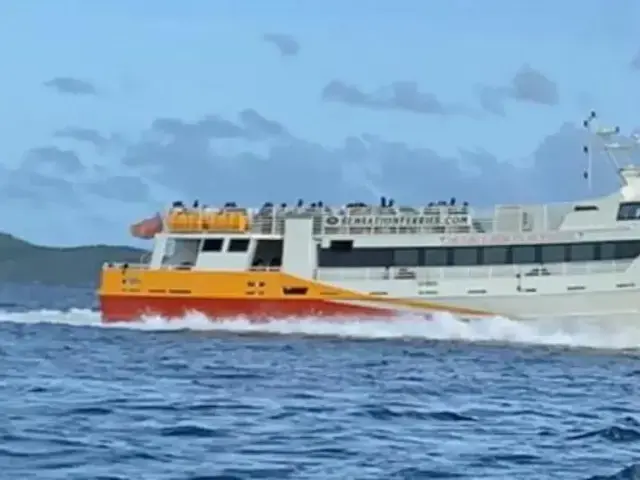

This CamCraft built passenger high speed passenger ferry was completely refit by Midship marine in 2017 / 2018 to new spec. The hull was stripped down to bare aluminum. Everything in the vessel was brand new including all the running gear, electronics, and even the seats. She is BVI registered and certified for passenger use. She was just dropped off at Midship again in to upgrade to BRAND NEW MAN 1400 engines with full factory warranties

Boat Description

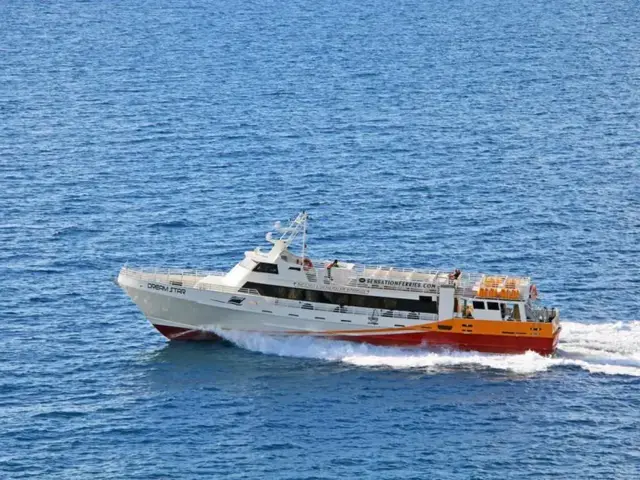

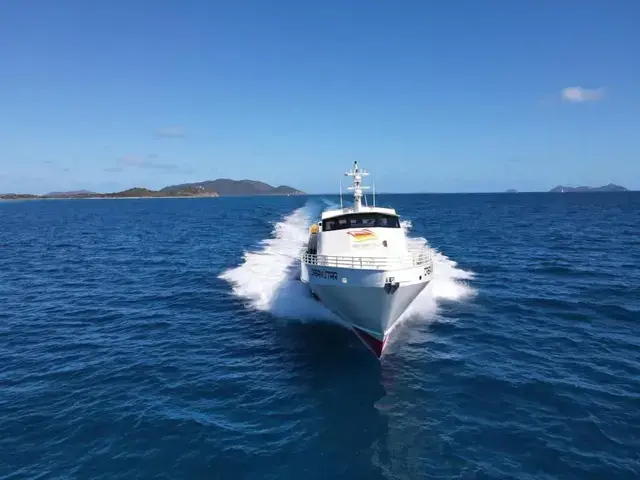

This CamCraft built high-speed passenger ferry underwent a complete refit by Midship Marine in 2017/2018 to new specifications. The hull was stripped down to bare aluminum. Everything in the vessel is brand new, including all running gear, electronics, and seats. She is BVI registered and certified for passenger use. Recently, she was dropped off at Midship again for upgrades to BRAND NEW MAN 1400 engines with full factory warranties and to meet USCG COI for 149 passengers plus crew. There is still time to upgrade to Subchapter K if you call right now, which allows for 235 passengers plus crew at an additional cost.

The price listed includes those upgrades! CALL AND ASK ABOUT BRAND NEW ZERO HOUR MAN ENGINES WITH FULL WARRANTY!!!!!!!!!

Hull & Fittings

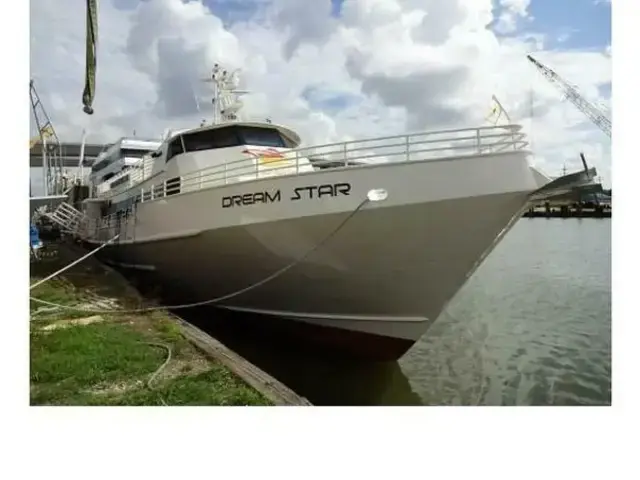

The vessel's hull is protected by two courses of 6" split pipe type hull guards on the port and starboard sides and across the stern. The vessel is outfitted with a full complement of inflatable rubber fenders. Spray rails are fitted at the bow.

Deck fittings consist of:

• Centerline forward H-bitt
• Port and starboard bow closed chocks
• Two each port and starboard double bitts with horns
• Two each port and starboard single bitts with horns
• Ground tackle consists of a single Fortress, FX125, 125-lb, Danforth style anchor, resting on a stainless steel bow roller and fitted with 10' of stainless steel chain.

Vessel Particulars

Built: 1981; CamCraft; Lafitte, Louisiana

Rebuilt: 2018; Midship Marine; Harvey, Louisiana

Flag: USA

Registered Dimensions: 98' x 23.4' x 6.3'

GRT/NRT: 97/66

Engines: (3) BRAND NEW MAN 1200

Drive: Conventional via fixed pitch propellers

Passenger Ferry:

Hull Compartmentation

• Bulkhead 22 to Frame 23 – port and starboard potable water tanks
• Frame 9 to Frame 10 – black water tank
• Bulkhead 30 to Frame 31 – hydraulic oil tank
• Tank capacities are as follows:
• Fuel oil: 2,000 gallons
• Potable water: 600 gallons
• Black water: 500 gallons
• Hydraulic oil: 30 gallons

Deckhouse Arrangement

The deckhouse is constructed of aluminum and fitted with aluminum weather-tight doors and fixed rubber mounted windows. The interior is sheathed with pebbled FRP in the overheads, lightweight aluminum marine wall panels in the bulkheads, and rubber tile in the decks. The entire deckhouse is centrally air-conditioned and heated. The main deck includes crew/passenger areas and sanitary facilities. The second deck consists of the pilothouse, with a below deck passenger area located aft, just forward of the main machinery space.

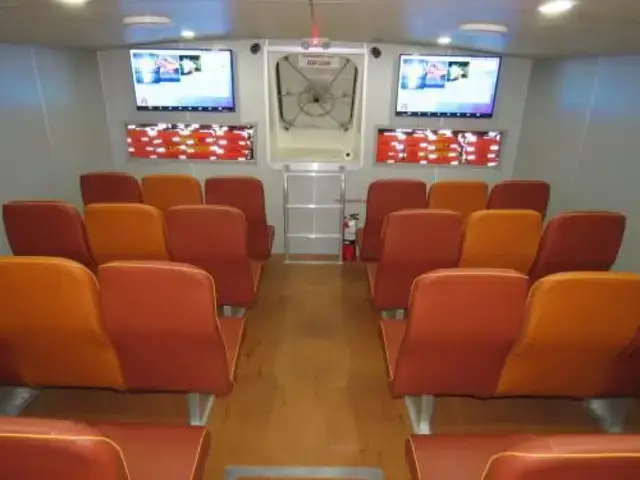

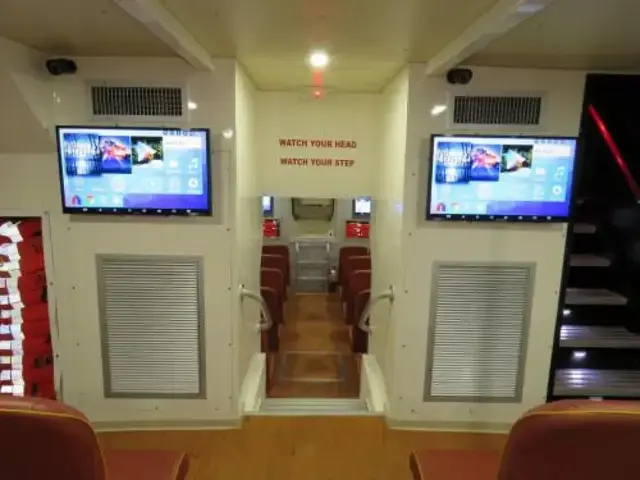

Forward and set 3' below the main deck is the forward passenger area, fitted with thirty-four Freedman deluxe vinyl covered high back seats, two 40" Samsung Ultra High Definition flat panel televisions, two closed circuit TV monitors, and a loudhailer speaker.

The main passenger area is fitted with seventy-two Freedman deluxe vinyl covered high back seats, two 32" Samsung Ultra High Definition flat panel televisions, one 40" Samsung Ultra High Definition flat panel television, two closed circuit TV cameras, forward PFD storage, aft HVAC closets, and port and starboard sanitary facilities accessed from the aft weather deck area. Sanitary facilities include a stainless steel sink set in an aluminum countertop, bulkhead mounted mirror, soap dispenser, towel dispenser, and a porcelain commode.

The lower passenger area, located below the main deck and forward of the main machinery space, is fitted with fifty-one Freedman deluxe vinyl covered high back seats, two 40" Samsung 6 Series Ultra High Definition flat panel televisions, closed circuit TV camera, loudhailer speaker, forward PFD storage, and a starboard side HVAC closet. Bulkhead 22 to Frame 24 – port and starboard fuel oil tanks.

Pilothouse, Navigation and Electronics Equipment

The pilothouse features a forward operator's console accessed from the second deck via a port aft aluminum weathertight door.

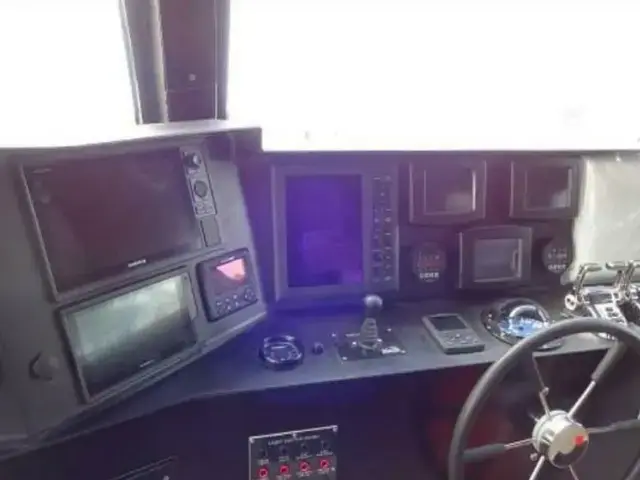

The forward operator's console includes:

• Fire pump emergency start/stop panel
• Two Blue Sea 8-point light panels
• Two 100-amp, 16-point Blue Sea breaker panels
• 16-point light panel
• 5-point alarm panel with indicator lights
• Main engine start/stop panel
• Skipper Engineering Products steering selector panel
• JBL, PRV-175, marine stereo head unit
• Garmin, GPS Map XSV, 12" multi-function display
• Garmin, GPS Map XS, 9" multi-function display
• Furuno, FA-170, universal AIS
• Dual Furuno marine radar displays
• Three MAN multi-function displays
• Skipper non-follow-up steering lever
• MAN throttle and clutch controls
• Controls, Inc. fuel system display
• Emergency manual control panels for main engines
• Fire Boy fire protection system override panels
• Sirius XM radio
• ToteVision flat panel CCTV display

Port and starboard Jabsco searchlight control panels include:

• Two Standard Horizon, Matrix GX2000, VHF marine radios
• Furuno loudhailer

The starboard side electronics cabinet includes:

• Lorex 4K Ultra HD NVR
• Samsung DVD player
• Roku Ultra streaming device
• 5-way HDMI switch panel

The forward electronics space below the console includes:

• Two Newmar Phase 3 battery chargers
• Kicker, DXA125, stereo amplifier
• Two Fire Boy Xintex emergency shut-down control system panels
• 12-volt battery in an approved type box
• Air compressor and tank for pneumatic horn

Superstructure Exterior

The vessel's design ensures that the top of the pilothouse is not accessible without a portable ladder. The pilothouse is not surrounded by a safety rail but is covered with non-skid coatings. The pilothouse top is fitted with a navigation light mast, two Furuno marine radar antenna units, two remotely operated searchlights, loudhailer speaker, closed circuit television camera, and seven miscellaneous GPS and VHF antennas.

The second deck is accessed by an aft inclined ladder with hand safety rails and storage area below. The second deck passenger area is surrounded by a 7-tier pipe constructed safety rail. LED lighting is placed throughout the passenger area. The second deck includes thirteen port and starboard aluminum bench style seats with integrated PFD storage, a forward 2-level U-shaped bar, a life ring with line, a life ring with light and line, four Bogen stereo speakers, port and starboard auxiliary steering stations, and an aft auxiliary steering station. Auxiliary stations feature main engine throttle and clutch controls, Jastram steering lever, and Kobelt, 7175-SY, rudder angle indicators.

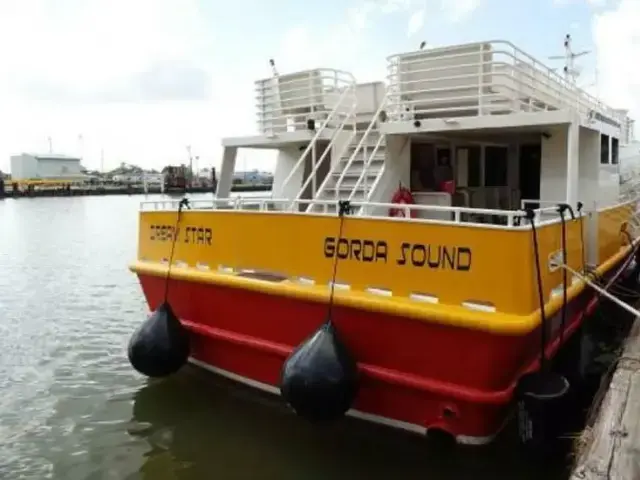

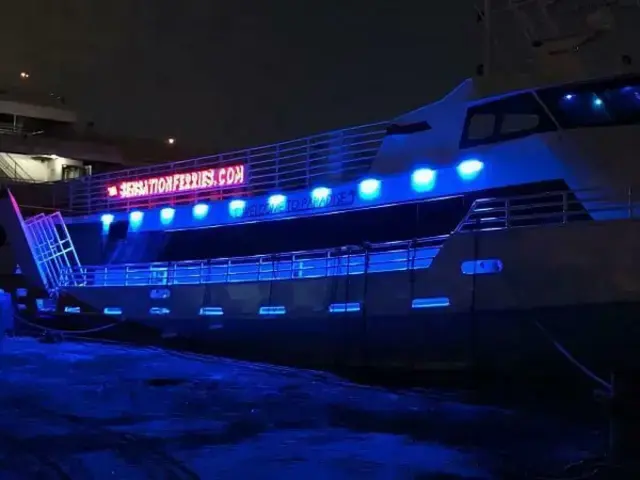

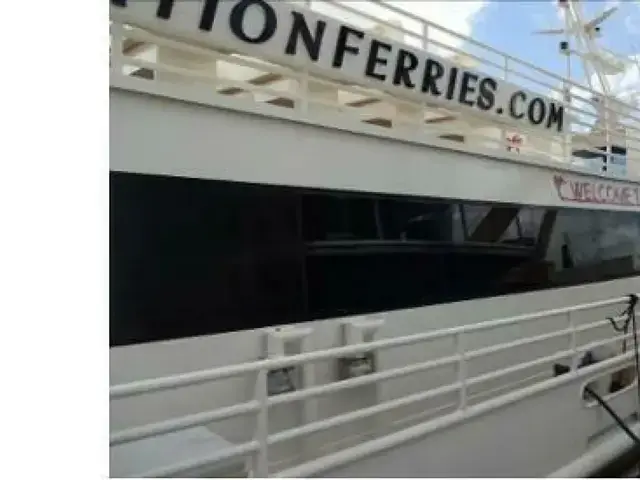

The main deck is surrounded 360° by an open type bulwark with freeing ports. The bulwarks are topped with 3-tier pipe constructed safety rails. Port and starboard swing-down passenger embarkation gates/ramps are located aft, along with port and starboard secondary embarkation gates and a centerline aft embarkation gate. The aft section of the main deck includes five aluminum fixed bench style seats, a loudhailer speaker, two Bogen stereo speakers, two Fire Boy, Xintex, fire suppression boxes, shore power connection, two closed circuit TV cameras, and a 30" life ring.

Main Propulsion Machinery

The vessel is triple screw. Propulsion machinery consists of three MAN 1200, twin turbo-charged diesel engines, each rated at 1,200-HP at 2,350 RPM. Each engine drives a fixed pitch propeller through a ZF Marine, model ZF3055A, marine reverse reduction gear with a 2.034:1 ratio. The engines are electric start and keel cooled.

Electrical Outfitting

Electrical power is provided by two John Deere, model 4045 TF 285, 4.5-Liter, 4-cylinder diesel engines driving 67-KW synchronous AC generators. The vessel is wired with basket weave metal armored cable and neoprene marine type wiring. Fixtures are of the vapor proof marine type and LED type. The lighting system is 110-volt AC. The switchboard is of the dead front type. Overload protection is obtained by circuit breakers.

Auxiliary Machinery

• Six 8D batteries in approved type boxes with selector switches (All N)
• Humphrey trim control unit (N)
• Potable water pressure set (N)
• Two fractional horsepower potable water pumps (N,N)
• Aluminum MSD system (N)
• Numerous electric bilge pumps (All N)

Steering System

The steering system is mechanical. Two 3-HP electric motors are set atop a common reservoir and power the hydraulic rams for the main steering rudders.

Safety Equipment

Safety equipment includes 286 U.S. Coast Guard approved adult personal flotation devices, thirty U.S. Coast Guard approved child personal flotation devices, four rack mounted, hydrostatic released 50-man Viking inflatable life rafts, and three life rings, one with a throwing line, and another with throwing line and light.

Firefighting equipment consists of eight 10-lb fire extinguishers and one 2½-lb fire extinguisher strategically placed throughout the vessel. The main machinery spaces are fitted with automatic fire suppression systems.

Condition

In 2017, the vessel was hauled out and completely stripped down to bare aluminum. A full re-fit was conducted, including all propulsion machinery, auxiliary machinery, electrical systems, and all interior and exterior finishes.

The vessel's hull, where visible, appears to be in excellent condition with new coatings and no signs of damage or distortion.

The topside coatings are in new condition and recently coated. All windows are newly installed and in excellent condition, free of damage.

The main propulsion engines are brand new MAN, model 1200, turbo-charged diesel engines.

Port and starboard generator engines and generator ends are in new condition and of recent manufacture.

Overall, the vessel was sighted in new condition.
