Concordia Taylor 42 for sale in Portland, Maine United States of America

Boat Overview

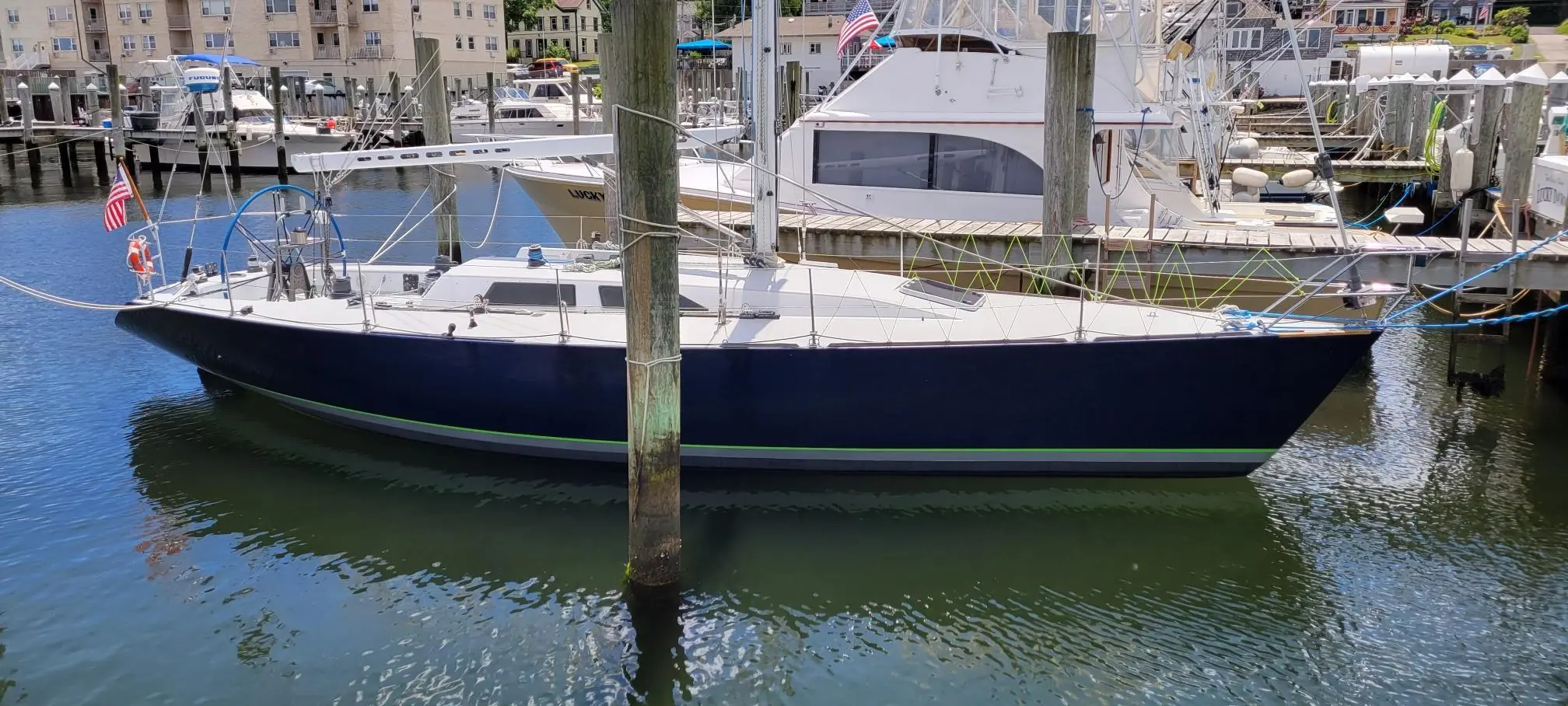

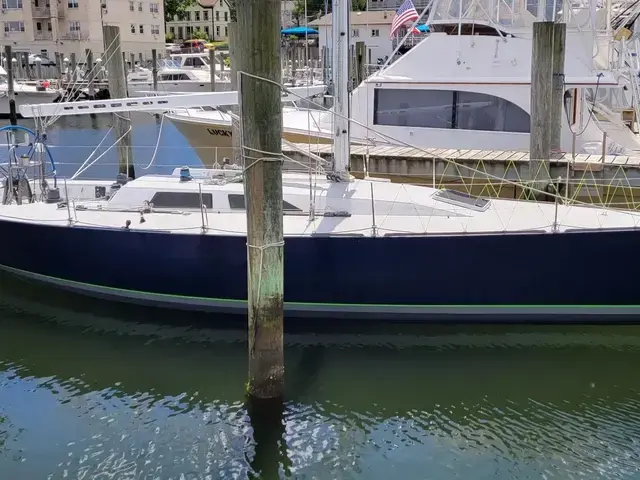

This is an opportunity to purchase a piece of marine history. Legacy, ex Drumbeat, ex Glory, has had an illustrious sailing career. She is Jim Taylor's Design #71 and a sister ship to Numbers. Legacy completed a 2 year restoration in 2020 and has been lovingly cared for since. It would be impossible to buy a new Epoxy boat for this price. Sitting in Maine and easy to show by calling Pete 508 596 1495.

Restoration

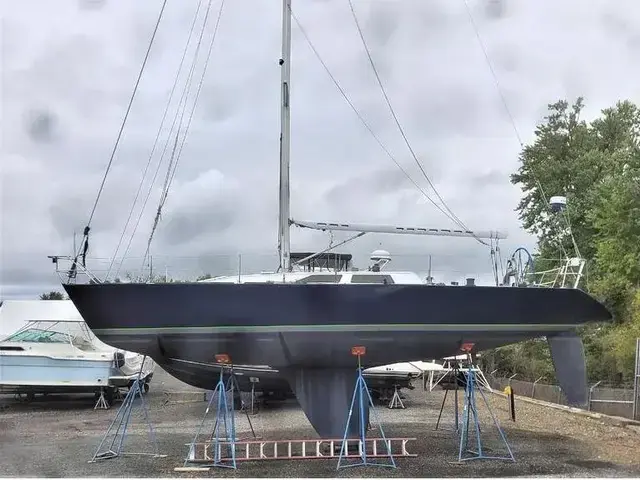

• Spars: HallSpars custom 4 spreaders, Aluminum mast and boom.
• Rigging: Navtec: 22-13-5 Nitronic solid S.S. Rod.

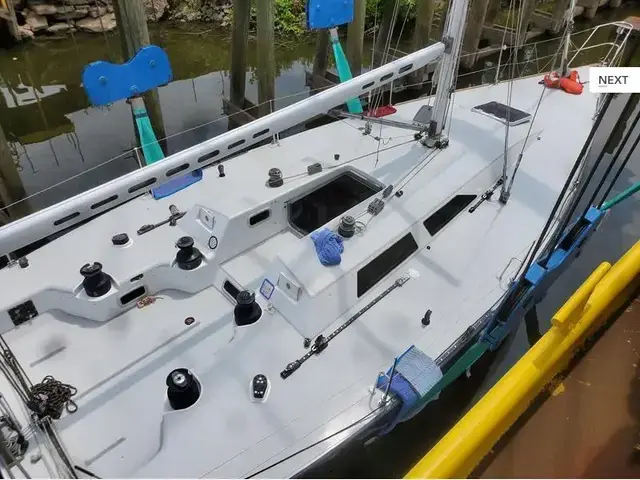

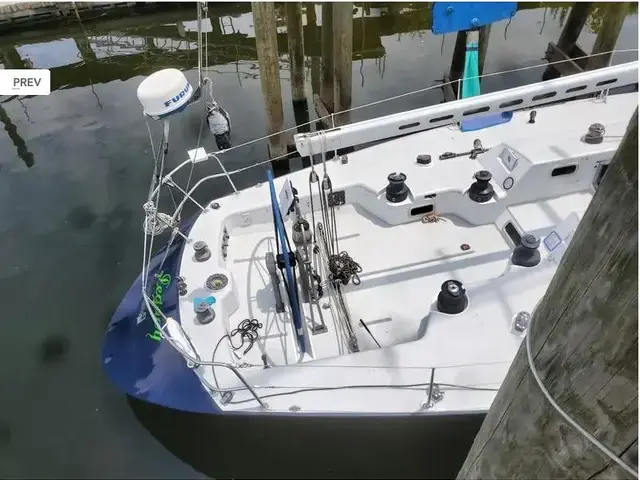

• Winches: 4-speed Lewmar.

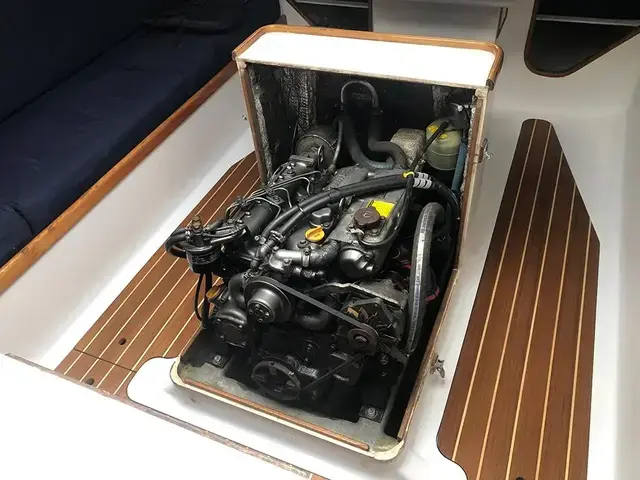

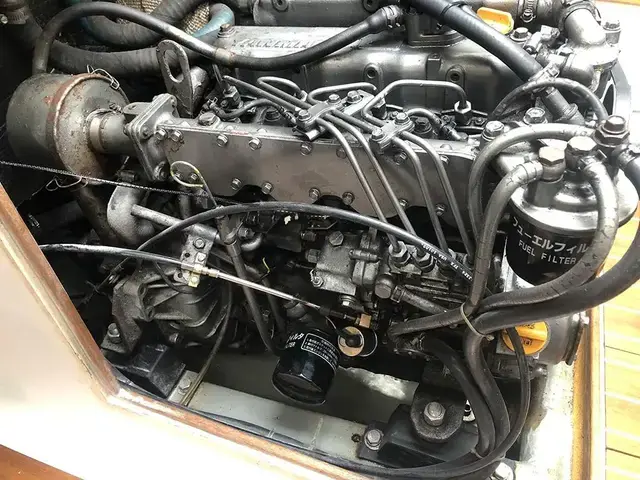

• Engine: 50hp Yanmar removed and rebuilt 2020, 0 hours in 2020, now still less than 100 hours.

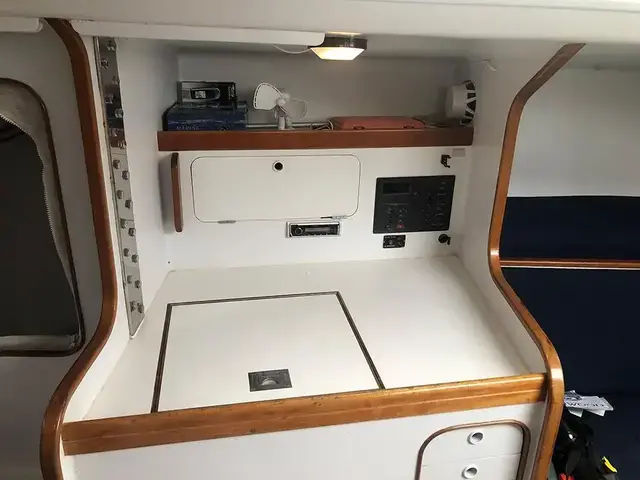

• Electronics: New 2020 BG 12inch touchscreen, New 2020 Transducer, New 2020 Marine Bluetooth stereo & speakers.

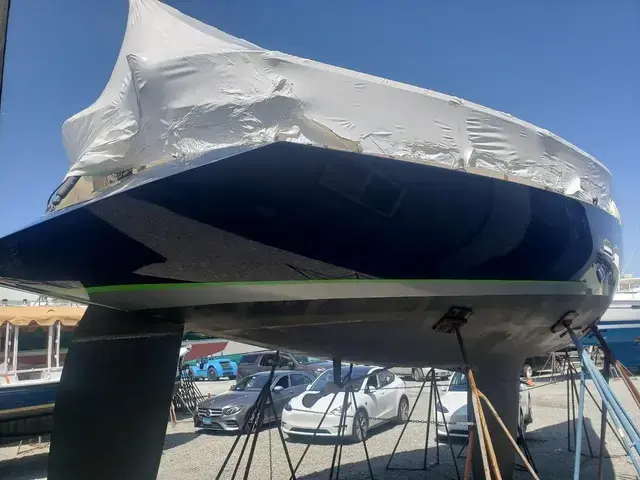

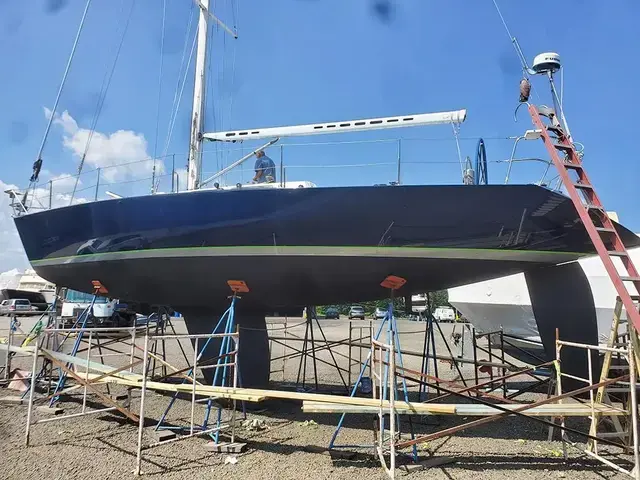

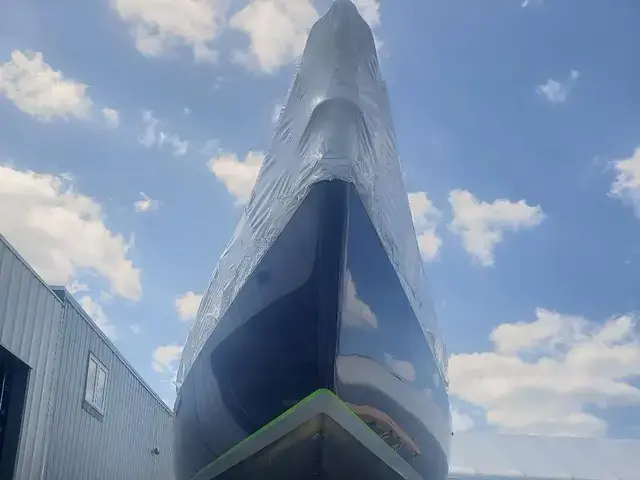

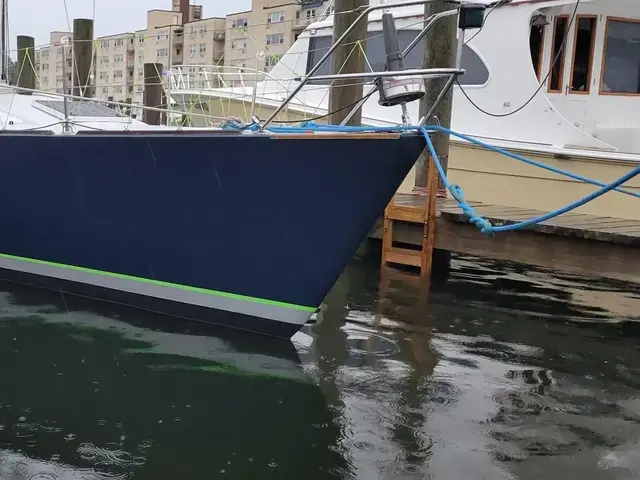

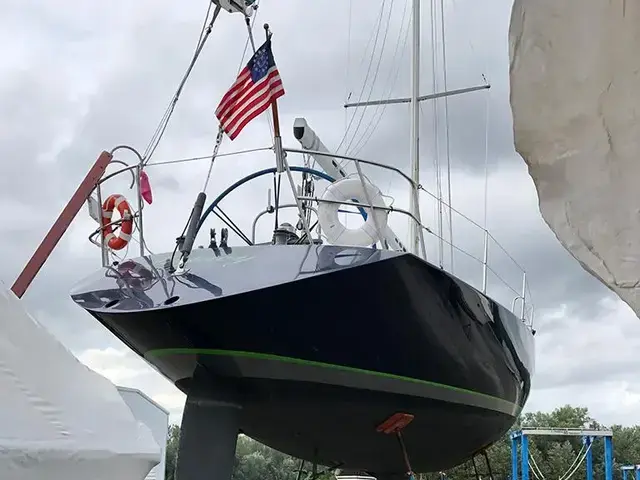

• 2020 Awlgrip Midnight Blue paint job.

Construction Details

The hull is laminated from unidirectional and biaxial 'S-Glass' skins, vacuum bagged over H-80 Divinycell crosslinked foam and AL-600 Baltek cores above the waterline, and H-80 and Airex foam below. There are high concentrations of unidirectional 'S-glass (in lieu of carbon fiber, along the hull backbone and bilge stringers. An integrated gridwork of deep keel floors, partial bulkheads, longitudinals, and ring frames supports rig and keel loads, controls headstay tension, and prevents shell distortion. The deck is a similar laminate of 'S-Glass' skins over the same H-80 Divinicell and AL-600 cores used in the hull. Unidirectional 'S-Glass' Reinforces deck stringers, which take the heavy compression loads from the headstay and backstay, and which are continuous from stem to stern. All laminates are vacuum bagged and post cured, and epoxy resins are used throughout.

Both T-42's boast a ballast/displacement ratio of over 60%, and nearly half the ballast weight is carried inside the hull. Most of this inside ballast is carefully shaped to fit the hull and very heavily glassed in place, forming a 'lead core' beam supporting the mast step, and massive lead and glass 'backing plates' distributing the keel bolt and grounding loads over a large area of hull shell. This ballasting approach results not only in a remarkably robust structure, but also in a substantial speed advantage upwind, due to an unusually 'soft' motion in a seaway resulting from the low pitch moment of inertia. Also contributing to the high stability and low pitch moment are a very sophisticated four spreader Hallspar rigs.

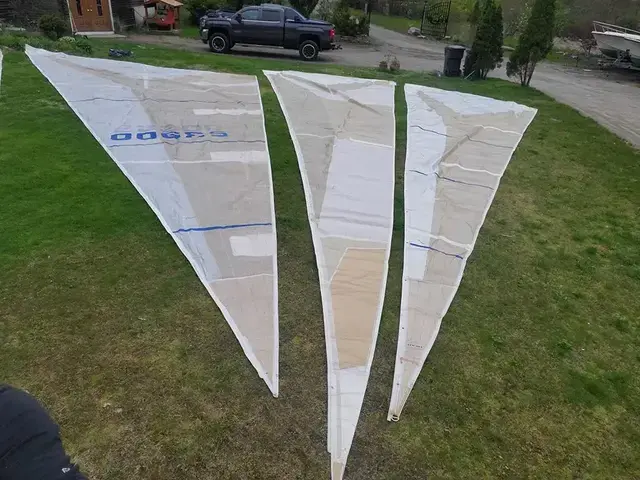

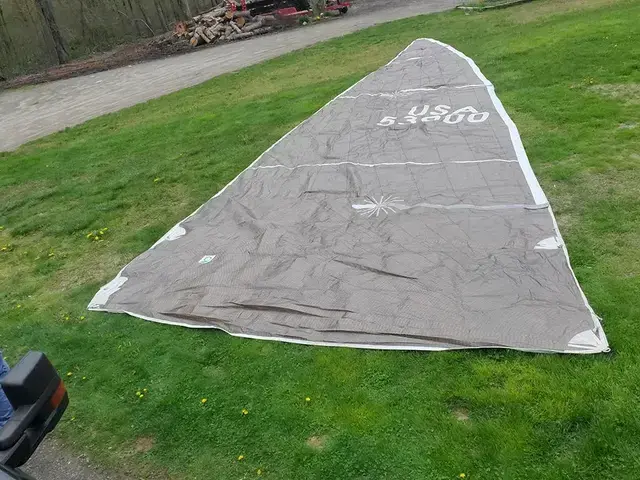

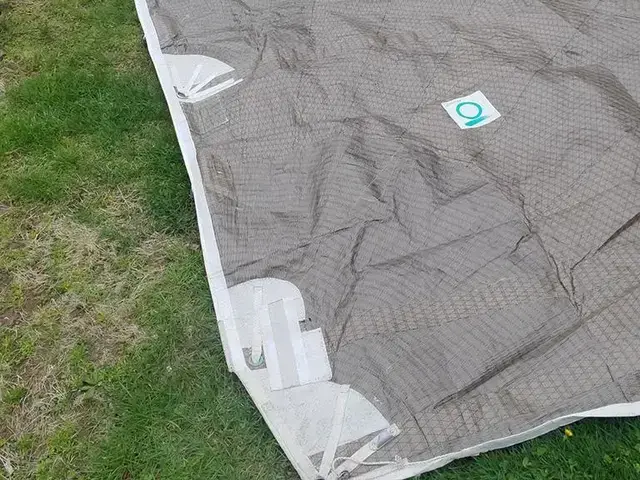

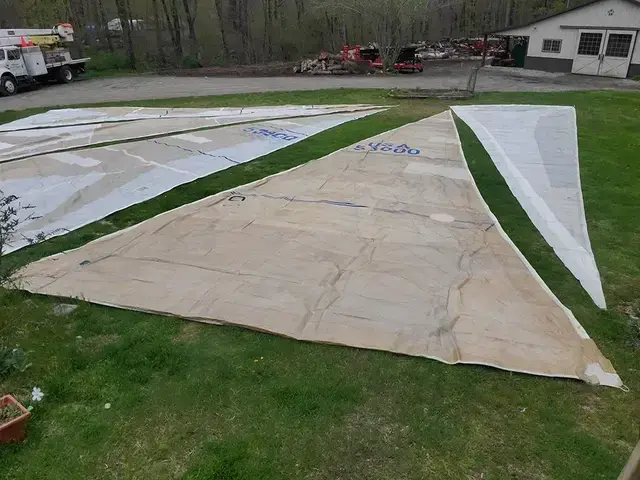

Sails

Confirmation of Sail inventory will be at the survey.

Foot        Luff        Leech
_________________________________________________________

#1  Doyle                           14.8'       48.2'        43'

#2  Thurston Racing          15.8'       53.3'        50.8'

#3  Doyle                            23.8'        53.6'       45.8'

#4  Quantum                      23.8'        54.8'        52.8' -(needs repair)

#5  Quantum                     15.8'         53'           50.8'
_________________________________________________________

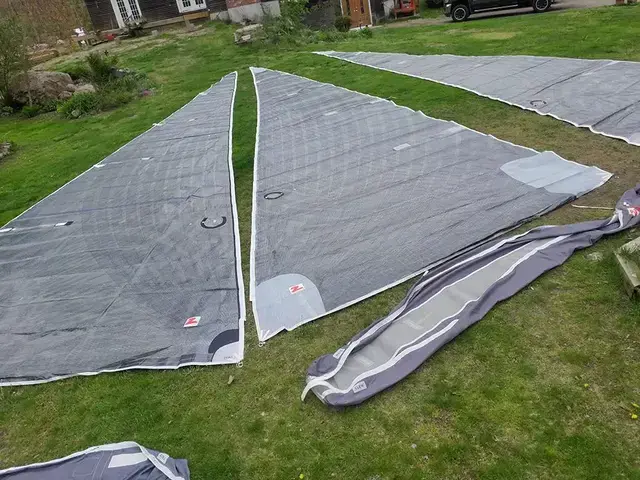

2020 New Z Sails - Carbon Fiber

#1                                     17.8'        54'            51'

#2                                    17.6'        54'            51'

#3                                    17'            52'            49'
_________________________________________________________

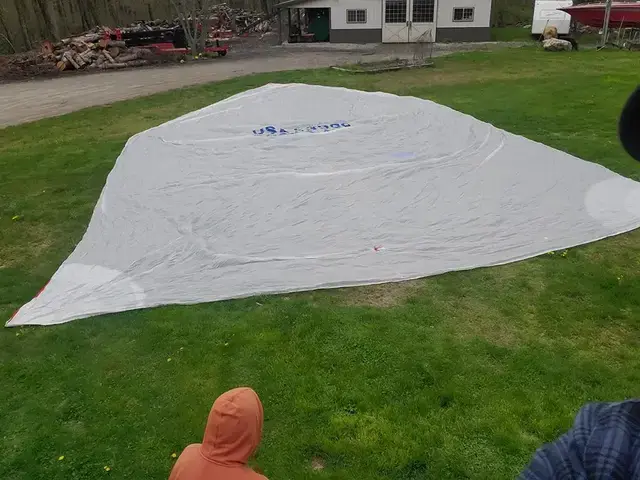

Spinnakers

#1  Hood                      A symmetrical
#2 Thurston Racing     A symmetrical
_________________________________________________________

2019 Quantam Carbon Main

Older Kevlar Main  -  heavy weight

& waterline to top of mast = 58'
