1998 Carroll 1d 35

Boat Overview

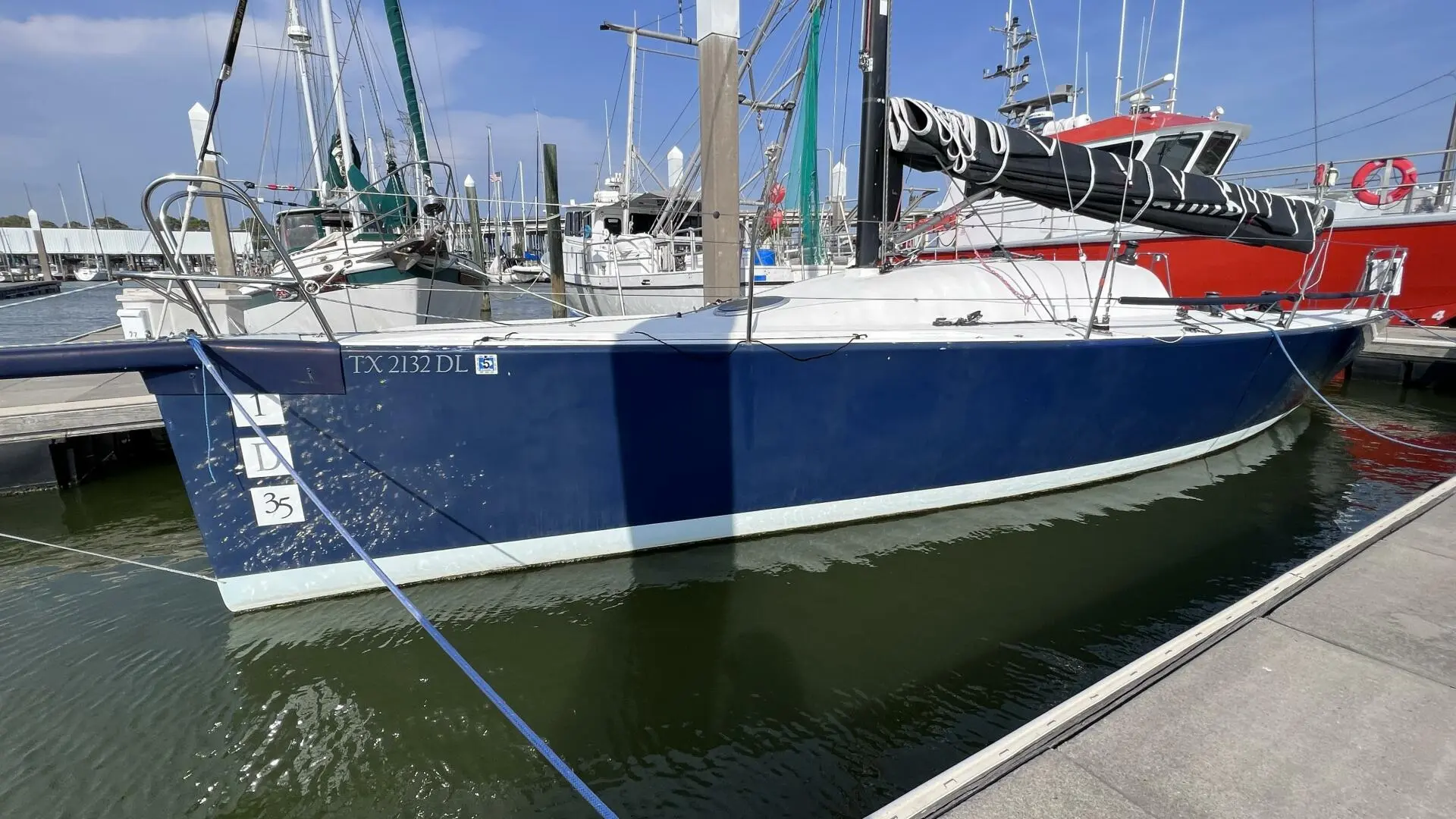

The One Design 35 is a hybrid vessel that combines sport boat design features with offshore-oriented characteristics of IMS boats, making it suitable for offshore and overnight racing. The accommodations are minimal yet very usable. This class was conceived by a group of Midwestern sailors who collaborated with Nelson/Marek, Doug DeVos, and Barry Carroll to bring this boat to life.

The hull measures 10 feet, 9 inches in width, just under the legal trailerable limit. With the keel attached, the boat can be trailered by a light truck and launched using a 4-ton dry-sail hoist. The weight of the boat is approximately 6,000 pounds, resulting in a D/L of 94.4. The stern is broader than typical IMS types. The design features a slight rocker through the middle and a distinct kick to the rocker around station 8. The near-plumb stem and minimal overhang aft give this boat the same DWL as a Valiant 40 but at a quarter of the weight.

The keel and rudder are high-aspect-ratio fins. The rudder appears large, which enhances handling and tracking. Those accustomed to full keels and skegs may find sailing this boat to be an eye-opening experience. A kelp cutter may be necessary on the leading edge to keep it free of weeds.

The rig is a big fractional with a 100-percent jib and a 23-degree sweep on the spreaders. Spinnakers are flown from a point midway between the hounds and the masthead. The long boom allows the mainsheet traveler to be positioned aft of the rudder head. The SA/D is a significant 32.65. There is no standing backstay.

Accommodations

• Layout: Open lightweight interior design, sleeps 4 to 6. Bunk bed configuration is available.
• Head: Manual Jabsco Toilet located on the starboard side towards the bow.
• Galley: Includes a sink and an area for a portable burner (burner or stove not included).

Electronics

• Navigation System: B&G Vulcan 9 dual 7 Inch Screen + 3 screen pod on the Mast
• Communication: B&G Radio VHF Vulcan 60 with DSC & AIS
• Stereo: Kenwood USD and Bluetooth + 4 Speakers: 2 interior, 2 cockpit

Electrical

• Shore power and battery charger
• Domestic AGM & Engine Batteries

Sails & Rigging

• Rod Standing Rigging
• Hydraulic Fore Stay Serviced in 2022
• Head Sail Foil By Tuff Luff Model Aereo (2023) included sail feeder
• Quantum Carbon Main Sail 2020
• Quantum Carbon Head Sail 2020
• Small Head Sail
• North Sails Reacher / Jib Top 2022
• A2 Spinnaker 2022
• A3 Spinnaker
• Code 0

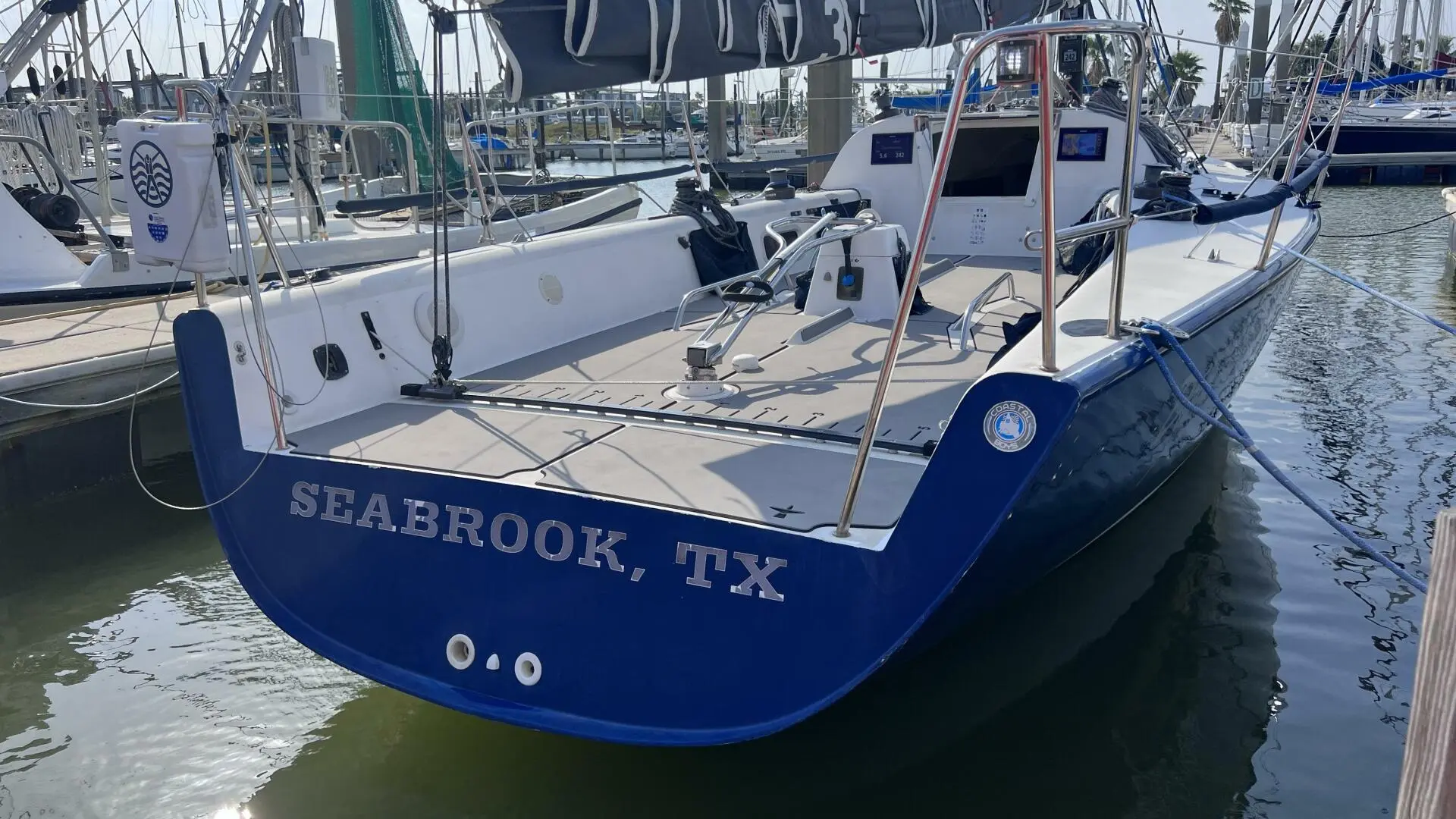

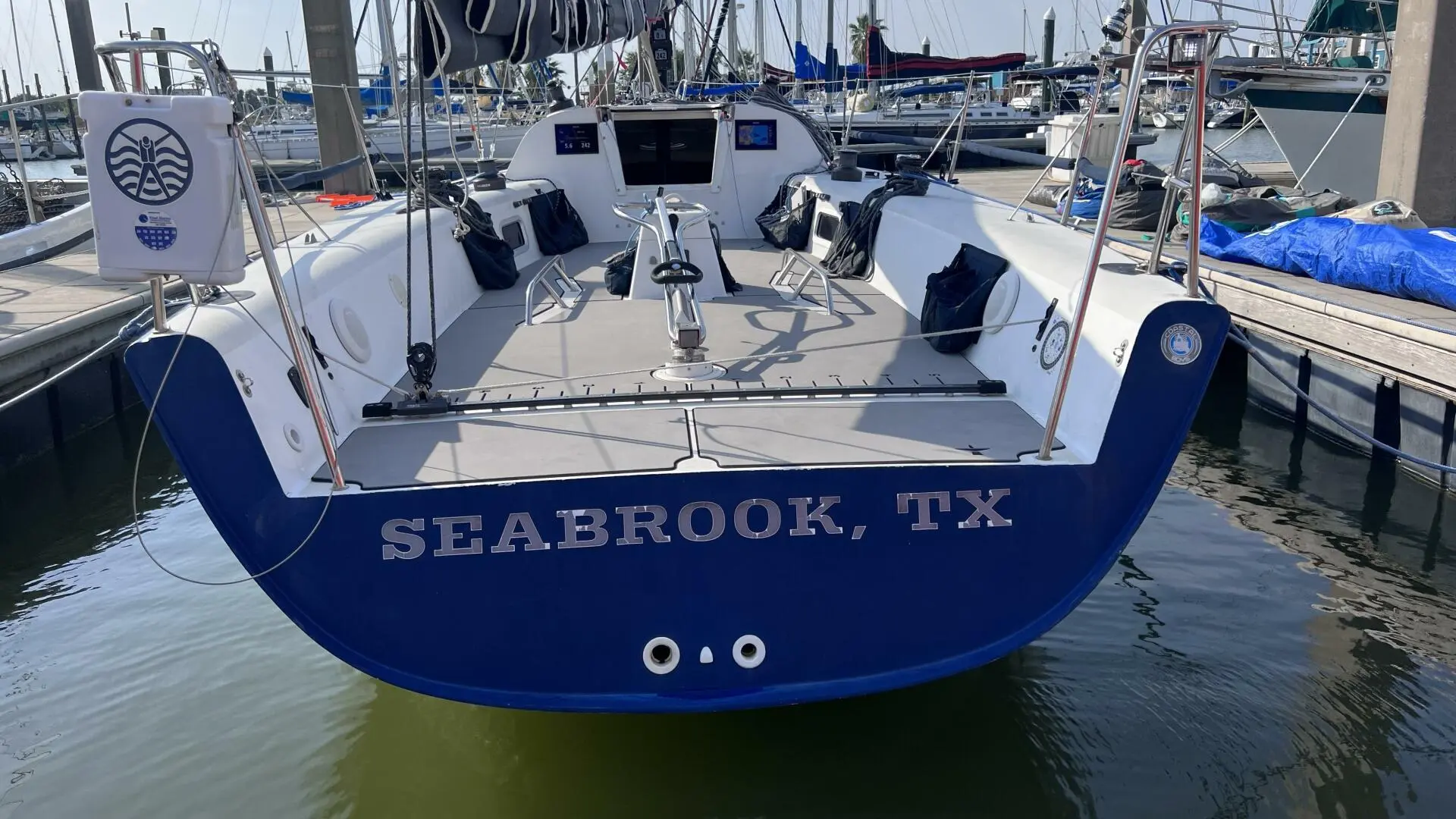

Deck & Hull

• Last Bottom job in 2022
• Cockpit Sea-Deck 2022
• Auto inflate man overboard raft 2022
• Navigation lights, anchor light, steaming light
• Anchor located in the interior of the cabin
• 2 Primary manual winches Harken Self Tail 2-speed
• 2 Secondary Winches Harken 2-speed
• 2 Halyard Winches Harken Self Tail 2-speed
• Fenders and lines
• Fix Bow Sprit

Mechanical

• Engine - 2GM20F / Sail Drive / 2 Blade Prop Foldable
• Fluids changed Oil change and Impeller 2022
• Portable Air conditioning

Price Considerations

The asking price accounts for the following systems that are inoperable or in need of attention:

• Cosmetic damage to the gel coat
