A very detailed and well-documented refit took place during 2021 and 2022. An assessment of the yacht was made after purchase, and every single recommendation was repaired or replaced during her refit/yard period. The yacht was then re-surveyed for validity, and all services and repairs were found to be complete and satisfactory. Items included in the refit are as follows but not limited to:

• Luu Marine completely sanded, stripped, and repainted all top sides and hull sides using Matterhorn white Awlgrip HDT paint
• Reef and re-caulk all windows
• Remove shafts and props, install new cutlass bearings and shaft seals, and realign
• Strip and repaint bottom with barrier coat and bottom paint

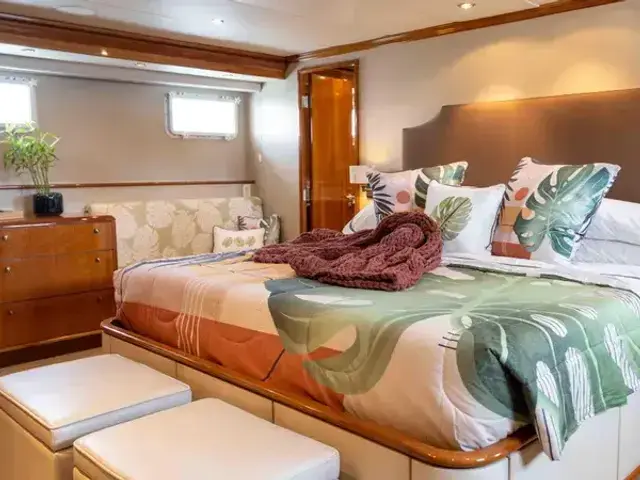

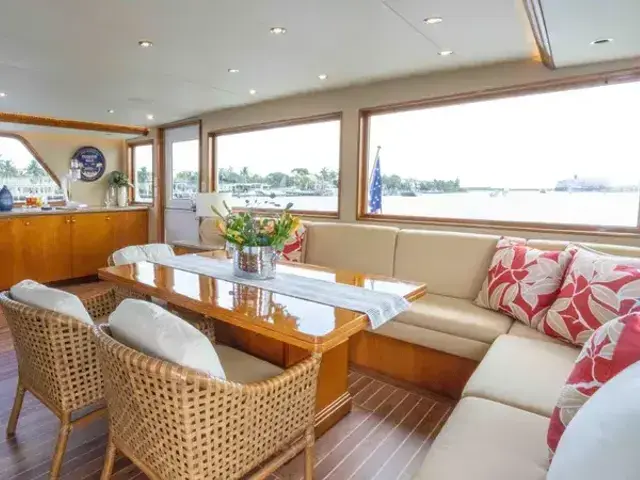

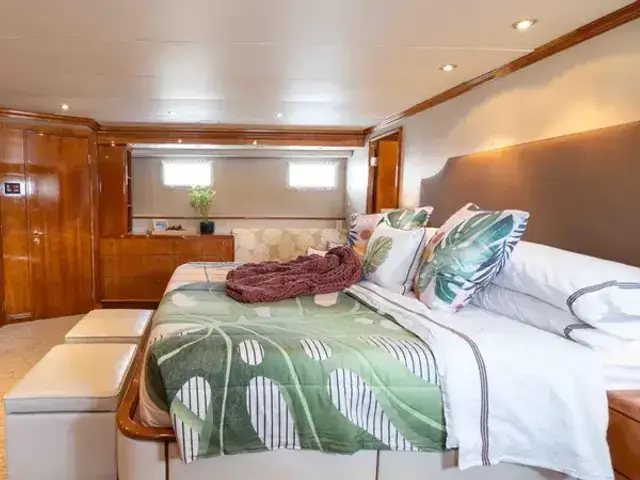

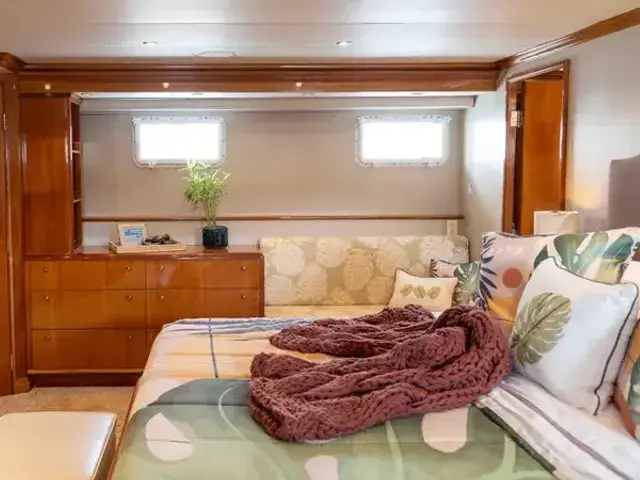

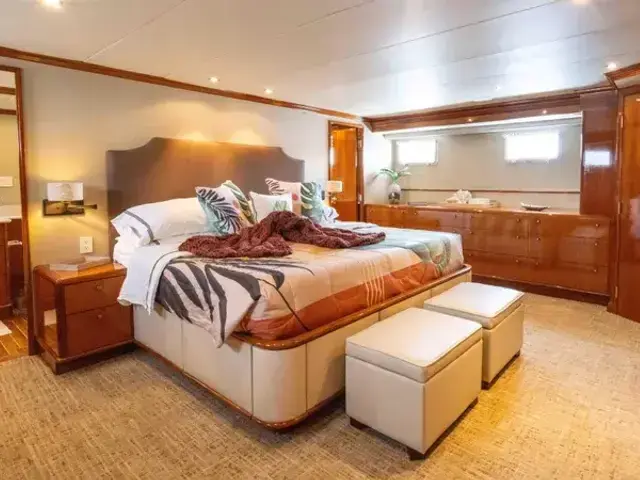

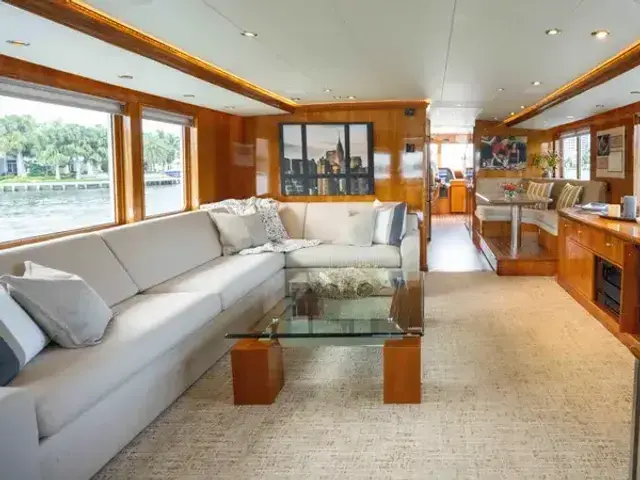

• All new soft goods and bedding, reupholster sofas and settees, all new exterior cushions and covers
• Re-varnish and paint all interior surfaces

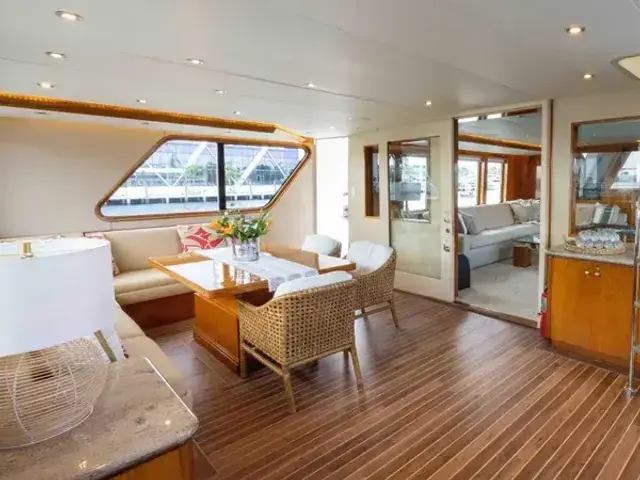

• Install new Amtico teak and Holley flooring and all new carpeting
• Convert all lighting over to LED lighting

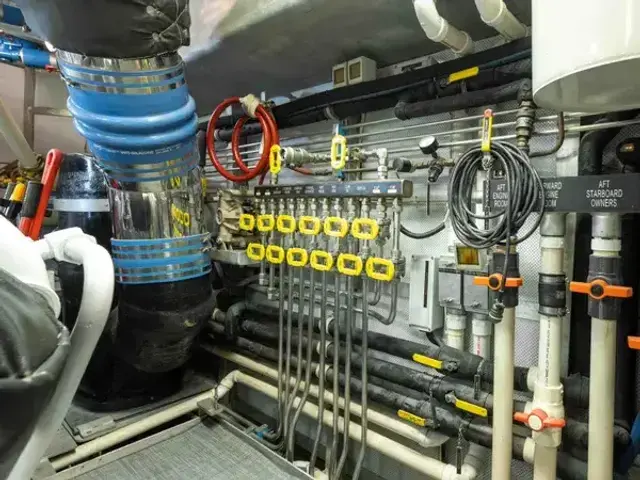

• Remove and rebuild entire sea chest system and isolate the HVAC, installing a dedicated thru-hull fitting

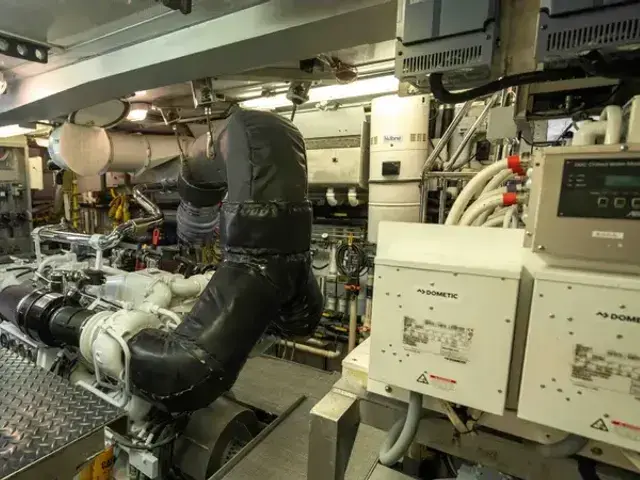

• Replace HVAC system with new Dometic chillers and frequency drives
• Install new hot water heater and circulation pump

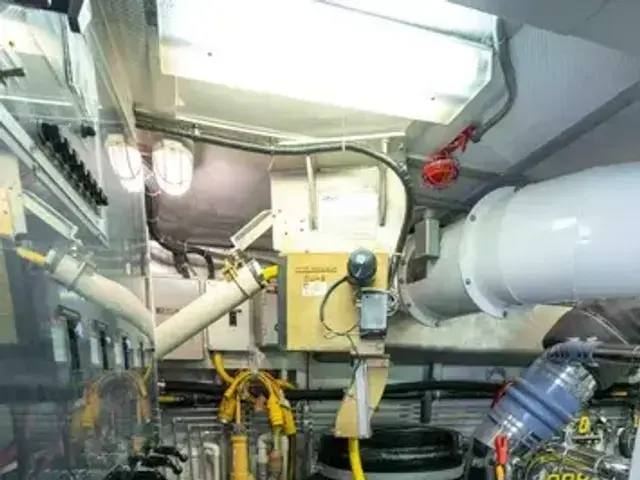

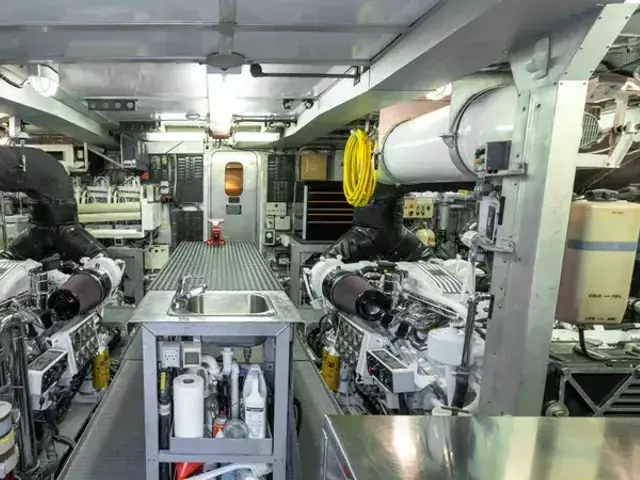

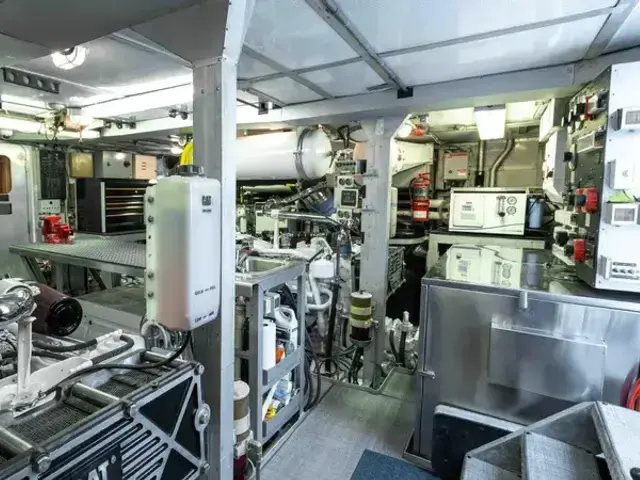

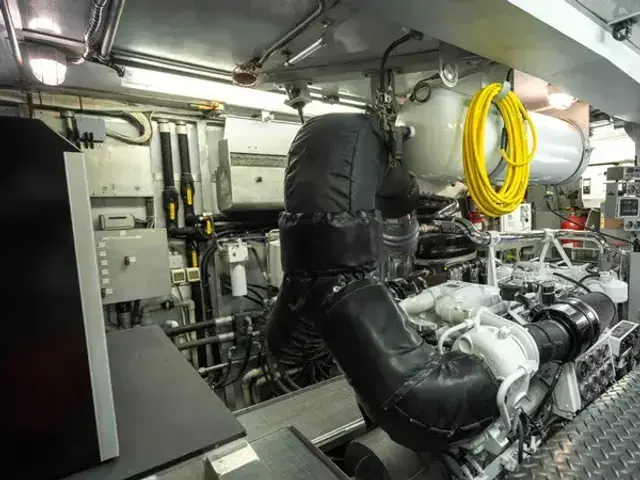

• Repaint engines and install new custom-made infinity woven carpets in the engine room

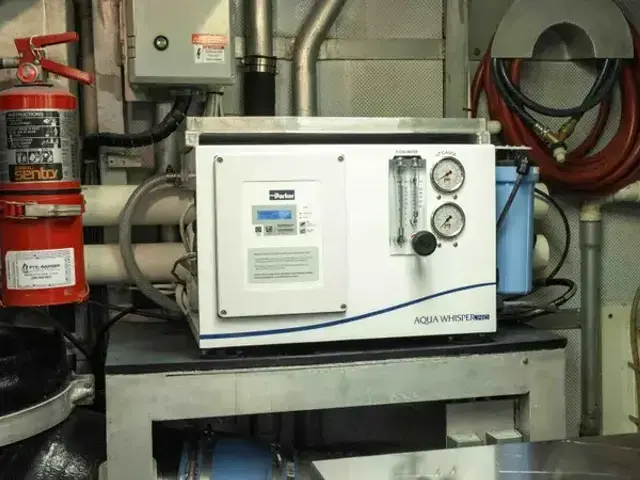

• Install new watermaker
• New air compressor in the engine room
• All new Tank sentry system for all tank monitoring

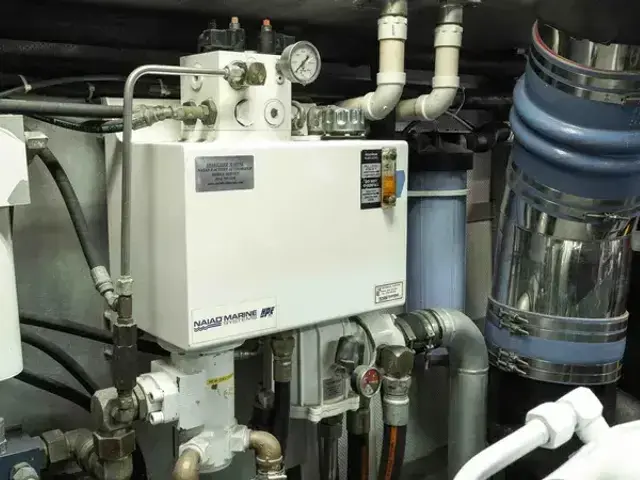

• Remove and service stabilizers
• Repaint generator and polish the sound shield

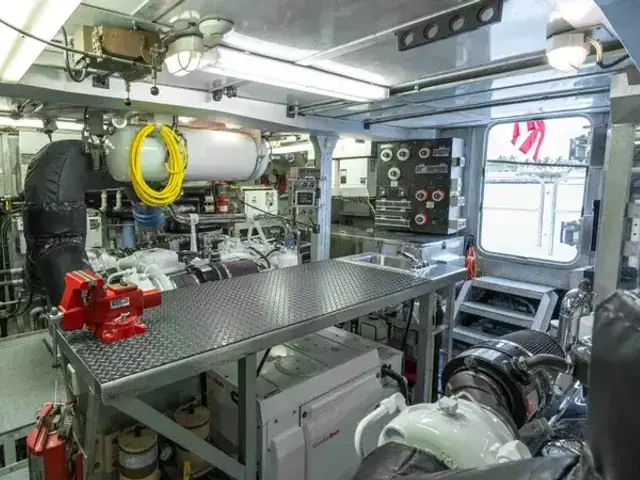

• Install new toolbox in the engine room
• Rebuild watertight aft engine room door and hinges
• Install all new Garmin electronics package and CCTV cameras (see electronics)
• All new LED TVs and sat system

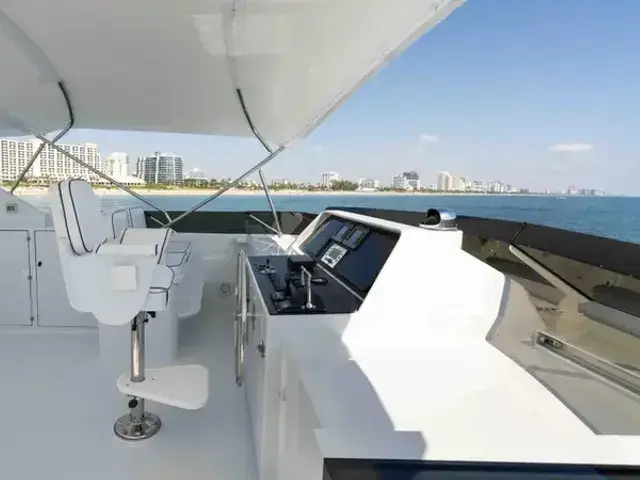

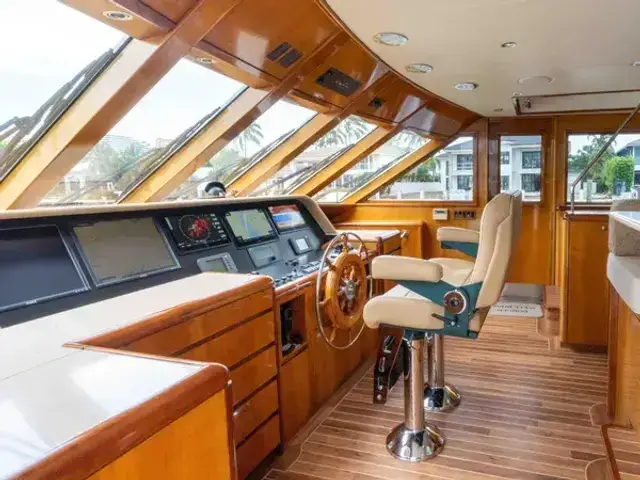

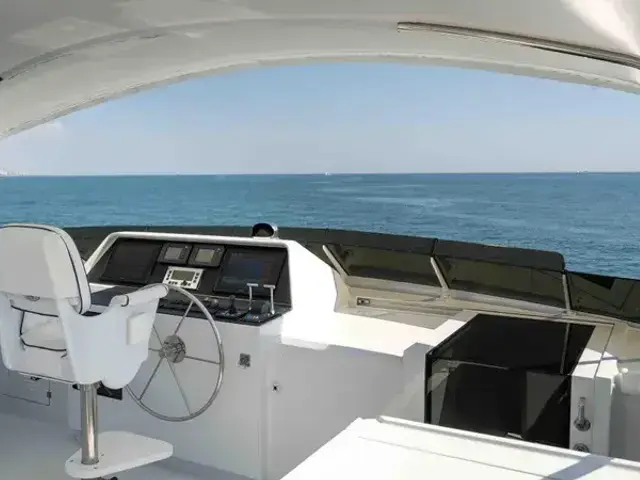

• New custom dash panel fabricated
• Install a freshwater flush system on the main engines and both generators
• Added external sea strainers on pickups

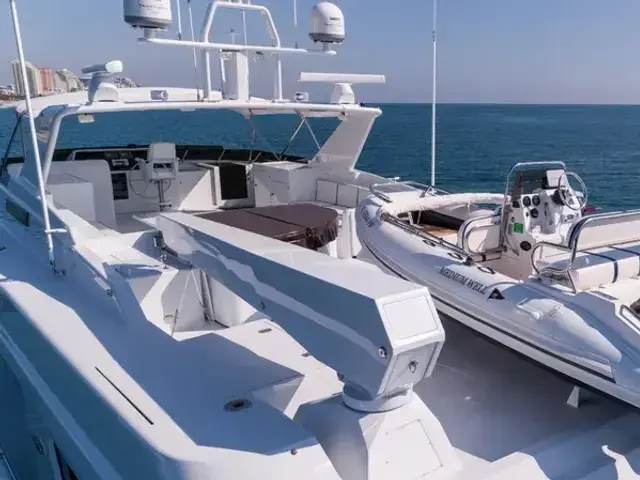

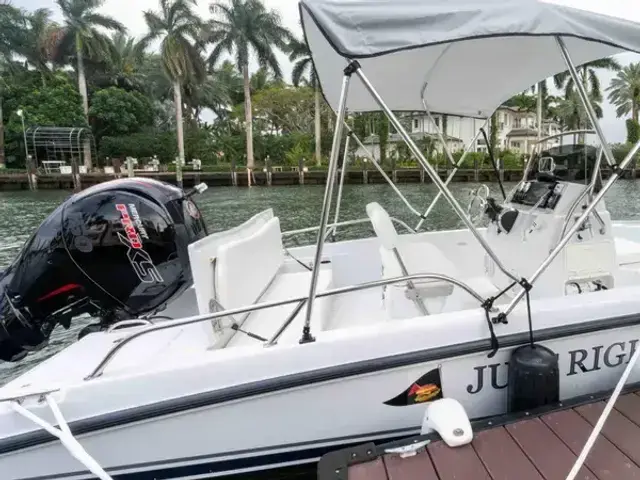

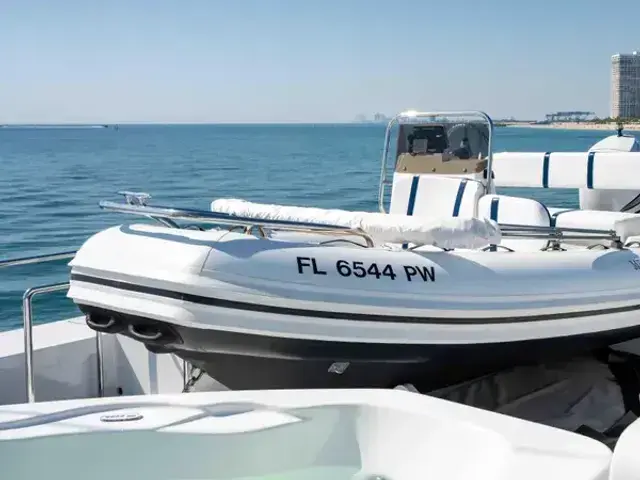

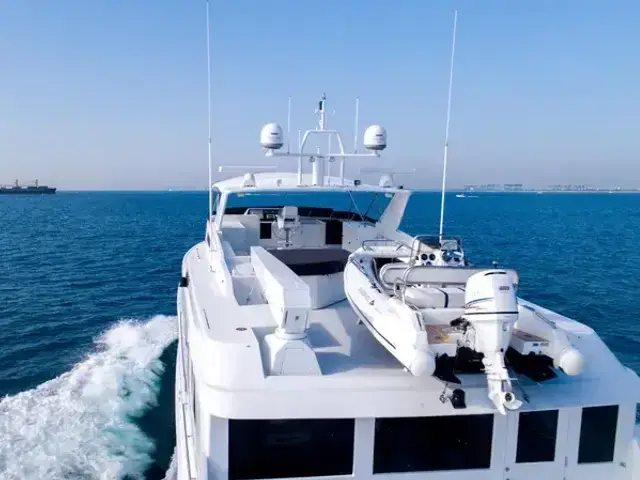

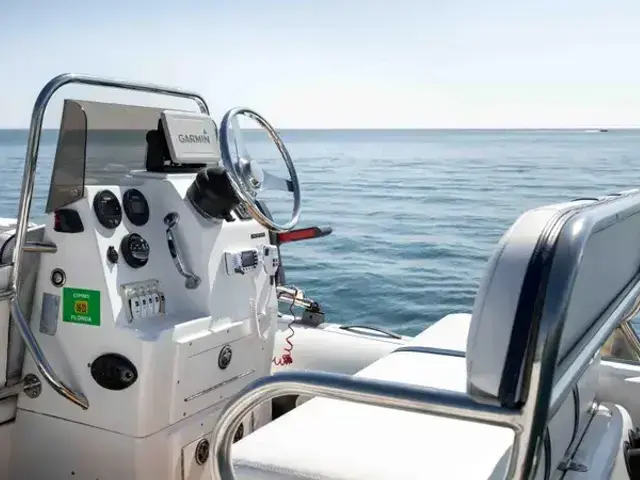

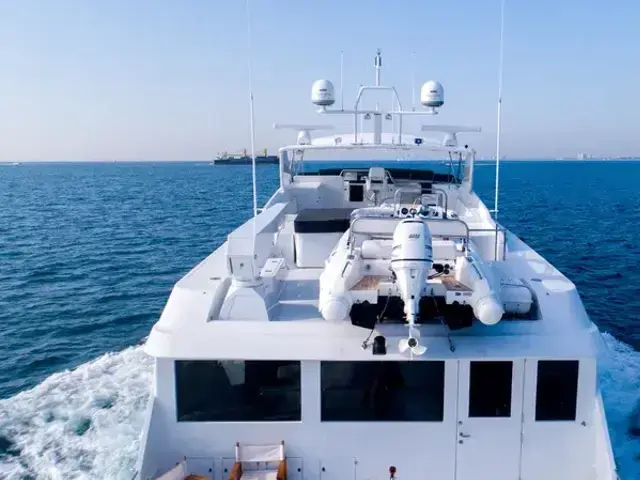

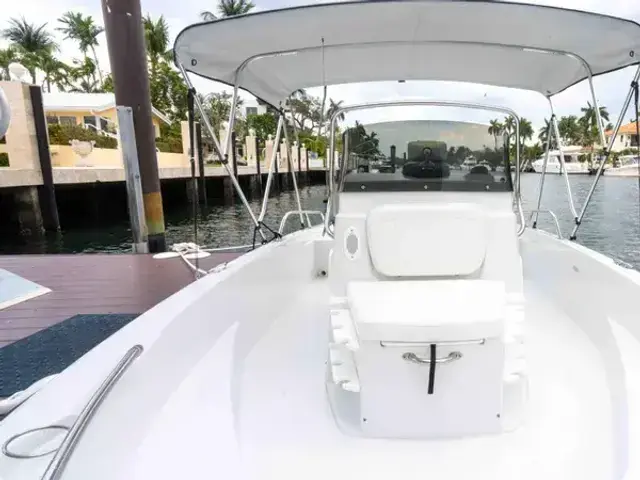

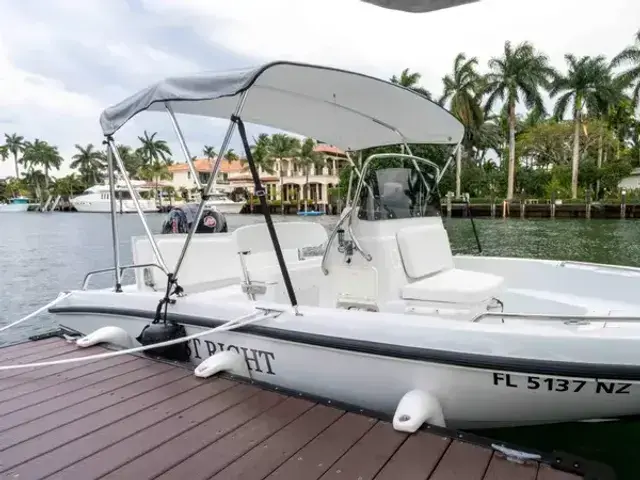

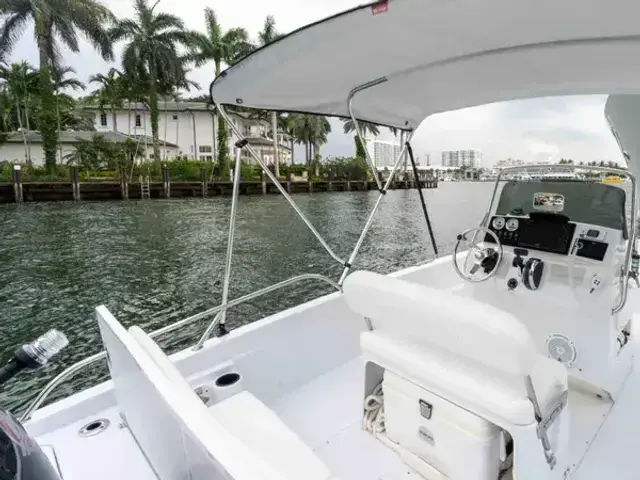

• Installed new tubes and cushions on the 15' Nautica tender and serviced the engine
• Install new underwater lights
• All new running lights

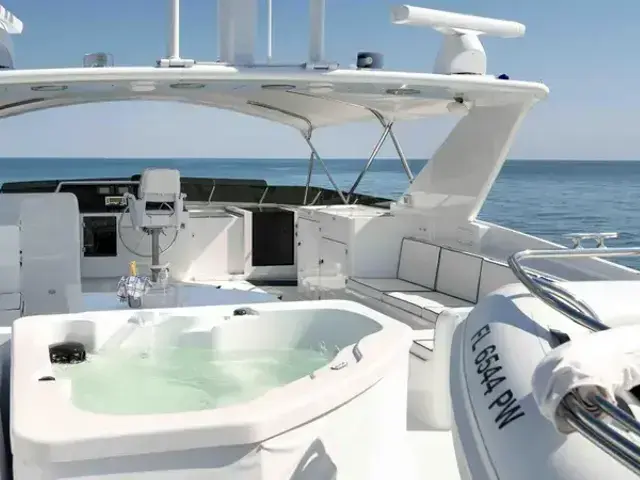

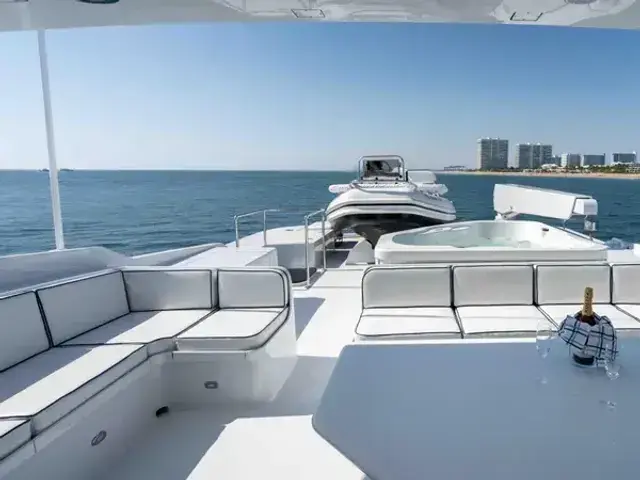

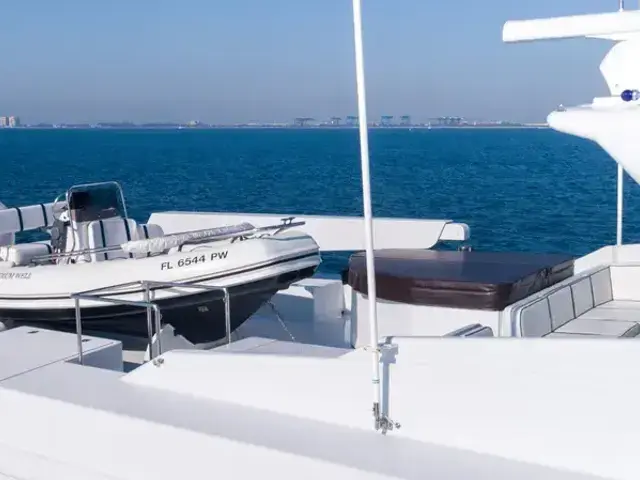

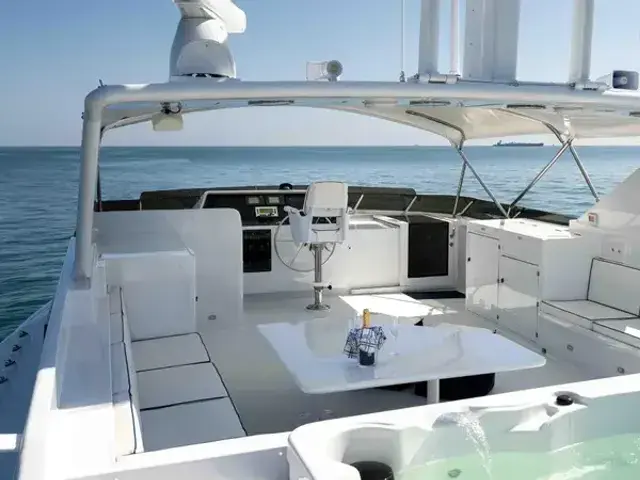

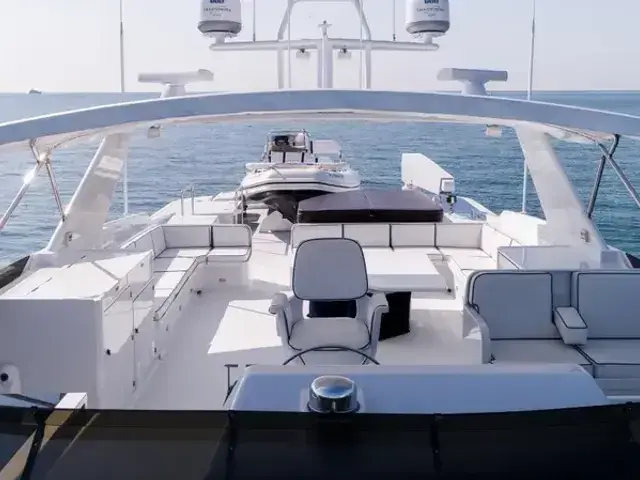

• New Jacuzzi on the flybridge
• Rebuild and service snubbing winches on the aft deck
• New 110' 100 amp shore cord
• Re-certify and service the entire fire system and extinguishers
• Service and certify life rafts
• Rebuild, service, and paint davit
• Fabricated and installed custom handrail for the side companionway decks
• All new toilet seats

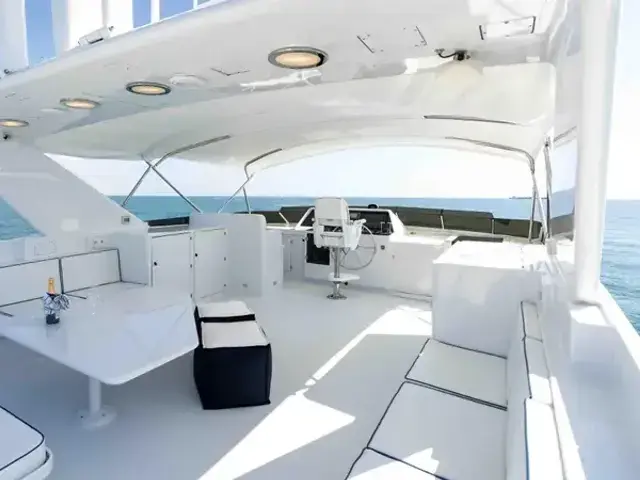

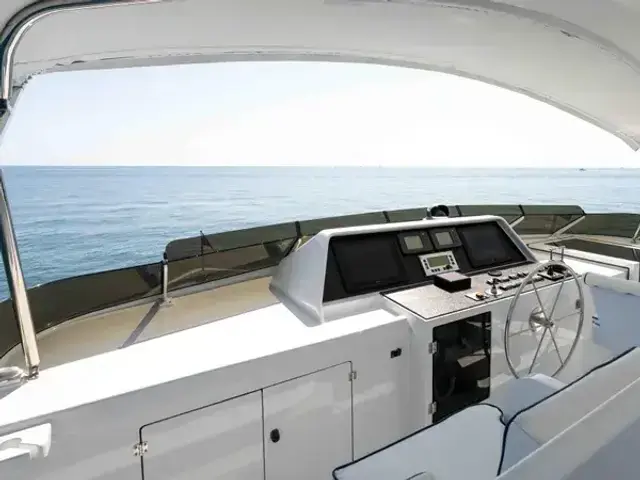

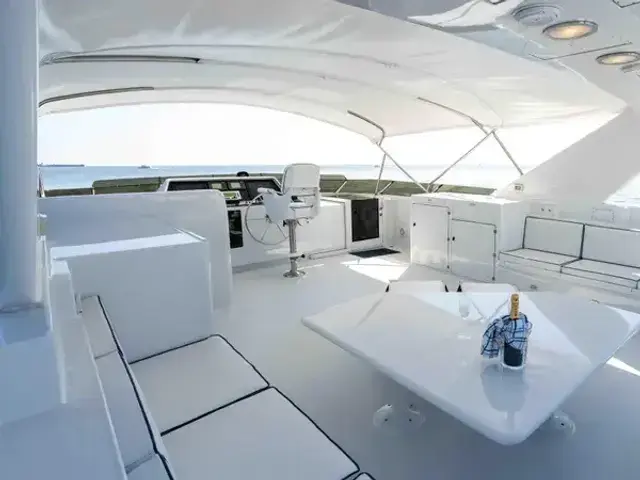

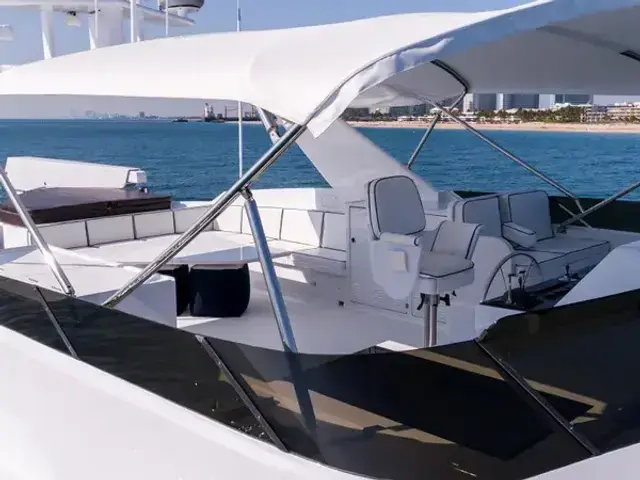

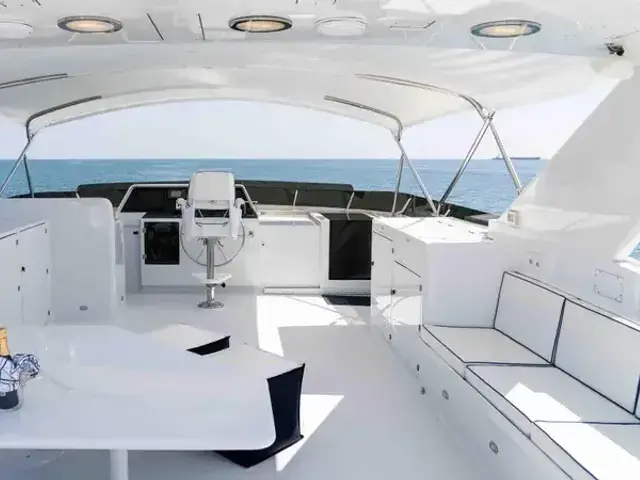

• Fabricate and install new Bimini for flybridge
• New acrylic windshield installed on flybridge

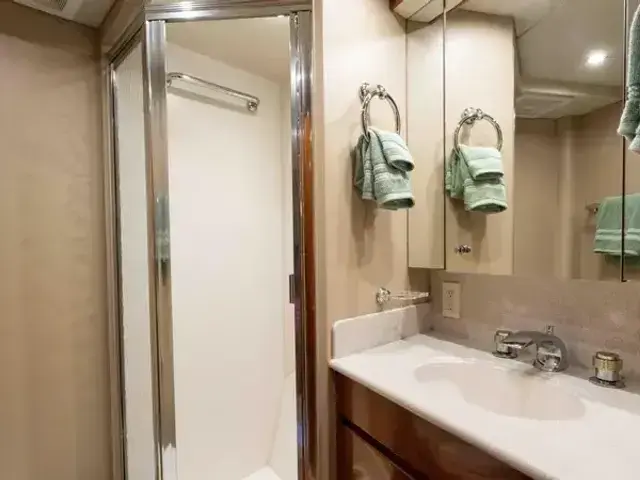

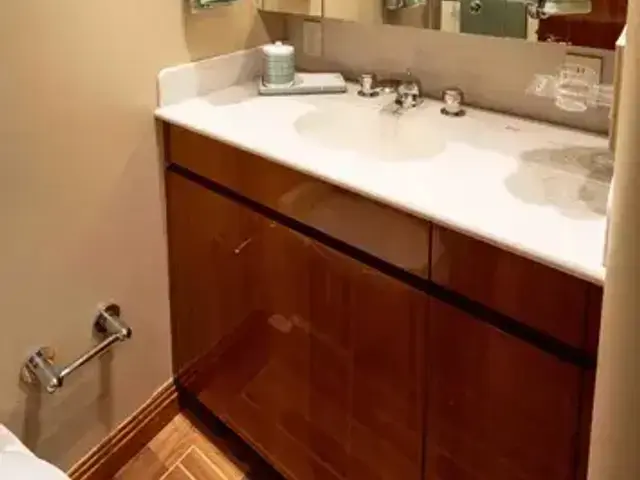

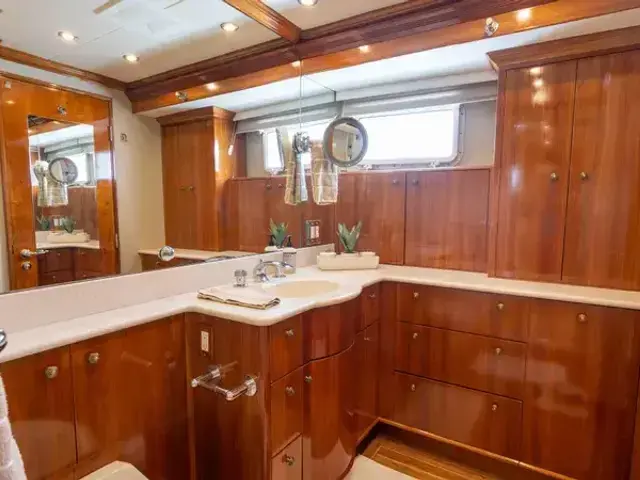

• Bathroom mirrors replaced
• New window treatments
• Custom storage and cabinetry installed where the old TVs were located
• Rebuild aft engine room door
• Engines and generators serviced
• Rebuild hydraulic rams in the arch

Forward Fuel Tank: 1201 U.S. Gallons

Mid Fuel Tank: 1717 U.S. Gallons

Port Aft Fuel Tank: 865 U.S. Gallons

Starboard Aft Fuel Tank: 869 U.S. Gallons

Day Tank: 867 U.S. Gallons

Total Gallons of fuel = 5,519 U.S. Gallons

Waste oil: 50 U.S. Gallons

Clean oil: 70 U.S. Gallons

Freshwater: 782 U.S. Gallons

Grey Water: 280 U.S. Gallons

Black Water: 560 U.S. Gallons

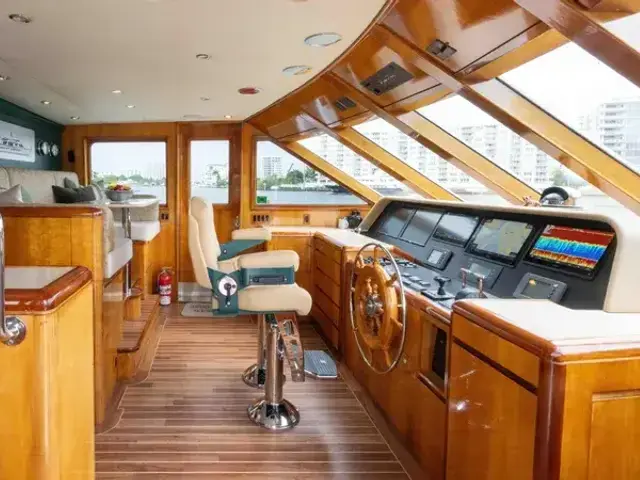

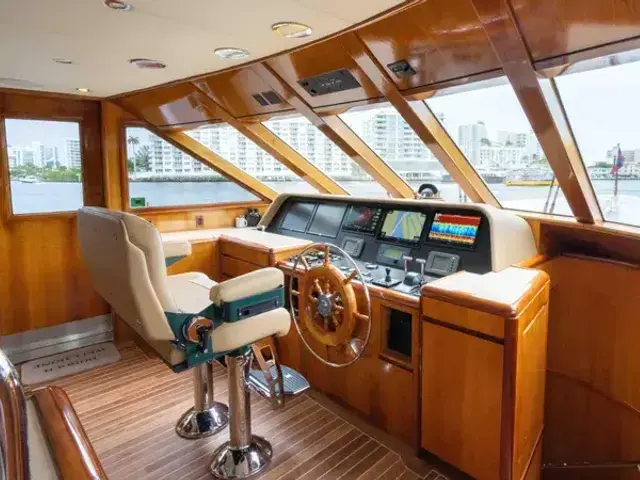

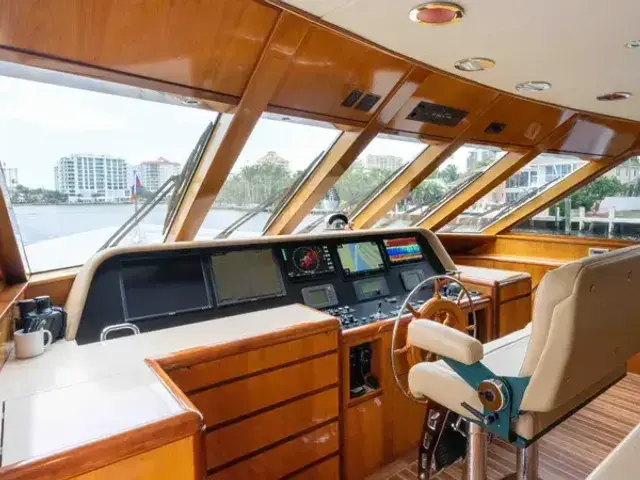

• Garmin 8617 GPSMAP MFD chart plotter
• Garmin 8616xsv GPSMAP MFD chart plotter
• Garmin 8616 GPSMAP MFD chart plotter

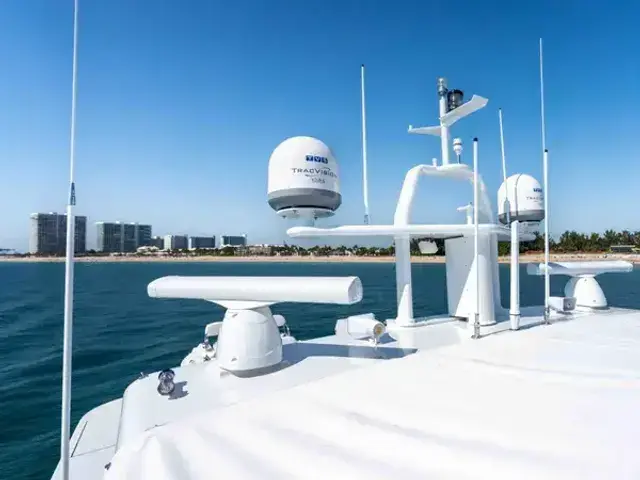

• Garmin 1224 xHD2 Radar and pedestal
• (2) Garmin GMS 10 Network power expanders
• Garmin B60 50/200kHz 20* tilt, 8-pin depth, and temp transducer
• Airmar NMEA 0183 B122 235kHz smartducer long stem bronze
• Actisense QNB-1-PMW NMEA 2000
• Alfatronix 12/24VDC Isolated converter
• Airmar 220WX Weather station
• (2) Actisense NGW-1 NMEA 0183/2000 gateway
• (2) Icom M510 VHF radio
• (2) Icom CTM50011 wireless interface box
• (2) Shakespeare Galaxy 17.6' VHF Antennae
• KVH Tracvision TV5 satellite
• (2) MTZ4040 4MP Pan/Tilt/Zoom Cameras
• (2) Logitech M570 Wireless trackball mouse
• Fanless Industrial PC mini-computer
• Logitech K400 plus wireless keyboard
• TimeZero professional software
• Nobletec Central America & Caribbean chart folio
• Actisense NMEA 2000 to PC USB
• Poynting Omni high gain linear antennae
• Digital 4' AIS antennae
• Digital 4' VHF antennae
• Garmin AIS 600
• Danforth Constellation Compass

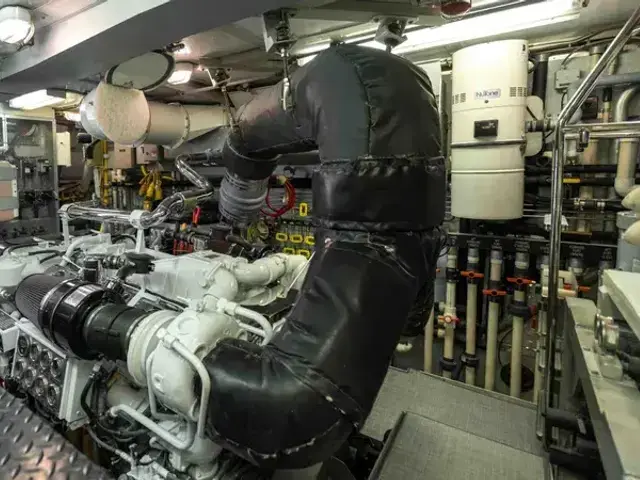

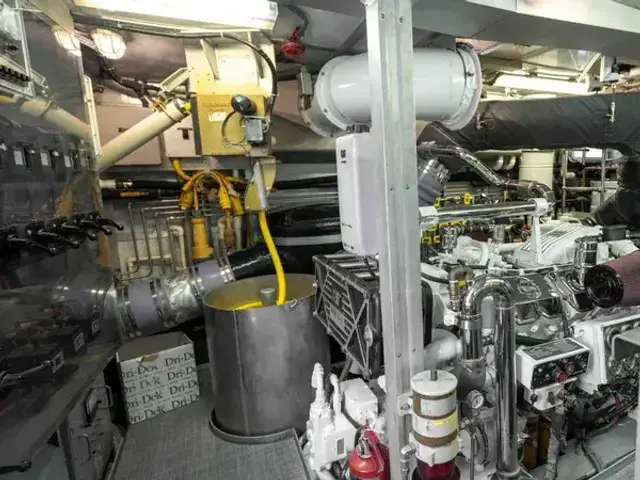

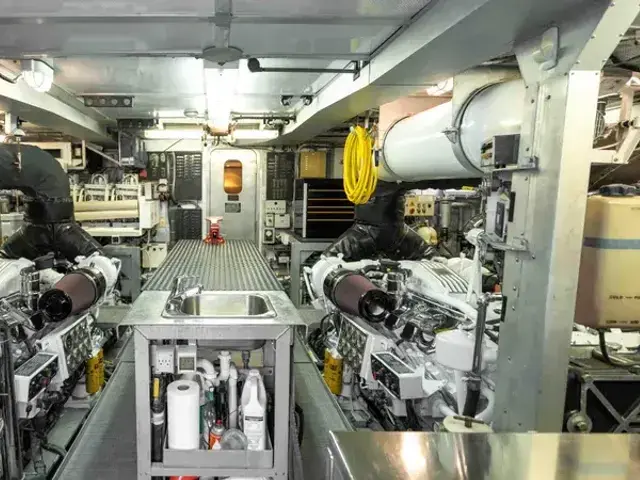

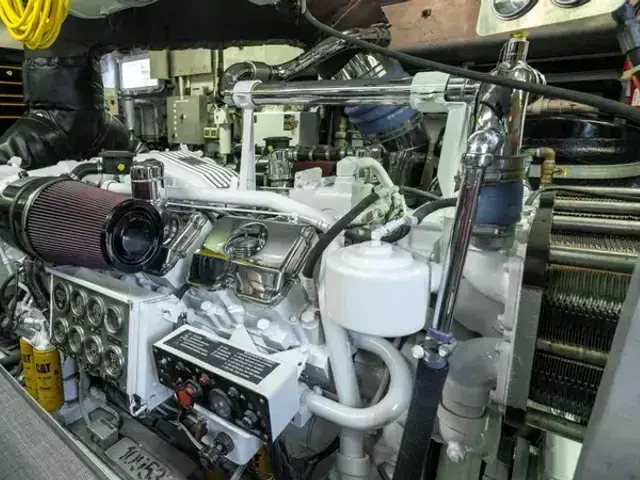

• (2) Caterpillar 3412 DDTA 1400 HP main engines
• ZF BW225V 2.96:1A Transmission gears
• Kilopak 6HKP38/8PF1P 38KW 120/240V 60Hz 1Ph generator

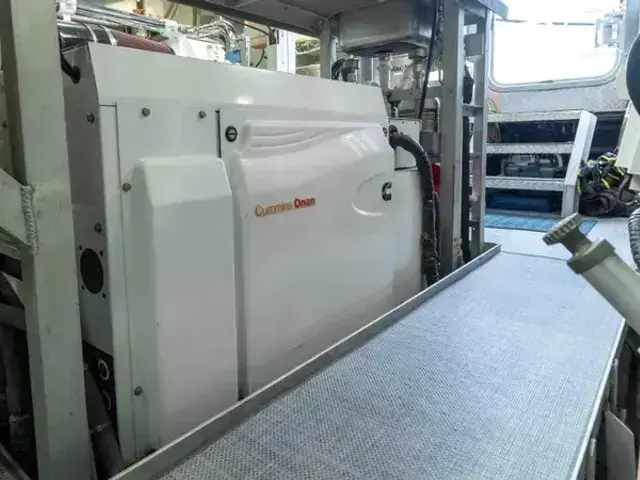

• Cummins Onan 23MDKBV 23KW 120/240V 60Hz 1Ph generator

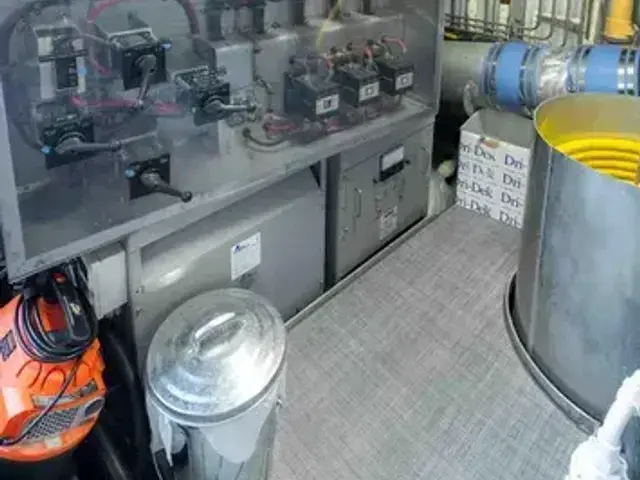

"Well Done" is configured with a 100 amp shore cord running from the aft deck to dockside and (2) 50 amp shore cords running from the bow to dockside, with all cords running to a Main Switch board panel located in the aft engine room that further connects to (5) distribution panels. The aft cord has been replaced and extended to 100'.

• 1X100 Amp aft connection
• 1X100 Amp breaker
• 2X50 Amp forward port and starboard connections
• 2X50 Amp breakers
• 1X100 Amp galvanic isolator
• 1X37.7kVA Acme isolation / boost transformer
• 1X25kVA Staco voltage regulator
• 3 X Glendenning cable reels
• 12/24VDC Battery Banks
• Sentry FR Series 24V 80 Amp battery charger (Engine charger)
• Sentry FR Series 24V 40 Amp battery charger (Generator charger)
• Xantrex 24V 25 Amp battery charger (Bridge electronics charger)
