LOA: 147' 8" (45.00m) Beam: 27' 11" (8.50m) Max Draft: 6' 11" (2.10m) Hull Material: Carbon Composite Hull Config: SemiDisplacement Speed Cruising 20 knots Max 27 knots Location: United Arab Emirates Year: Mfg TBA Builder: Nedship Group Model: Super Sport Yacht 45m Type: Mega Yacht Guests SR/S: 6/12 Crew R/B/S: 8/10/10 Engines Twin, Inboard, Diesel, MTU

Additional Specifications For ACURY SSY 45:
LOA: 147' 8" (45.00m)
Beam: 27' 11" (8.50m)
Max Draft: 6' 11" (2.10m)
Hull Material: Carbon Composite
Hull Config: SemiDisplacement
Hull Designer: Ned Ship Group
Deck Material: Esthec
Tonnage: 500
Range:
Int Designer: TBA
Ext Designer: Ned Ship Group
Fuel Capacity: 80,000 l (21,134 g)
Water Capacity: 9,000 l (2,378 g)
Holding Tank:
Flag: TBA
Location: United Arab Emirates
Price:€ EUR
Year: Mfg TBA
Builder: Nedship Group
Model: Super Sport Yacht 45m
Type: Mega Yacht
Speed: Cruising 20 knots
Max 27 knots
Engines: Twin, Inboard, Diesel, 16V 4000 M93, MTU
Staterooms: 6
Sleeps: 12
Heads: 6
Crew
Quarters:
8
Crew Berths: 10
Captain Cabin: Yes
Classifications:
MCA: No ISM: No

General description

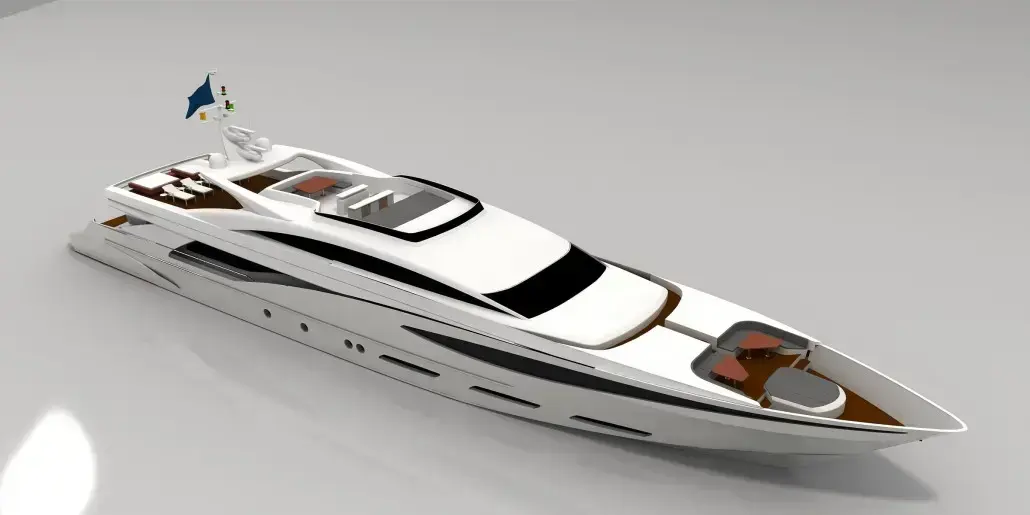

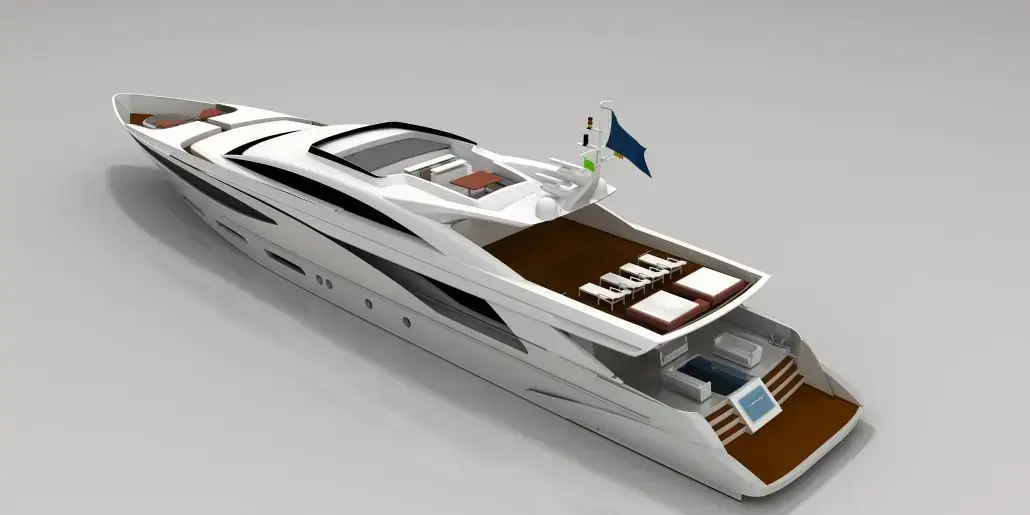

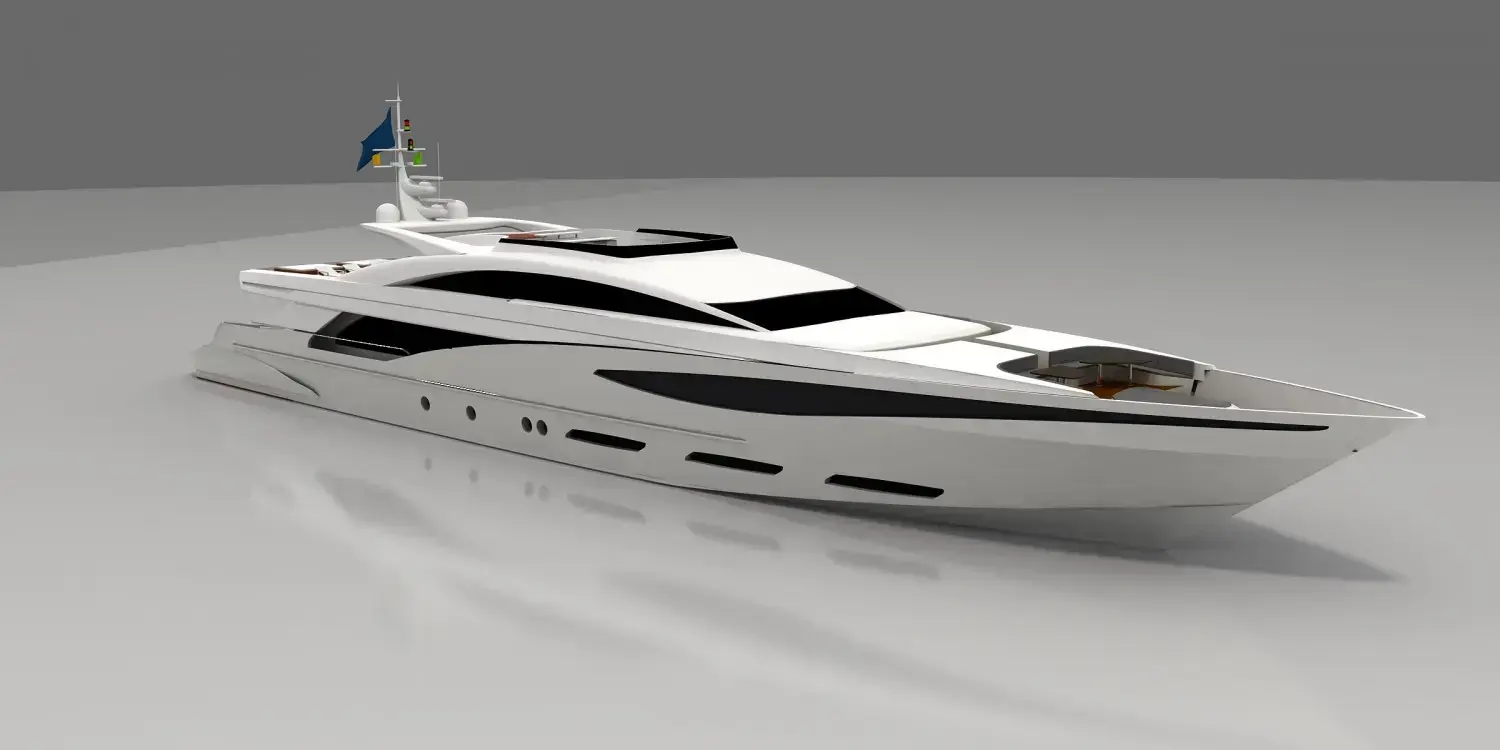

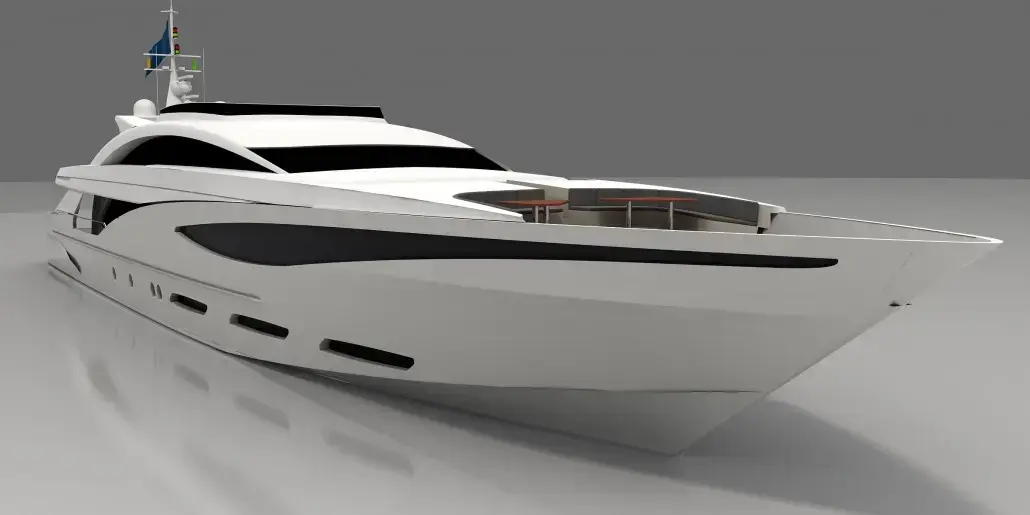

ACURY SSY 45
The Super Sport Yacht with 45m with ultimate technology
INTRODUCTION
The concept of this yacht is to deliver the ultimate technology and comfort blended to the luxury that is expected
from the best European yachts.
The yacht will be built the most advanced composite materials. The basic structures will be in aeronautical
carbons built under vacuum and or infusion.
The opening of balconies and doors will be foreseen at maximum allowances that the class will allow and is
within correct perimeters of the design.
The mechanical and electrical engineering of the yacht will be to latest European standards of the highest quality
yachts with full integrated electronics and safety systems that have been approved at the time of their.
Installations navigation electronics will be Furuno integrated navigation bridge system
The interiors will designed and presented according to the owners desires and will be each time presented to
the owner for his approval before fitted on the yacht.
All values below are to set a basic standard goal for the yacht and are to be solidified throughout the construction
of the yacht in accordance with the owner and limitations brought forth from the classification society, the
engineers and the designers of the project.
To achieve a quality yacht of proper marine practice and in accordance with owner’s expectations, at the budget
allowed, will be the essential agreement for the yacht.
Type of vessel: Twin screw motor yacht
Type of hull: Semi displacement
Hull material: CarbonEglass
epoxy composite sandwich and Kevlar Reinforcement

We even are able to support and assist You to finance Your ideas and special dream project .
ACURY TEAM
